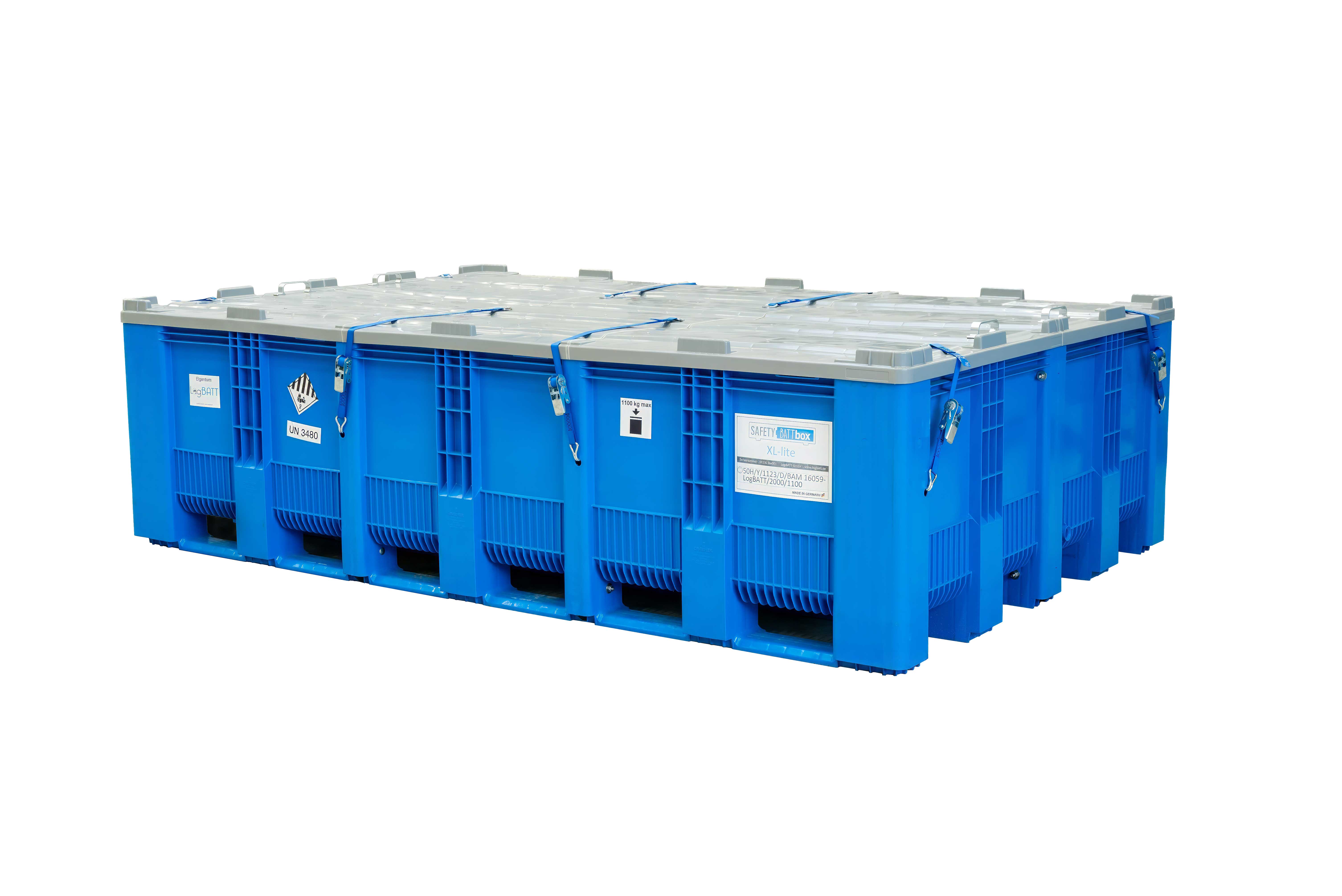

LogBatt SafetyBATTbox XL lite
Transport and storage containers for Li-ion batteries
- Article no: LOGSBBXLL
Questions about the article?
Our staff member Petra Fürbeck is happy to help you:
+49 (0) 7151 - 256 4817 or info@lion-care.com
| max. gross weight (kg): | 1 100 |
| max. net dangerous goods mass (kg): | 900 |
| Empty weight (kg): | 200 |
| Max. Battery size (mm): | 2 670 x 1 570 x 550 |
| Material designation: | Plastic |
| Packaging group: | II |
| Packaging instructions according to ADR: | LP 903, LP 904, LP 905 |
| ADR special regulation: | SV 376 |
| UN packaging code: | 50H/Y/.. ../D/BAM 16059-LogBATT/2000/1100 |
| Areas of application: | Prototypes, Workshop, Automotive |
| External dimensions (mm): | 1 863 x 847 x 2 964.5 |
| Internal dimensions (mm): | 2 870 x 1 770 x 595 |
1. Brief overview
The SafetyBATTbox XL lite offers a safe and certified solution for the transportation and storage of defective lithium-ion batteries in accordance with the applicable dangerous goods and safety regulations.
It is specially designed for batteries with UN numbers 3480 and 3481 and meets the requirements of the ADR special regulations, the BAM specification and the relevant packaging instructions.
2. Scope of delivery
The scope of delivery includes the following:
- SafetyBATTbox XL lite
- 1 x LogCOVER size XL lite (fire protection blanket with the dimensions: 5,700 x 4,400 x 20 mm)
3. Areas of application & operating conditions
The SafetyBATTbox XL l ite is suitable for:
- Transport and storage of lithium batteries in undamaged or defective condition
- Suitable for use in the automotive environment, in workshops, in industrial companies, etc
- Use in service companies, retail, logistics and as a stationary safety container
4. Technical data SafetyBATTbox XL lite
|
External dimensions (L x W x H) |
2,964.5 x 1,863 x 847 mm |
|
Internal dimensions (L x W x H) |
2 870 x 1 770 x 595 mm |
|
Usable dimensions (L x W x H) |
2 670 x 1 570 x 550 mm |
|
Max. Payload |
900 kg |
|
Unladen weight |
approx. 200 kg |
|
Max. Gross mass |
1 100 kg |
5. Approvals & safety features
- Packaging group 2: Type-tested and 50H/Y-coded, certified by BAM.
- Packaging instructions: LP903, LP904, LP905
- ADR special regulations: SV 376
- UN-certified dangerous goods packaging no. 3480 and 3481
6. Filling materials

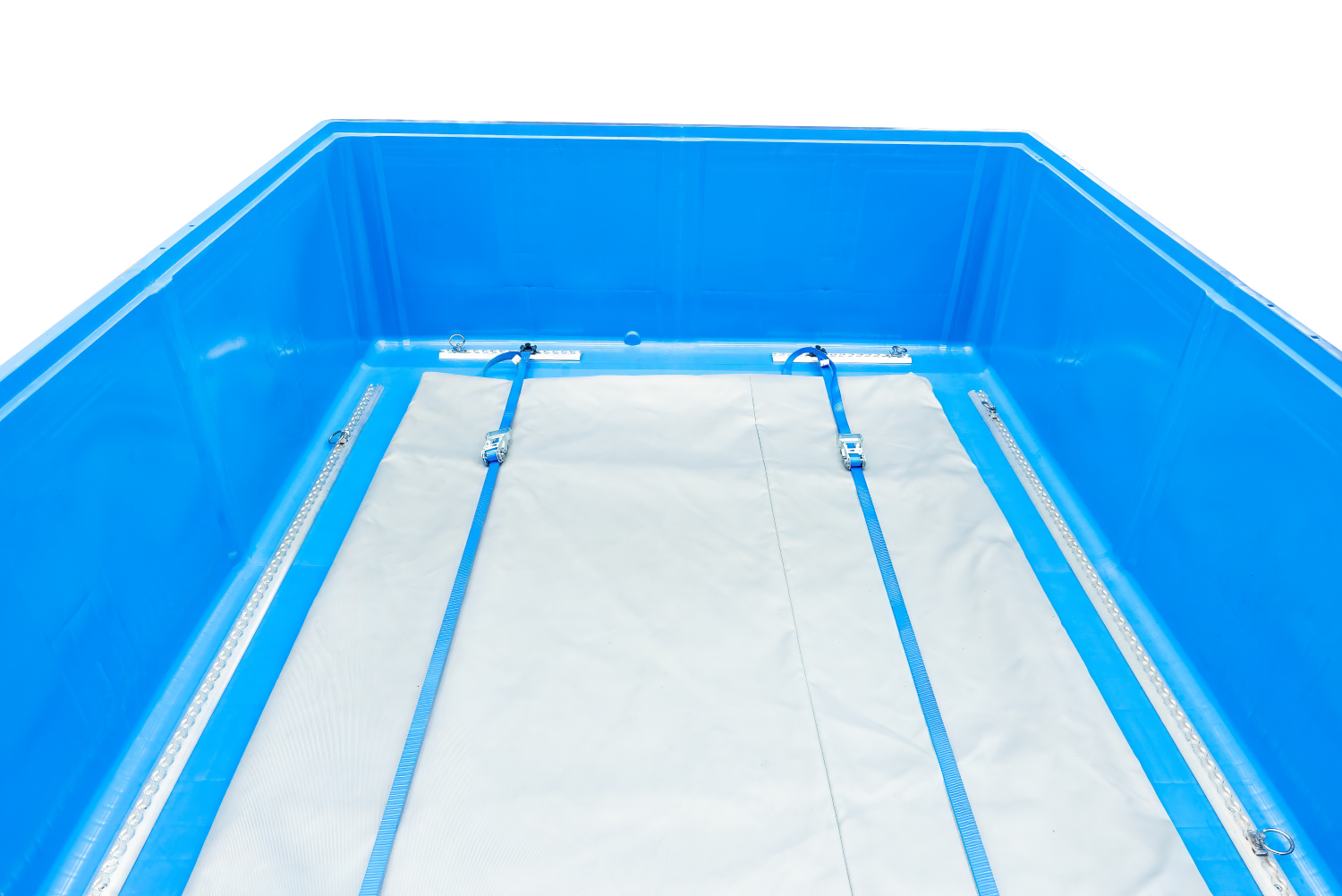

- logCOVER XL lite fire blanket
7. Instructions for use & operation
- Simple and quick packaging possible with LogCOVER

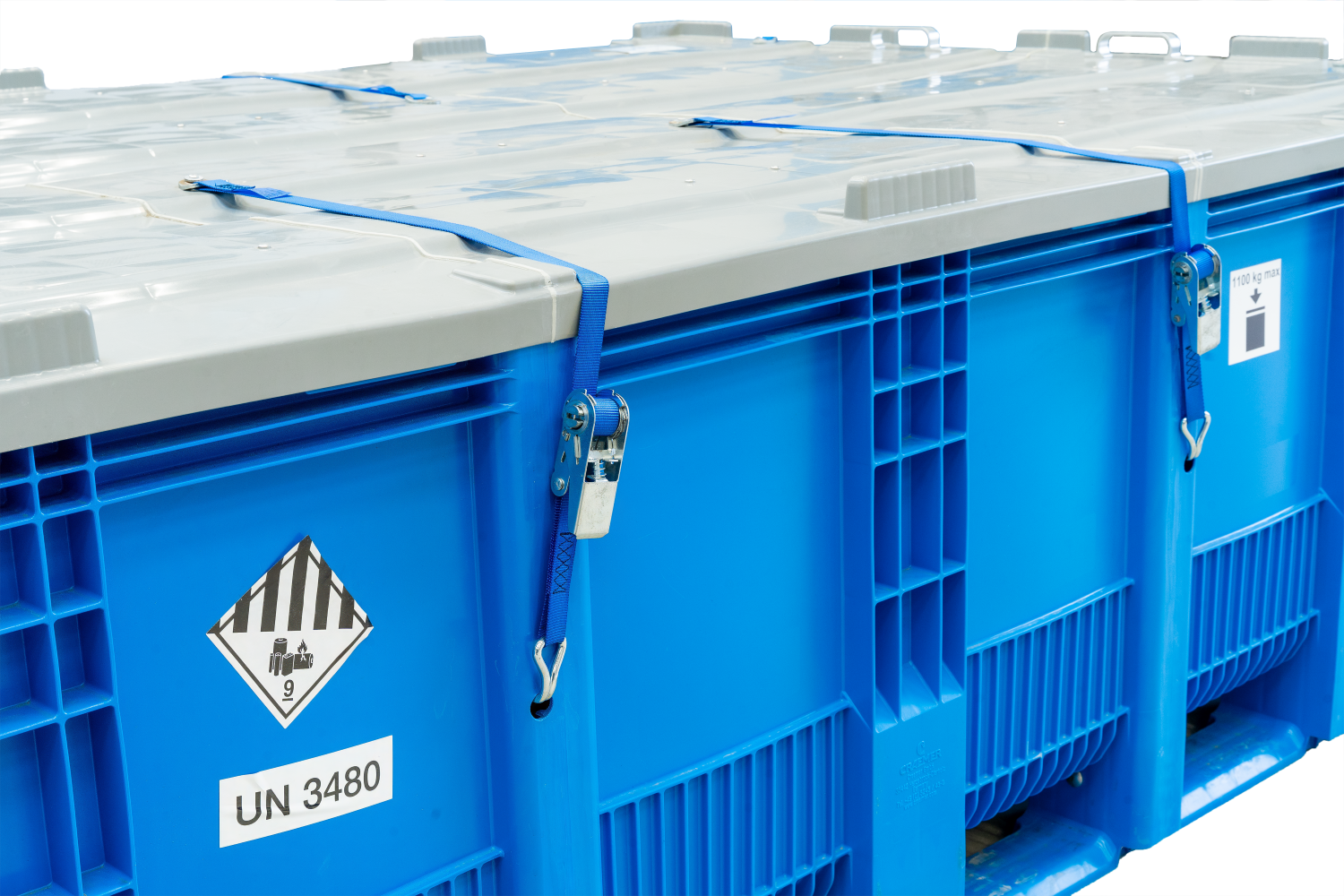

- Closure via tension straps
- Carrying handles facilitate manual handling
- Use by trained personnel recommended
- Do not reuse damaged boxes or straps
8. Variants/model overview of TRANSPORT containers
|
Feature |
S-1 lite |
S-1 |
XL lite |
|
Suitable for |
defective lithium-ion batteries |
defective and critically defective lithium-ion batteries |
defective lithium-ion batteries |
|
External dimensions (L x W x H) |
600 × 400 × 340 mm |
600 × 400 × 340 mm |
2,964.5 x 1,863 x 847 mm |
|
Internal dimensions (L x W x H) |
560 x 360 x 315 mm |
480 × 280 × 180 mm |
2 870 x 1 770 x 595 mm |
|
Usable dimensions (L x W x H) |
480 x 280 x 160 mm |
480 × 280 × 140 mm |
2 670 x 1 570 x 550 mm |
|
Max. Load capacity |
15 kg |
10 kg |
900 kg |
|
Unladen weight |
approx. 8 kg |
approx. 9 kg |
approx. 200 kg |
|
Max. Gross weight |
25 kg |
21.25 kg |
1 100 kg |
|
Accessories |
2 x LogBAG S |
1 x LogBAG M + 1 x LogBAG L |
1 x LogCOVER XL-lite |
9. Future-oriented
Lithium-ion batteries are increasingly being used in industrial applications. The SafetyBATTbox XL lite is a compact and flexible solution for the transportation and storage of lithium-ion batteries.
10. In use for you
If you have any questions, please do not hesitate to contact us. We look forward to hearing from you!
| max. gross weight (kg): | 1 100 |
| max. net dangerous goods mass (kg): | 900 |
| Type: | Transport box |
| Coding: | 50H |
| Type of packaging: | Large hazardous goods packaging (LP) |
| Suitable for critically defective?: | No |
| Empty weight (kg): | 200 |
| Max. Battery size (mm): | 2 670 x 1 570 x 550 |
| Material designation: | Plastic |
| Packaging group: | II |
| Packaging instructions according to ADR: | LP 903, LP 904, LP 905 |
| ADR special regulation: | SV 376 |
| UN packaging code: | 50H/Y/.. ../D/BAM 16059-LogBATT/2000/1100 |
| Areas of application: | Prototypes, Workshop, Automotive |
| External dimensions (mm): | 1 863 x 847 x 2 964.5 |
| Internal dimensions (mm): | 2 870 x 1 770 x 595 |
