Fingerhuth Fire Containment Blanket / Fire Blanket S-TYPE Vehicle 6 x 8 m Fire blanket for motor vehicles
- Dimensions: 6,000 x 8,000 mm
- Heat resistance: 1,600°C (short-term), 1,200°C (long-term)
- Includes PVC insert pocket
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Dimensions (mm): | 6,000 x 8,000 |
|---|---|
| Heat resistance (permanent) ° C: | 1,200 |
| Heat resistance (short-term) ° C: | 1 600 |
| Material: | Silica fabric |
| Suitable for: | Car, Small vehicles |
Product information „Fingerhuth fire containment blanket / extinguishing blanket S-TYPE vehicle 6 x 8 m“
1. Brief Overview
The Fingerhuth fire containment blanket S-TYPE VEHICLE (hereinafter also referred to synonymously as a fire extinguishing blanket or fire protection blanket) is designed for covering damaged or burning devices with lithium-ion batteries. Its purpose is to isolate flames under the blanket as effectively as possible, reduce the temperature, and limit explosions under the blanket.
Fires involving lithium-ion batteries present a particular challenge, as conventional fire extinguishers often reach their limits here. The S-TYPE fire containment blanket offers a simple, quickly deployable way to enclose a fire source and thus protect the surrounding area.
Please note: In general usage, the term “fire blanket” is often used. Technically, this is a fire containment or fire protection blanket – the fire is primarily contained, not actively extinguished.
2. Areas of Application & Operating Conditions
-
Fire containment and enclosure of fires or fire sources involving lithium-ion batteries
-
Suitable, among other things, for:
-
Motor vehicles and lithium-ion batteries
- Areas of use: e.g. auto repair shops, garages, charging stations, and warehouse logistics
-
-
Use as a heat shield and for the controlled containment of battery fires:
-
Containment of flames
-
Limitation of the surrounding temperature
-
Note on the standard situation (“fire blanket”):
The European standard DIN EN 1869:2019-10 refers to fire blankets for grease and cooking oil fires (deep-frying fats up to 3 l). The fire containment hood PREMIUM offered here is not certified according to this standard and is not intended for cooking oil and cooking fat fires. Its intended use is the containment or limitation of Li-ion battery fires.
3. Technical Data
3.1 Material & Structure
- Fabric: silicate fabric
- Coating: vermiculite coating
- Non-combustible
- High-frequency permeable so as not to interfere with emergency signals
3.2 Temperature Resistance
- Short-term temperature resistance: up to 1,600 °C
- Long-term temperature resistance: 1,200 °C
4. Approvals & Safety Features
- Compliant with DIN SPEC 91489 (fire containment blankets for lithium-ion batteries)
- Non-combustible according to DIN EN 13501 (A2)
- High electrical resistance (DIN 54345-1)
5. Instructions for Use & Operation
Basic principle of application:
- The blanket is unfolded using the handles and carefully placed over the burning or endangered object by 2 people
- Depending on the fire load, the fire is usually smothered or significantly contained within a short time
- To support sufficient cooling (below approx. 100 °C), the blanket should remain on the object for as long as possible
Important notes:
- After removing the blanket, check that no re-ignition occurs – even individual battery cells may react again after a delay
- If possible, always use personal protective equipment (PPE)
- In the event of fires, the fire brigade should always be called in
Storage / Keeping:

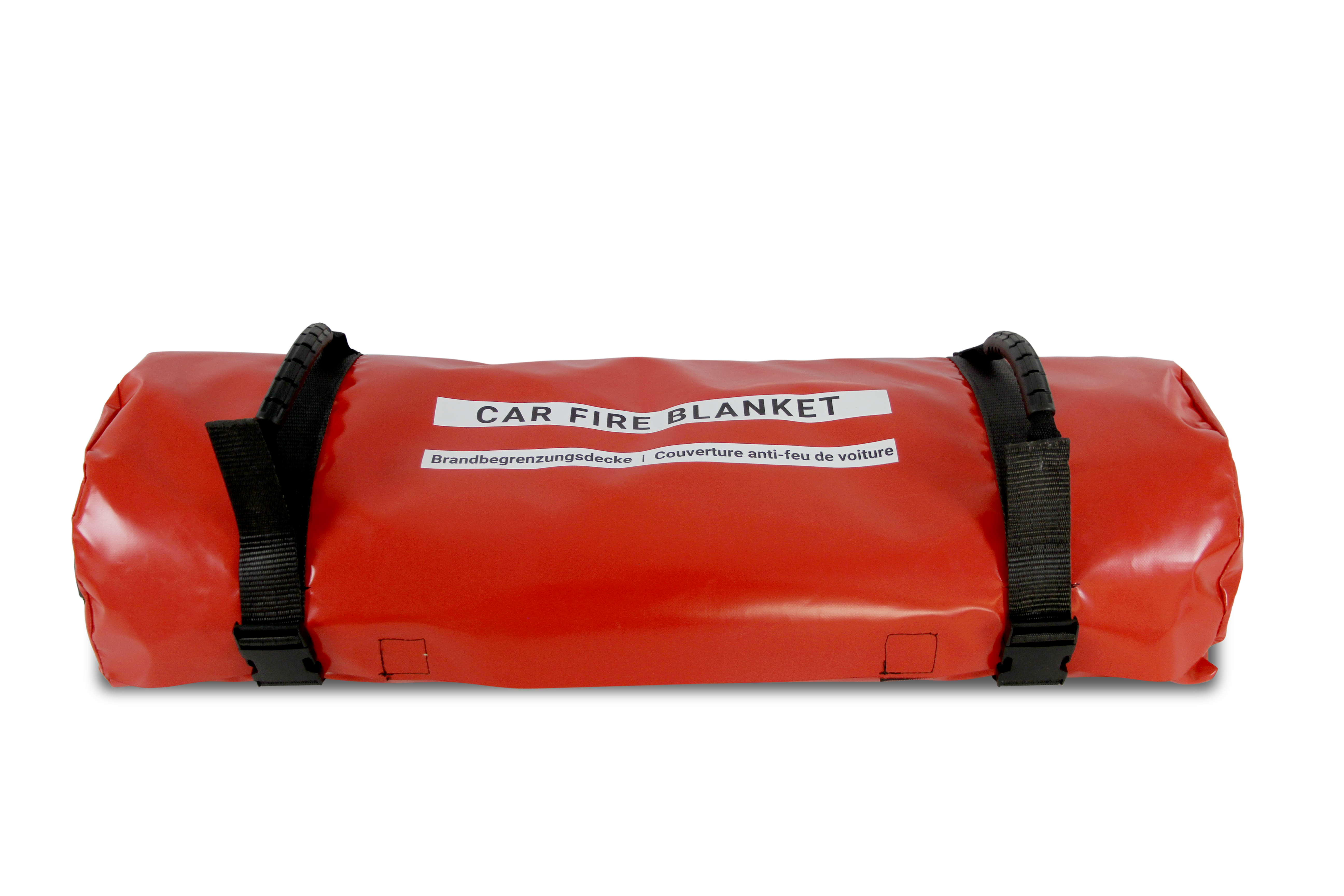

- Store the blanket in the trolley or in a PVC insert bag
- Store in a dry place; do not place any loads directly on the blanket
6. Conclusion
The S-TYPE fire containment blanket is designed for the enclosure and containment of fires related to lithium-ion batteries. Thanks to its heat-resistant silicate fabric with vermiculite coating, tested temperature resistance, and electrical insulating effect, it supports controlled burn-off behavior.
7. At Your Service
If you have any questions, please feel free to contact us. We look forward to hearing from you.
| Dimensions (mm): | 6,000 x 8,000 |
|---|---|
| Heat resistance (permanent) ° C: | 1,200 |
| Heat resistance (short-term) ° C: | 1 600 |
| Material: | Silica fabric |
| Suitable for: | Car, Small vehicles |
