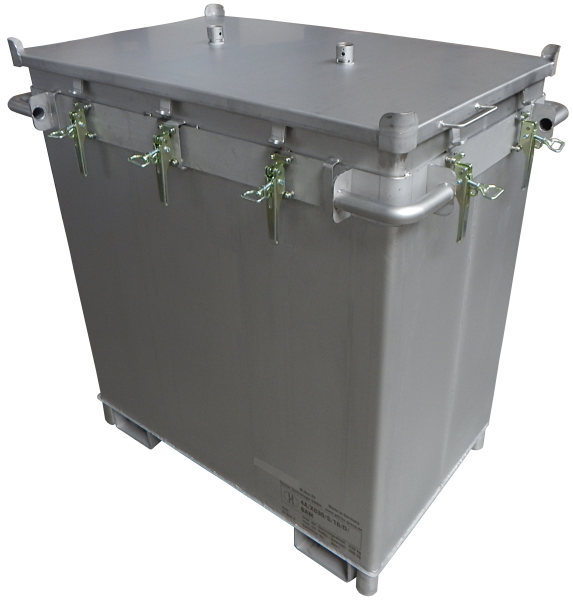

Genius Lio Guard transport box Stainless steel container for lithium-ion batteries
- Also for critically defective batteries
- Available in 6 sizes
- Including PyroBubbles
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| ADR special provision: | SV 310, SV 376, SV 377 |
|---|---|
| Areas of application: | Disposal, Prototypes, Transport of batteries |
| Battery status: | New, Defective, Critically defective |
| Encoding: | 4A |
| Filling material: | PyroBubbles® |
| Handling of filling materials: | bulk material |
| Internal dimensions (mm): | 1 076 x 676 x 1 100 |
| Material: | Stainless steel |
| Max. battery size (mm): | approximately 776 x 376 x 800 |
| Max. energy density (kWh): | 14 |
| Max. gross weight (kg): | 701 |
| Max. net cargo mass (kg): | 400 |
| Outer dimensions (mm): | 1 200 x 800 x 1 303 |
| Packaging group: | I |
| Packaging instruction according to ADR: | P 903, P 908, P 909, P 910, P 911 |
| Suitable for critically defective?: | Yes |
| Tipping weight (kg): | 141 |
| UN packaging code: | UN 4A/X701/S/../D/BAM15717-GENIUS1 |
| Volume (l): | 800 |
Product information „Genius Lio Guard transport box “
1. Overview
The GENIUS Lio Guard transport boxes have been developed for the safe transport and storage of damaged, faulty and critically faulty lithium-ion batteries. The product range comprises various container sizes made from stainless steel (E Series) and galvanised steel (B Series), offering suitable solutions for everything from small rechargeable batteries to large battery systems and battery modules.
The steel boxes comply with current requirements for the transport of dangerous goods and are designed for lithium batteries in accordance with UN 3090, UN 3091, UN 3480 and UN 3481. In conjunction with the integrated fire protection concept based on PyroBubbles ® Premium, they help to limit the effects of thermal runaway and enable safe transport and safe temporary storage.
Depending on the application, single-walled and double-walled versions as well as various sizes are available. All systems are reusable, stackable and designed for professional use in industry, workshops, logistics and recycling. The robust steel construction ensures high mechanical strength and a long service life.
2. Scope of delivery
Steel box made of stainless steel (E-Series) or galvanised steel (B-Series)
- Lid system

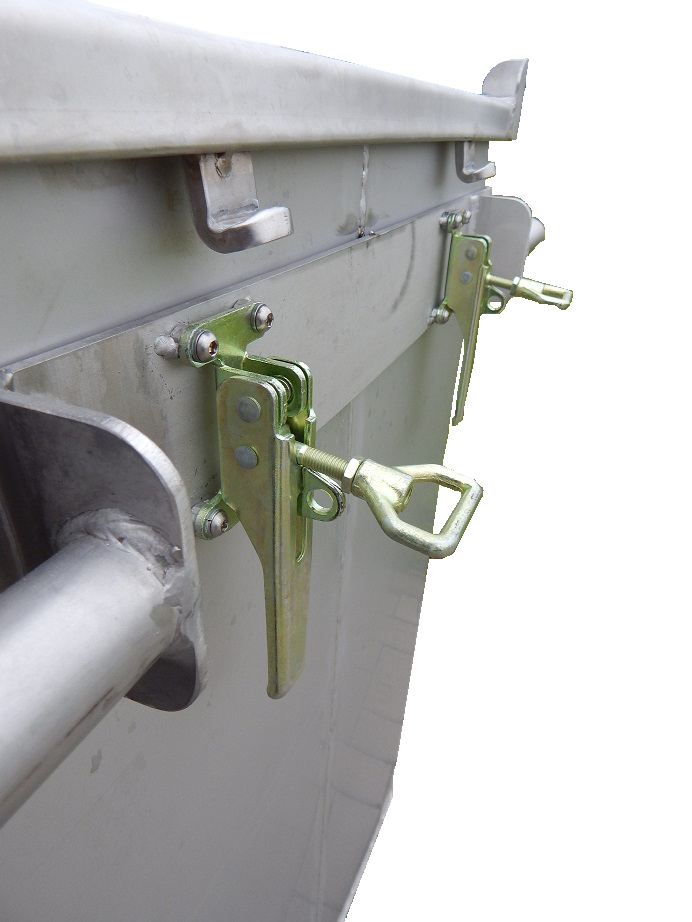

- Locking system
- PyroBubbles ® Premium extinguishing and filling material (depending on model)
The exact contents of the delivery depend on the specific product variant.
3. Technical data
(depending on model)
- Material: stainless steel or galvanised steel
- Design: steel container for transport and storage
- Sizes: S, M, L and XXL
- Stackable
- Reusable returnable system
4. Areas of application
The GENIUS steel boxes are particularly suitable for:Critically defective lithium-ion batteries
- Damaged but stable lithium batteries
- Battery modules and battery systems
- High-voltagebatteries
- Batteries from electric vehicles
- Energy storage
- E-bike batteries
- Power tool batteries
- Lithium cells
- Research and development
- Workshops and service centres
- Industry and production
- Battery manufacturers
- Recycling and waste management companies
- Dangerous goods logistics
5. Approvals / Standards
The steel boxes have the necessary type approvals for the transport of dangerous goods and comply with the requirements of the relevant international transport regulations.
Suitable for:
- ADR
- RID
- IMDG
- ICAO (depending on model)
- UN 3090, UN 3091, UN 3480, UN 3481
Approved in accordance with:
- P903, P908, P909, P910 and P911
- LP903, LP904, LP905 and LP906
6. Notes
The steel boxes are intended for the professional handling of damaged and critically defective lithium-ion batteries.
Depending on the condition of the battery and transport regulations, the use of the specified PyroBubbles ® Premium filling and extinguishing material is required. This provides thermal insulation, secures the cargo during transport and helps to limit thermal runaway. The product must be used in accordance with the applicable dangerous goods regulations and the relevant operating instructions.
7. Conclusion
The GENIUS steel boxes offer a standard-compliant solution for the safe transport and temporary storage of lithium-ion batteries of various sizes and in different states of charge. With a choice of stainless steel or galvanised steel containers, various sizes and dangerous goods approvals, the product range can be flexibly integrated into existing logistics, service and safety concepts. The reusable design and reusability also support long-term and cost-effective use in professional environments.
| ADR special provision: | SV 310, SV 376, SV 377 |
|---|---|
| Areas of application: | Disposal, Prototypes, Transport of batteries |
| Battery status: | New, Defective, Critically defective |
| Encoding: | 4A |
| Filling material: | PyroBubbles® |
| Handling of filling materials: | bulk material |
| Internal dimensions (mm): | 1 076 x 676 x 1 100 |
| Material: | Stainless steel |
| Max. battery size (mm): | approximately 776 x 376 x 800 |
| Max. energy density (kWh): | 14 |
| Max. gross weight (kg): | 701 |
| Max. net cargo mass (kg): | 400 |
| Outer dimensions (mm): | 1 200 x 800 x 1 303 |
| Packaging group: | I |
| Packaging instruction according to ADR: | P 903, P 908, P 909, P 910, P 911 |
| Suitable for critically defective?: | Yes |
| Tipping weight (kg): | 141 |
| UN packaging code: | UN 4A/X701/S/../D/BAM15717-GENIUS1 |
| Volume (l): | 800 |
