SEDA HV BAT-Box Transport box for lithium-ion batteries / lithium-ion rechargeable batteries

€33,500.00 *

plus VAT.
Please note: Notes on delivery time

Free shipping (Germany, mainland)!

Shippingtime: approx. 8 Wo.

Filling material:

  • SEDVG1HVBATT
Any Questions?
Our employee Ingo Jüstel will be happy to assist you:
+49 7151 - 2564811 or  info@lion-care.com
SEDA HV BAT-Box - Immediate hazard prevention for conspicuous lithium batteries Vehicles... more
"SEDA HV BAT-Box Transport box for lithium-ion batteries / lithium-ion rechargeable batteries"
max. gross mass: 3235 kg
Handling the filling material: Filling material in cushions
Empty weight: 2.235 kg
Material: Steel (galvanized)
Packaging instructions according to ADR: LP 906
ADR special regulation: SV 376
UN packaging code: BAM 16043
Areas of application: Safe transportation of critically defective lithium-ion batteries, Automotive, Outdoor storage, fire-protected storage, Transport of rechargeable batteries, critically defective batteries, stationary containment, Transportation, Storage
External dimensions: 3.192 x 2,121 x 1,567 mm
Filling material: textured glass fibers
Internal dimensions: 2.654 x 1,735 x 970 mm


SEDA HV BAT-Box - Immediate hazard prevention for conspicuous lithium batteries

Vehicles with electric drives are becoming more and more common these days, and the risk of them becoming defective or damaged in an accident is also growing.

In this case, a reliable and safe solution is needed to prevent further damage. The SEDA HV BAT-Box is the perfect tool for this, and thanks to the easily accessible front flap and the extendable roller track, the damaged battery can be quickly loaded into the container. The closed container ensures a controlled reaction of the energy storage unit.

Technical features

The container is 3,192 mm long, 2,121 mm wide and 1,567 mm high. With dimensions of 2,654 x 1,735 x 970 mm, the interior offers sufficient space to transport even the largest e-car batteries on the market, with a weight of 2,235 kg. The payload is 1,000 kg. The container can also be filled with 48 fiberglass cushions, which offer even more protection in the event of a fire.

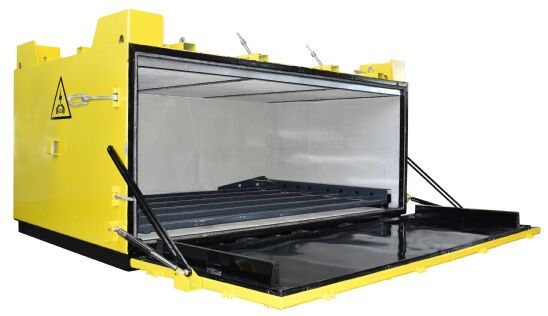

User-friendly front loading

Loading from the side is easy thanks to the flap at the front. The roller conveyor can be extended, which makes handling even easier.

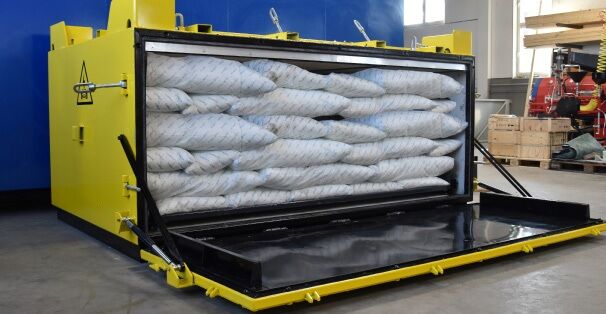

Incl. 48 Cirrux cushions (optional)

The box can be ordered with 48 Cirrux cushions. These are non-flammable, non-electrically conductive and non-dusting.

Incl. valve for pressure relief

The container also has a Hörbiger valve for pressure relief and a filter system to neutralize any harmful gases.

With scratch protection

Rubber mats attached to the lid protect the lid from scratches.

Stackability is a given

The SEDA HV Bat-Box can be stacked up to 3 high. Even then it can be locked

Easy to transport on almost all vehicles

The SEDA HV-Bat Box can be transported on trailers or on 5.5 t trucks and can therefore be used by most companies.

Certification and guidelines

Lithium batteries fall into dangerous goods class 9, which means that numerous specifications and guidelines must be observed when transporting lithium batteries. The transport box has been specially designed for the strictest safety regulations.

Incl. fastening for the transportation of critical lithium-ion batteries and can be used for the most common automotive batteries on the market

The SEDA HV Bat-Box has BAM approval and is approved for ADR transport for critical HV batteries up to 98.48 kW. For this type of transport, please be sure to request the specification from us: info@lion-care.com or +49 7151 256 4811.

Complies with the guidelines of SV 376 of the ADR and the packing instruction P 911 or LP 906

All lithium-ion cells or batteries and lithium-metal cells or batteries that have been damaged and no longer comply with the applicable regulations according to their manual must comply with the provisions of this special provision. This applies, for example, to cells that have leaked or degassed, have suffered external or mechanical damage or have been identified as defective for safety reasons or could no longer be diagnosed prior to transportation. If it is determined that the lithium-ion cells or batteries could be prone to rapid disintegration, dangerous reaction, flame generation, dangerous heat generation or dangerous emission of toxic, corrosive or flammable gases or vapors under normal conditions of carriage, these defective cells must then be transported in accordance with packing instruction P 911 or LP 906.

The surface of the package must never exceed 100°C, only short-term temperature peaks of up to 200°C are permissible. No flames may form outside the package and no splinters may escape from the package. Furthermore, the structure of the package must be maintained at all times and a gas management system must ensure the safety of the boxes. Safety is confirmed by the Federal Institute for Materials Research and Testing (BAM) on the basis of real tests.

If the box is to be used for the transportation of "critical" lithium-ion batteries, further criteria such as cell chemistry, cell geometry etc. apply in accordance with the specifications of the Federal Institute for Materials Research and Testing. Please contact us for further information: info@lion-care.com or +49 7151 256 4811.

SEDA Umwelttechnik GmbH - Solution for car recycling

SEDA Umwelttechnik GmbH is a company that specializes in the development, manufacture and sale of equipment and systems for draining end-of-life vehicles, with the vision of protecting the environment from hazardous liquids and pollutants.

Future-oriented

Lithium-ion batteries will be indispensable in all industrial applications in the coming years. However, if used improperly, batteries can pose a potential hazard during production, storage and transportation that should not be underestimated. By purchasing these boxes, you protect yourself against major financial losses right from the start. International customers from the automotive and energy supply sectors, among others, rely on this proven technology.

In use for you

If you have any questions, please do not hesitate to contact us. We look forward to hearing from you.

max. gross mass: 3235 kg
Handling the filling material: Filling material in cushions
Empty weight: 2.235 kg
Material: Steel (galvanized)
Packaging instructions according to ADR: LP 906
ADR special regulation: SV 376
UN packaging code: BAM 16043
Areas of application: Safe transportation of critically defective lithium-ion batteries, Automotive, Outdoor storage, fire-protected storage, Transport of rechargeable batteries, critically defective batteries, stationary containment, Transportation, Storage
External dimensions: 3.192 x 2,121 x 1,567 mm
Filling material: textured glass fibers
Internal dimensions: 2.654 x 1,735 x 970 mm
