SEDA HV-Battery Container Highcube for lithium-ion batteries / lithium-ion rechargeable batteries with extinguishing function
plus VAT.
Please note: Notes on delivery time
Free shipping (Germany, mainland)!
Shippingtime: ca. 8 Wo.
- Article no: SEDLCOHVCC
Questions about the article?
Our staff member Petra Fürbeck is happy to help you:
+49 (0) 7151 - 256 4817 or info@lion-care.com
| Type: | Storage container |
| Empty weight: | 6.600 kg |
| Material: | Steel |
| Areas of application: | critically defective batteries, stationary containment, fire-protected storage, Outdoor storage, Automotive, Storage |
| External dimensions: | 6.058 x 2,438 x 2,896 mm |
| Internal dimensions: | 2.660 x 2,000 x 491 mm (per compartment) |
Vehicles with electric drives are becoming increasingly common these days, but the risk of them becoming defective or damaged in an accident is also growing.
In this case, a reliable and safe solution is needed to prevent further damage. The SEDA HV-Battery Container Standard is the perfect tool for this. Thanks to the 4 separate compartments, lithium-ion batteries can be stored in this container. The closed container ensures a controlled reaction of the energy storage system.
SEDA HV Battery Container High Cube - Immediate hazard prevention for conspicuous lithium batteries
The SEDA HV battery container ensures safe storage for both critical and non-critical energy storage systems. Storage takes place in monitored compartments that can be flooded in the event of a thermal reaction.
Dimensions and weights

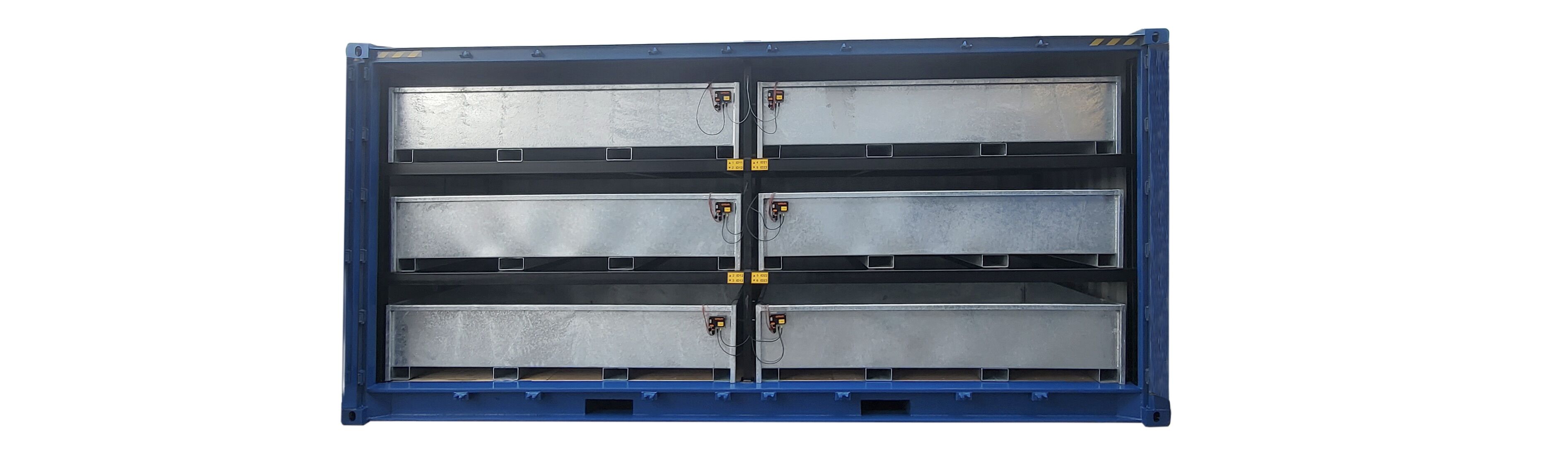

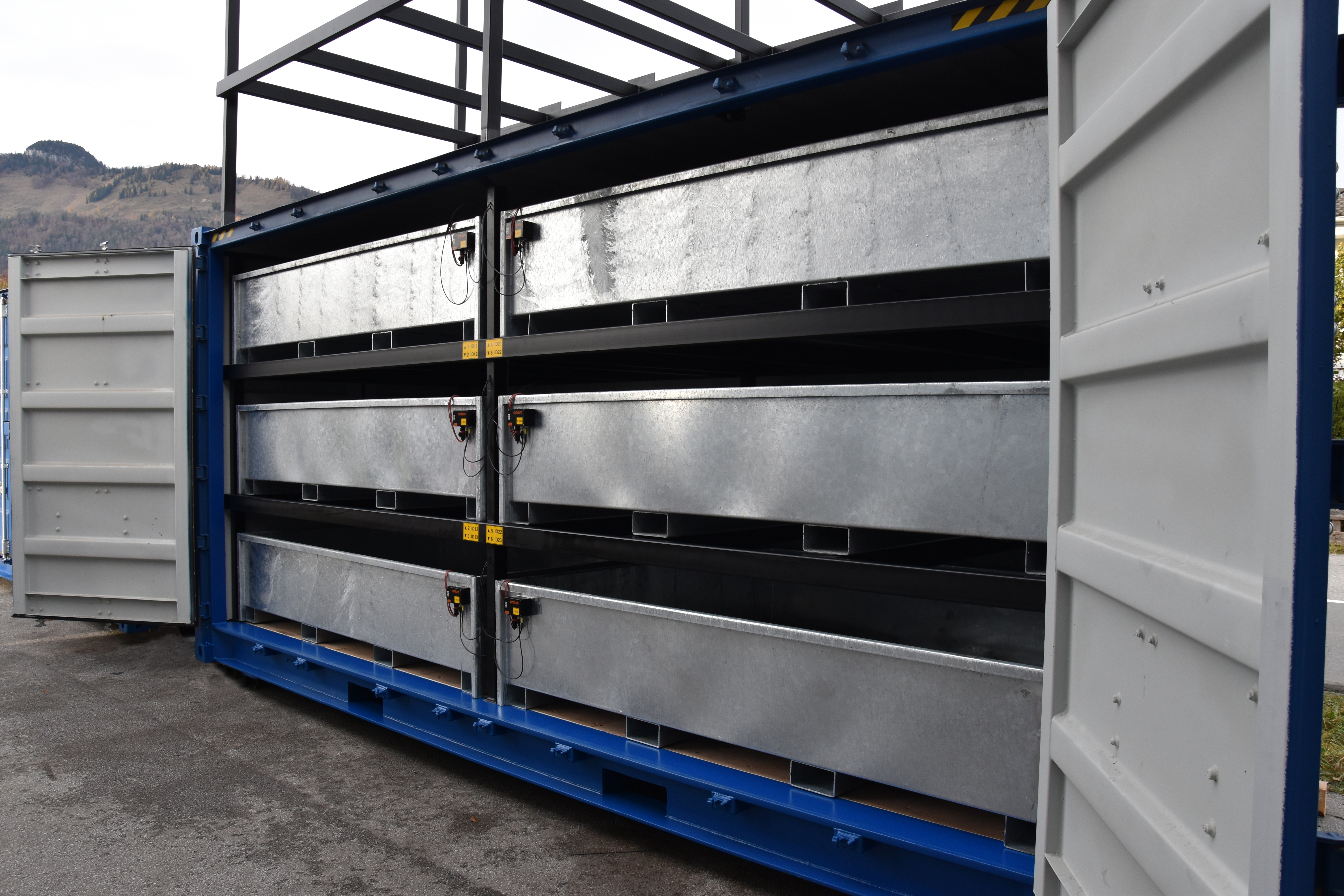

The container is 6,400 mm long, 2,450 mm wide and 2,896 mm high. The interior offers 6 containers including frames for drawers. The individual compartments measure 2,660 x 2,000 x 491 mm. It has a weight of approx. 6,600 kg.
Removable storage containers for easy loading
The individual storage compartments can be removed for easy loading with a forklift truck. The compartment with the battery is loaded from above. A crane or forklift is recommended for loading. The battery should be placed in the container on squared timber.
Temperature monitoring and control
It is possible for the user to control the temperature inside the container himself. Depending on the user's requirements, the temperature or ventilation can be preset. In the version offered here, the container is cross-ventilated and maintains the ambient temperature in the container. If the container is to maintain a specific temperature, this is optionally possible via an air conditioning unit. Please contact us at sales@lion-care.com or +49 7151 256 4811. Ensure a 230VAC/13A connection at the installation site.
Monitoring and control of the individual compartments

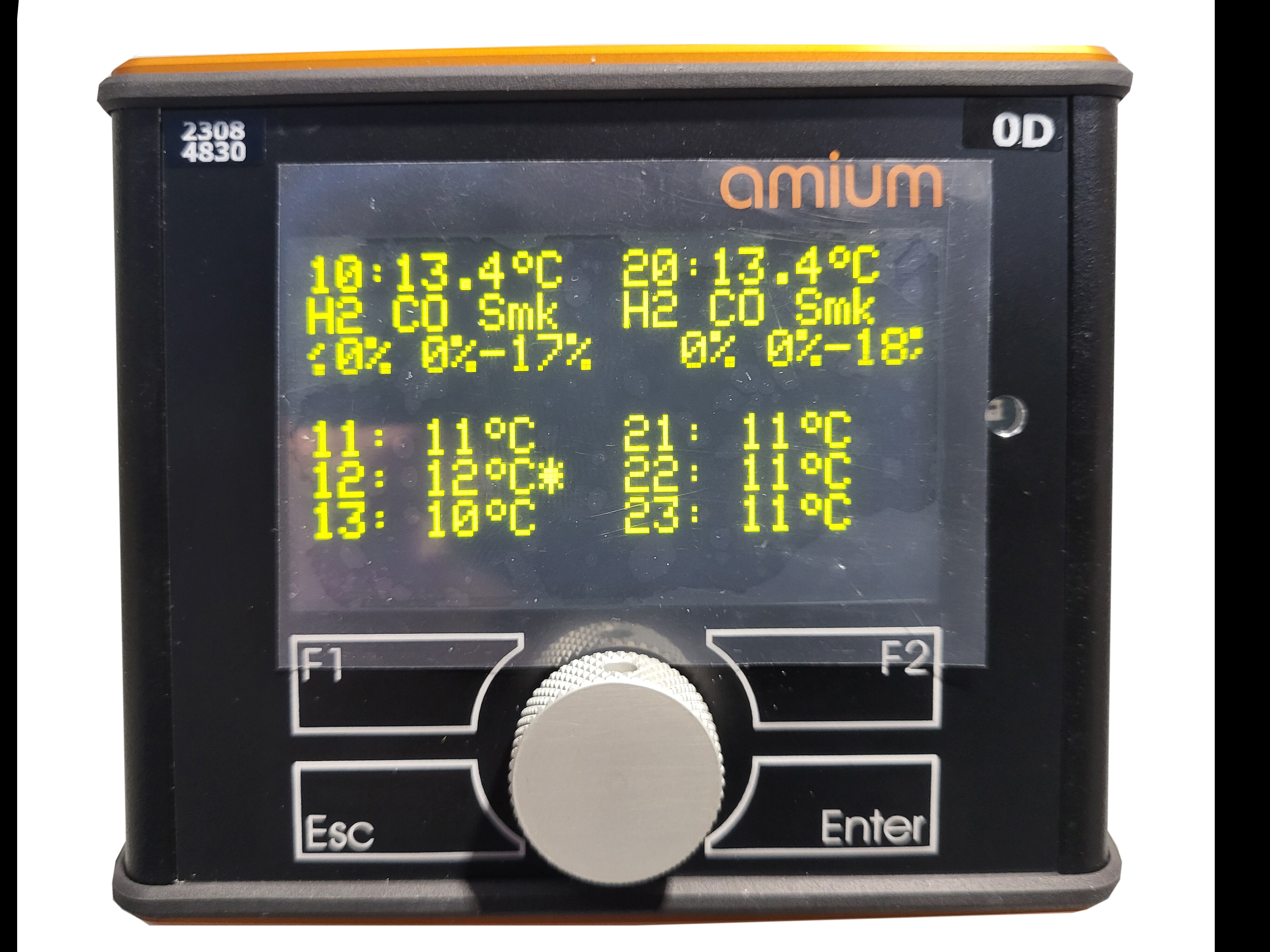

The container also has 4 temperature sensors per compartment. These can be attached to the battery. If they measure a temperature above 68°C, the container is flooded directly with water or another extinguishing agent. The ambient temperature in the containers is also measured and flue gas, hydrogen (H2) and carbon monoxide (CO) are evaluated. Current values are shown on the front display.
Flooding at temperatures above 68°C

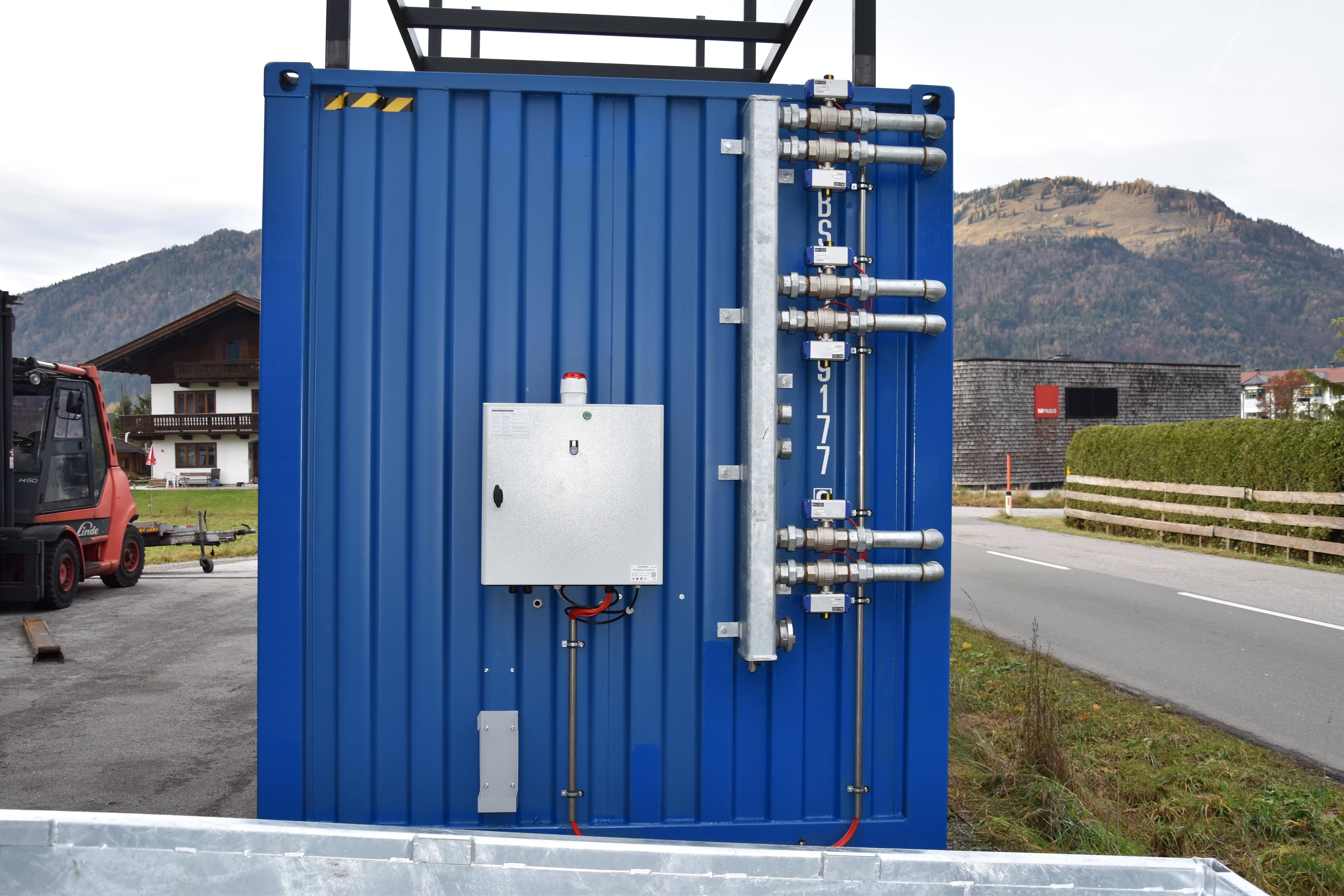

If the temperature exceeds 68°C, the integrated floodlights are activated by the trigger monitoring system and the extinguishing agent or coolant is introduced. The fill level is monitored by sensors. A water connection with Storz coupling size A is required at the installation site. If frost or temperatures close to freezing point occur at the location, a dry extinguishing line must be provided.
General guidelines for battery storage
There are currently no legal regulations for the storage of lithium batteries / lithium-ion batteries. Only VdS Schadenverhütung GmbH issues general safety rules for damage prevention in its publication VdS 3103 : 2019-06 (03). It is advisable to clarify your requirements with your property insurance company in advance.
SEDA Umwelttechnik GmbH - Solution for car recycling
SEDA Umwelttechnik GmbH is a company that specializes in the development, manufacture and sale of equipment and systems for draining end-of-life vehicles. The company's vision is to protect the environment from hazardous liquids and pollutants.
Future-oriented
Lithium-ion batteries will be indispensable in all industrial applications in the coming years. However, if used improperly, batteries can pose a potential hazard during production, storage and transportation that should not be underestimated. By purchasing these containers, you protect yourself against major financial losses right from the start. International customers from the automotive and energy supply sectors, among others, rely on this proven technology.
In use for you
If you have any questions, please do not hesitate to contact us. We look forward to hearing from you.
| Type: | Storage container |
| Empty weight: | 6.600 kg |
| Material: | Steel |
| Volume: | > 600 l |
| Material: | Steel |
| Areas of application: | critically defective batteries, stationary containment, fire-protected storage, Outdoor storage, Automotive, Storage |
| External dimensions: | 6.058 x 2,438 x 2,896 mm |
| Internal dimensions: | 2.660 x 2,000 x 491 mm (per compartment) |
That depends on various factors that need to be considered:
- size of the battery(ies)
- condition (e.g. non-critical, defective, critically defective or prototype)
- power
Transport boxes are available in many different sizes and specifications. The packaging group for which the box is suitable is indicated for each product.
Find out more in our blog article:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
Even if the batteries are not critical, remember to protect them from shocks and to order appropriate filling material if it is not already included in the box.
Yes. Should a battery reach a critical state and cause a fire, separating the batteries will prevent the fire from spreading and multiplying.
Generally, the insulation and protection material should line all sides of the container. The batteries are stored between individual layers.
We also have containers in our program that already have the protective material integrated into the outer wall. No further protective layer is necessary here.
The technical principles for storage and transportation solutions are very similar. The transport boxes are also subjected to extensive tests in accordance with ADR (drop test, fire test, etc.) to confirm compliance with the ADR regulations. The packaging regulations are extensive and regulated by law.
There are currently no comparable regulations for storage. Nevertheless, manufacturers of storage boxes regularly carry out appropriate tests.
The right container depends on the type and size of the battery to be shipped or stored.
If you want to learn more about battery storage and transportation, you will find the answers in our blog articles:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
The transportation of batteries is subject to ADR regulations.
The number, size and weight, energy density and condition of the batteries are crucial parameters for finding a suitable transport container for lithium-ion batteries. The selection process is complex and should be carried out by appropriately trained personnel. We have a trained hazardous materials officer on our team. Please feel free to contact us.
Plastic containers are cheaper but not as durable as metal containers. They are suitable, for example, for non-critical batteries, defective batteries, prototypes and end-of-life batteries. They can be used for both storage and transportation.
Metal containers are required, for example, when dealing with critically defective batteries.
The exact packaging instructions for these cases can be found in the ADR or by consulting a certified hazardous materials specialist.
To date, there are no legal requirements for the storage of lithium-ion batteries, which does not mean that they should be stored without suitable protective measures.
It is best to check with your insurer to find out which measures they recognize as suitable in the event of a claim.
For example, a suitable box could already be recognized as spatial separation.
