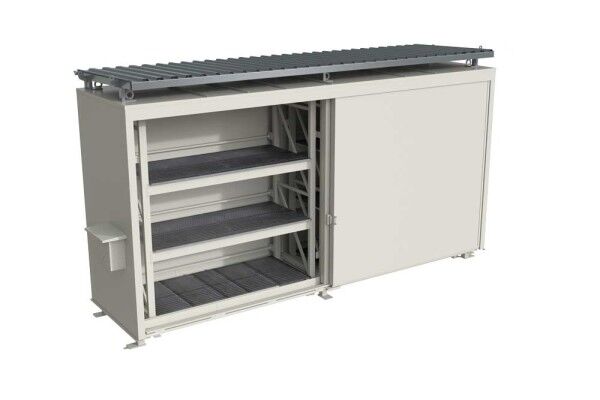

BAUER shelf containers - 2 storage fields

The BAUER racking container is the ideal solution for the safe, structured and legally compliant storage of hazardous substances and other sensitive materials, such as lithium-ion batteries. Equipped with a general building authority approval (Z-38.5-103 DIBt), this container meets the highest requirements for fire protection, statics and functionality.

Please note: the pictures above are only examples and not the delivered product!

Technical data:

• External dimensions:
  Width: approx. 7,050 mm
  Height: approx. 3,690 mm
  Depth: approx. 1,850 mm
• Clear internal dimensions:
  Width: 2 × approx. 2,700 mm
  Height: 3 × approx. 800 mm
  Depth: approx. 1,250 mm

Construction & equipment:

• Sturdy, welded frame construction
• Outer walls, roof, floor and doors clad with 2-shell, thermally insulated steel sandwich elements (non-combustible, class A2-s1 d0 in accordance with DIN EN 13501-1)
• Insulation layer: 100 mm for optimum thermal and fire protection
• Lockable, two-part sliding door with Rokustrip seals (foams open in the event of fire)
• Can be operated from one side
• Continuous guide rail as door guide and collision protection
• Edge protection profiles on all corners

Storage & safety:

• 3 storage levels (floor + 2 height-adjustable levels with grating and push-through protection)
• Shelf bay width: 2 × 2,700 mm
• Maximum shelf load: 2,000 kg per level
• Collection volume: 1,200 liters up to lower edge of grating
• Tray wall thickness: 5 mm, incl. leak test with factory certificate
• 100 mm high feet, prepared for floor anchoring
• Integrated splash guard
• Crane eyes for easy relocation

Electrical & fire protection:

• 2 heat detectors (not explosion-proof)
• Potential-free contact for external alarm forwarding
• Combined alarm transmitter (flash/buzzer)
• Note on fire alarm technology: If the fault signal is to be forwarded to a fire alarm control panel (FACP) with direct connection to the fire department, a separate, compatible fire detector is required (to be provided by the customer)
• Switch cabinet (IP65) with:
• Main switch
• Control cabinet heater
• Terminal blocks for heat detectors
• Overvoltage protection

Earthing & protective measures:

• Constructive potential equalization to prevent electrostatic charging
• External earthing connection incl. measurement protocol (earthing connection required on site)

Optional accessories:

• Sun canopy made of trapezoidal sheet metal E35, roof drainage via gutter and downpipe
• Electric heating (no ex) 2 x 2.5 kW, temperature of +10°C at -15°C outside
• ex-electric heating 2 x 2 kW, temperature of +10°C at -15°C outside
• Semi-stationary sprinkler system
• Aerosol extinguishing system
• Exterior lighting, 2 LED display spotlights 30 W each
• Fan (no ex)
• ex-fan

Color variants:

• RAL 5012 (light blue)
• RAL 7005 (mouse gray)
• RAL 9002 (gray white)

➡️ Enquire now and take your warehouse logistics to a new level of safety! info@lion-care.com or +49 7151 256 4813

General guidelines for battery storage

There are currently no legal regulations for the storage of lithium batteries / lithium-ion batteries. Only VdS Schadenverhütung GmbH issues general safety rules for damage prevention in its publication VdS 3103 : 2019-06 (03). It is advisable to clarify your requirements with your property insurance company in advance.

The manufacturer

Bauer GmbH is a globally active company that specializes in the development, production and sale of forklift attachments, environmental protection equipment and recycling and waste containers. With more than 280 employees, Bauer is one of the leading manufacturers in Europe. The company pursues a corporate philosophy that is tailored to individual customer needs and is characterized by innovation and environmental friendliness.

Bauer guarantees the highest safety and quality standards through the use of qualified employees and state-of-the-art production technologies. The company has been certified to DIN EN ISO 9001:2008 since 1993, which ensures the consistently high quality of products "made by Bauer". Production takes place exclusively at the Südlohn and Halberstadt plants.

Future-oriented

Lithium-ion batteries will be indispensable in all industrial applications in the coming years. However, if used improperly, batteries can pose a potential hazard during production, storage and transportation that should not be underestimated. By purchasing these containers, you protect yourself against major financial losses right from the start. International customers from the automotive and energy supply sectors, among others, rely on this proven technology.
