B&W transport case BATTERY.CASE 908.8
- Also for defective batteries
- Max. energy density: 1.5 kWh
- Internal dimensions: 387 x 264 x 130 mm
- External dimensions: 510 x 420 x 215 mm
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| ADR special provision: | SV 376 |
|---|---|
| Applications areas: | E-Bike batteries, Garden tool batteries, Model building batteries, Power tool batteries, Prototypes |
| Battery status: | Defective |
| Encoding: | 4H2 |
| Filling material: | Cube foam, Smoke protection bag |
| Included filler material: | Cube foam (cuttable) |
| Internal dimensions (mm): | 387 x 264 x 130 |
| Material: | Plastic |
| Material designation: | Polypropylene (PP) |
| Max. gross weight (kg): | 18 |
| Maximum energy density (kWh): | 1.5 |
| Outer dimensions (mm): | 510 x 420 x 215 |
| Packaging group: | I |
| Packaging instruction according to ADR: | P 903, P 908 |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 10.5 |
| UN packaging code: | 4H2/Y18... |
| max. net cargo mass (kg): | No specification |
Product information „B&W transport case BATTERY.CASE 908.8“
Technical data at a glance
| Max. gross weight : | 18 kg |
| Empty weight : | 10.5 kg |
| Material designation : | Polypropylene (PP) |
| Packaging group: | Packaging group II |
| Packaging instructions according to ADR: | P 903, P 908 |
| ADR special provision: | SV 376 |
| UN packaging code: | 4H2/Y18... |
| Areas of application : | E-bike batteries, model batteries, garden tool batteries, prototypes, power tool batteries |
| External dimensions : | 510 x 420 x 215 mm |
| Filling material : | Cubic foam, Fire protection bag |
| Internal dimensions : | 387 x 264 x 130 mm |
Businesses and private individuals are increasingly faced with the challenge of transporting or storing batteries safely. Lithium-ion batteries are always classified as dangerous goods, regardless of whether they are new, intact, used or damaged. B&W has developed this case system specifically for e-bike batteries, which, in addition to safe storage, also enables the proper transport of defective lithium-ion batteries in accordance with ADR.
The batteries shown in the pictures are not included in the scope of delivery.

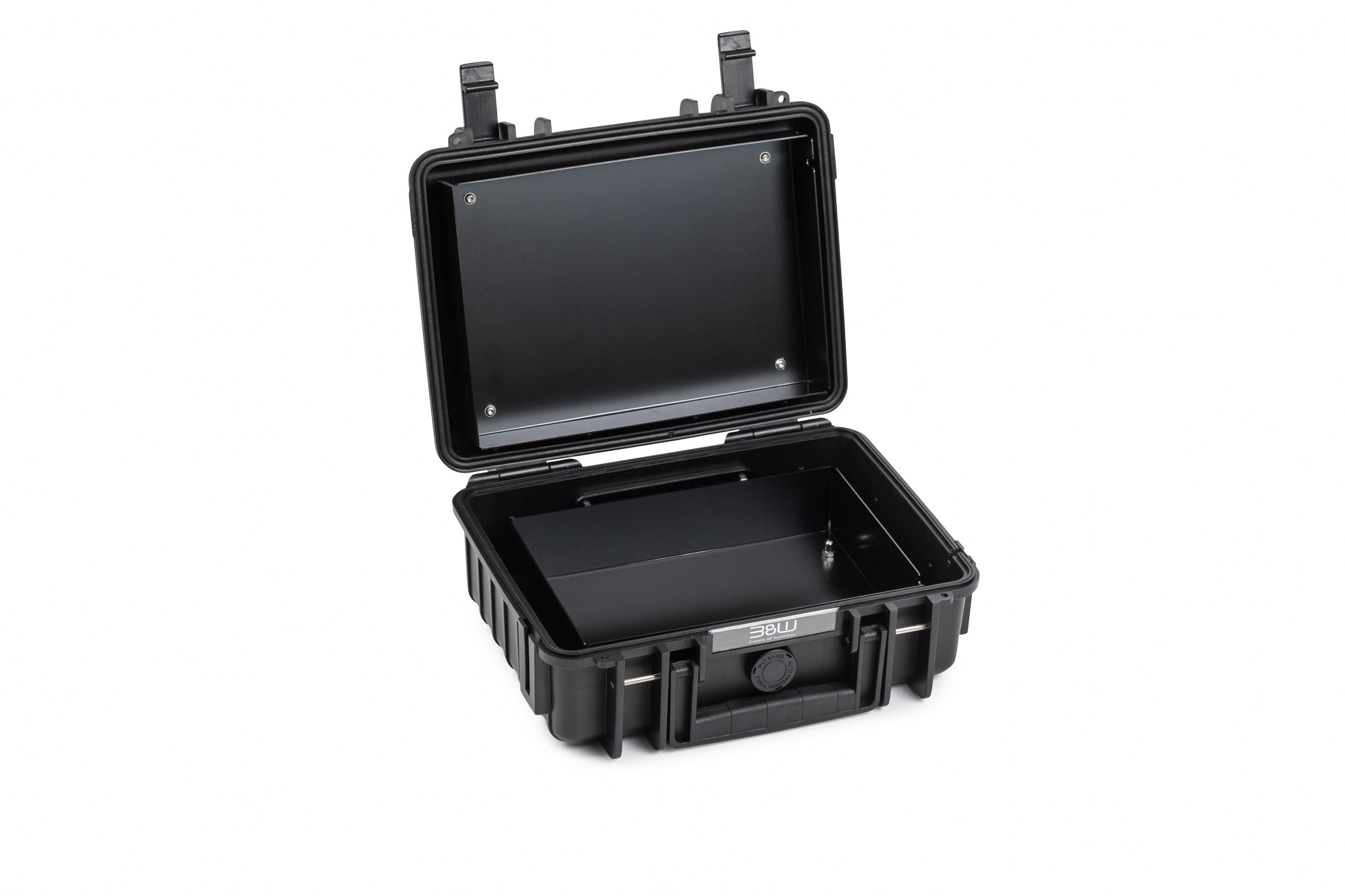

B&W battery transport case 908.8 – perfect for storing and transporting lithium-ion batteries
B&W has developed this high-quality and innovative storage and transport system for lithium-ion batteries. The inner container can be used to transport or store a lithium battery/lithium-ion battery with substance numbers UN3480 or UN3481. This system is also recommended for private use if the batteries are to be stored for a longer period of time.
Also ideal for transporting defective batteries
In addition to storing and transporting intact lithium batteries, the B&W battery transport case 908.8 is
also
suitable for damaged cells, which pose a significant hazard during both transport and storage. This approval makes the battery case much more flexible in use than comparable models.
Cable feed-through allows charging in the case
An integrated cable feed-through allows charging in the case. To do this, the cable must be fed into the case when it is open. Please refer to the product images.

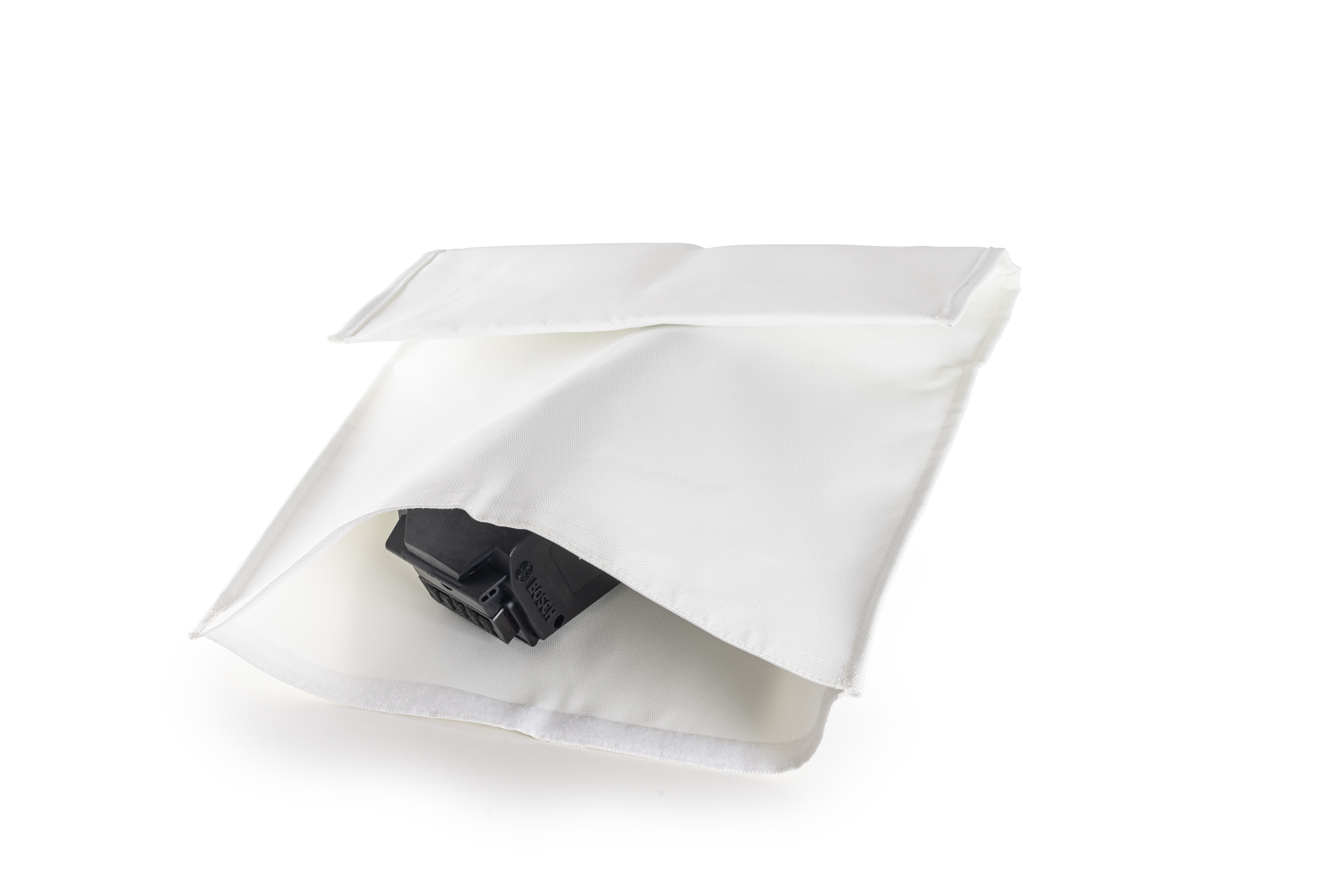

With non-flammable padding and fireproof protective bag as well as activated carbon filter
The B&W 908.8 battery transport case is equipped with specially developed, non-flammable padding and a fireproof protective bag. This not only allows the Li-ion batteries packed inside to be transported safely, but also acts as a fire retardant in the event of a fire. A protective bag measuring 40 x 60 cm is included with the case.
Additional extinguishing granules and extinguishing agents, such as PyroBubbles from Genius, which are used in other battery transport containers, are therefore not necessary with the B&W Battery Transport Case 908.8. An activated carbon filter reduces the gases emitted and minimises soot formation in the event of a potential battery fire.
The battery transport box also protects against mechanical impact
In addition to protecting against the dangers of defective batteries, the case also protects against the causes of many defective batteries – mechanical stress. It is not uncommon for a defect in a Li-ion battery to be caused by improper storage or mechanical stress during transport (e.g. by the battery falling from a great height onto the floor); e-bike batteries in particular are more likely to fall onto the floor and thus suffer potential damage.
The padding in the battery box absorbs shocks
The cube foam effectively protects the Li-ion batteries stored and transported in the B&W Battery Transport Case 908.8 from external influences, especially mechanical ones. If the battery box containing the Li-ion batteries is dropped, some of the force is absorbed by the cube foam , often preventing damage to the batteries or battery cells. Accordingly, it is advisable to always store the batteries in the battery case when they are not in use in order to ensure maximum safety.
Many possible uses for the 908.8 battery transport case from B&W
The 908.8 transport case from B&W, made of lightweight polypropylene, is ideal for a wide variety of applications, for example with lithium-ion batteries from e-bikes, power tools and laptops, with a clear focus on e-bike batteries.
Use of the B&W transport case in the commercial sector
Craft businesses are increasingly working with battery-powered tools – whether cordless screwdrivers, hammer drills or angle grinders, today almost all tools are also available with powerful lithium-ion batteries, which are much easier to handle . This case is also ideal for the safe storage of Li-ion batteries. Not only does it provide perfect protection for the batteries, but also for the surrounding area should the Li-ion batteries catch fire.
Unique fire protection system from B&W incl. activated carbon filter
The fire protection system from B&W is unique and patented. This means that the case also offers a high level of safety, if a battery starts to burn unattended. At the same time, the case has an activated carbon filter, which reduces the gases emitted during a fire and the formation of soot. In the event of a fire, the outside of the case remains below 100 °C.
Storing LiPo batteries from model making in the B&W transport case
Batteries have long been used in model making. Whereas NiCd or NiMh accumulators were used in the past, today Li-ion batteries and lithium polymer batteries are generally used because the energy density of LiPo batteries is significantly higher . To transport LiPo batteries safely to their place of use or to store them safely between uses, the B&W 908.8 battery transport case offers sufficient storage space for various battery cells.
Size and capacity of the 908.8 battery transport case from B&W
The 908.8 battery transport case from B&W has an empty weight of 10.23 kg and a maximum gross weight of 18.23 kg. The case has a maximum capacity of 1.5 kWh.
Compact dimensions and ergonomic handling
With external dimensions of 510 x 420 x 215 mm and internal dimensions of 387 x 264 x 130 mm (length x width x height), the 908.8 battery transport case from B&W is suitable for most environments. It offers plenty of storage space, even for larger batteries. In addition, the boxes are stackable and therefore take up minimal storage space.
B&W 908.8 battery transport case – a safe system for you and the environment
Individual and expensive transport solutions can be replaced by using this economical and standardised product. The boxes are permanently reusable.
Certification and guidelines that the B&W transport case complies with
Lithium batteries fall into dangerous goods class 9, which means that the goods pose a risk to the environment that should not be underestimated during transport. Numerous requirements and guidelines must therefore be observed when transporting lithium batteries.
Suitable for transport in accordance with SV 376 of the ADR and packaging instruction P 908
All lithium-ion cells or batteries and lithium metal cells or batteries that have been damaged and no longer comply with the applicable regulations in accordance with their manual must comply with the provisions of special provision 376 (SV 376). This applies, for example, to cells that have leaked or degassed, suffered external or mechanical damage, or have been identified as defective for safety reasons, or could no longer be diagnosed prior to transport.
These cells must then be packed in accordance with packing instruction P 908. According to this guideline, it must be ensured, for example, that any electrolyte that leaks out is absorbed and that a non-electrically conductive thermal insulation material protects the environment from dangerous heat build-up.
Suitable for transport by aeroplane* with eyelets for padlocks
Thanks to the automatic air pressure equalisation valve, the case is also suitable for transport by aeroplane. Two eyelets allow padlocks to be attached. However, we recommend that you clarify the packaging requirements in advance with your air freight forwarder. Please note that lithium-ion batteries exceeding 100 Wh are not permitted on passenger aircraft.
The manufacturer B&W – an institution in the field of transport cases
B&W International offers tailor-made solutions for every requirement and sets standards for reliability, quality and safety in manufacturing. With innovative
| ADR special provision: | SV 376 |
|---|---|
| Applications areas: | E-Bike batteries, Garden tool batteries, Model building batteries, Power tool batteries, Prototypes |
| Battery status: | Defective |
| Encoding: | 4H2 |
| Filling material: | Cube foam, Smoke protection bag |
| Included filler material: | Cube foam (cuttable) |
| Internal dimensions (mm): | 387 x 264 x 130 |
| Material: | Plastic |
| Material designation: | Polypropylene (PP) |
| Max. gross weight (kg): | 18 |
| Maximum energy density (kWh): | 1.5 |
| Outer dimensions (mm): | 510 x 420 x 215 |
| Packaging group: | I |
| Packaging instruction according to ADR: | P 903, P 908 |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 10.5 |
| UN packaging code: | 4H2/Y18... |
| max. net cargo mass (kg): | No specification |
Downloads
FAQ
That depends on various factors that need to be considered:
- size of the battery(ies)
- condition (e.g. non-critical, defective, critically defective or prototype)
- power
Transport boxes are available in many different sizes and specifications. The packaging group for which the box is suitable is indicated for each product.
Find out more in our blog article:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
Even if the batteries are not critical, remember to protect them from shocks and to order appropriate filling material if it is not already included in the box.
Yes. Should a battery reach a critical state and cause a fire, separating the batteries will prevent the fire from spreading and multiplying.
Generally, the insulation and protection material should line all sides of the container. The batteries are stored between individual layers.
We also have containers in our program that already have the protective material integrated into the outer wall. No further protective layer is necessary here.
The technical principles for storage and transportation solutions are very similar. The transport boxes are also subjected to extensive tests in accordance with ADR (drop test, fire test, etc.) to confirm compliance with the ADR regulations. The packaging regulations are extensive and regulated by law.
There are currently no comparable regulations for storage. Nevertheless, manufacturers of storage boxes regularly carry out appropriate tests.
The right container depends on the type and size of the battery to be shipped or stored.
If you want to learn more about battery storage and transportation, you will find the answers in our blog articles:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
The transportation of batteries is subject to ADR regulations.
The number, size and weight, energy density and condition of the batteries are crucial parameters for finding a suitable transport container for lithium-ion batteries. The selection process is complex and should be carried out by appropriately trained personnel. We have a trained hazardous materials officer on our team. Please feel free to contact us.
Plastic containers are cheaper but not as durable as metal containers. They are suitable, for example, for non-critical batteries, defective batteries, prototypes and end-of-life batteries. They can be used for both storage and transportation.
Metal containers are required, for example, when dealing with critically defective batteries.
The exact packaging instructions for these cases can be found in the ADR or by consulting a certified hazardous materials specialist.
To date, there are no legal requirements for the storage of lithium-ion batteries, which does not mean that they should be stored without suitable protective measures.
It is best to check with your insurer to find out which measures they recognize as suitable in the event of a claim.
For example, a suitable box could already be recognized as spatial separation.
A rough overview can be found in this VDS publication from the GDV:
https://shop. vds.de/download/vds-3103/ccb1d439-ad9d-47cb-a2b1-ace23e155610
Please also read our blog article on this topic:
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
