CRAEMER pallet box with UN approval Transport containers for lithium-ion batteries
- UN-certified transport containers - 50H
- Dimensions: 1,200 x 800 x 740 mm
- Robust, durable construction
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Colour: | light grey |
|---|---|
| Encoding: | 50H |
| Material: | Plastic |
| Max. gross weight (kg): | 500 |
| Outer dimensions (mm): | 1 200 x 800 x 740, 1 236 x 836 x 765 (with lid) |
| Suitable for critically defective?: | No |
| Volume (l): | 470 |
| Weight (kg): | 40 |
Product information „CRAEMER pallet box with UN approval“
Brief overview
The Craemer pallet boxes are specially developed large load carriers made of high-quality polyethylene (PE) for the safe transport, storage, and disposal of lithium-ion batteries and other hazardous goods. They offer a robust, durable, and practical solution for industrial applications where the highest requirements for safety, stability, and process integration are demanded.
The containers are characterized by a seamless, one-piece construction that ensures high mechanical strength as well as maximum leak-tightness. Closed, smooth interior surfaces allow for easy cleaning and prevent material residues.
Thanks to their UN certification, the systems are suitable for the safe handling of lithium batteries within the framework of applicable regulations. However, for the disposal of damaged or defective rechargeable batteries, the use of additional safety measures such as fire protection blankets, insulation material, or special inner packaging is required, which are not included in the scope of delivery and must be provided separately.
Scope of delivery
- Pallet box for hazardous goods transport

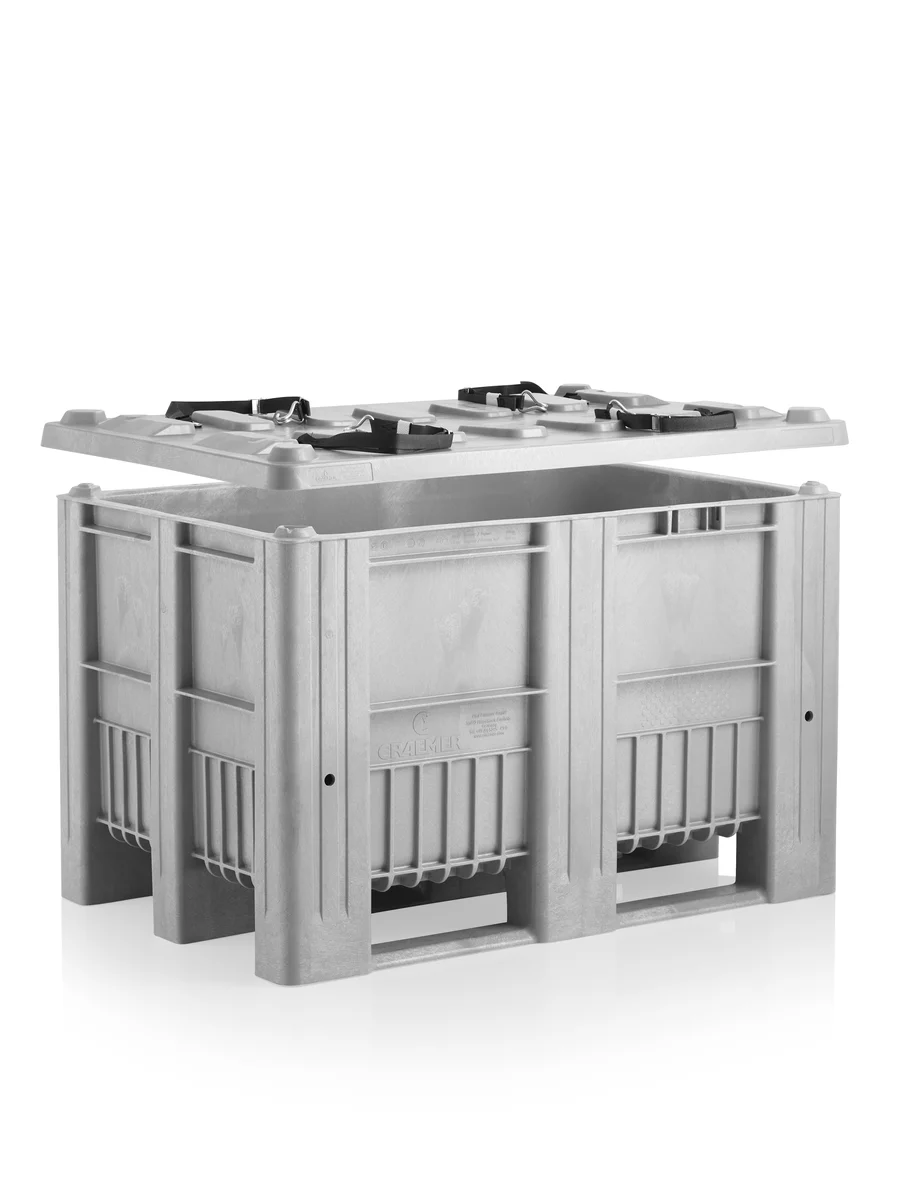

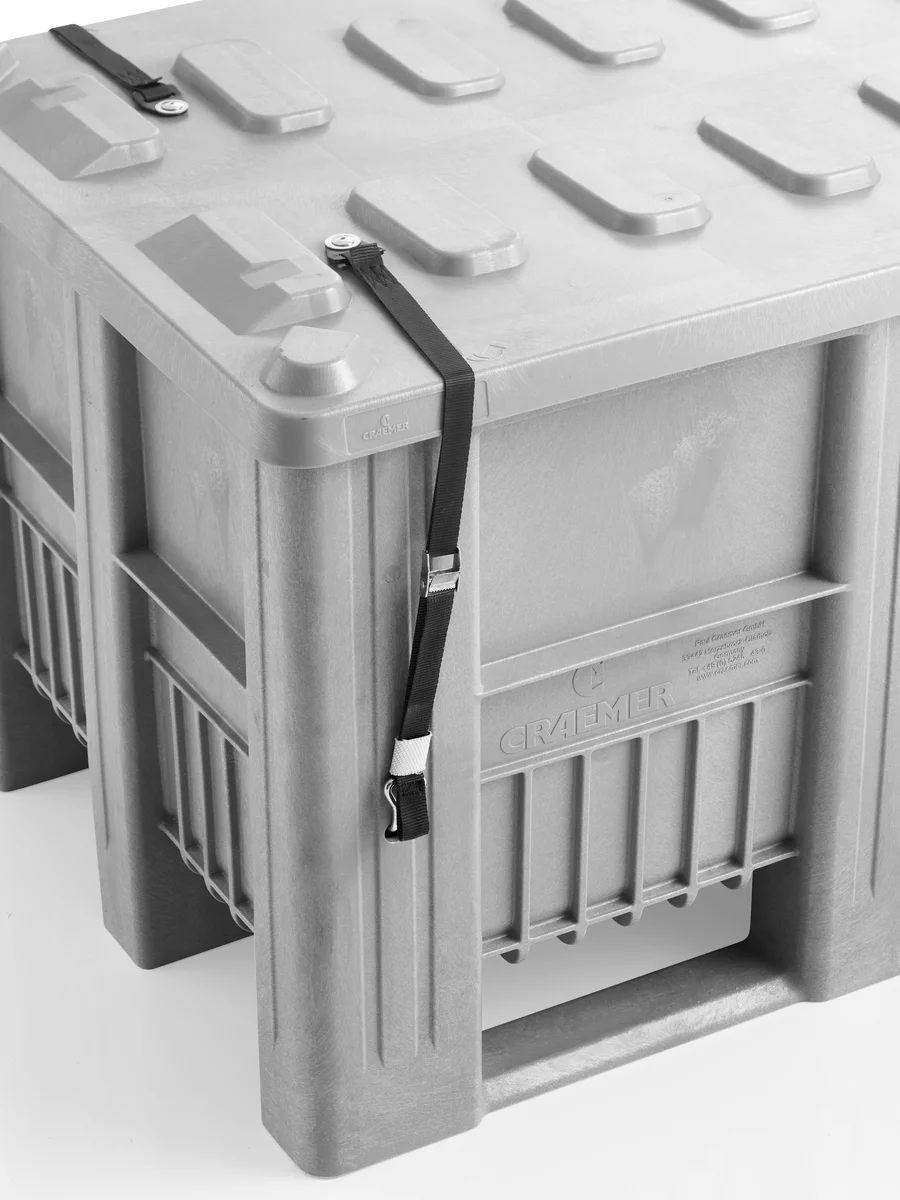

Consisting of: box with lid + 2 tension straps - Pallet box made of high-quality PE
- Print fields for labeling
Technical data

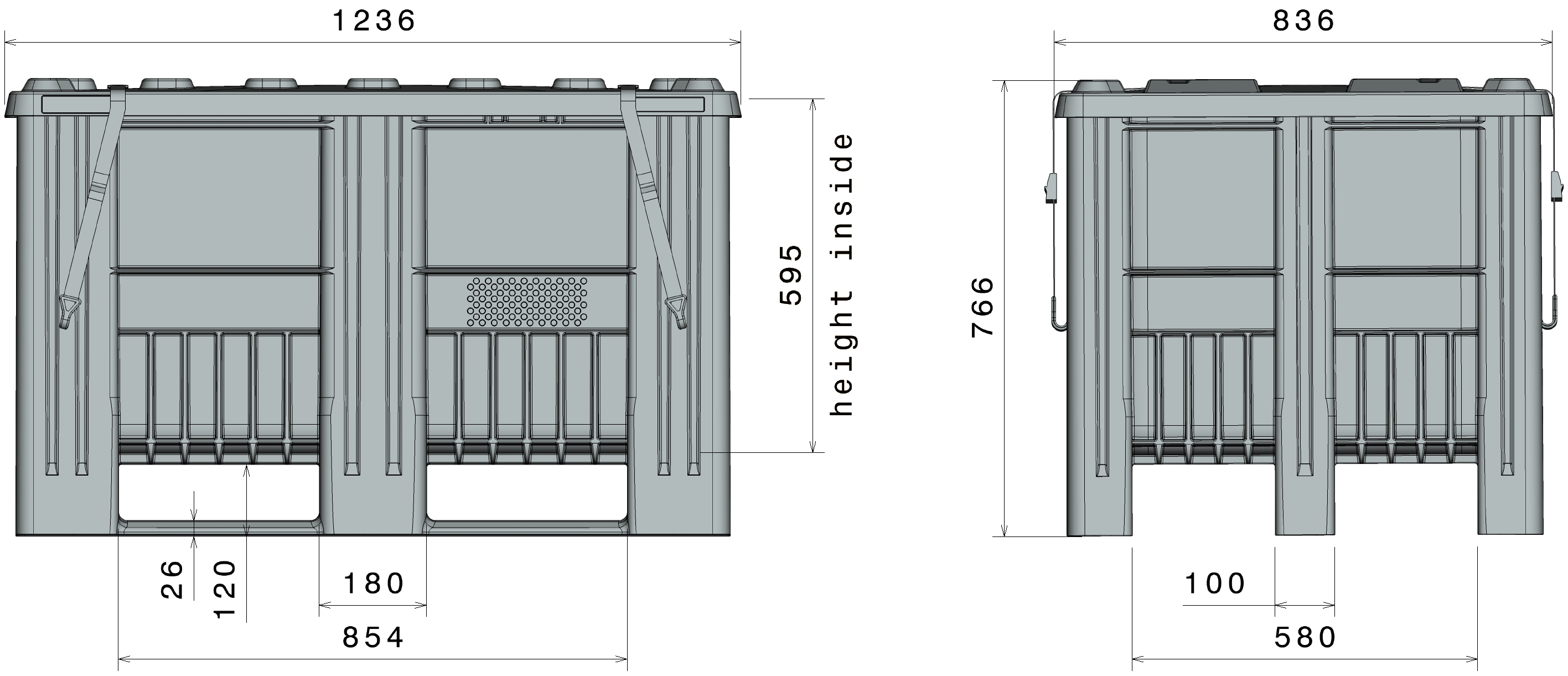

- Dimensions: 1200 x 800 x 740 mm
- Dimensions with lid: 1 236 x 836 x 765 mm
- Internal dimensions: 1 115 x 715 x 595 mm
- Weight: 40 kg
- Load capacity/top load: 1 000 kg
- Nominal volume: 470 l
- Max. gross mass: 500 kg
- Color: light gray
- Runners: 3 pieces, unwelded
- UN 50H certification
- Design: One-piece, manufactured by injection molding
- Temperature resistance: approx. -30 °C to +40 °C (briefly higher)
- Designs: Euro format and industrial format
The construction with reinforced base and additional impact protection ensures high stability in daily logistics operations.
Field of application & use
Craemer plastic containers are versatile and are particularly suitable for:
- Transport and storage of new lithium-ion batteries
- Transport, storage, and disposal of defective or damaged rechargeable batteries – for this, the use of additional safety measures such as fire protection blankets, insulation material, or special packaging systems is required, which are not included in the scope of delivery and must be provided separately
- Industrial and production logistics
- Recycling and disposal processes
- Intralogistics and automated conveyor technology
Thanks to their robust design and compliance with standards, the containers are ideally suited for use along the entire logistics value chain and enable low-maintenance use over long life cycles.
Approvals
- UN approval for hazardous goods (50H)
- Suitable for lithium-ion rechargeable batteries (new and defective)
- Manufacturing is based on DIN EN 13626 and DIN EN ISO 12048
Safety features:
- Seamless, liquid-tight construction
- High impact resistance and chemical resistance
- Smooth interior surfaces to minimize residues

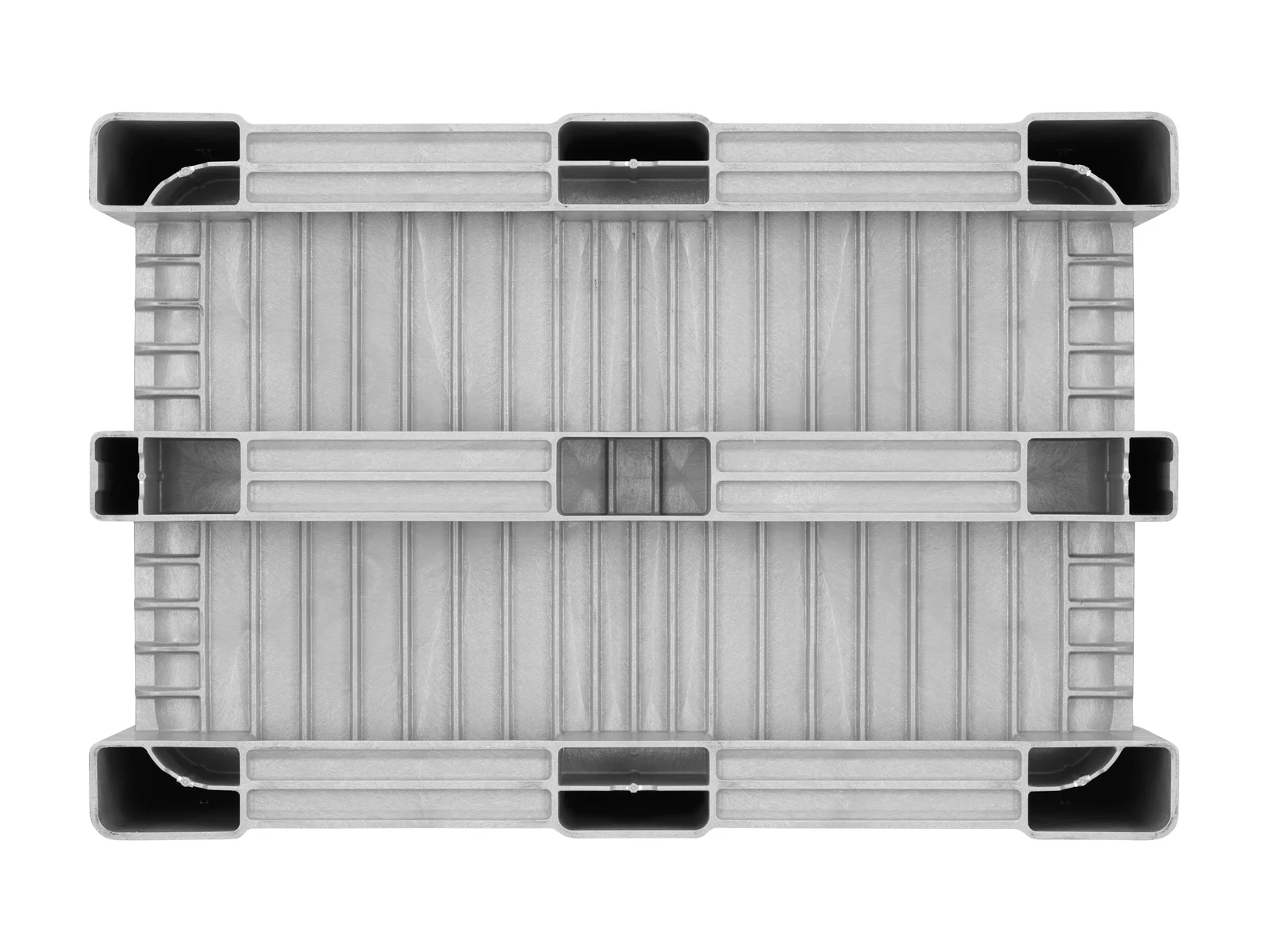

- Stable base with reinforcement structure
- Impact protection against damage from forklifts
- Secure stackability through integrated stacking lugs
Summary
The Craemer pallet bopxes offer a robust, standards-compliant, and flexibly configurable solution for the safe handling of lithium batteries and other hazardous materials. Thanks to their durable design, high load capacity, and wide range of options, they are ideally suited for industrial applications with the highest requirements for safety and efficiency.
