Fingerhuth fire containment blanket / fire blanket S-TYPE Battery 2 x 2 m Fire blanket for batteries
- External dimensions: 2 000 x 2 000 mm
- Heat resistance: 1,600°C (short-term), 1,200°C (long-term)
- Water-permeable fabric
- Including PVC insert bag
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Dimensions (mm): | 2 000 x 2 000 |
|---|---|
| Grammage (g/m²): | 1 150 |
| Heat resistance (permanent) ° C: | 1,200 |
| Heat resistance (short-term) ° C: | 1 600 |
| Material: | Silica fabric |
| Material thickness (mm): | 1,4 |
| Suitable for: | Small electrical appliances and batteries |
| Weight (kg): | 6 |
Product information „Fingerhuth fire containment blanket / fire blanket S-TYPE Battery 2 x 2 m“
Overview
The S-TYPE battery fire containment blanket 2 x 2 m has been specially developed for fire containment in lithium-ion batteries and high-voltage battery systems. It is designed to limit the effects of a battery fire, contain flames and flying sparks, and limit the spread of heat to the surrounding area.
The blanket is made from a high-temperature-resistant silicate fabric with a vermiculite coating on both sides and can withstand temperatures of up to 1,200 °C over the long term. This makes it particularly suitable for use with electric vehicles, battery storage systems and individual lithium-ion batteries.
Unlike conventional fire blankets, the S-TYPE has been specially developed to meet the requirements of modern lithium batteries. It supports controlled fire containment and helps to protect people, buildings and property from the consequences of thermal runaway.
Scope of use & applications
The S-TYPE battery fire containment blanket is suitable for numerous applications involving lithium-ion batteries:
- Battery and energy storage systems
- Workshops and service centres
- Car manufacturers and suppliers
- Recycling and waste management companies
- Fire brigades and emergency services
- Logistics and warehousing areas
- Testing and development centres

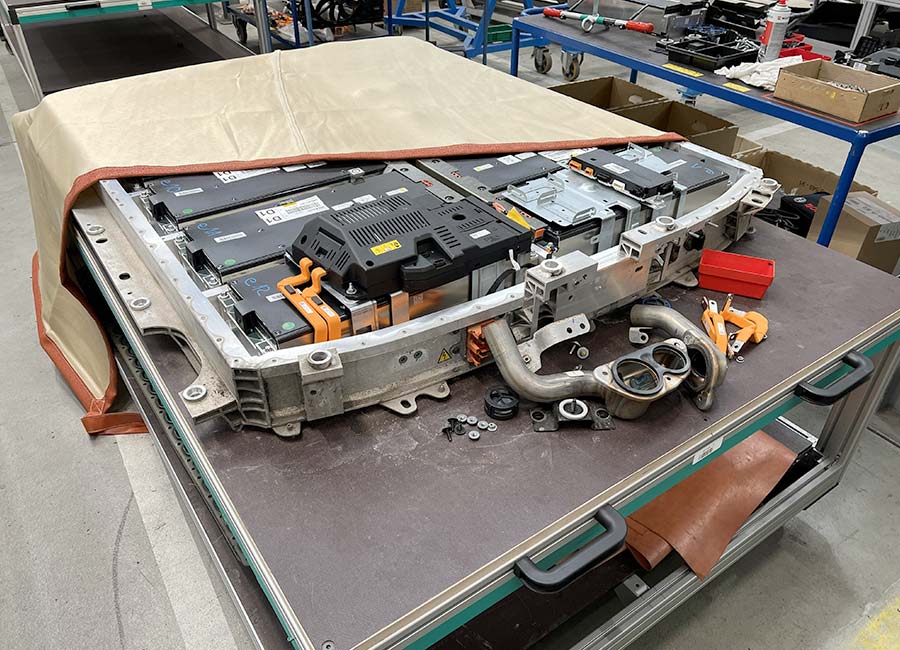

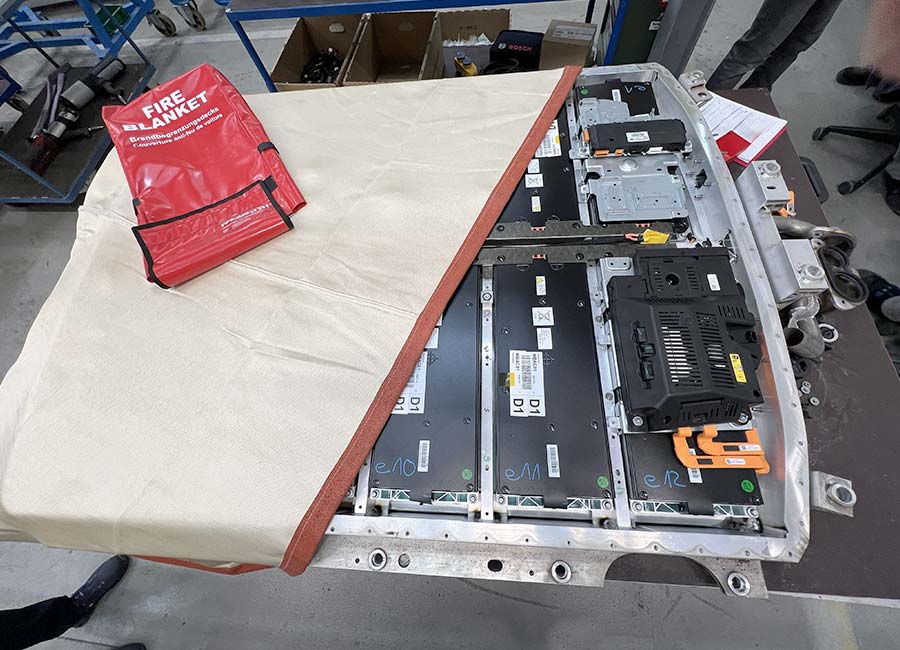

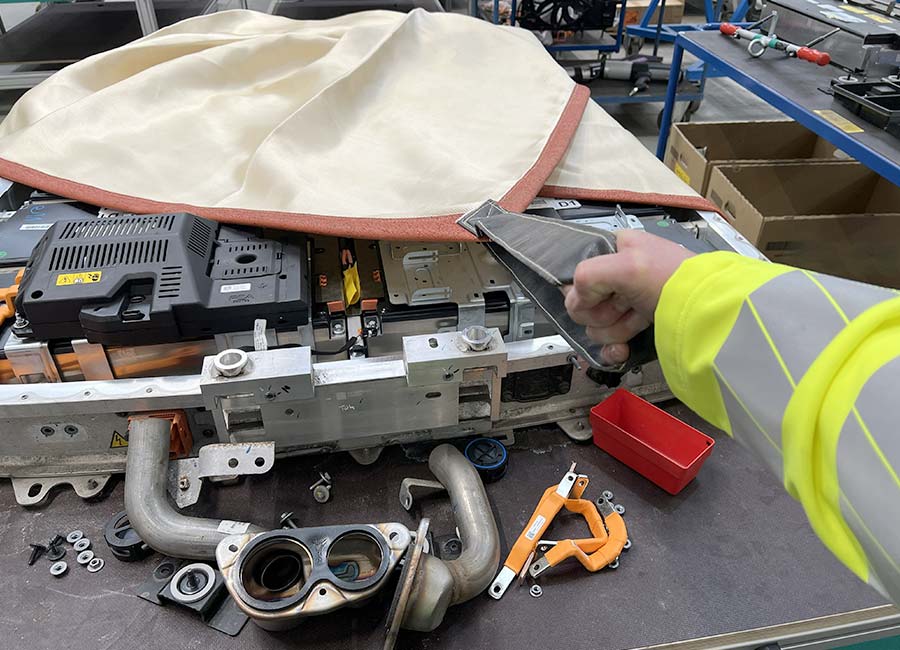

The blanket is placed over the affected battery system and serves to contain flames, heat and ejected particles as locally as possible. This helps to protect surrounding areas and minimise consequential damage.
Technical data
Dimensions: 2,000 x 2,000 mm
Weight: 6.5 kg
Base fabric: Silicate fabric (SL Silica Fabric)
Grammage: 1,150 g/m²
Material thickness: 1.4 mm
Coating: Vermiculite on both sides
Colour: Golden brown
Temperature resistance: up to 1,200 °C for prolonged periods
Temperature resistance: up to 1,600 °C for short periods
Fire behaviour: A1 in accordance with DIN EN 13501-1
Application: Fire containment for lithium-ion batteries
Storage: PVC bag for wall mounting
Safety features
High-temperature-resistant material
The S-TYPE fire containment blanket consists of a special silicate fabric with a vermiculite coating. The material is designed for temperatures of up to 1,200 °C and offers high thermal resistance in the event of battery fires.
Flame and heat containment
The blanket helps to contain flames, flying sparks and radiant heat. This helps to reduce the spread of a fire to neighbouring vehicles, machinery or building structures.
Mechanically robust fabric
With a high tensile strength of over 2,700 N/5 cm in the warp direction and over 2,200 N/5 cm in the weft direction, the blanket is also suitable for demanding operating conditions.
Non-combustible material
The material meets the requirements of fire class A1 in accordance with DIN EN 13501-1 and is therefore classified as a non-combustible building material.
Certifications & Tests
The S-TYPE battery fire containment blanket has been tested in accordance with relevant standards and test procedures:
- Tested in accordance with DIN SPEC 91489:2024
- Tested in accordance with DIN EN 13501-1
- Tested in accordance with DIN 54345-1
These tests confirm the blanket’s suitability for use with lithium-ion batteries.
Instructions for use and operation
- The fire containment blanket is designed to contain and shield a battery fire
- It is not a substitute for a risk assessment or fire safety measures
- The blanket should be positioned completely over the affected object
- After use, the blanket must be checked for damage
- For professional use, it is recommended that the blanket be integrated into existing fire safety and emergency plans
Advantages at a glance
- Specially developed for lithium-ion batteries
- Temperature-resistant up to 1,200 °C over the long term
- Temperature-resistant up to 1,600 °C for short periods
- Non-combustible in accordance with fire class A1
- Double-sided vermiculite coating
- High mechanical strength
- Tested in accordance with DIN SPEC 91489:2024
Conclusion
The S-TYPE battery fire containment blanket 2 x 2 m offers a professional solution for containing fires involving lithium-ion batteries. Thanks to the combination of high-temperature-resistant silicate fabric and tested material properties it is equally suitable for industry, workshops, logistics, emergency services and fire brigades. It supports an effective fire safety strategy and helps to reduce the impact of thermal runaway on the surrounding area.
| Dimensions (mm): | 2 000 x 2 000 |
|---|---|
| Grammage (g/m²): | 1 150 |
| Heat resistance (permanent) ° C: | 1,200 |
| Heat resistance (short-term) ° C: | 1 600 |
| Material: | Silica fabric |
| Material thickness (mm): | 1,4 |
| Suitable for: | Small electrical appliances and batteries |
| Weight (kg): | 6 |
