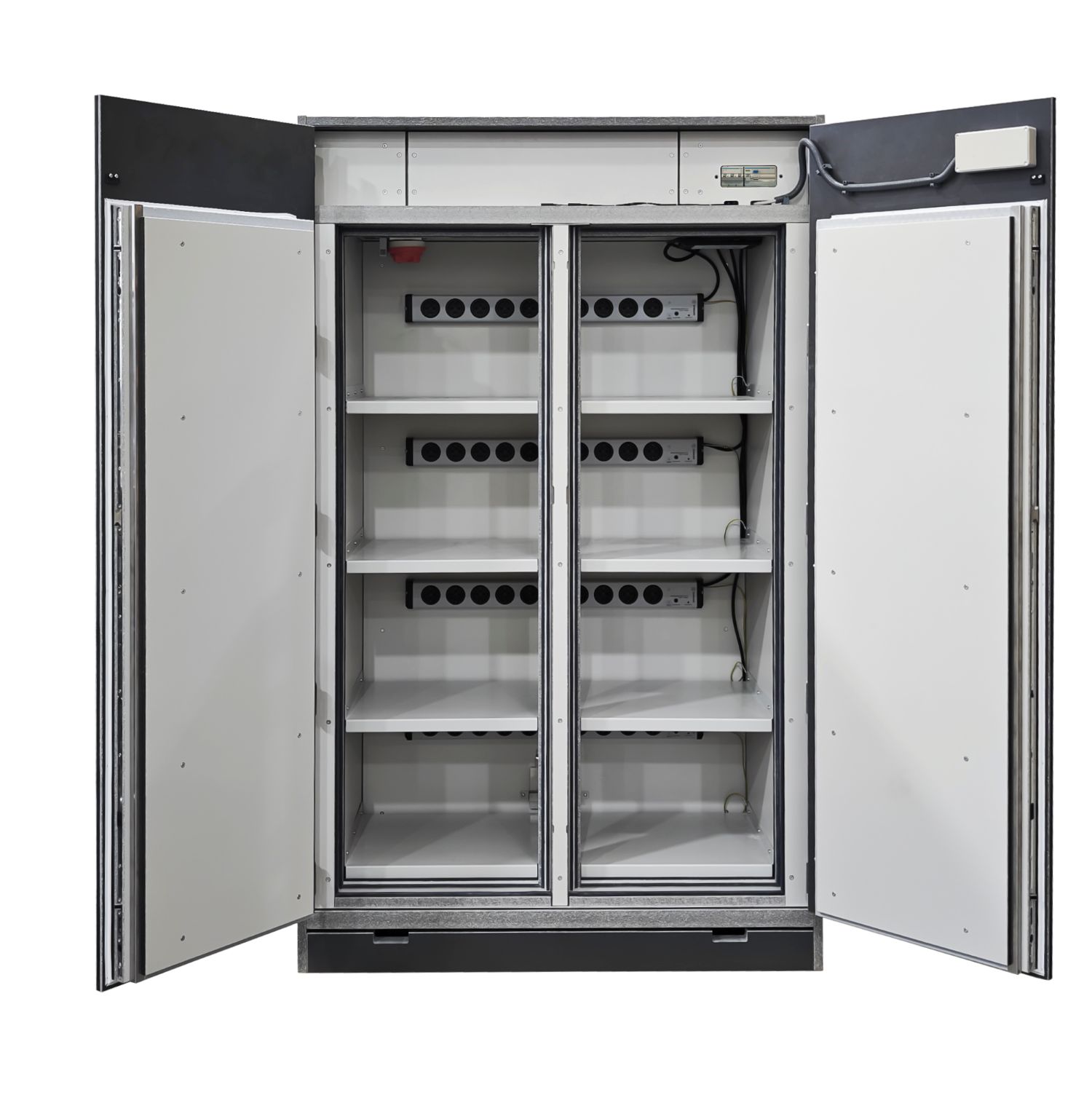

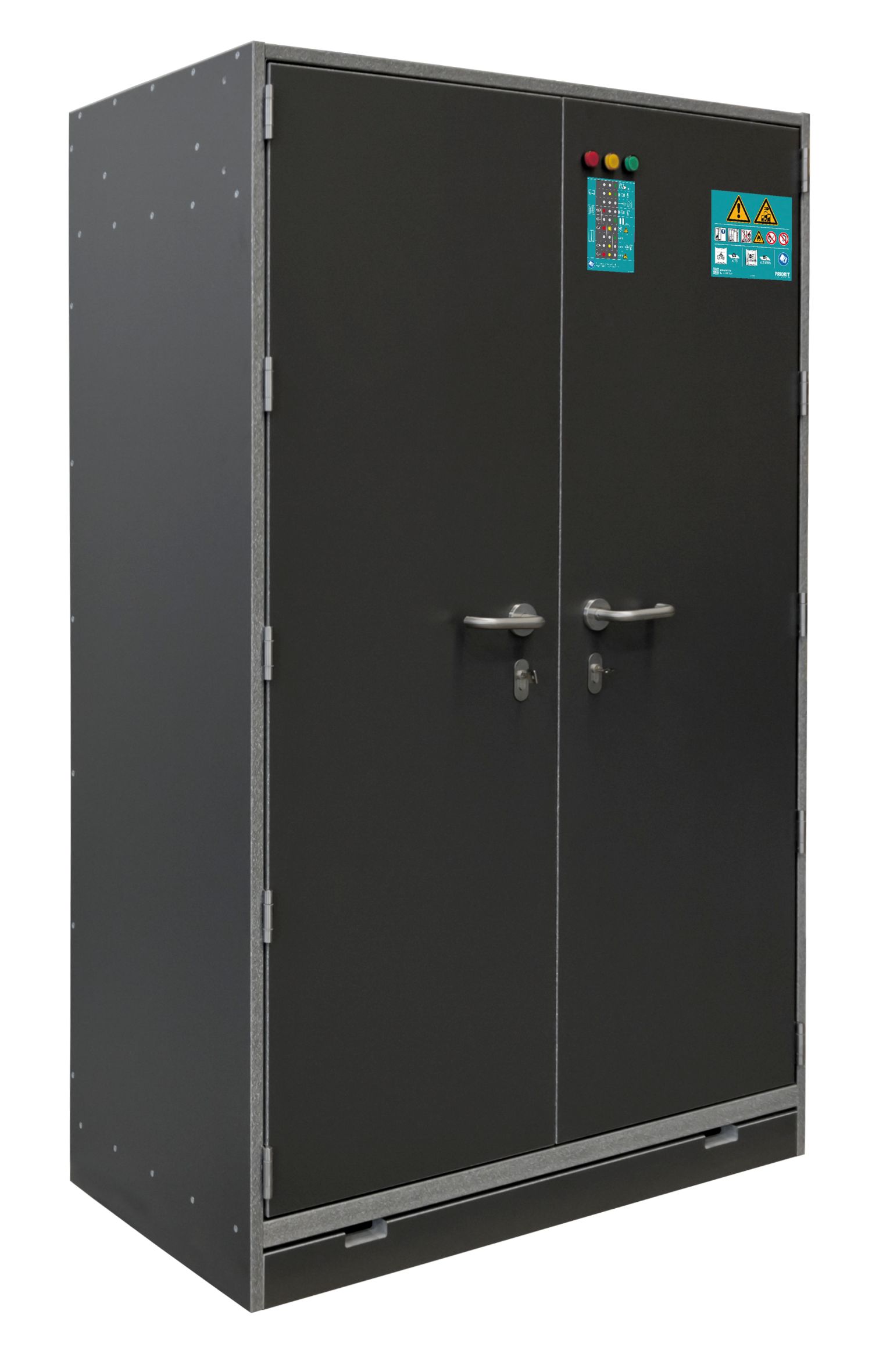

PRIORIT PRIOLION Premium storage and charging Cabinet Safety cabinet for lithium-ion batteries
- 2-door security cabinet
- 4 shelves
- 230 V connection
- two power strips, each with 10 sockets
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Cabinet power supply: | 230 V / AC |
|---|---|
| Cabinet type: | Freestanding Cabinet |
| Colour: | Diamant grey |
| Fire suppression: | Without |
| Fire test procedure: | VDMA 24994 |
| Internal dimensions (mm): | 1 004 x 440 x 1 504 |
| Max. energy density (kWh): | 8 |
| Outer dimensions (mm): | 1 194 x 632 x 2 003 |
| Power strips (total outlets): | 2 x 10 power strips |
| Shelves: | 4 |
| Weight (kg): | 705 |
Product information „PRIORIT PRIOLION Premium storage and charging Cabinet“
Overview
The PRIOLION Premium is a safety and charging cabinet certified to VDMA 24994 for the professional storage and charging of lithium-ion batteries. The system has been specially developed to minimise the risks of thermal runaway and to provide businesses with a safe solution for the day-to-day handling of lithium batteries.
Thanks to its combination of fire-resistant construction, technical ventilation, integrated control system and alarm system, the PRIOLION Premium is particularly suitable for companies with heightened fire safety requirements for lithium-ion batteries.
Scope of supply
- VDMA 24994-certified lithium-ion battery cabinet
- 4 powder-coated steel shelves
- Liquid-tight base tray (5 l)
- Integrated control unit with visual and audible status indicators
- Technical ventilation
- Self-closing, lockable double doors
- Transport base with space for a forklift and removable base panel
- Smoke detector inside the cabinet
- Potential-free interface for forwarding alerts
- 230 V control unit
Technical data
External dimensions (W × D × H): 1 194 × 632 × 2 003 mm
Internal dimensions (W × D × H): 1 004 × 440 × 1 504 mm
Weight : approx. 705 kg
Material : Non-combustible A2 panels with CPL surface
Colour : Diamond grey
Number of shelves : 4
Load capacity per shelf : 75 kg
Base tray : 5 l, Liquid-tight
Rated voltage : 230 V
Fuse rating for power strips : 16 A
Total power at 230 V : 3.5 kW
Maximum energy density : 8 kWh
Additional features
Power strips
- two integrated power strips, each with 10 sockets
Application & Applications
The PRIOLION Premium has been developed for the safe storage and charging of portable lithium-ion batteries and is particularly suitable for :
- industrial and manufacturing companies
- workshops and service centres
- e-bike and tool manufacturers
- research and development
- logistics- and maintenance areas
- Local authority facilities and public utilities
The cabinet is designed for lithium-ion batteries weighing up to 25 kg each and can be used for both passive storage and charging processes.
Approvals & Safety Features
Certified fire protection in accordance with VDMA 24994
The PRIOLION Premium meets the requirements of VDMA 24994 Class I/O 90 and has been tested for fire exposure from both the inside and the outside.
Protection against thermal runaway
The test scenario demonstrated :
- no flames escape
- no splinters or projectiles are ejected
- fire spread is prevented
- the enclosure construction withstands thermal runaway
fire resistance from the outside
- fire resistance duration of 90 minutes
- maximum temperature rise inside the enclosure 120 K
- Maximum external temperature rise: 150 K
Non-combustible construction
The cabinet is constructed from non-combustible materials in building material class A2-s1,d0, thereby offering additional protection in the event of a fire.
Monitoring, alarm and protection functions
The PRIOLION Premium comes as standard with an integrated control unit for monitoring the cabinet’s status.
Integrated monitoring
- Internal smoke detector
- Visual status indicator
- Audible alarm
- Automatic activation in the event of smoke detection
Signal transmission
A potential-free interface is available for integration into existing security systems. This allows messages
to be forwarded,
for example, to :
- control centres
- building management systems
- fire alarm systems
Electrical protection
- Surge protection
- Complete shutdown of the power supply in the event of an emergency
Mechanical ventilation
To prevent heat build-up, the cabinet is fitted with an integrated mechanical ventilation system.
The supply and exhaust air vents are automatically sealed in the event of a fire. Activation is triggered via :
- Thermocouple
- Smoke detector
This ensures that the cabinet’s protective function is maintained even during critical incidents.
Design & Features
The PRIOLION Premium has been developed for daily industrial use.
Features :
- High-quality internaland external surfaces
- Permanently self-closing doors
- Oil-damped door closers
- Double-leaf design
- Each door can be operated individually
- Lockable using a profile cylinder
- Compatible with key systems
- Transport plinth with clearance for wheeled vehicles
- Plinth cover removable without tools
- Modular design for easy relocation
Instructions for use and operation
- Suitable for lithium-ionbatteries weighing up to 25 kg each
- Recommended installation on level ground
- Allow for rapid evacuation in the event of an incident
- Involvement of the property insurer is recommended
- Early consultation with the relevant fire safety authorities is recommended when carrying out structural work
- Installation of electrical components by qualified specialist personnel
Conclusion
The PRIOLION Premium offers a professional solution for the safe storage and charging of lithium-ion batteries. Its tested fire resistance in accordance with VDMA 24994, proven protection against thermal runaway, integrated monitoring technology and wide range of equipment options make the cabinet a high-performance safety solution for industry, logistics, workshops and research facilities.
