SEDA HV battery container high cube, with extinguishing function for lithium-ion batteries
- Max. battery size: approx. 2660 x 2000 x 491 mm per compartment
- External dimensions: 6058 x 2438 x 2896 mm
- 6 compartments
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Applications areas: | Automotive, Critically defective lithium-ion batteries, External storage, Fire-retardant storage, Stationary safety container, Storage |
|---|---|
| Internal dimensions (mm): | 2 660 x 2 000 x 491 (per compartment) |
| Material: | Steel |
| Material designation: | Steel |
| Outer dimensions (mm): | 6 058 x 2 438 x 2 896 |
| Tipping weight (kg): | 6 600 |
| Type: | Storage container |
| Volume (l): | > 600 |
Product information „SEDA HV battery container high cube, with extinguishing function“
Electric vehicles are becoming increasingly common these days, but this also increases the risk of them malfunctioning or being damaged in an accident.
In such cases, a reliable and safe solution is needed to prevent further damage. The SEDA HV Battery Container Standard is the perfect tool for this. Thanks to its four separate compartments, lithium-ion batteries/rechargeable batteries can be stored in this container. The closed container ensures a controlled reaction of the energy storage device.
SEDA HV Battery Container High Cube – Immediate hazard prevention for conspicuous lithium batteries
The SEDA HV Battery Container ensures safe storage for both critical and non-critical energy storage devices. Storage takes place in monitored compartments that can be flooded in the event of a thermal reaction.
Dimensions and weights
The container is 6,400 mm long, 2,450 mm wide and 2,896 mm high. The interior offers 6 containers including frames for drawers. The individual compartments measure 2,660 x 2,000 x 491 mm. It weighs approximately 6,600 kg.
Removal capability of the storage containers ensures easy loading

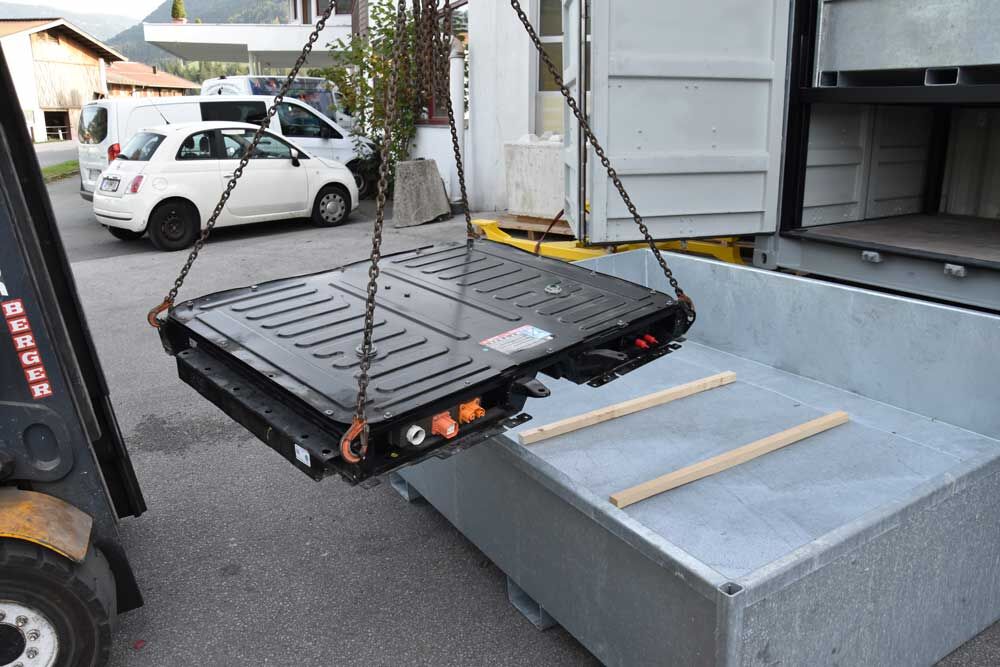

The individual storage compartments can be removed with a forklift for easy loading. The battery is loaded into the compartment from above. A crane or forklift truck is recommended for loading. The battery should be placed on square timbers in the container.
Temperature monitoring and control
It is possible for the user to control the temperature inside the container themselves. The temperature and ventilation can be preset according to the user's requirements. In the version offered here, the container is cross-ventilated and maintains the ambient temperature inside the container. If the container is to maintain a specific temperature, this is optionally possible via an air conditioning unit. Please feel free to contact us at sales@lion-care.com or +49 7151 256 4811. Ensure that a 230VAC/13A connection is available at the installation site.
Monitoring and control of individual compartments
The container also has 4 temperature sensors per compartment. These can be attached to the battery. If these measure a temperature above 68°C, the container is immediately flooded with water or another extinguishing agent. In addition, the ambient temperature in the containers is measured and smoke gas, hydrogen (H2) and carbon monoxide (CO) are evaluated. Current values are shown on the front display.
Flooding at temperatures above 68°C
If the temperature exceeds 68°C, the integrated flooders are activated by the trigger monitoring system and the extinguishing or cooling agent is introduced. The fill level is monitored by sensors. A water connection with a Storz coupling size A is required at the installation site. If frost or temperatures close to freezing occur at the site, a dry extinguishing line must be provided.
General guidelines for battery storage
There are currently no legal regulations for the storage of lithium batteries/lithium-ion batteries. Only VdS Schadenverhütung GmbH provides general safety rules for damage prevention in its publication VdS 3103 : 2019-06 (03). It is advisable to clarify your requirements with your property insurer in advance.
SEDA Umwelttechnik GmbH – Solution for car recycling
SEDA Umwelttechnik GmbH is a company that specialises in the development, manufacture and sale of equipment and systems for draining end-of-life vehicles. The company's vision is to protect the environment from hazardous liquids and pollutants.
Future-oriented
Lithium-ion batteries will become indispensable in all industrial applications in the coming years
.
However, if used improperly, the batteries can pose a potential hazard that should not be underestimated during manufacture, storage and transport. By purchasing these containers, you are protecting yourself against major financial losses right from the start. International customers from the automotive and energy supply sectors, among others, rely on this proven technology.
Working for you
Please do not hesitate to contact us if you have any questions. We look forward to hearing from you.
| Applications areas: | Automotive, Critically defective lithium-ion batteries, External storage, Fire-retardant storage, Stationary safety container, Storage |
|---|---|
| Internal dimensions (mm): | 2 660 x 2 000 x 491 (per compartment) |
| Material: | Steel |
| Material designation: | Steel |
| Outer dimensions (mm): | 6 058 x 2 438 x 2 896 |
| Tipping weight (kg): | 6 600 |
| Type: | Storage container |
| Volume (l): | > 600 |
