ZARGES K 470 - Universal Premium Battery Safe XL transport box Aluminum container for lithium-ion batteries
- For critically defective batteries
- Max. energy density: 3.5 kWh
- External dimensions: 740 x 510 x 410 mm
- Max. battery size: 515 x 285 x 215 mm

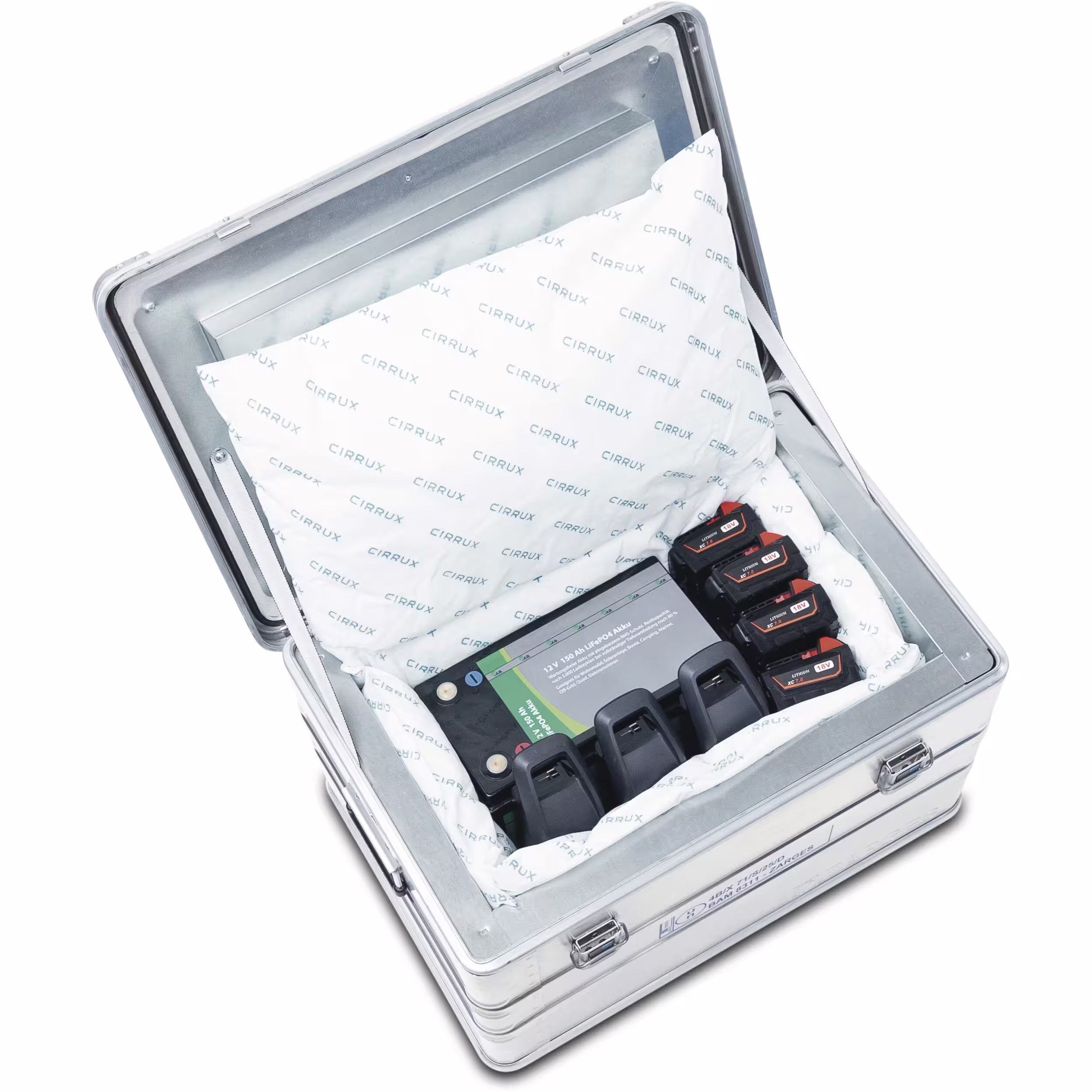

- Including CIRRUX cushion
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| ADR special provision: | SV 310, SV 376, SV 377 |
|---|---|
| Areas of application: | E-Bike batteries, Garden tool batteries, Model building batteries, Power tool batteries, Prototypes |
| Battery status: | Critically defective |
| Filling material: | Textured optical fibers |
| Handling of filling materials: | cushions |
| Included filler material: | Glass fiber pillow (filled pillow) |
| Material: | Aluminum |
| Material designation: | Aluminum |
| Max. energy density (kWh): | 3.5 |
| Max. gross weight (kg): | 71 |
| Max. net cargo mass (kg): | 45 |
| Outer dimensions (mm): | 740 x 510 x 410 |
| Packaging group: | I, I |
| Packaging instruction according to ADR: | P 908, P 909, P 910, P 911 |
| Packaging type: | Dangerous goods packaging < 450 liters or < 400 kg net |
| Suitable for critically defective?: | Yes |
| Tipping weight (kg): | 25.3 |
| Volume (l): | 0 - 84 |
Product information „ZARGES K 470 - Universal Premium Battery Safe XL transport box“
ZARGES K 470 – Battery Safe Universal XL Premium
Fireproof transport and storage box for lithium-ion batteries
1. Product overview
The ZARGES K 470 Battery Safe Universal XL Premium is a fireproof transport and storage box for lithium-ion batteries, including defective and critically defective batteries. The box is approved as a tested hazardous goods packaging and offers a flexible, reusable safety concept for transport, storage and recycling of lithium batteries.
2. Applications & usage
- Storage and transport of lithium-ion and lithium metal batteries
- Suitable for intact, damaged, defective and critically defective batteries
- Used for E-bikes, power tools, trades devices, model making, consumer electronics
- Also suitable for prototype transports, disposal and recycling according to ADR
3. Technical data – Battery Safe Universal XL Premium
- External dimensions (L×W×H): 740 × 510 × 410 mm
- Internal usable dimensions (L×W×H): 515 × 285 × 215 mm
- Volume: approx. 42 liters
- Empty weight: 25.3 kg
- Max. gross mass (hazardous goods approval): 71 kg
- Max. energy density: 3.5 kWh
- Material: Aluminium
- Temperature range: –40 °C to +80 °C

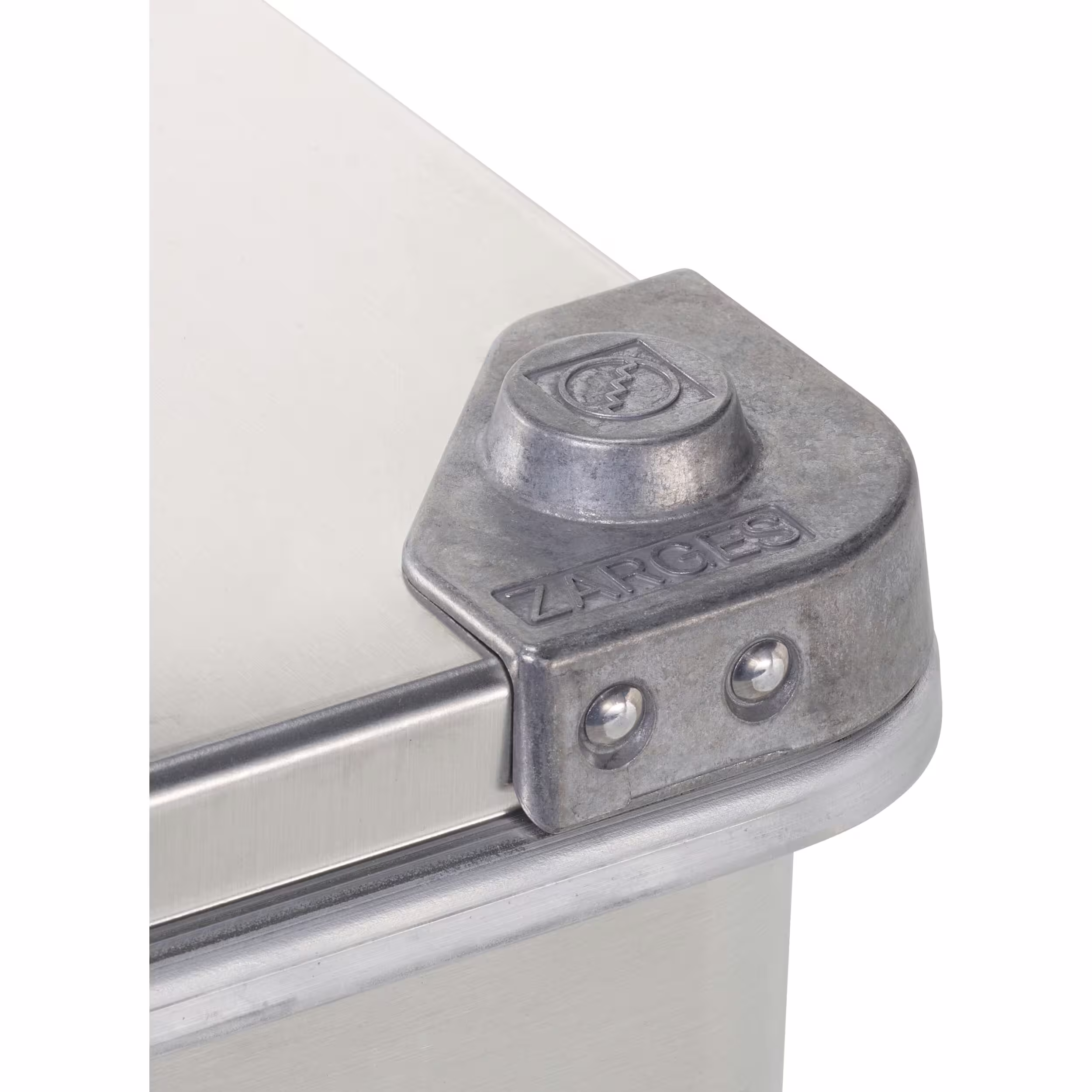

- Stackable thanks to aluminium stacking corners
- Warranty: 10-year manufacturer warranty (ZARGES)
4. Fire protection & safety concept
- Fireproof, single-piece interior to prevent user errors
- Non-combustible, non-electrically conductive cushioning and absorption material made of textured glass fibers (CIRRUX)
- Contains leaking electrolyte in case of an incident
- Intumescent fabric with foaming action when exposed to heat
- Maximum outside temperature 100 °C in case of emergency
- No flame or splinter leakage
- Additional heat protection plates for optimized thermal protection
5. Approvals, tests & standards
- Approved hazardous goods packaging for:
– UN 3480 / UN 3481 (lithium-ion batteries)
– UN 3090 / UN 3091 (lithium metal batteries)
- Suitable according to:
– ADR Special Provision SV 376
– Packaging Instructions P 908 and P 911
– SV 377 / P 909 (disposal & recycling)
– SV 310 / P 910 (prototype transports)
- Real-world tests with lithium batteries up to 3,500 Wh passed
- For critically defective batteries, the BAM determination must be observed
6. Mechanical protection & handling
- Effective protection against mechanical impacts and shocks
- CIRRUX padding absorbs drop and impact energy
- Spring-loaded handles for ergonomic handling
- Comfort latches for secure closure
- Rim seam for additional stability
7. Variants & differentiation
| ZARGES K470 Battery-Safe Classik | ZARGES K470 Battery-Safe Universal Premium | ZARGES K470 Battery-Safe Universal XL Premium |
Application | Larger but not as powerful Li-ion batteries (especially e-bike batteries) | Flexibly usable, suitable for high-performance batteries | Good for high-performance batteries and prototypes |
Approval for critically defective batteries | Yes, up to max. 0.8 kWh capacity, the determination must be observed! | Yes, up to max. 1.3 kWh capacity, the determination must be observed! | Yes, up to max. 3.5 kWh capacity, the determination must be observed! |
Interior layout | 3 compartments, especially designed for e-bike batteries | Flexible interior use | Flexible interior use |
External dimensions | 600 x 600 x 250 | 600 x 400 x 250 | 740 x 510 x 410 |
Security concept | Deck foil with Cirrux cushion | Deck foil with Cirrux cushion, in addition gravel plates with metal lining for higher nominal energies | Deck foil with Cirrux cushion, in addition gravel plates with metal lining for higher nominal energies |
Maximum gross mass (hazardous goods approval) | 65 kg | 65 kg | 71 kg |
Empty weight | 11.5 kg | 11.5 kg | 25.3 kg |
Warranty | 10-year ZARGES manufacturer warranty | 10-year ZARGES manufacturer warranty | 10-year ZARGES manufacturer warranty |
8. Conclusion
The ZARGES K 470 Battery Safe Universal XL Premium is a professional solution for the secure storage and transport of lithium-ion batteries, even in critical condition. With tested hazardous goods approval, comprehensive fire protection, mechanical safety and high flexibility, the box is suitable for companies, workshops, logistics, recycling and demanding private applications.
9. For you in operation
If you have any questions, please feel free to contact us. We look forward to hearing from you!
