ecell-guard BASIC - Automated fire protection for electric vehicles and lithium-ion batteries
- Exterior dimensions: 2 480 x 600 x 390 mm
- Installable as a single or multisystem
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Outer dimensions (mm): | 2 480 x 600 x 390 |
|---|---|
| Tipping weight (kg): | 180 |
Product information „ecell-guard BASIC - Automated fire protection “
Overview
The ecell-guard BASIC system is an automated fire protection solution designed to contain fires involving electric vehicles with lithium-ion batteries. Specifically developed for multi-storey car parks, underground car parks, workshops and charging areas, the system helps protect people, buildings and surrounding vehicles in the event of a battery fire – fully automatically and without manual intervention.

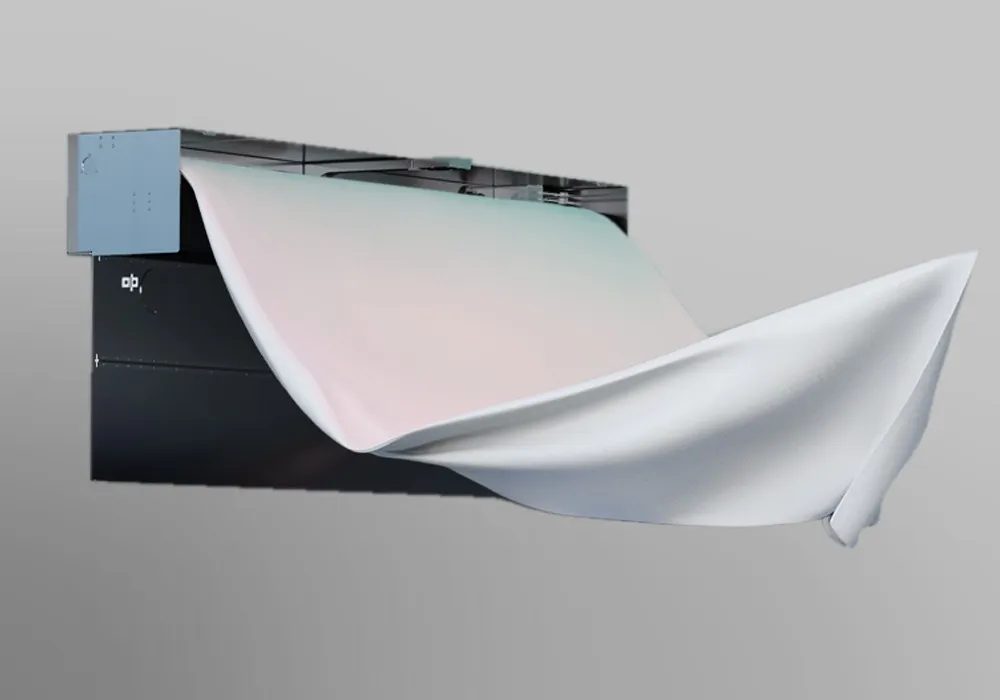

As soon as the integrated sensor system detects the onset of a lithium-ion battery fire, a high-temperature-resistant fire containment blanket is automatically deployed over the vehicle within seconds. The blanket reduces the supply of oxygen, contains extreme heat and allows the controlled release of gases generated during the fire. This significantly reduces the spread of the fire and helps limit structural damage.
The BASIC system can be installed as a single or multi-system solution, providing a future-oriented approach to the increasing fire protection requirements associated with e-mobility.
Scope of Delivery
The ecell-guard BASIC system is supplied ready for installation and includes the following components:
-
1 × system box (ready for installation, including accessories)
-
1 × fire containment blanket (pre-assembled)
-
2 × smoke and heat detectors
-
1 × acoustic and visual signalling device
-
1 × BX-O2I4 input/output module
-
1 × wheel stop
-
1 × installation kit
Note:
A fire alarm system is not included with the ecell-guard BASIC system. The fire alarm system must be added separately and contains all of the system’s electronic control components. One fire alarm system can be used to operate several systems in parallel. If multiple systems are installed, an additional multi-position extension for the fire alarm system is required.
Applications & Operating Conditions
The ecell-guard BASIC system is suitable for:
-
Underground and multi-storey car parks
-
Electric vehicle charging areas
-
Workshops and service centres
-
Car dealerships and vehicle logistics facilities
-
Industrial and commercial buildings
Maximum vehicle dimensions per system:
-
Width: 2.20 m (including exterior mirrors)
-
Height: 2.10 m
-
Length: 5.20 m
The extended vehicle dimensions (silhouette dimensions) must not exceed 7.50 m in length and 5.50 m in width.
A fire alarm system is required for operation and is not included in the scope of delivery. The ecell-guard fire alarm system can control up to 25 BASIC systems.
Technical Data
System dimensions (single system)
-
Width: 2.48 m
-
Height: 0.39 m
-
Depth: 0.60 m
-
Weight: approx. 180 kg
Fire containment blanket
-
Continuous temperature resistance: 1,200 °C
-
Short-term temperature resistance: up to 1,600 °C
-
High-temperature specialist fabric with mineral coating
-
Complies with DIN SPEC 91489
-
System-certified and tested under practical conditions
Approvals & Safety Features
The ecell-guard BASIC system operates using three automated safety stages:
Stage 1 – Early Fire Detection
-
Multiple smoke and heat detectors
-
Visual and acoustic warning signals
-
Signal transmission to the fire alarm system
-
VdS-tested components
-
Connection to the fire brigade emergency call system possible
Stage 2 – Automatic Deployment
-
Fully automatic deployment of the fire containment blanket
-
No manual intervention required
-
Response within seconds
Stage 3 – Fire Containment
-
Reduction of oxygen supply
-
Reduction of flame formation
-
Controlled release of pyrolysis gases
-
Minimisation of smoke and pressure build-up
Additional Benefits:
-
No consequential damage caused by extinguishing water
-
Protection of adjacent vehicles
-
Remains operational in the event of a power failure
-
Low maintenance requirements (annual visual inspection sufficient)
-
Components compliant with CE, DIN, ISO and VDE requirements
Fire Containment & Protection System
The specially developed high-temperature fire containment blanket is the central element of the system:
-
Specialist fabric with mineral coating
-
Continuous heat resistance up to 1,200 °C
-
Short-term temperature resistance up to 1,600 °C
-
Certified in accordance with DIN SPEC 91489
Information on Use & Operation
-
Operation only in conjunction with the ecell-guard fire alarm system
-
Installation by qualified specialist personnel recommended
-
Annual visual inspection sufficient
-
Multi-system installations can be individually planned according to the building structure
Conclusion
As electric vehicles become increasingly widespread, fire protection requirements for buildings and infrastructure are also increasing. In the event of a fire, lithium-ion batteries present particular challenges, especially in enclosed spaces.
The ecell-guard BASIC system provides an automated, scalable and standards-compliant solution for modern fire protection in car parks and EV charging infrastructure. Its integration into existing safety systems makes it a future-oriented solution for the growing requirements associated with e-mobility.
