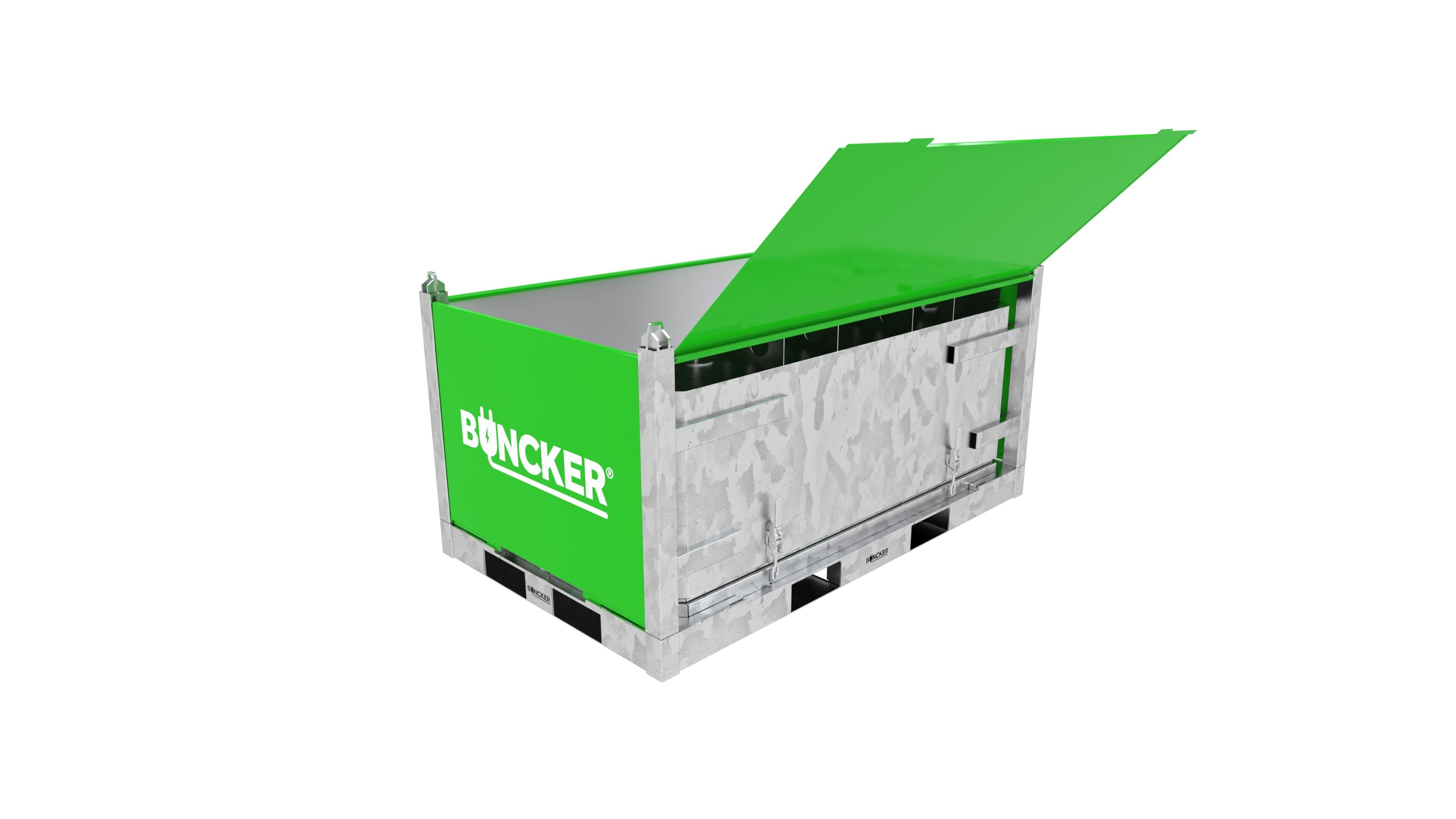

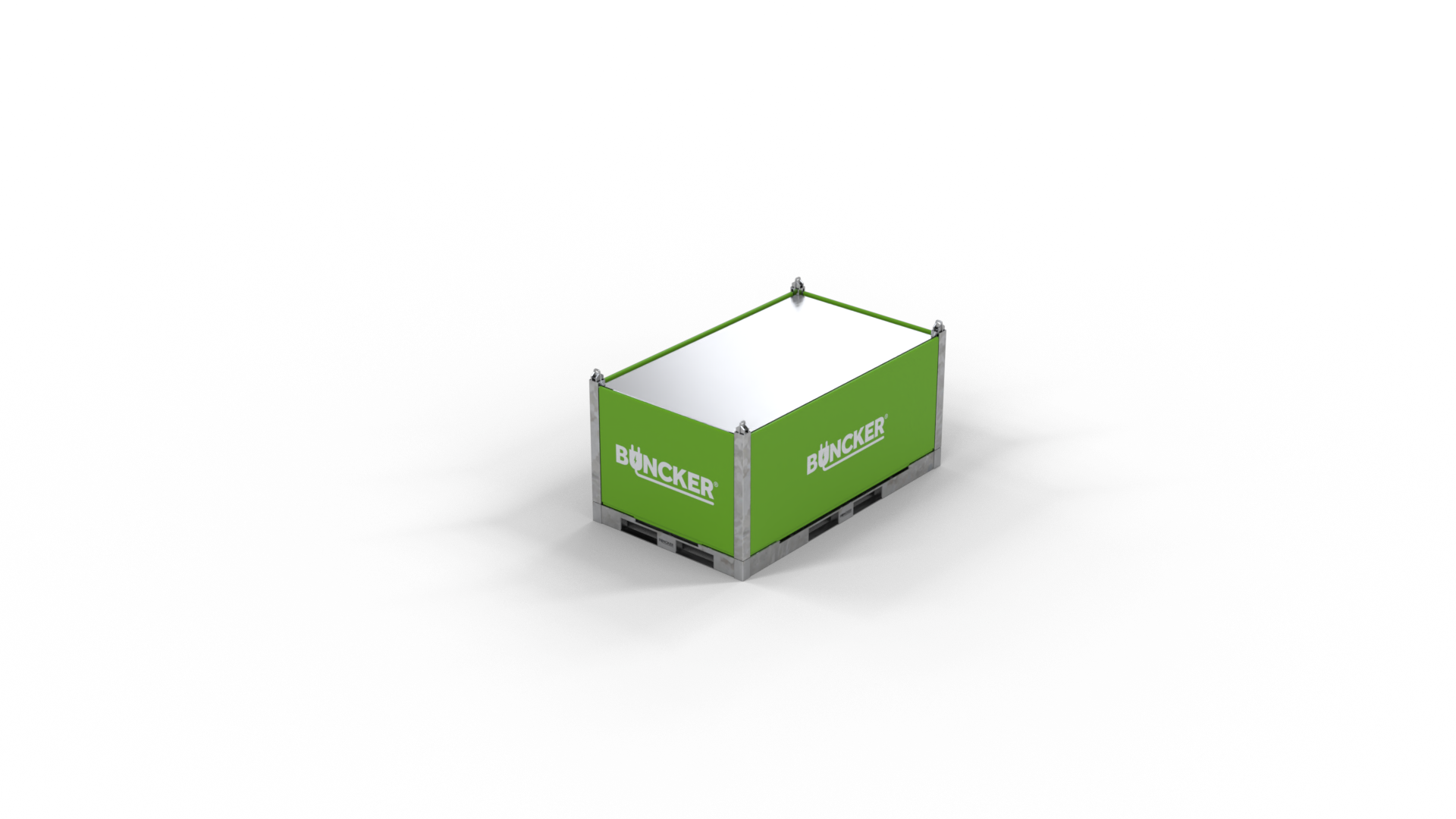

BUNCKER ® Transport and storage container Pro Line Heavy L
- Also for critically defective batteries
- Max. energy density: 90 kWh
- Internal dimensions: 720 x 880 x 550 mm
- External dimensions: 2000 x 1200 x 950 mm
- No filling material required
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| ADR special provision: | SV 376 |
|---|---|
| Applications areas: | Automotive, Fire-retardant storage, Stationary energy storage, Stationary safety container, Transport of batteries |
| Battery status: | Critically defective |
| Encoding: | 50A |
| Filling material: | Without filler material |
| Handling filling material: | without filler material |
| Included filler material: | without filler material |
| Internal dimensions (mm): | 1 720 x 880 x 550 |
| Material: | Steel |
| Material designation: | Galvanized steel |
| Max. gross weight (kg): | 1 236 |
| Maximum energy density (kWh): | 90 |
| Outer dimensions (mm): | 2,000 x 1,200 x 950 |
| Packaging group: | I |
| Packaging instruction according to ADR: | LP906 |
| Packaging type: | Dangerous goods large-packages (LP) |
| Suitable for critically defective?: | Yes |
| Tipping weight (kg): | 536 |
| UN packaging code: | UN 50A/X/--**B/1655.2144-230135/2232/1240 |
| Volume (l): | 830 |
| Volume (l): | > 600 |
| max. net cargo mass (kg): | 700 |
Product information „BUNCKER ® Transport and storage container Pro Line Heavy L“
Lithium batteries are used in a wide range of applications and are becoming increasingly popular due to their high energy density and long service life. However, it is important to note that although lithium batteries are generally safe when used properly, they do pose some risks, including the danger of thermal runaway.
Given the potential hazards posed by lithium batteries, safe and certified packaging for transport, storage and handling is essential. BUNCKER ® has developed a patented packaging solution to mitigate risks and provide protection in the event of thermal runaway or other incidents. The patented fireproof, insulating and filtering material, known as "Altilium", and the mechanisms for controlled containment and venting of gases are designed to contain thermal runaway that can occur in lithium batteries. As BUNCKER ® can protect both non-critical and critical lithium batteries, these systems offer a versatile solution.
The transport of critical lithium-ion batteries in particular continues to pose a major challenge. The storage and transport container was developed for the safe transport of critically defective lithium-ion batteries. Unlike comparable metal boxes in packaging group I, no filling material is required here. This makes this container the ideal solution for internal storage and transport in all battery conditions. The container has been tested and meets the requirements of ADR/Packaging Instruction LP 906. Please contact us if you have any questions.
Size and capacity of the battery transport container - Approved for lithium-ion batteries up to 90 kWh.
The transport container has external dimensions of approx. 2000 x 1200 x 950 mm (LxWxH). The interior dimensions of the box are 1720 x 880 x 550 mm (LxWxH), which corresponds to a capacity of approximately 830 litres. It is also approved as large steel packaging (LP) in accordance with packaging group I. The sturdy base frame can be accessed from all four sides using industrial trucks. The transport container weighs approximately 536 kg. The maximum permissible capacity is approximately 700 kg. This corresponds to a permissible total weight of 1236 kg. Size L is approved for transporting lithium-ion batteries up to 90 kWh. Please contact us regarding approval if the container is to be used for this purpose: info@lion-care.com or +49 7151 256 4811.
Application of the BUNCKER ® Pro Line Heavy L transport and storage container

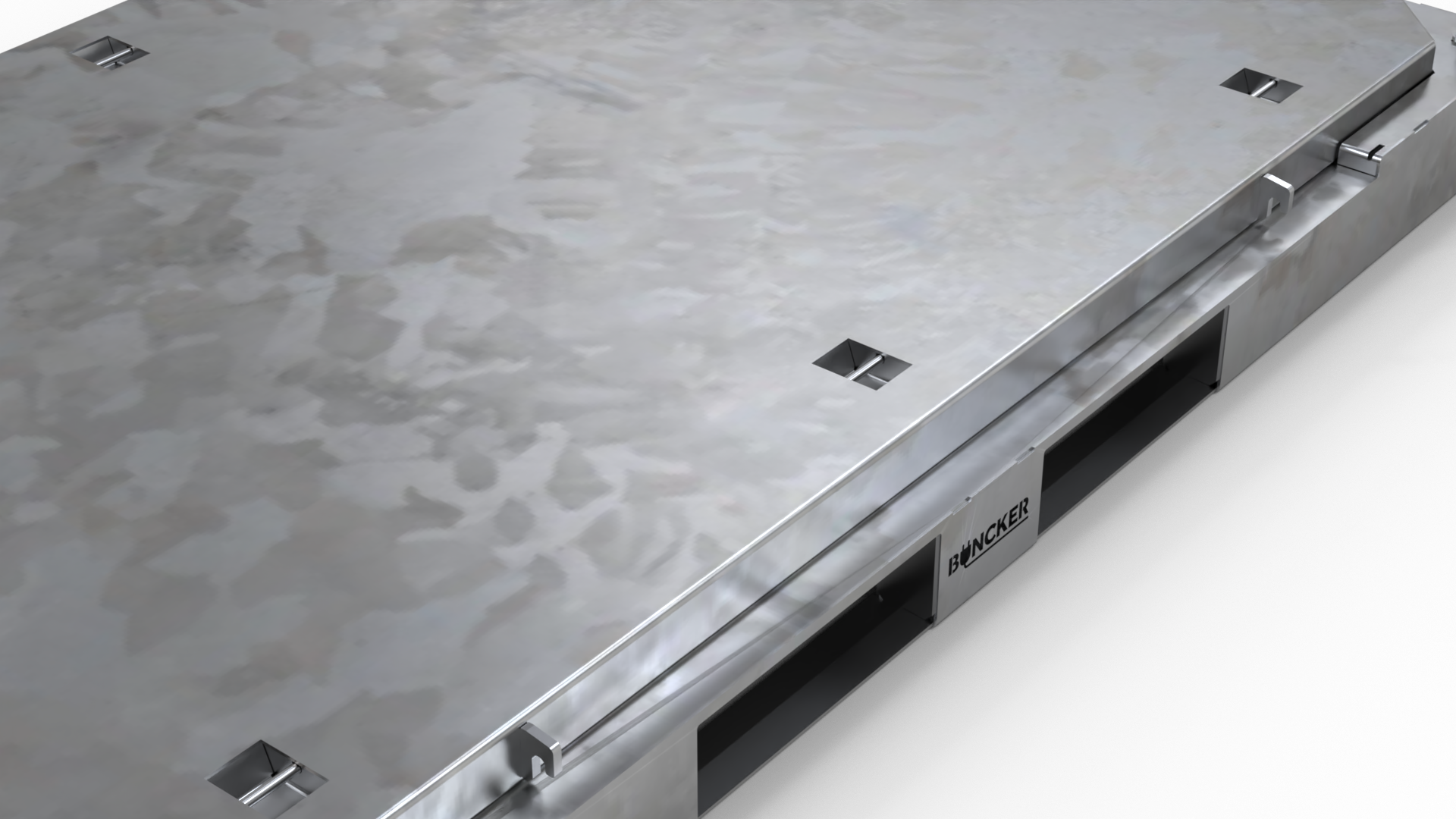

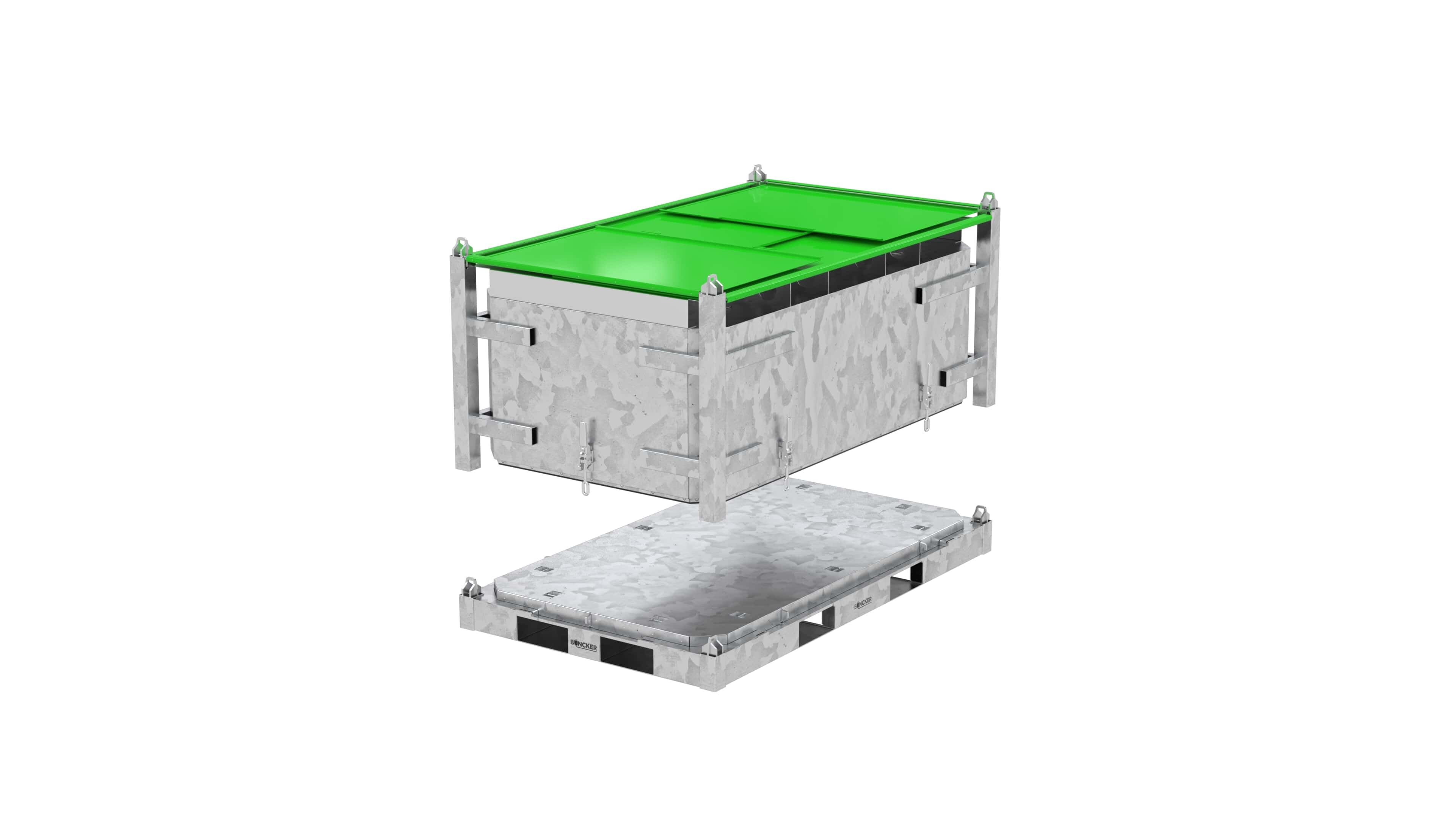

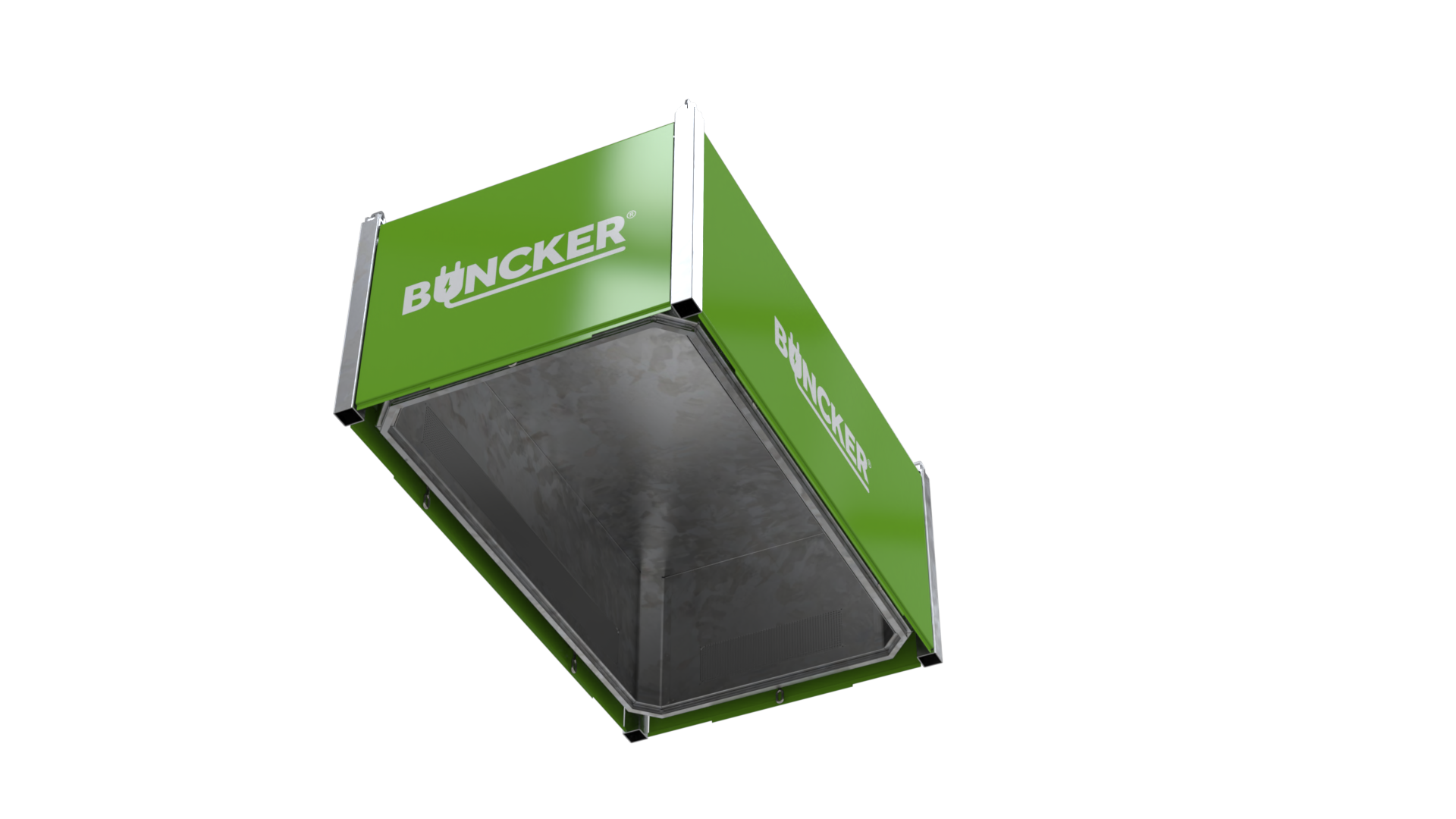

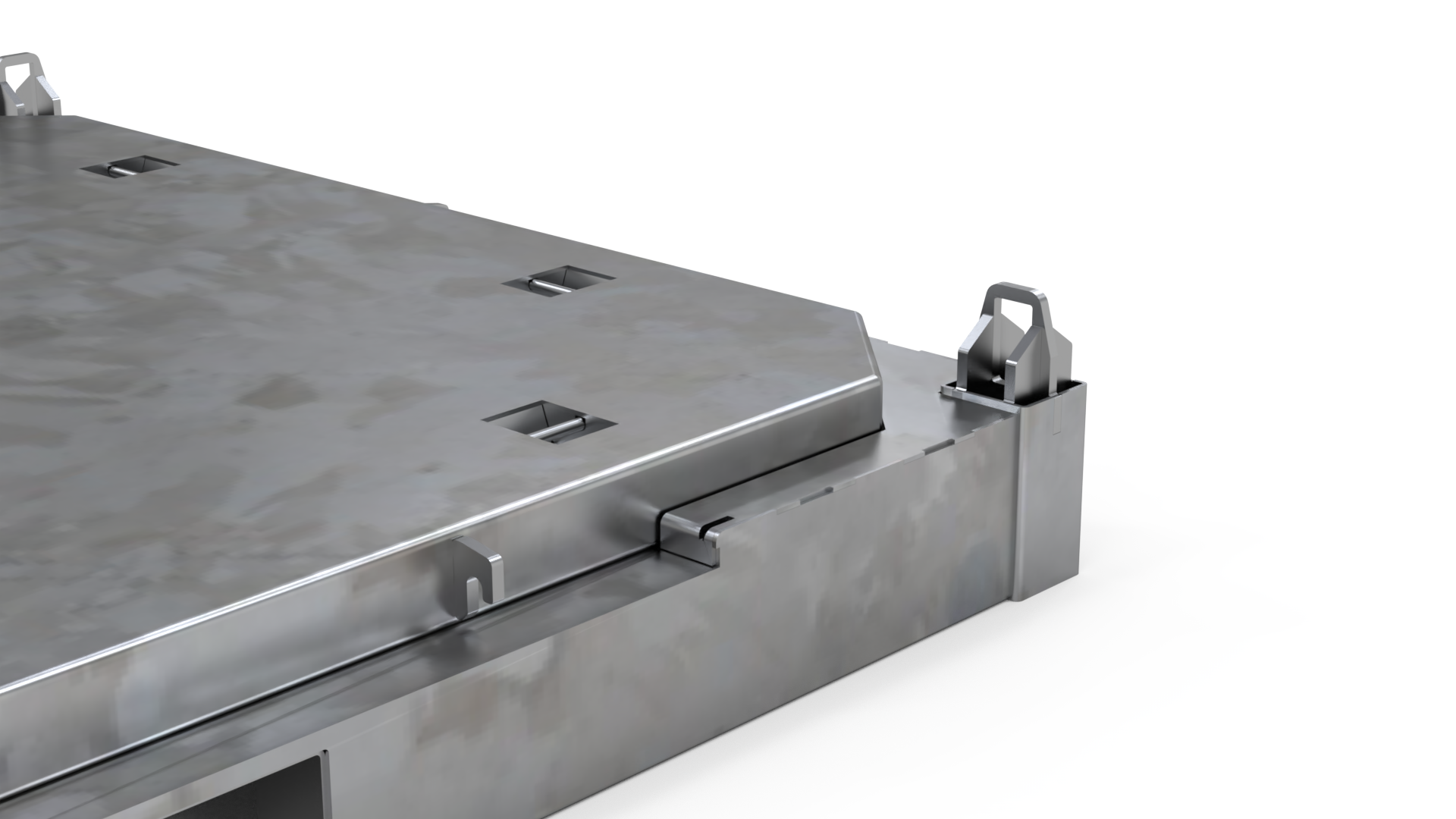

To load the container
,

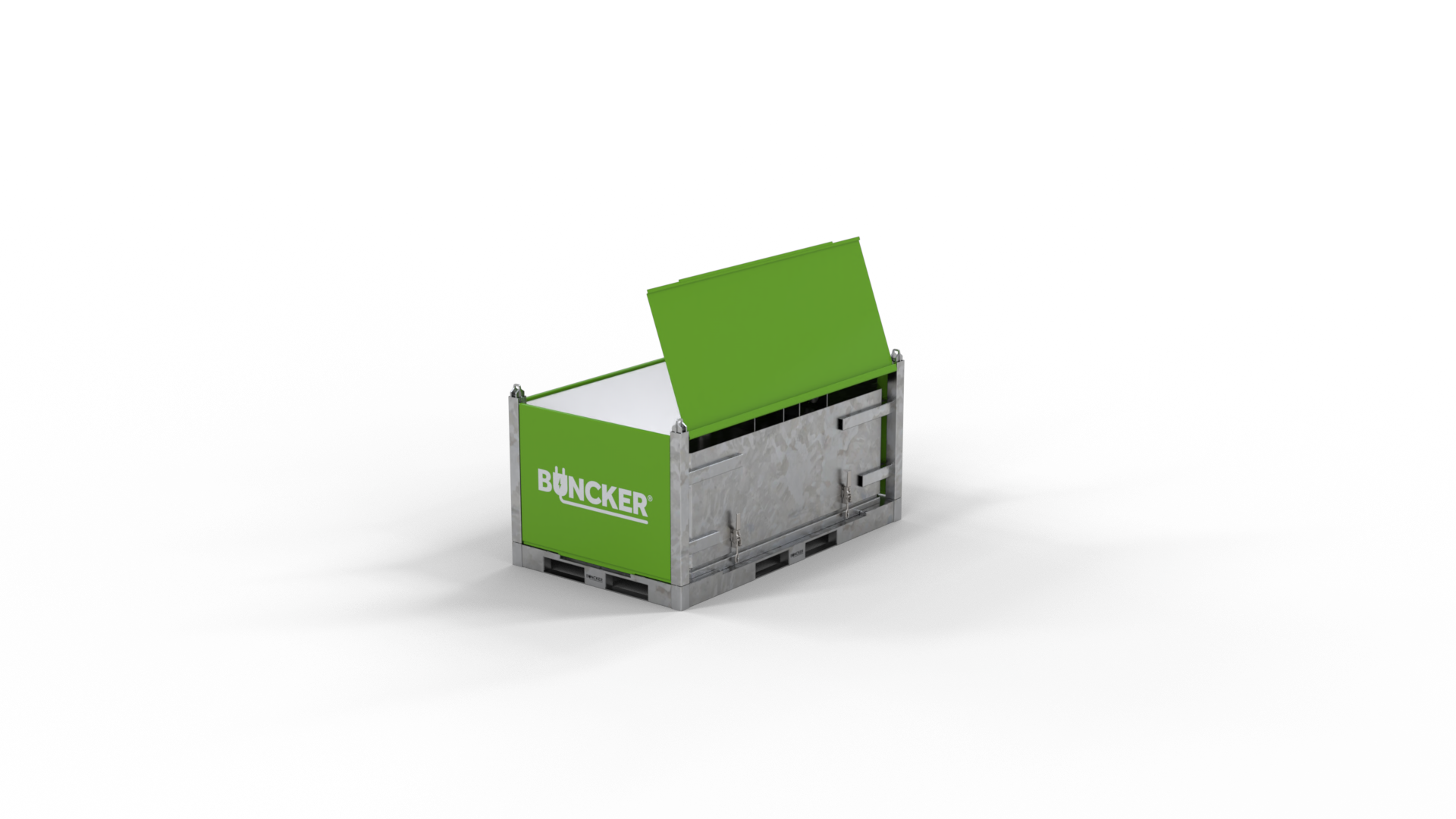

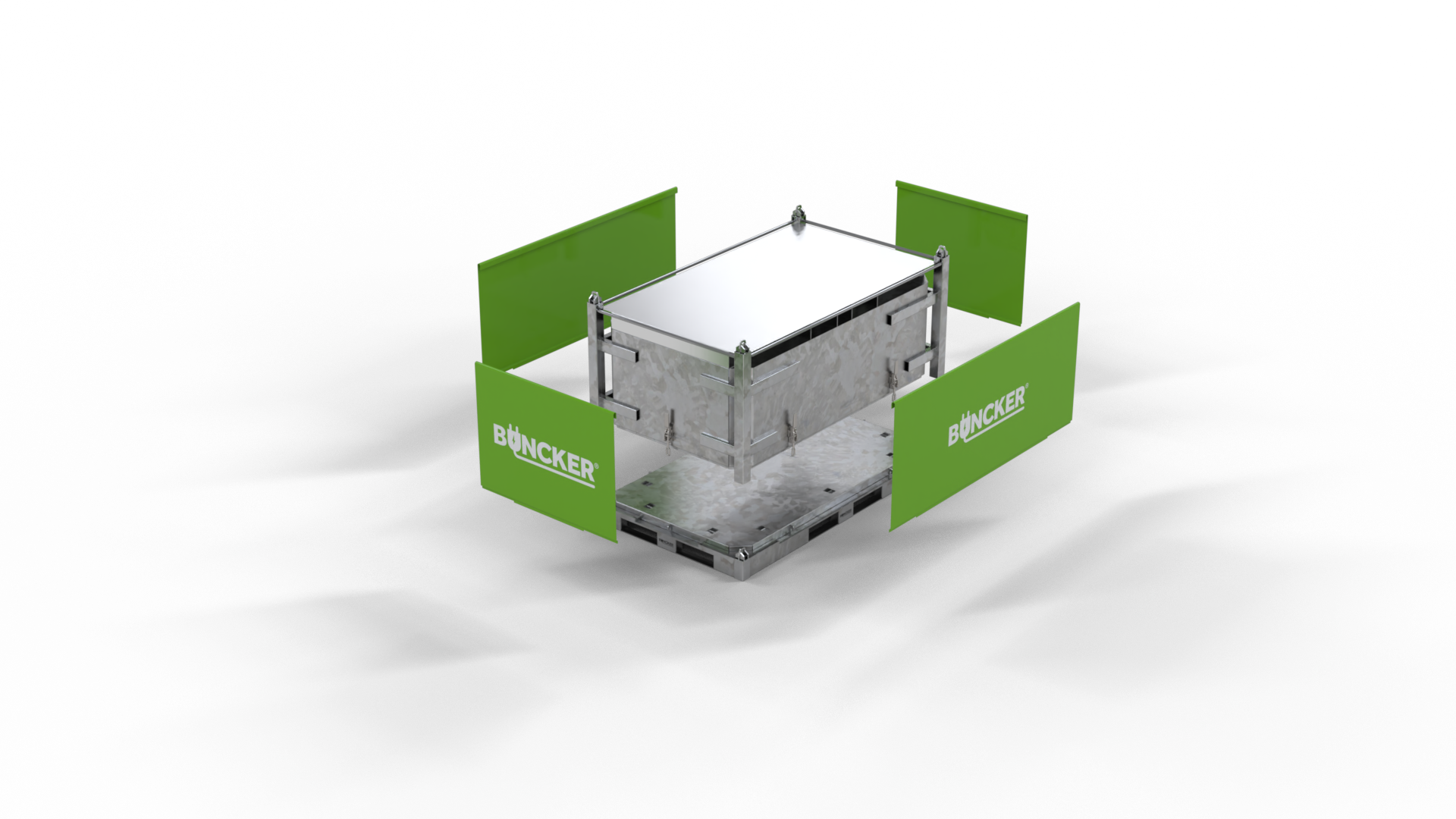

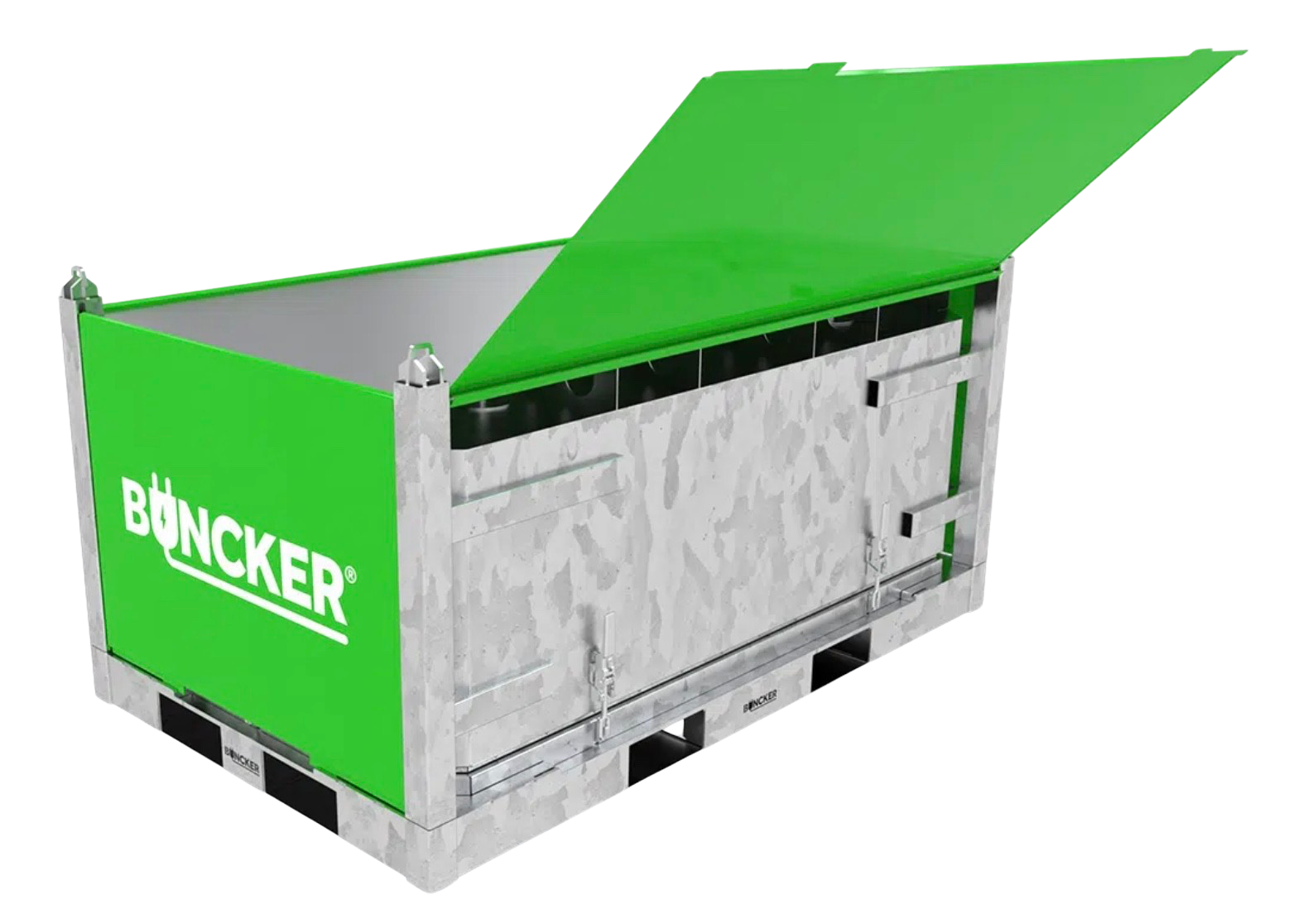

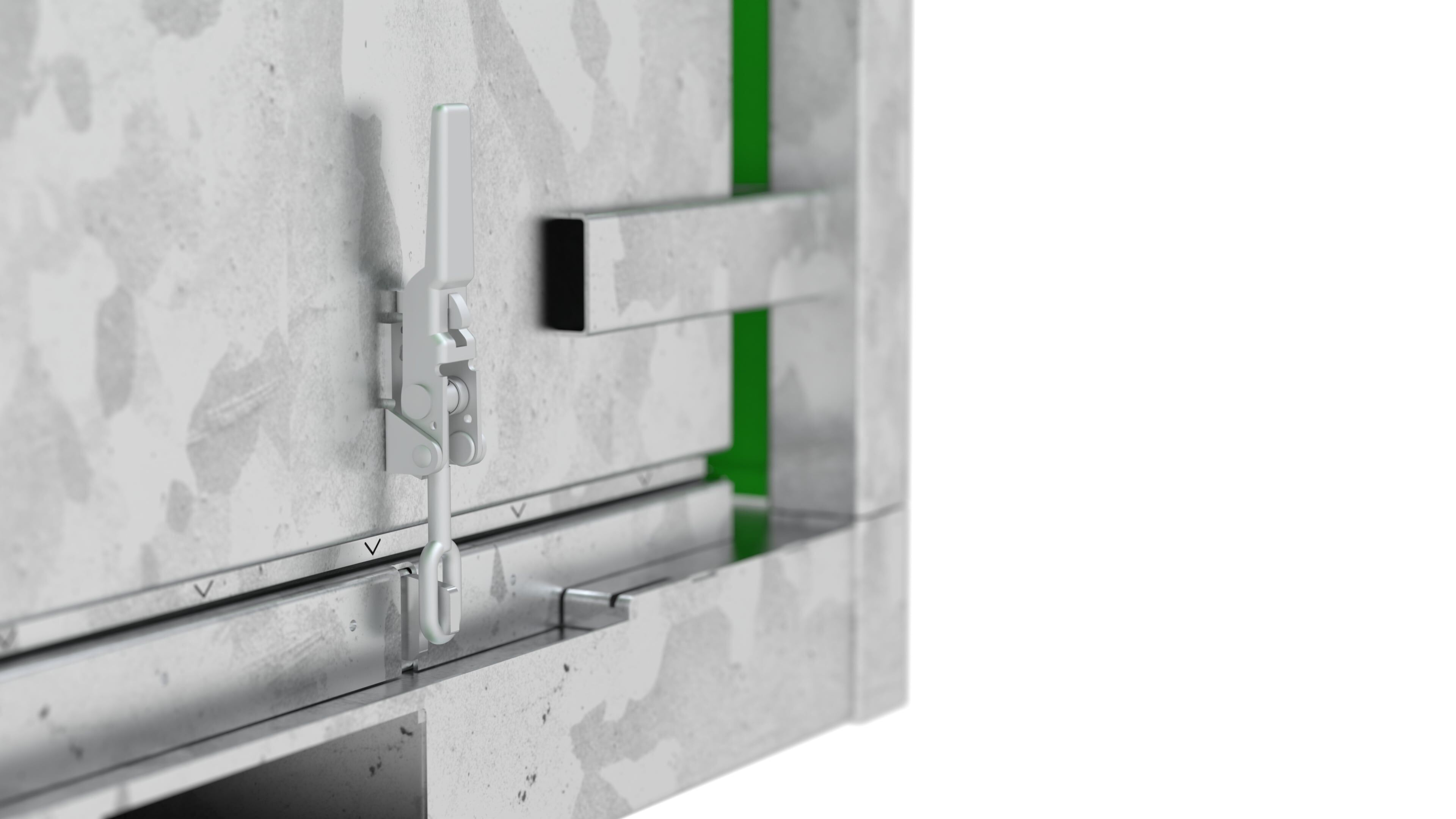

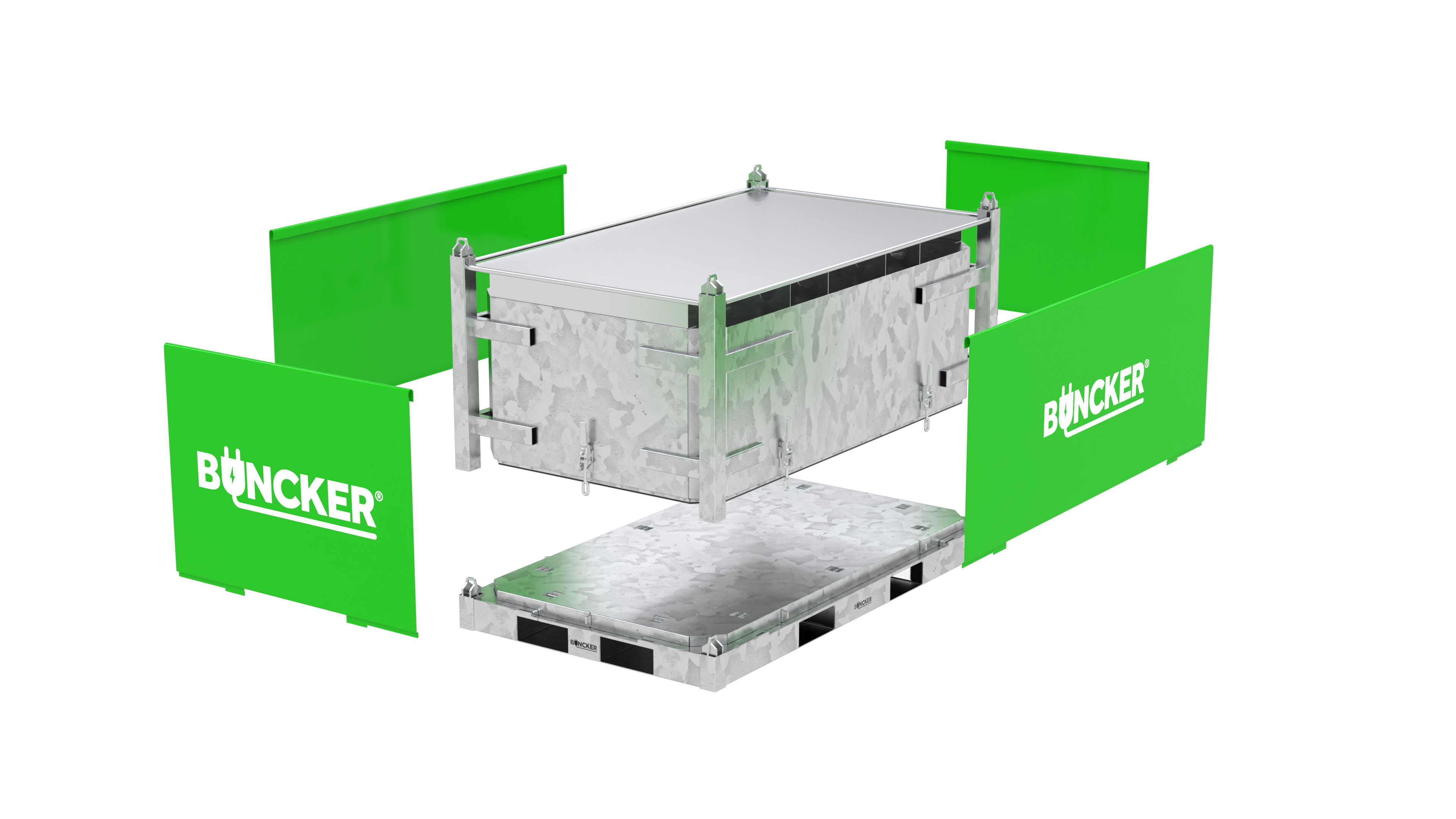

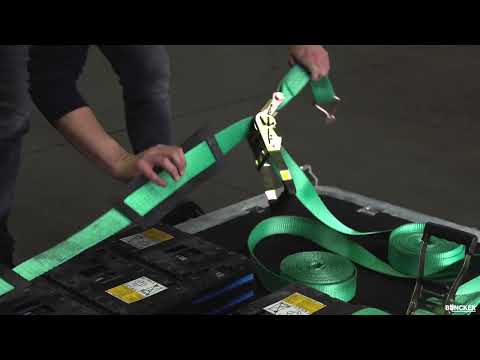

first open the side panels and release the clamps. The cover can then be lifted with a forklift truck. The batteries can then be placed on the base plate for loading. There is a non-conductive mat on the plate. The batteries themselves can be secured with tension straps. The cover can then be easily replaced, the clamps closed and the side panels folded down. Please refer to the instructional video in the "Downloads" tab.

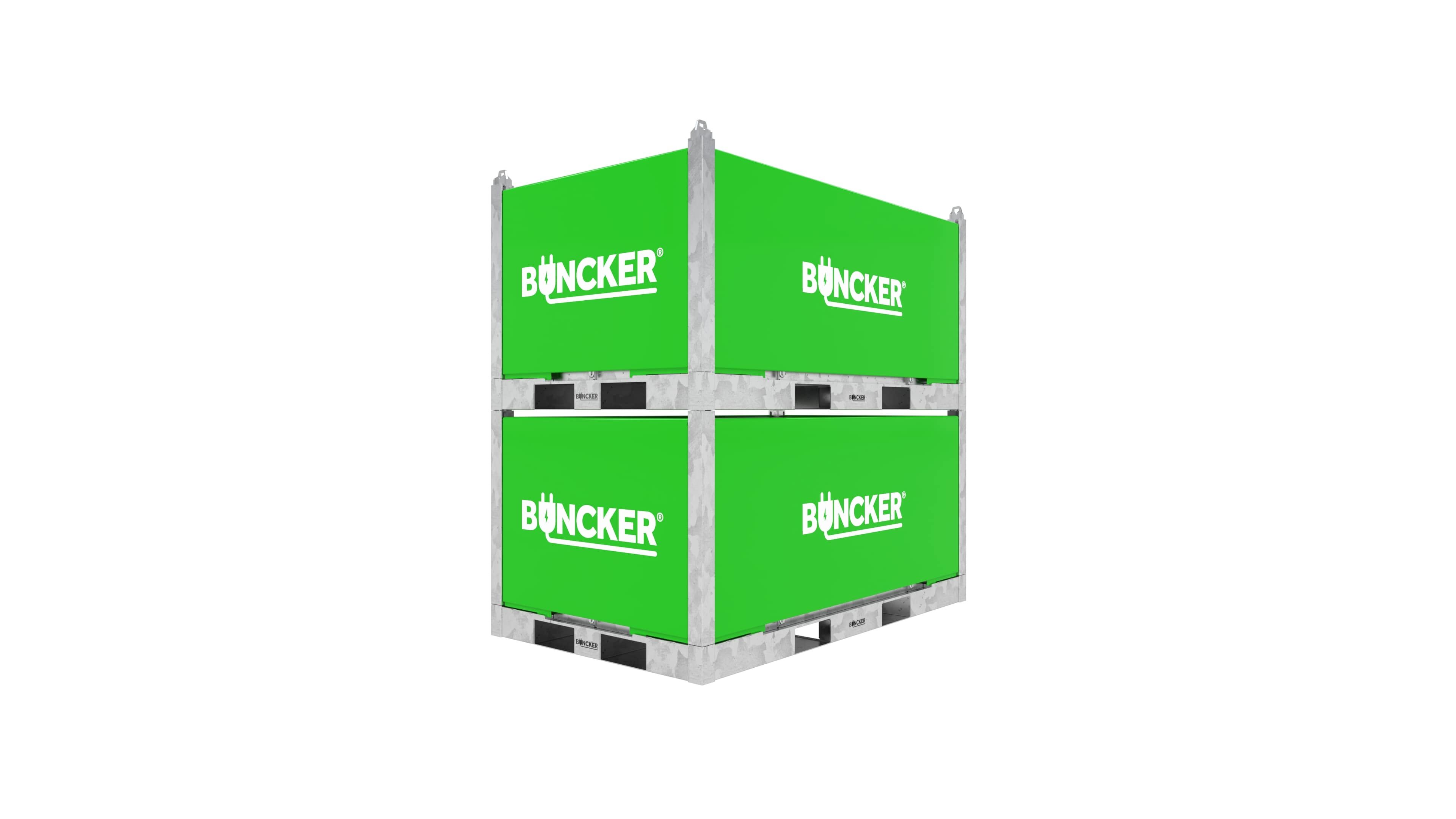

The container can also be stacked during storage to make the most efficient use of space.
Contents of UN certification
UN certification is an important aspect of BUNCKER ® , as it indicates that the packaging meets the safety standards set by the United Nations for the transport of dangerous goods. This certification ensures that the product has passed a fire, leak and drop test, as well as a worst-case scenario assessment, to ensure that it effectively contains and prevents the hazards associated with lithium batteries. The tests and assessments prove that BUNCKER ® can contain thermal runaway.
If defective or damaged batteries need to be packaged, UN approval based solely on drop and stack tests is not sufficient for shipping in accordance with P911/LP906, additional certification is required to confirm that the packaging complies with the following parameters :
- Withstands a worst-case scenario fire test
- No leakage

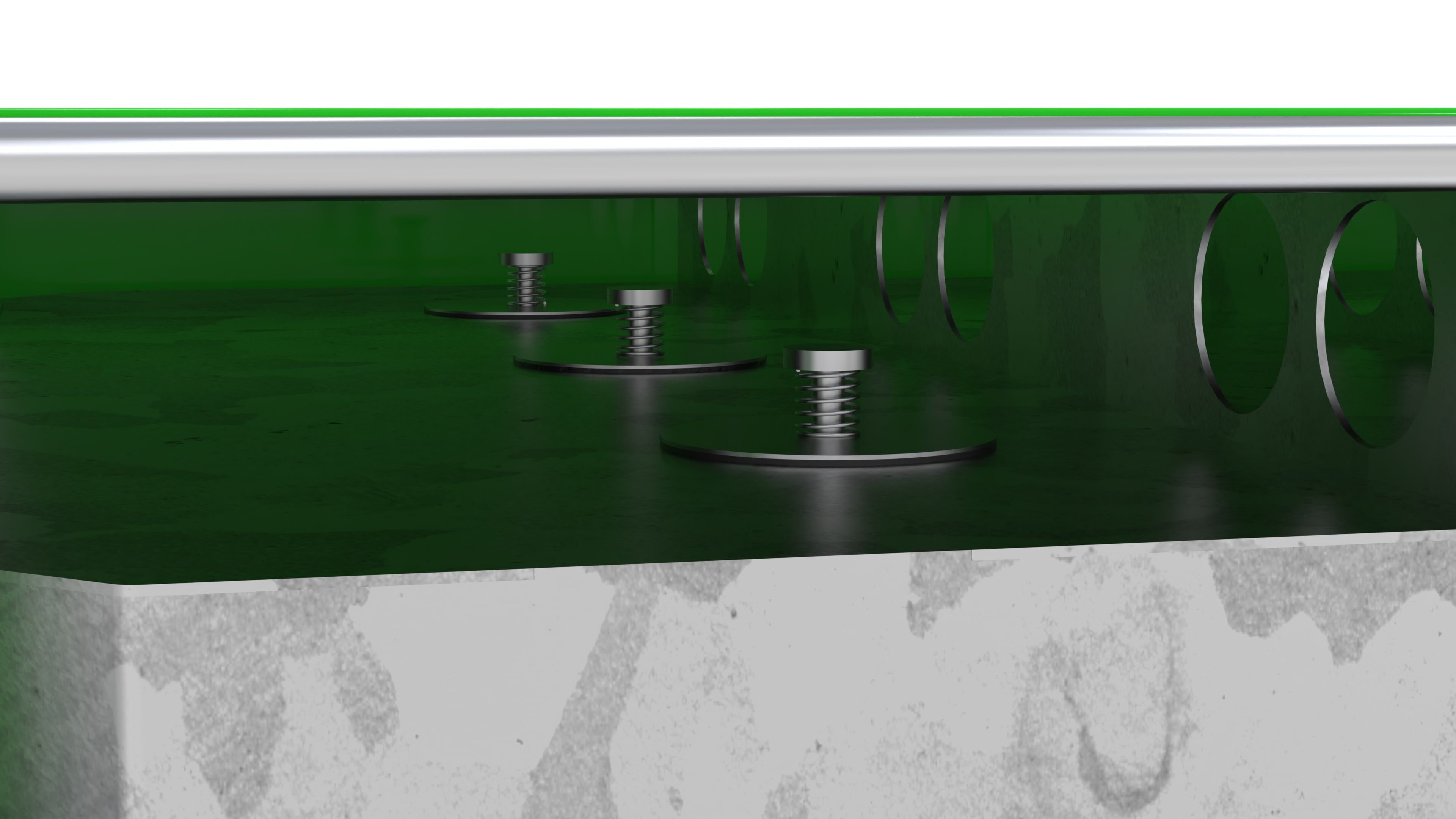

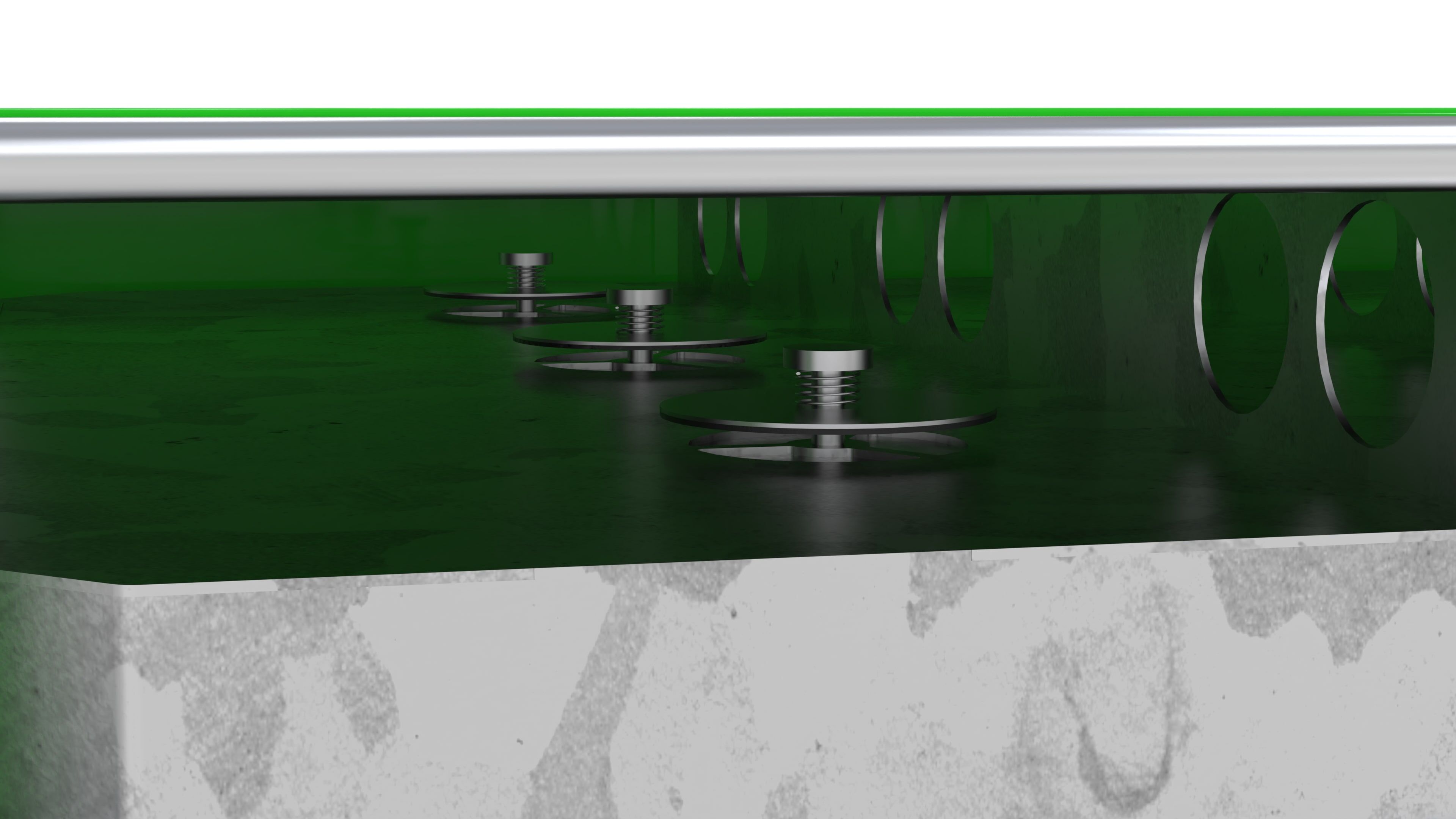

- The container has a well-functioning gas management system
- High heat resistance must be ensured
These criteria must be met based on the maximum tested kWh of the lithium-ion batteries.
Therefore, always request the transport approval certificates in accordance with P911/LP906 certification, which confirm the approved type of packaging instructions, how the batteries are to be secured against slipping, how the box is to be made fireproof, and the consumption limits in kg and kWh for road (ADR), rail (RID) and sea transport (IMDG).
A copy of these certificates should be included with the packaging during transport.

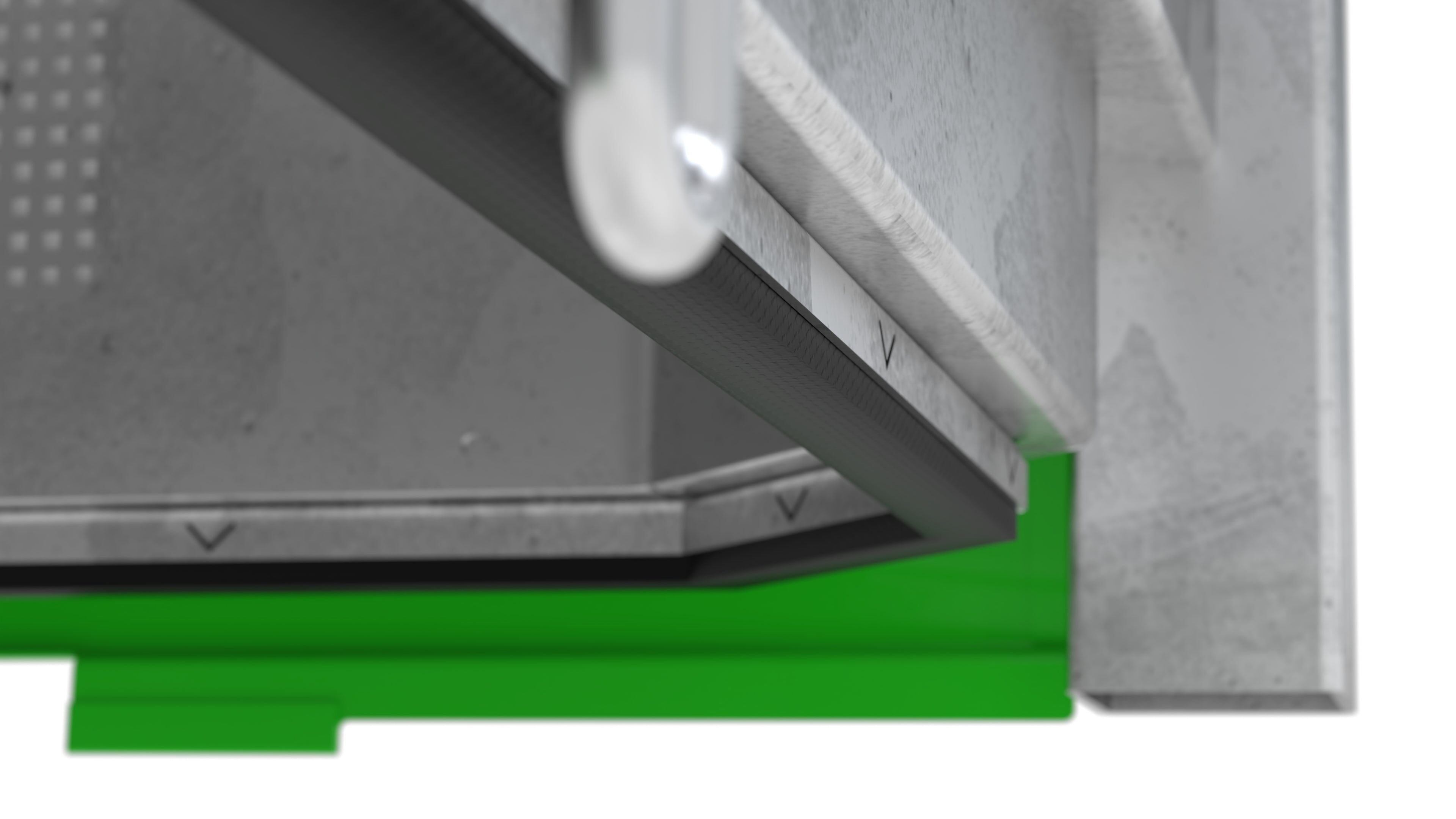

A safe system thanks to the patented Altilium insulation material ®
The BUNCKER ® Pro Line HEAVY is fully equipped with our patented Fibercon Altilium ® CP Blanket (FACB). This innovative product has the potential to filter toxic HF gases. In addition, the FACB has non-combustible, fire-resistant and insulating properties.
BUNCKER ® an environmentally friendly solution with compelling advantages
BUNCKER ® packaging is known for its environmentally friendly and sustainable properties, as well as its long service life, low total cost of ownership and robustness
Environmentally friendly and sustainable
During the development of BUNCKER ® packaging, special emphasis was placed on environmental friendliness. They are made from environmentally friendly materials that minimise their impact on the environment. In addition, BUNCKER ® packaging is often designed to be easily recyclable, reducing waste and promoting a circular economy.
Long service life
BUNCKER ® packaging is designed for a long service life. It is developed and manufactured using durable materials to ensure that it can withstand the rigours of transport, handling and storage. Thanks to its long service life, BUNCKER ® packaging helps to reduce the frequency of replacement and minimise waste.
Low total cost of ownership
BUNCKER ® packaging offers cost advantages throughout its service life. While the initial investment may be higher compared to less durable alternatives, the longevity of BUNCKER ® packaging means that it needs to be replaced less often. BUNCKER ® can be operated by one person, and no inner packaging is required. This reduces the overall costs associated with packaging procurement, storage, transport, handling, waste management and cleaning.
Robustness
BUNCKER ® packaging is designed to be robust and resistant to damage. They are designed to effectively protect the contents during transport and storage, reducing the risk of product damage or spoilage. The robustness of BUNCKER ® packaging contributes to its long service life and overall cost savings.
Low environmental impact
In the event of a fire, it is important to prioritise the safety of human life and property. While water is often used as a firefighting agent due to its availability and effectiveness in extinguishing fires, this is an alternative firefighting method that can minimise the impact on the environment
.
Transport instructions
All legal regulations, as well as any labelling and marking requirements
,
must be observed during transport. All handling and transport of the container must be carried out using suitable and safe means. Before transport, ensure that the hood is securely closed to the base frame.
Repair and disposal
Damaged transport containers must not be reused. Repairs may only be carried out by specialists authorised by the manufacturer or by the manufacturer itself. Contaminated components must be disposed of properly in accordance with their contamination level.
Certification and guidelines
Lithium batteries fall under dangerous goods class 9. Numerous specifications and guidelines must therefore be observed when transporting lithium batteries. The transport box has been specially designed to meet the most stringent safety regulations.
Certified for packaging group I
The Pro Line Heavy container meets the requirements of packaging group I, which means that substances with a high risk potential may be transported in it. To achieve this classification, the boxes must withstand drop tests from a height of 1.8 metres. All packaging with the code "X" may be used for packaging groups I (II and III).
Complies with ADR guidelines / packaging instruction LP 906
All lithium-ion cells or batteries and lithium metal cells or batteries that have been damaged and no longer comply with the applicable regulations in accordance with their manual must comply with the provisions of this special provision. This applies, for example, to cells that have leaked or degassed, suffered external or mechanical damage, or have been identified as defective for safety reasons, or could not be diagnosed prior to transport. If it is determined that the lithium-ion cells or batteries could, under normal transport conditions, undergo rapid decomposition, dangerous reaction, flames, dangerous heat generation or a dangerous emission of toxic, corrosive or flammable gases or vapours, these defective cells must then be transported in accordance with packaging instruction P 911 or LP 906. These packaging guidelines then stipulate packaging group I.
Additional test requirements also apply: during a possible accident involving the lithium-ion battery, the surface of the package must never exceed 100°C. Only short-term temperature peaks of up to 200°C are permitted. No flames may form outside the package and no splinters may escape from the package. Furthermore, the structure of the package must be maintained at all times and a gas management system must ensure pressure relief inside. Compliance with the test requirements must be demonstrated by real fire tests
If you would like to use the container for "critically defective" transport according to LP 906, please contact us to obtain the appropriate approval for this transport case: info@lion-care.com or +49 7151 256 4811 .
Future-oriented
Lithium-ion batteries will become indispensable in all industrial applications in the coming years. However, if used improperly, the batteries can pose a potential hazard that should not be underestimated during manufacture, storage and transport. By purchasing these boxes, you can protect yourself against major financial losses right from the start.
About BUNCKER ®
BUNCKER ® addresses the lack of awareness and knowledge about the safe handling of lithium batteries. BUNCKER ® has recognised that the regulations are complex and difficult for users to understand, and that existing solutions are not necessarily user-friendly.
BUNCKER ® strives to develop solutions that improve safety and simplify the handling of lithium batteries. This includes the development of user-friendly educational materials, safety guidelines, environmentally friendly solutions, and innovative tools and technologies for safe lithium battery management.
BUNCKER ® made in Holland benefits from the country's strong focus on innovation and sustainability
.
The Netherlands is at the forefront of sustainable development and offers a favourable environment for companies working on innovative solutions.
BUNCKER ® , Berlin Packaging Dangerous Goods in collaboration with Lithium Safety Solutions & VDL Staalservice
Working for you
Please do not hesitate to contact us if you have any questions. We look forward to hearing from you!
| ADR special provision: | SV 376 |
|---|---|
| Applications areas: | Automotive, Fire-retardant storage, Stationary energy storage, Stationary safety container, Transport of batteries |
| Battery status: | Critically defective |
| Encoding: | 50A |
| Filling material: | Without filler material |
| Handling filling material: | without filler material |
| Included filler material: | without filler material |
| Internal dimensions (mm): | 1 720 x 880 x 550 |
| Material: | Steel |
| Material designation: | Galvanized steel |
| Max. gross weight (kg): | 1 236 |
| Maximum energy density (kWh): | 90 |
| Outer dimensions (mm): | 2,000 x 1,200 x 950 |
| Packaging group: | I |
| Packaging instruction according to ADR: | LP906 |
| Packaging type: | Dangerous goods large-packages (LP) |
| Suitable for critically defective?: | Yes |
| Tipping weight (kg): | 536 |
| UN packaging code: | UN 50A/X/--**B/1655.2144-230135/2232/1240 |
| Volume (l): | 830 |
| Volume (l): | > 600 |
| max. net cargo mass (kg): | 700 |
