CEMO 8/5 Premium Plus LockEX 2.0 storage cabinet with stacking feet Safety charging cabinet for lithium-ion batteries
- Max. energy density: 3 kWh
- 9 sockets, 230 V each
- Premium Plus variant
- VDMA-certified
- with stacking feet
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Cabinet power supply: | 230 V / AC |
|---|---|
| Cabinet type: | Freestanding cabinet, Under-counter cabinet |
| Charging function: | Yes |
| Integrated power strips: | 1 power strip with 9 sockets, each rated at 230 V |
| Internal dimensions (mm): | 730 x 530 x 450 |
| Max. energy density (kWh): | 3 |
| Max. energy density per charging level (kWh): | 1.5 |
| Number of doors: | 2-leaf hinged |
| Number of shelves: | 1 |
| Outer dimensions (mm): | 850 x 660 x 620 |
| Place of deployment: | Indoor area |
| Refractory: | Yes |
| Stacking feet / rolls: | With stacking feet |
| Weight (kg): | 89 |
Product information „CEMO 8/5 Premium Plus LockEX 2.0 storage cabinet with stacking feet“
Brief overview
The CEMO 8/5 Premium Plus LockEX 2.0 charging cabinet with stacking feet is a compact, VDMA-certified safety cabinet designed for the stationary storage and charging of lithium-ion batteries indoors. It is particularly suitable for workshops, industrial, service and storage areas where batteries need to be housed in a protected and physically segregated manner during storage and charging.
The fire- and explosion-resistant design combines passive fire protection measures with mechanical ventilation, fire detection and the LockEX 2.0 pressure relief system. The Premium Plus version extends monitoring to include an electrically powered smoke detector, temperature sensor, display, potential-free contact and an alarm relay. The charging cabinet is fitted with stacking feet.
With CEMO CONTROL, the charging cabinet’s functions can be monitored and intelligently networked. In addition, the Premium Plus version features the web-based monitoring platform CEMO cockpit.
Scope of supply
- CEMO 8/5 Premium Plus LockEX 2.0 charging cabinet
- with stacking feet
- Double-leaf door
- T-handle with 2-point locking
- 1 powder-coated steel shelf
- 2 storage levels
- 9-socket power strip
- Mechanical ventilation
- Door contact switch
- Mains-powered smoke detector
- Temperature sensor
- Display
- Dry contact
- Alarm relay
- LockEX 2.0 pressure relief system
- CEMO CONTROL
- CEMO cockpit
Technical data
- External dimensions (W × D × H): 850 × 660 × 620 mm
- Internal dimensions (W × D × H): 730 × 530 × 450 mm
- Weight with stacking feet: 89 kg
- Installation location: Indoors
- Material: Non-combustible building material
- Finish: HPL
- Operating voltage: 230 V
- Max. electrical power: 3,500 W / 16 A
- Frequency: 50/60 Hz
- Mains plug: Schuko
- Number of sockets: 9
- Technical ventilation: Yes
- Door contact switch: Yes
- Number of doors: 2
- Door design: Double-leaf door
- Door lock: T-handle with 2-point locking mechanism
- Number of shelves: 1
- Shelf material: Steel, powder-coated
- Number of storage levels: 2
- Load capacity per storage level: 30 kg
- Total permissible energy: 3,021.2 Wh
- Permissible energy per storage level: 1,510.6 Wh
- Charging function: Yes
- Smoke detector: Mains-powered
- Temperature monitoring: Temperature sensor
- Warning signal: Audible
- Dry contact: Yes
- Alarm forwarding: Yes
- Display: Yes
- Locking system: LockEX 2.0
- Stackability: Up to 3 high
- Door colour: Orange
- Cabinet colour: Grey

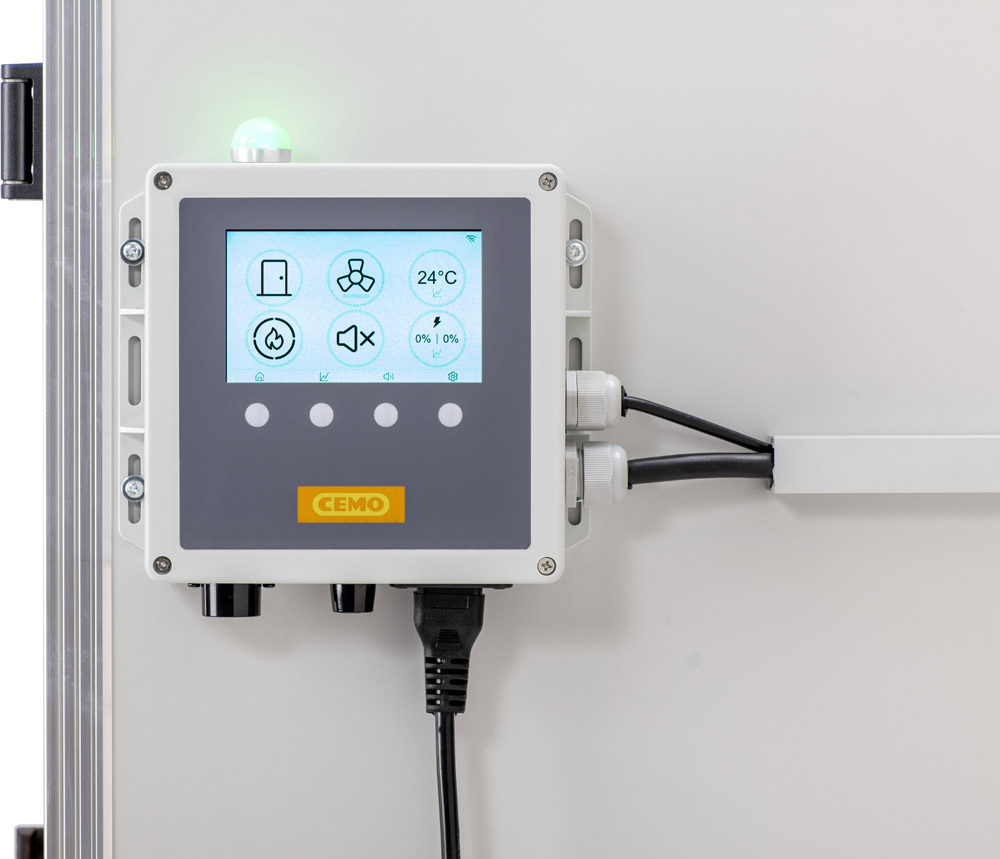

CEMO CONTROL & CEMO cockpit
The Premium Plus version features CEMO CONTROL for monitoring and smart connectivity, as well as the web-based monitoring platform CEMO cockpit.
Safety and protection functions

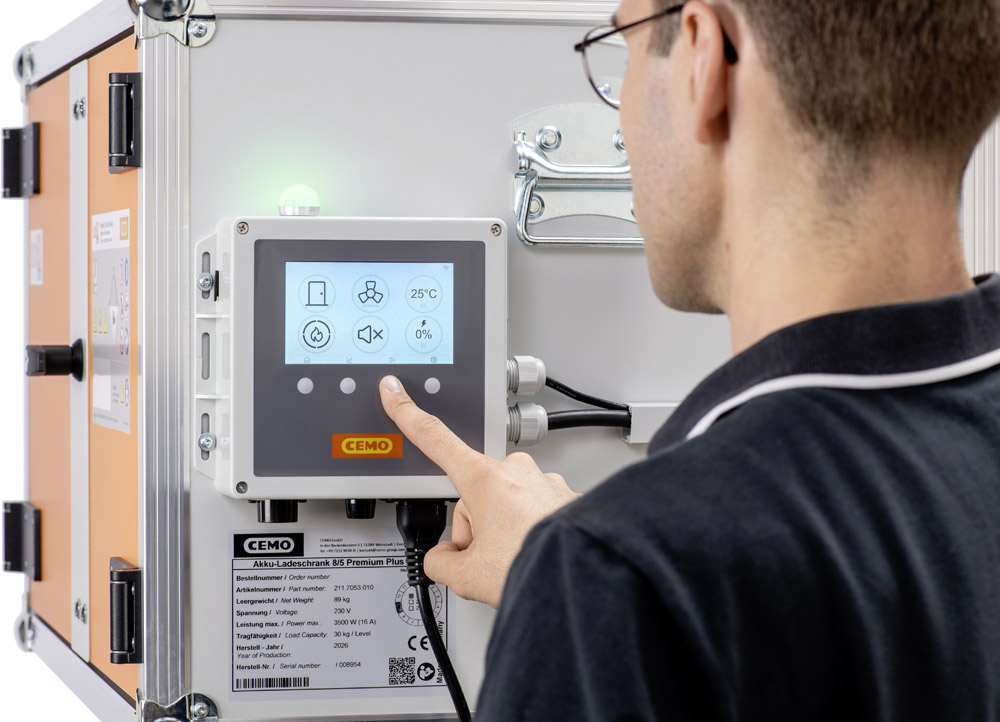

The mains-powered smoke detector provides an audible warning should a fire be detected. In the Premium Plus version, temperature monitoring is carried out via a temperature sensor. An integrated display shows system information.
The potential-free contact provides a connection option to a central fire alarm system or an existing safety infrastructure. In addition, the Premium Plus version features an alarm relay function.
The LockEX 2.0 locking system is designed to provide controlled pressure relief in the event of an explosive pressure build-up inside the cabinet. The spring mechanism enables the doors to open in a controlled manner to relieve pressure and then close again.
The fire-propagation-preventing partition levels help to limit the spread of fire between individual batteries or battery modules. In addition, the charging cabinet is fitted with mechanical ventilation and a door contact switch.
Areas of application
The CEMO 8/5 Premium Plus LockEX 2.0 charging cabinet is designed for the storage and simultaneous charging of lithium-ion batteries in commercial and industrial indoor environments.
Typical areas of application include:
- Industrial and manufacturing facilities
- Workshops and service areas
- Trades businesses
- Warehouse and logistics areas
- Research and development
- Charging and storing tool batteries
- Batteries for tools and machinery
Thanks to its compact design, the 8/5 Premium Plus is particularly suitable for areas with limited space. The enhanced monitoring and alarm functions also allow the cabinet to be integrated into existing operational safety concepts.
Approvals / Standards
- Certified in accordance with VDMA Standard Sheet 24994:2024-08
Instructions for use
The CEMO 8/5 Premium Plus LockEX 2.0 is designed as a storage and charging cabinet for lithium-ion batteries and is intended for indoor installation. Its specific use and installation should be determined as part of the organisation’s risk assessment and in accordance with the relevant fire safety plan.
Conclusion
The CEMO 8/5 Premium Plus LockEX 2.0 charging cabinet with stacking feet offers a compact, fire- and explosion-resistant solution for the indoor storage and charging of lithium-ion batteries. The extended features, including an electrically powered smoke detector, temperature sensor, display, potential-free contact and alarm relay, enable more comprehensive monitoring and integration into existing safety infrastructures.
The combination of charging infrastructure, fire detection, temperature monitoring, mechanical ventilation, pressure relief and fire-propagation-preventing storage levels supports the safe design of operational charging areas.
With CEMO CONTROL and CEMO cockpit, the Premium Plus version is enhanced with functions for intelligent networking and web-based monitoring.
| Cabinet power supply: | 230 V / AC |
|---|---|
| Cabinet type: | Freestanding cabinet, Under-counter cabinet |
| Charging function: | Yes |
| Integrated power strips: | 1 power strip with 9 sockets, each rated at 230 V |
| Internal dimensions (mm): | 730 x 530 x 450 |
| Max. energy density (kWh): | 3 |
| Max. energy density per charging level (kWh): | 1.5 |
| Number of doors: | 2-leaf hinged |
| Number of shelves: | 1 |
| Outer dimensions (mm): | 850 x 660 x 620 |
| Place of deployment: | Indoor area |
| Refractory: | Yes |
| Stacking feet / rolls: | With stacking feet |
| Weight (kg): | 89 |
Downloads
FAQ
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Accessories
Stacking feet set for CEMO storage and charging cabinets. The set consists of 4 metal feet, making the cabinets rollable and stackable in 3 layers. This increases the height by 10 cm. The set comes complete with screws and metal plates to prevent sideways slipping. The set is highly recommended as it greatly improves the handling of the storage and charging cabinets.
Networkable smoke alarm (acoustic) in a set of 2. The smoke alarm is included as standard in "Storage" and "Shop Basics".
Shelf (for base level or as intermediate level)* Dimensions cm (W x D x H): 67 x 40 x 3.5, * Dividers for shelves available on request Ideal for making full use of space and increasing storage area for small-cell lithium batteries
The shelf levels can be easily adjusted to the perfect working height and the cabinets can be easily inserted using a high-lift truck or forklift. The shelf comes with mounting materials for wall mounting.
Additional, fireproof cable entry with a fire resistance of 60 minutes for CEMO storage and charging cabinets. Ideal, for example, for connection to the in-house fire alarm system.
Aerosol extinguisher for lithium battery cabinet, including magnet.Suitable for initial rapid fire suppression and flame suppression; automatic pyrotechnic activation; no maintenance required.(Installation must be performed by the customer)External dimensions (L x W x H): 165 x 32 x 32 mm Weight: 0.31 kg.
Perfect for evacuating in the event of an accident and for easy repositioning. Two of the four swivel castors have an integrated foot brake.
