CEMO FMplus US battery storage cabinet with charging unit
- Max. energy density: 1.1 kWh
- Includes smoke detector
- Ideal for storing several small batteries
- 2 sockets, each 230 V
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Fire resistance: | Flame retardant |
|---|---|
| Internal dimensions (mm): | 350 x 350 x 460 |
| Load function: | Yes |
| Material: | Steel |
| Maximum energy density (kWh): | 1.1 |
| Number of doors: | 1-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 2 |
| Outer dimensions (mm): | 430 x 430 x 560 |
| Place of deployment: | Indoor area |
| Power supply: | 2 x 230 V |
| Refractory: | Yes |
| Wardrobe type: | Freistehender Schrank, Under-sink cabinet |
| Weight (kg): | 30 |
Product information „CEMO FMplus US battery storage cabinet with charging unit“
In buildings and storage facilities where lithium-ion rechargeable batteries are kept, damaged cells can pose a high risk to employees and to operating and storage equipment. Explosive fires caused by batteries ("thermal runaways") are very difficult to control. The FMplus battery storage cabinet from CEMO offers a suitable and, at the same time, attractively priced, economical entry-level solution. The US battery storage cabinet with charging unit is particularly suitable for the short-term storage of smaller lithium-ion batteries (max. power tools). The FMplus US battery storage cabinet with charging unit is the smallest version.
Size, design and function of the CEMO FM-Plus US battery charging cabinet with charging unit and door contact switch
The FMplus US battery charging cabinet has two storage levels with a total weight of 30 kg. The external dimensions of the cabinet are 43 x 43 x 56 cm (W x D x H). The internal dimensions are 35 x 35 x 46 cm (W x D x H). Each storage level has a socket that switches itself off in the event of a fire. In addition, the cabinet switches itself off via a contact when the door is opened.
Tested in accordance with TÜV Nord / DMT programme up to 1.1 kWh
The battery cabinet has been tested in accordance with TÜV Nord DMT principle M02/22 Storage media for lithium-ion batteries. The maximum permissible energy density for this system is 1.1 kWh. No escape of flames or splinters.
Numerous safety features
The lockable door with 3-point locking can be secured with a padlock (profile half cylinder, suitable for locking systems) if required. The sturdy, double-walled steel cabinet has a heat-insulating effect and the entire housing is cold smoke-proof thanks to additional door seals.

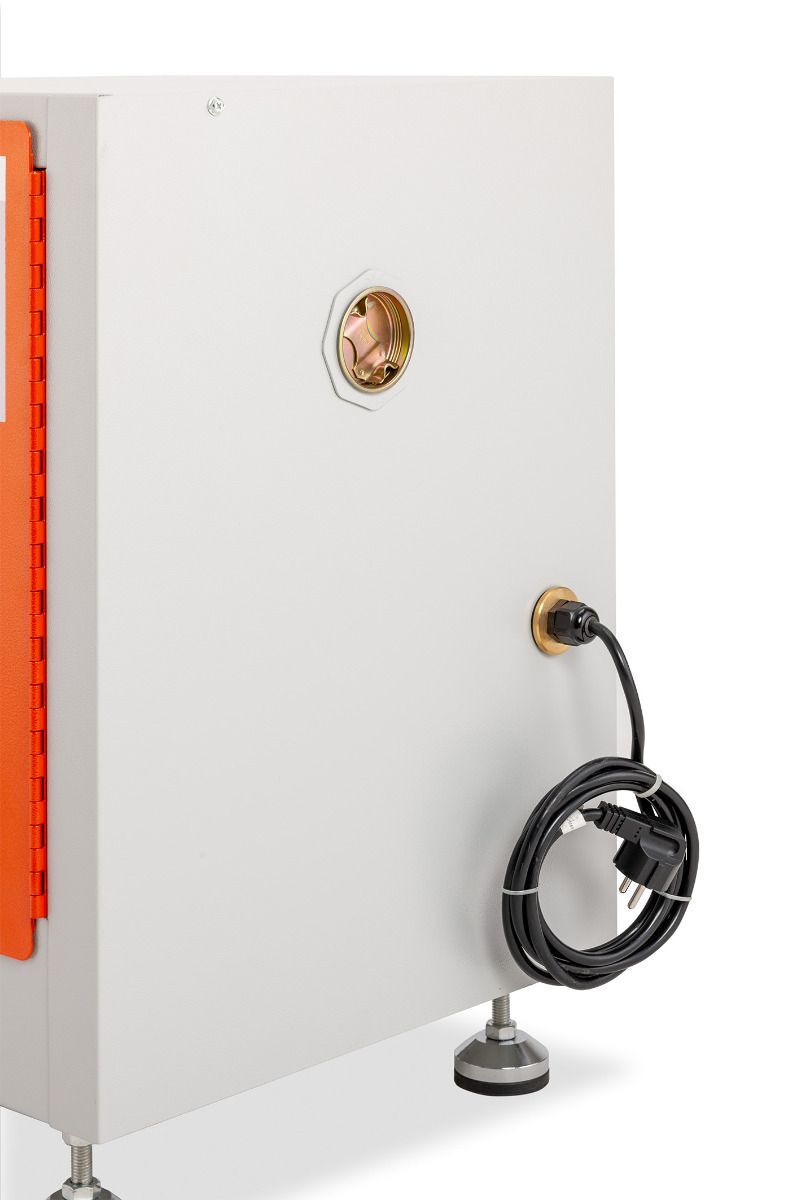

Integrated vent for exhaust pipes
The built-in vent allows for proper connection to an exhaust pipe leading to the outside. The battery storage cabinet can be rolled up to a height of 8 to 9 cm for positioning and evacuation in an emergency. The smoke detector installed as standard emits an acoustic signal in the event of a fire.
Possible uses of the FMplus US battery storage cabinet
The double-walled steel cabinet serves as a protective measure for medium-sized, new lithium batteries from, for example, power tools or garden tools. With this version with charging unit, these can even be charged during storage.
Other (safety) information
Warning stickers and safety instructions are included in the scope of delivery. The FMplus battery storage cabinet has been tested in a battery fire test with power tool batteries. The body of the FMplus battery storage cabinet is powder-coated in light grey (RAL 7035) and the door in light red-orange (RAL 2008).
Particularly attractive in terms of price: battery storage in CEMO FM-Plus battery cabinets
The "FMplus" battery storage cabinet models from CEMO offer optimum properties for short-term storage of a few or smaller batteries. The stored batteries should be in new condition. The storage cabinet should always be set up in a non-flammable environment.
For larger requirements, the (Premium) FWF models from CEMO are suitable. These are then suitable, for example, for the permanent storage of several medium-sized used batteries.
General guidelines for battery storage
There are currently no legal regulations for the storage of lithium batteries/lithium-ion batteries. Only VdS Schadenverhütung GmbH provides general safety rules for damage prevention in its publication VdS 3103 : 2019-06 (03). It is advisable to clarify your requirements with your property insurer in advance.
CEMO – known for innovative products in the field of battery storage
With imagination and drive
,
CEMO GmbH from Weinstadt has been synonymous with safe storage for more than 60 years. The company is a pioneer in the field of modern transport and storage container technology and is one of the market leaders in this area.
Prepare for the future today with products for safe battery storage
Lithium-ion batteries will become indispensable in all industrial applications in the coming years. However, if used improperly, the batteries can pose a potential hazard that should not be underestimated during manufacture, storage and transport. By purchasing this storage cabinet, you are protecting yourself against major financial losses right from the start.
At your service
Please do not hesitate to contact us if you have any questions. We look forward to hearing from you!
| Fire resistance: | Flame retardant |
|---|---|
| Internal dimensions (mm): | 350 x 350 x 460 |
| Load function: | Yes |
| Material: | Steel |
| Maximum energy density (kWh): | 1.1 |
| Number of doors: | 1-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 2 |
| Outer dimensions (mm): | 430 x 430 x 560 |
| Place of deployment: | Indoor area |
| Power supply: | 2 x 230 V |
| Refractory: | Yes |
| Wardrobe type: | Freistehender Schrank, Under-sink cabinet |
| Weight (kg): | 30 |
Downloads
FAQ
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Accessory
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
accessories
Set of castors for FMplus battery storage cabinet.
CEMO padlock with profile half cylinder NP 30x12 mm for FMplus battery storage cabinet.
CEMO adapter for vent pipe for FMplus battery storage cabinet.
CEMO Second smoke detector for FMplus battery storage cabinet (can be networked with smoke detector inside).
CEMO cable entry for FMplus battery storage cabinet.
