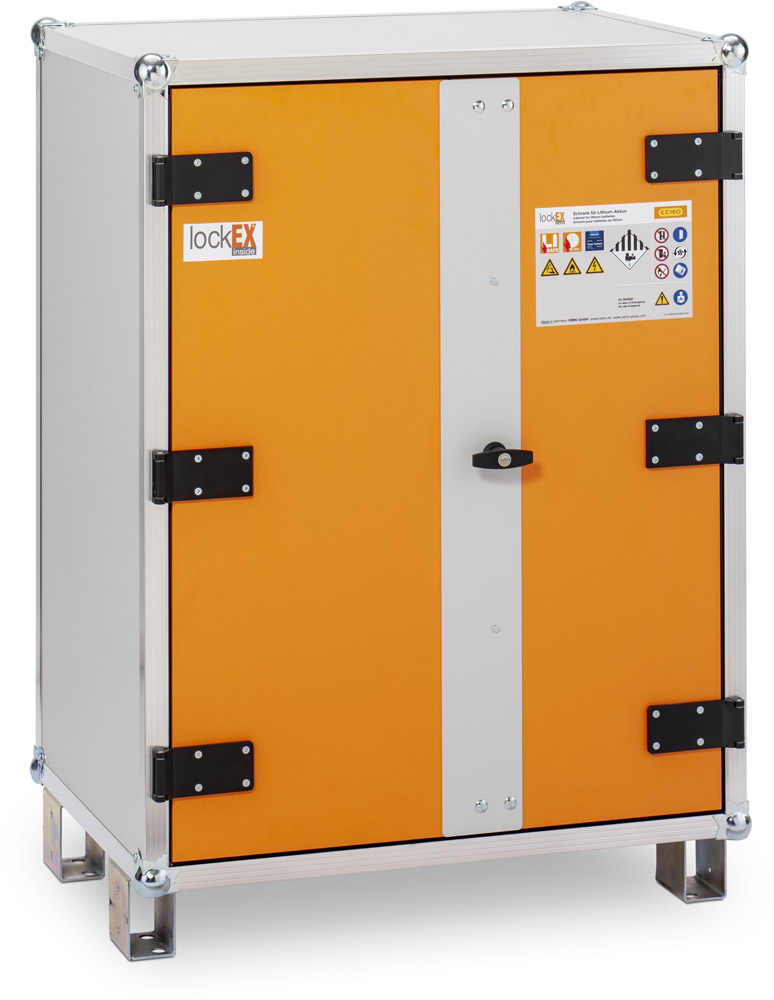

CEMO Storage Cabinet 8/10 LockEX 2.0 Safety cabinet for lithium-ion batteries
- Max. energy density: 6 kWh
- Includes 2 smoke detectors
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Alarm forwarding: | Yes |
|---|---|
| Cabinet type: | Freestanding cabinet |
| Charging function: | No |
| Fire resistance: | 60 min |
| Fire suppression: | Without |
| Internal dimensions (mm): | 730 x 530 x 910 |
| Number of doors: | 2-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 3 |
| Outer dimensions (mm): | 810 x 580 x 1 110 |
| Place of deployment: | Indoor area |
| Refractory: | Yes |
| Weight (kg): | 142 |
Product information „CEMO Storage Cabinet 8/10 LockEX 2.0“
Brief overview
The CEMO 8/10 LockEX 2.0 storage cabinet is a safety cabinet designed for the stationary indoor storage of lithium-ion batteries. It is particularly suitable for workshops, industrial, service and storage areas where batteries need to be protected and stored in a physically segregated space.
The fire- and explosion-resistant design combines passive fire protection measures with an acoustic fire detection system and the LockEX 2.0 pressure relief system. The cabinet is available with either stacking feet or castors and can therefore be used either as a fixed unit or as a mobile unit, depending on operational requirements.
Scope of delivery
- CEMO Storage Cabinet 8/10 LockEX 2.0
- 2-leaf, lockable doors
- 3 shelves made of powder-coated steel
- 4 storage levels
- Battery-operated smoke alarms
- LockEX 2.0 pressure relief system
- Automatically closing supply and exhaust air vents
Available as an option:
- Stacking feet
- Castors
Technical specifications
- External dimensions (W × D × H): 810 × 580 × 1,110 mm
- Internal dimensions (W × D × H): 730 × 530 × 910 mm
- Weight with stacking feet: 142 kg
- Weight with castors: 150 kg
- Design: Floor-standing cabinet
- Installation location: Indoor
- Material: Non-combustible building material with HPL coating
- Doors: Double-leaf doors
- Door fastening: T-handle with 2-point locking mechanism
- Number of shelves: 3
- Shelf material: Steel, powder-coated
- Number of storage levels: 4
- Load capacity per storage level: 30 kg
- Max. total energy density: 6.32 kWh
- Max. energy density per storage level: 1.58 kWh
- Charging function: No
- Power connection: No
- Mechanical ventilation: No
- Fire detection: Battery-powered smoke alarms
- Warning system: Audible
- Locking system: LockEX 2.0
- Stackability with stacking feet: 2-high
- Stackable with castors: No
- Wheelchair-accessible: Yes
- Door colour: Orange
- Body colour: Grey
Safety and protection features
The battery-operated smoke detectors provide an audible warning should a fire be detected. An external power supply to the cabinet is not required for this.
The LockEX 2.0 locking system is designed to provide controlled pressure relief in the event of an explosive pressure build-up inside the cabinet. The spring mechanism allows the doors to open in a controlled manner to relieve pressure and then reclose automatically.
The storage levels are designed to prevent fire propagation, thereby helping to limit the spread of fire between individual batteries or battery modules. Automatically closing air inlets and outlets, as well as fire-resistant seals, complement the structural protective measures.
Areas of application
The CEMO 8/10 LockEX 2.0 storage cabinet is designed for the storage of lithium-ion batteries in commercial and industrial indoor environments.
Typical areas of use include:
- Industrial and manufacturing facilities
- Workshops and service areas
- Trades businesses
- Warehouse and logistics areas
- Research and development
- Storage of tool batteries
- Batteries for tools and machinery
The two designs allow for adaptation to different operational requirements. Stacking feet are particularly suitable for a fixed storage location and allow for two-high stacking. The castor version, on the other hand, makes it easier to move the cabinet around the premises.
Approvals / Standards
Tested in accordance with:
- Tested in accordance with VDMA Standard Sheet 24994:2024-08
- TÜV NORD type approval certificate 44 780 23136701
Notes on use
The CEMO 8/10 LockEX 2.0 is designed as a storage cabinet only, without a loading function, and is intended for indoor installation. This model does not feature a power connection or mechanical ventilation.
The specific use and installation should be determined as part of the workplace risk assessment and in accordance with the relevant fire safety plan.
Conclusion
The CEMO 8/10 LockEX 2.0 storage cabinet offers a fire- and explosion-resistant solution for the stationary indoor storage of lithium-ion batteries. Four storage levels allow for the organised arrangement of different battery packs. With a choice between stacking feet for a configuration that allows for access underneath and double-stacking, or castors for mobile use, the cabinet can be adapted to different operational storage and space requirements.
| Alarm forwarding: | Yes |
|---|---|
| Cabinet type: | Freestanding cabinet |
| Charging function: | No |
| Fire resistance: | 60 min |
| Fire suppression: | Without |
| Internal dimensions (mm): | 730 x 530 x 910 |
| Number of doors: | 2-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 3 |
| Outer dimensions (mm): | 810 x 580 x 1 110 |
| Place of deployment: | Indoor area |
| Refractory: | Yes |
| Weight (kg): | 142 |
Downloads
FAQ
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
