CEMO Storage Cabinet 8/5 LockEX 2.0 Safety cabinet for lithium-ion batteries
- Max. energy density: 3 kWh
- Includes 2 smoke detectors
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Alarm forwarding: | Yes |
|---|---|
| Cabinet type: | Freestanding cabinet, Under-counter cabinet |
| Charging function: | No |
| Fire resistance: | 60 min |
| Fire suppression: | Without |
| Fire test procedure: | DIN EN 1363-1 |
| Internal dimensions (mm): | 730 x 530 x 450 |
| Number of doors: | 2-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 1 |
| Outer dimensions (mm): | 810 x 580 x 520 |
| Place of deployment: | Indoor area |
| Refractory: | Yes |
| Weight (kg): | 84 |
Product information „CEMO Storage Cabinet 8/5 LockEX 2.0“
Brief overview
The CEMO 8/5 LockEX 2.0 storage cabinet is a compact safety cabinet designed for the stationary indoor storage of lithium-ion batteries. It is particularly suitable for workshops, industrial, service and storage areas where batteries need to be protected and stored in a physically separated space.
The fire-resistant design combines passive fire protection measures with an acoustic fire detection system and the LockEX 2.0 pressure relief system. Thanks to its compact design and optional stackability, the lithium-ion storage cabinet can be used flexibly even where space is limited.
Contents of delivery
- CEMO storage cabinet 8/5 LockEX 2.0
- 2-leaf, lockable doors
- 1 shelf
- 2 battery-operated smoke alarms
- LockEX 2.0 locking system
- Automatically closing air inlets and outlets
- Side carrying handles
Optionally available:
- Stacking feet
Technical specifications
- External dimensions (W × D × H): 810 × 580 × 520 mm
- Internal dimensions (W × D × H): 730 × 530 × 450 mm
- Weight without feet: 84 kg
- Weight with feet: 87 kg
- Design: Floor-standing cabinet / under-counter cabinet
- Installation location: Indoors
- Doors: double-leaf, lockable
- Number of shelves: 1
- Load capacity of shelf: 30 kg
- Fire resistance: 60 minutes from the inside out
- Fire test procedure: based on DIN EN 1363-1
- Max. total energy density: 3,021.2 Wh
- Max. energy density per storage level: 1,510.6 Wh
- Fire detection: 2 battery-operated smoke alarms
- Warning system: Acoustic, battery-operated
- Fire suppression: None
- Locking system: LockEX 2.0
- Stackability: up to 3 high with optional stacking feet
- Wheelchair access: with optional stacking feet
- Door colour: Orange
- Cabinet colour: Grey
Safety and protection features
The two battery-operated smoke detectors provide an audible warning should a fire be detected. No external power supply to the cabinet is required for this.

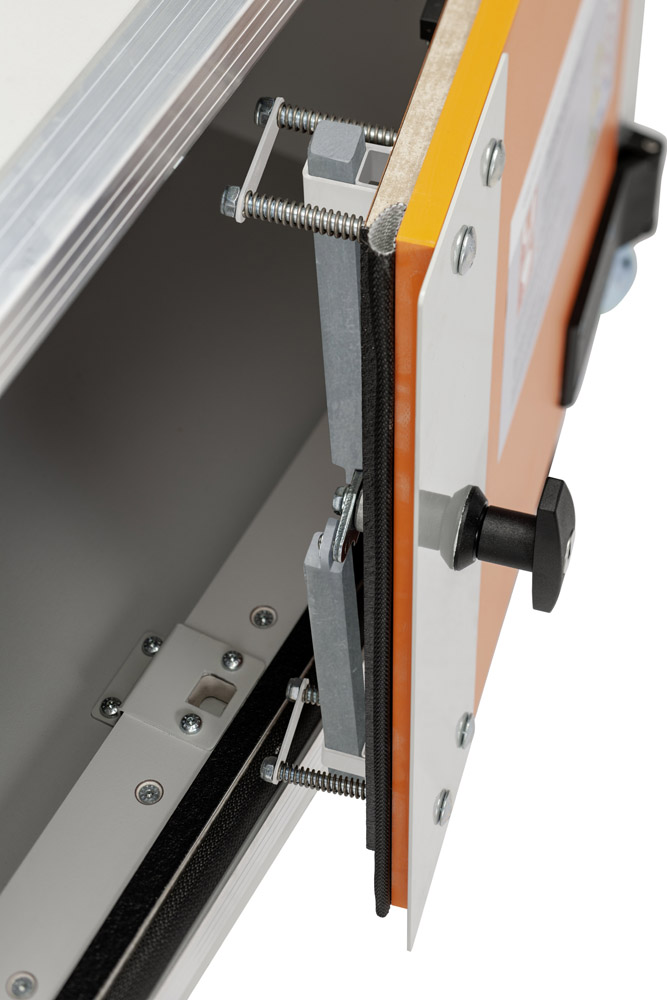

The LockEX 2.0 locking system is designed to provide controlled pressure relief in the event of an explosive pressure build-up inside the cabinet. The spring mechanism enables the doors to open in a controlled manner to relieve pressure and then close again automatically.
Automatically closing supply and exhaust air vents, as well as special fire-resistant seals, complement the structural safety measures. The vents are also fitted with a cold-smoke-tight sealing system.
Applications
The CEMO 8/5 LockEX 2.0 storage cabinet is designed for the storage of lithium-ion batteries in commercial and industrial indoor environments.
Typical areas of application include:
- Industrial and manufacturing facilities
- Workshops and service areas
- Trades and craft businesses
- Warehouse and logistics areas
- Research and development
- Storage of tool batteries
- Batteries for tools and machinery
The optional stacking feet allow up to three cabinets to be stacked on top of one another and also make the cabinets accessible from below.
Approvals / Standards
The CEMO 8/5 LockEX 2.0 storage cabinet has been tested in accordance with VDMA Standard Sheet 24994:2024-08. Fire resistance was tested by a materials testing institute (MPA) in accordance with DIN EN 1363-1. Furthermore, according to the product information, a real-world battery fire test was carried out in collaboration with an independent university.
Tested in accordance with:
- Tested in accordance with VDMA 24994:2024-08
- Fire resistance test in accordance with DIN EN 1363-1
- MPA-certified fire resistance: over 60 minutes from the inside out
- Real-world battery fire test carried out in collaboration with an independent university
- TÜV NORD type-approval certificate available
Instructions for use
The CEMO 8/5 LockEX 2.0 is designed purely as a storage cabinet without a charging function and is intended for indoor installation. The doors should remain closed during storage.
Specific use and installation should be carried out as part of the workplace risk assessment and in accordance with the relevant fire safety plan.
Conclusion
The CEMO 8/5 LockEX 2.0 storage cabinet offers a compact solution for the fire-resistant indoor storage of lithium-ion batteries. The combination of fire detection, pressure relief and fire-resistant construction supports the safe integration of battery storage in workshops, industrial and storage areas. Thanks to its optional stackability, the system can also be adapted to different space and capacity requirements.
| Alarm forwarding: | Yes |
|---|---|
| Cabinet type: | Freestanding cabinet, Under-counter cabinet |
| Charging function: | No |
| Fire resistance: | 60 min |
| Fire suppression: | Without |
| Fire test procedure: | DIN EN 1363-1 |
| Internal dimensions (mm): | 730 x 530 x 450 |
| Number of doors: | 2-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 1 |
| Outer dimensions (mm): | 810 x 580 x 520 |
| Place of deployment: | Indoor area |
| Refractory: | Yes |
| Weight (kg): | 84 |
Downloads
FAQ
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
