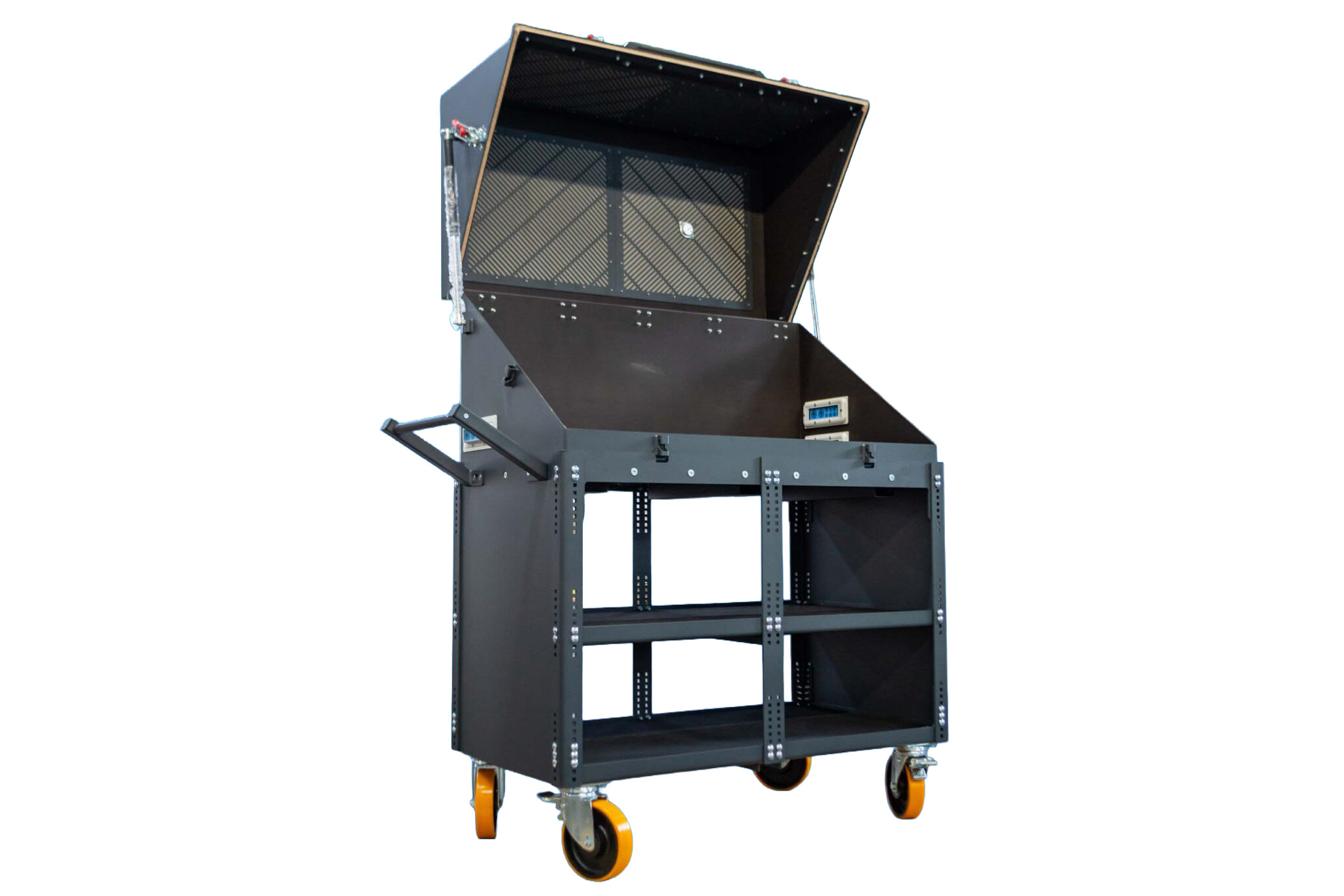

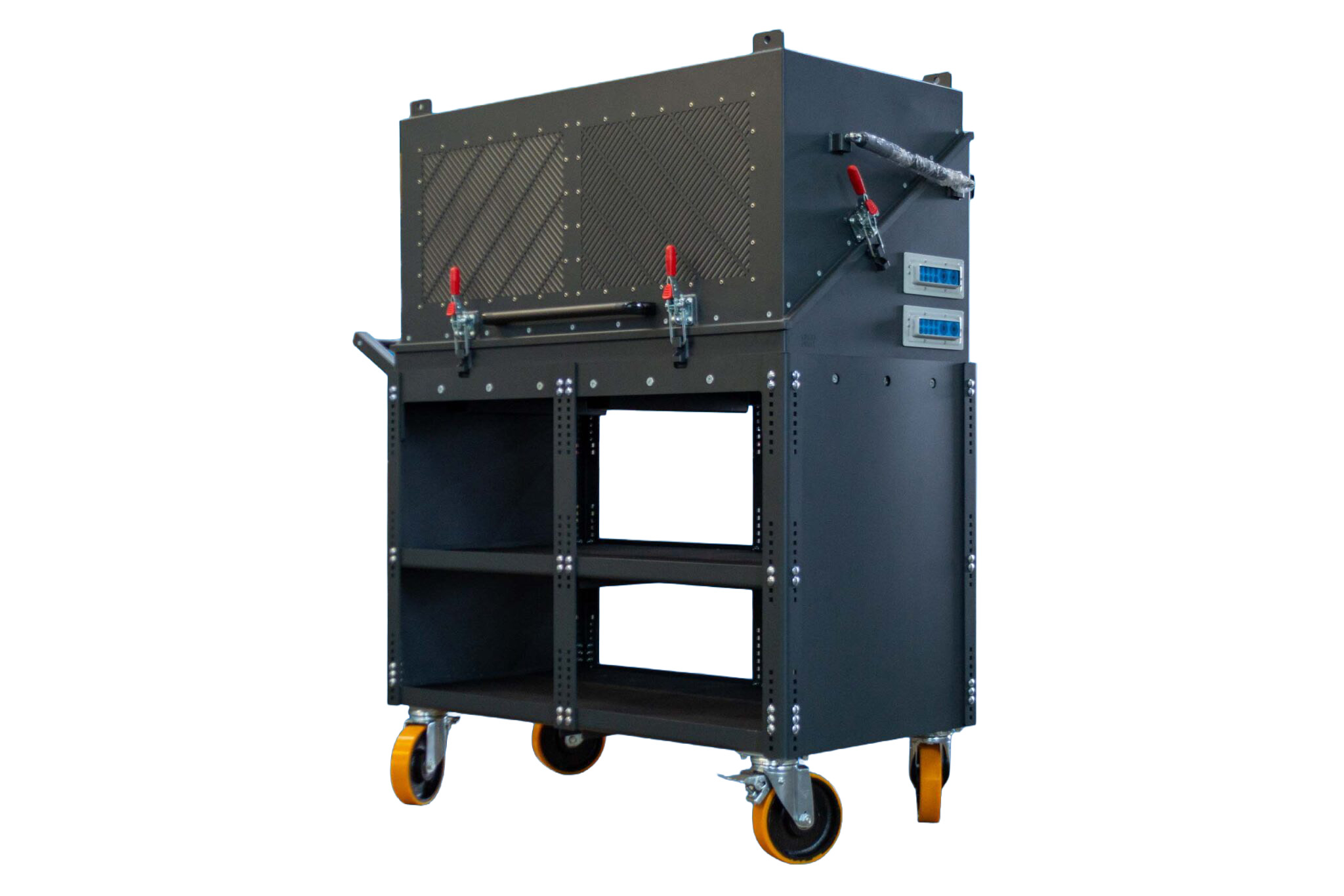

GelKoh LiBa®WorkStation HV Safety workstation for lithium-ion batteries
- Suitable for battery systems up to 135 kWh
- Integrated drip tray
- Includes LiBa®Sol and LiBa®Vent systems
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Material: | Steel |
|---|---|
| Security systems: | Fire suppression system LiBa®Sol, Pressure relief LiBa®Vent |
| Stacking feet / rolls: | With rolls |
Product information „GelKoh LiBa®WorkStation HV“
Brief overview
The GelKoh LiBa®WorkStation HV is a safety workstation designed for the professional handling of lithium-ion batteries in research, development, analysis, production and workshop environments. The robust steel construction, featuring an integrated spill tray, the LiBa®Sol extinguishing system and the LiBa®Vent pressure relief system, creates a contained working area and helps to protect users and the surrounding environment whilst working with lithium batteries.
Depending on the model, the WorkStation HV accommodates different battery sizes and, according to the manufacturer, is designed for batteries with an energy capacity of up to 135 kWh. It is available in sizes S, L and XL and can be individually adapted or expanded to meet specific requirements.
The integrated LiBa®Sol fire suppression system is designed for automatic fire suppression in the event of an incident. In addition, the WorkStation features LiBa®Vent gas management panels, through which battery gases generated in the event of an incident can be vented in a controlled manner.
The WorkStation HV comes with castors as standard and features intermediate shelves and cable grommets. The side panels can be used to store tools. The L and XL versions are also height-adjustable and can therefore be adapted to different working situations.
Variants
The GelKoh LiBa®WorkStation HV is available in three sizes:
|
Variant |
External dimensions (L × W × H) |
|

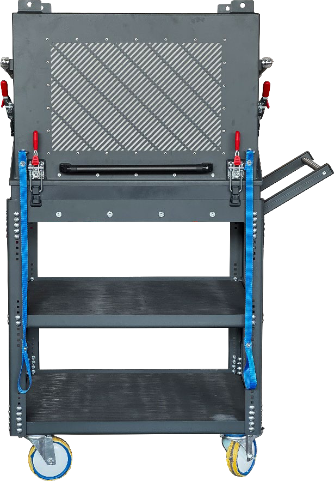

LiBa®WorkStation S HV |
approx. 1 220 × 830 × 1 750 mm |
|
LiBa®WorkStation L HV |
approx. 1,920 × 820 × 1,750 mm |
|
LiBa®WorkStation XL HV |
approx. 2,130 × 1,110 × 1,660 mm |
The variants differ in particular in terms of working space and weight. According to the manufacturer’s current website, the maximum load capacity is up to 1,000 kg, depending on the model.
Scope of delivery
Standard equipment includes:
- LiBa®WorkStation HV in the selected size S, L or XL
- Steel frame construction with steel tray and lid
- Integrated spill tray
- Modified MDF shelves in accordance with EN 1363-1 A1
- LiBa®Sol aerosol extinguishing system
- LiBa®Vent pressure relief in lid and front panel
- 1 × CF16/19 cable entry
- 4 castors for mobile use
- Serial number
Optionally available:
- Fireproof viewing window
- Manual release for LiBa®Sol
- Storage tray for an additional fire extinguisher
- Lighting
- Storage and shelving systems
- Additional cable entry
- Connection option for exhaust air systems
Technical specifications
- Product: LiBa®WorkStation HV
- Versions: S, L and XL
- Design: Steel structure with drip tray
- Drip tray: Integrated
- Floor: Modified MDF flooring in accordance with EN 1363-1 A1
- Fire-extinguishing system: LiBa®Sol Generator
- Extinguishing agent: Aerosol
- Pyrotechnic activation: Upon detection of a flame or at approx. 180 °C
- Pressure relief: LiBa®Vent
- LiBa®Vent: Multi-layered, heat-resistant textile mesh in the lid and front
- Cable entry: 1 × CF16/19
- Mobility: 4 castors
- Height-adjustable: yes
Areas of application
The GelKoh LiBa®WorkStation HV is designed for work areas where lithium-ion batteries are examined, processed or integrated into development, analysis and production processes.
Typical areas of application include:
- Laboratories
- Workshops and service areas
- Development centres
- Analysis and testing areas
- Universities and research institutions
- Battery development and prototyping
- Industry and production
- Work on lithium-ion batteries and high-voltage battery systems
The cable grommets, together with optional storage, lighting and extraction solutions, allow the workstation to be adapted to different operational requirements.
Approvals / Standards
The GelKoh LiBa®WorkStation HV is designed as a safety workstation for the professional handling of lithium-ion batteries. According to the manufacturer’s information, the design complies with the risk assessments set out in the Workplace Ordinance (ArbStättV) and the Industrial Safety Ordinance (BetrSichV).
Complies with:
- ArbStättV – Workplace Ordinance
- BetrSichV – Industrial Safety Regulation
Construction / Fire safety
- Modified MDF worktops in accordance with EN 1363-1 A1
Conclusion
The GelKoh LiBa®WorkStation HV provides a designated safety workstation for the professional handling of lithium-ion batteries and high-voltage battery systems in research, development, workshops and production. The combination of the LiBa®Sol extinguishing system, LiBa®Vent pressure relief, spill tray and mobile steel structure supports the controlled execution of work on batteries. With three sizes, a design for batteries up to 135 kWh and various optional extensions, the WorkStation HV can be adapted to different working, testing and safety concepts.
