GelKoh LiBa® WorkStation Safety workstation for lithium-ion batteries
- Suitable for batteries up to 10 kWh
- Integrated drip tray
- Includes LiBa®Sol and LiBa®Vent systems
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Material: | Steel |
|---|---|
| Max. gross weight (kg): | 400 |
| Security systems: | Fire suppression system LiBa®Sol, Pressure relief LiBa®Vent |
| Stacking feet / rolls: | With rolls |
Product information „GelKoh LiBa® Workstation“
Brief overview

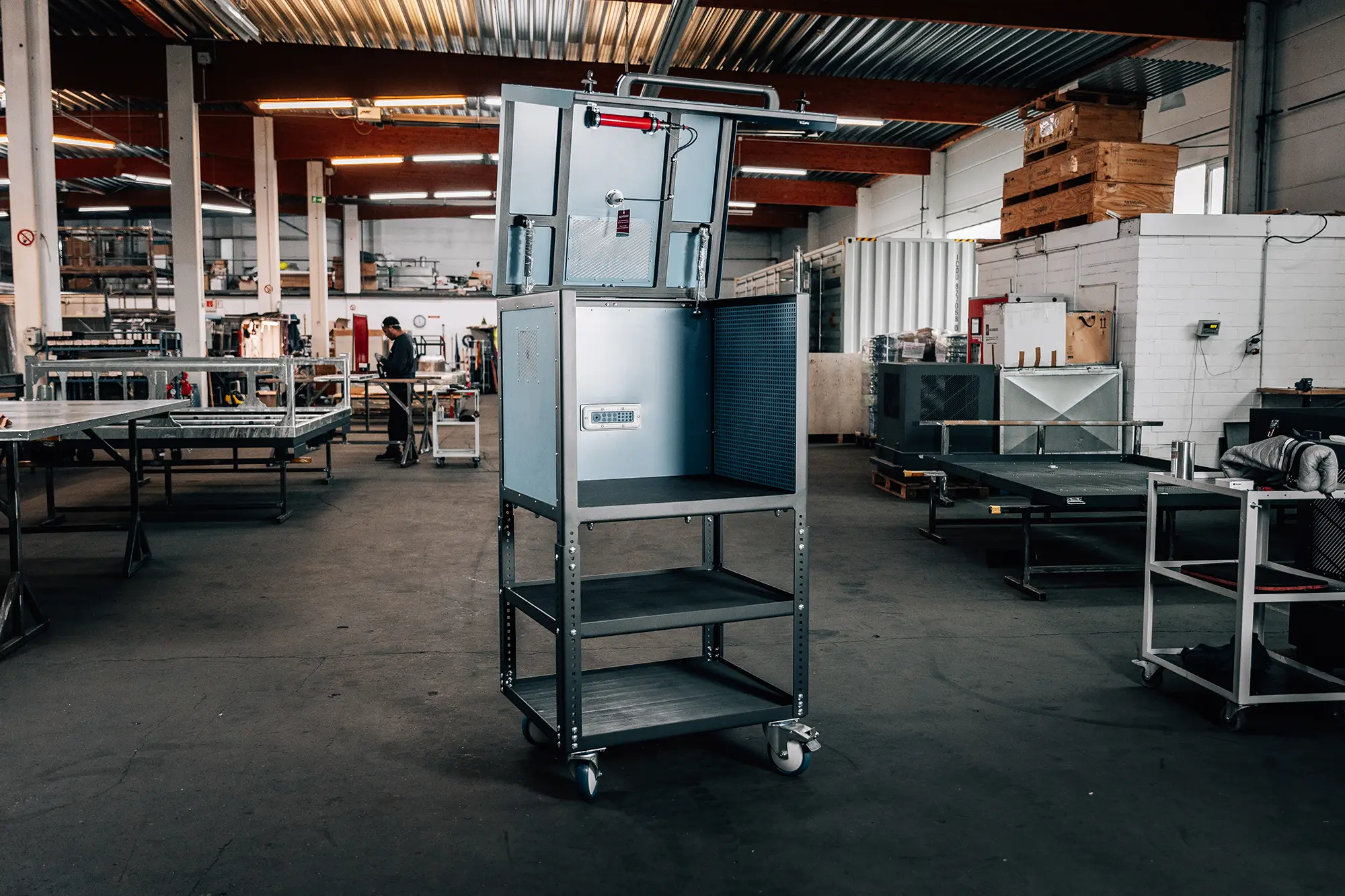

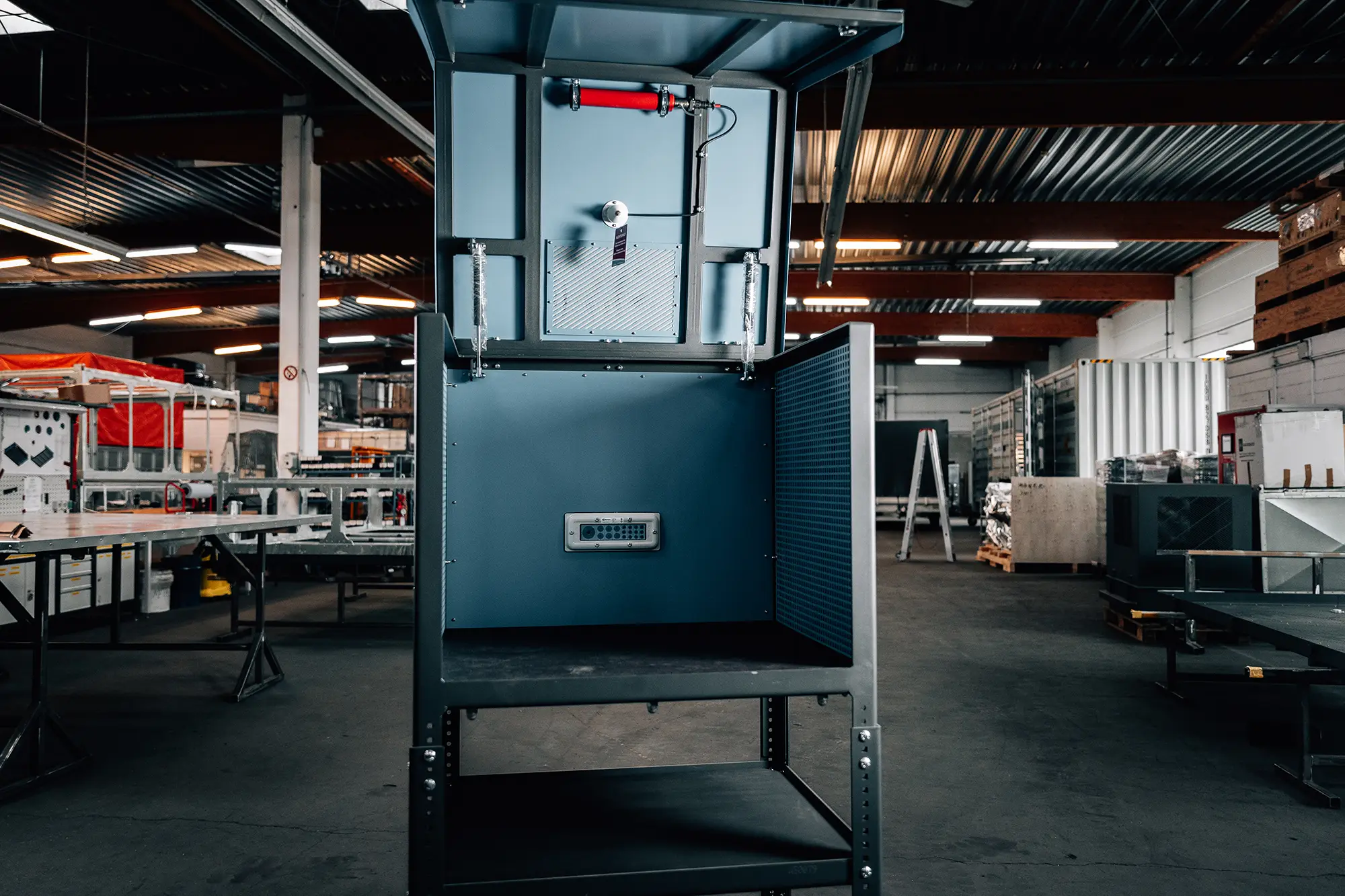

The GelKoh LiBa®WorkStation is a safety workstation designed for the professional handling of lithium-ion batteries in research, development, analysis, production and workshop environments. The robust steel construction, featuring an integrated spill tray, the LiBa®Sol extinguishing system and LiBa®Vent gas management, creates a contained work area and helps to protect users and the surrounding environment whilst working with lithium batteries.
Depending on the model, the WorkStation is designed for batteries with an energy capacity of up to 10 kWh. It is available in sizes S, L and XL and can be individually adapted or expanded to meet specific requirements.

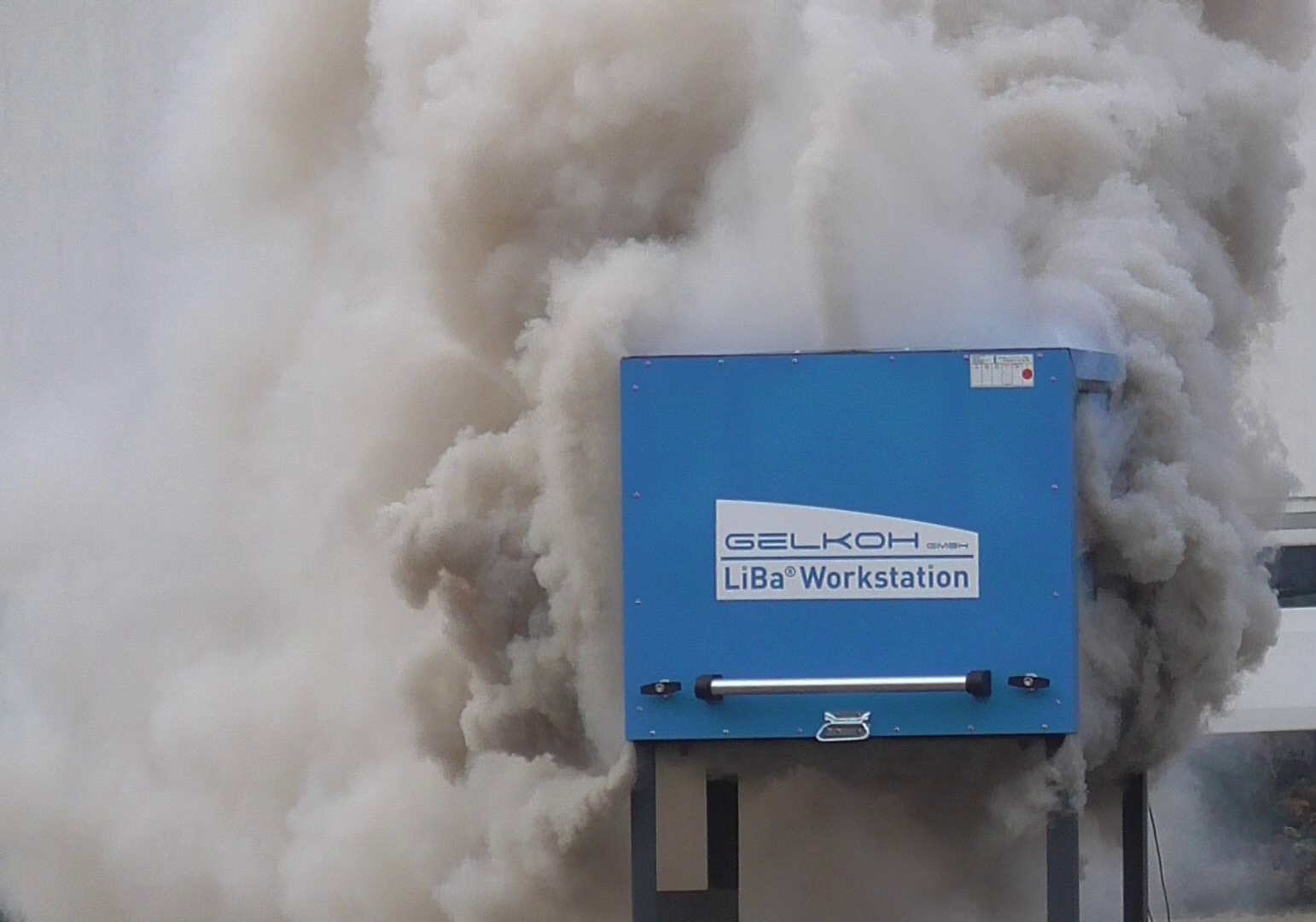

The integrated LiBa®Sol fire suppression system is designed for automatic fire suppression in the event of an emergency. In addition, the WorkStation features LiBa®Vent gas management panels, through which battery gases generated in the event of an incident can be vented in a controlled manner.
The WorkStation comes with castors as standard and features intermediate shelves and cable grommets. The side panels can be used to store tools. The L and XL versions are also height-adjustable, allowing them to be adapted to different working situations.
Variants
The GelKoh LiBa®WorkStation is available in three sizes:
|
Variant |
External dimensions (L × W × H) |
|

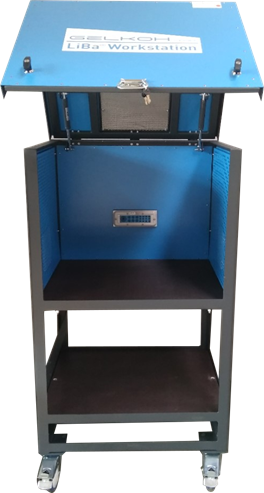

LiBa®WorkStation S |
approx. 850 × 680 × 1,650 mm |
|
LiBa®WorkStation L |
approx. 1,800 × 790 × 1,650 mm |
|

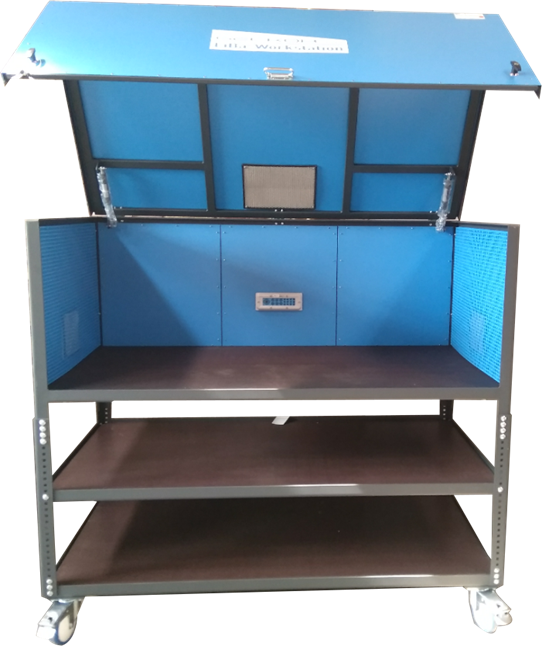

LiBa®WorkStation XL |
approx. 1,800 × 1,000 × 1,650 mm |
The variants differ in particular in terms of working area, weight and maximum power consumption. The maximum load capacity for all three models is approx. 400 kg.
Scope of delivery
Standard equipment includes:
- LiBa®WorkStation in the selected size S, L or XL
- Height-adjustable steel frame construction with sheet metal fittings
- Integrated spill tray
- Modified MDF shelves in accordance with EN 1363-1 A1
- LiBa®Sol aerosol extinguishing system
- LiBa®Vent pressure relief in the lid and side panels
- 1 × CF16/19 cable entry
- Side panels prepared for tool storage
- 4 castors for mobile use
- Serial number
Optionally available:
- Fireproof viewing window
- Manual release for LiBa®Sol
- Storage tray for an additional fire extinguisher
- Lighting
- Storage and shelving systems
- Additional cable entry
- Connection option for exhaust air systems
Technical specifications
- Product: LiBa®WorkStation
- Versions: S, L and XL
- Design: Height-adjustable steel frame construction with sheet metal fittings
- Spill tray: Integrated
- Shelving: Modified MDF shelves in accordance with EN 1363-1 A1
- Fire-extinguishing system: LiBa®Sol Generator
- Extinguishing agent: Aerosol
- Pyrotechnic activation: Upon detection of a flame or at approx. 180 °C
- Flue gas temperature activation: approx. 72 °C
- Pressure relief: LiBa®Vent
- LiBa®Vent: Multi-layered, heat-resistant textile mesh in the lid and side walls

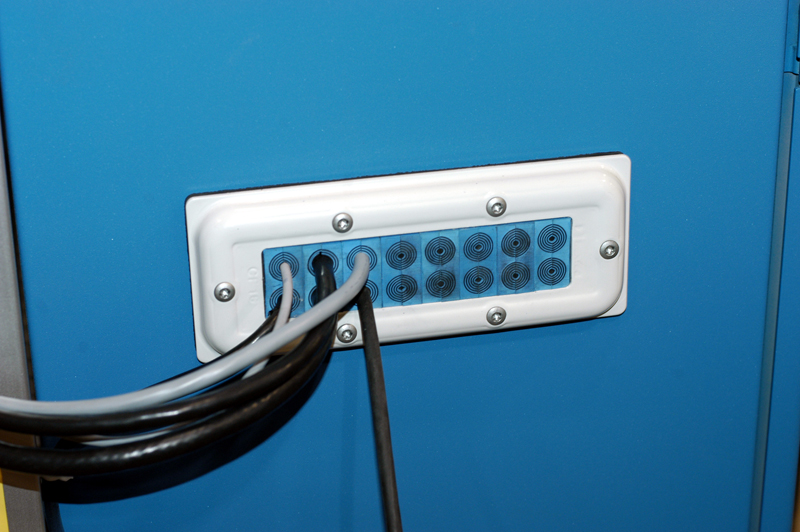

- Cable entry: 1 × CF16/19 as standard
- Mobility: 4 castors
- Height-adjustable: Depending on the model
Areas of application
The GelKoh LiBa®WorkStation is designed for work areas where lithium-ion batteries are examined, processed, tested or integrated into development and production processes.
Typical applications include:
- Laboratories
- Workshops and service areas
- Development centres
- Analysis and testing areas
- Universities and research institutions
- Battery development and prototyping
- Industry and production
- Work on lithium-ion batteries and battery systems
The side panels, which are designed to accommodate tool holders, as well as cable entries and optional storage, lighting and exhaust air solutions, enable the workstation to be adapted to different operational requirements.
Approvals / Standards
The GelKoh LiBa®WorkStation is designed as a safety workstation for the professional handling of lithium-ion batteries. According to the manufacturer’s information, the design complies with the risk assessments set out in the Workplace Ordinance (ArbStättV) and the Industrial Safety Ordinance (BetrSichV).
Complies with:
- ArbStättV – Workplace Ordinance
- BetrSichV – Industrial Safety Ordinance
Construction / Fire safety
- Modified MDF worktops in accordance with EN 1363-1 A1
Conclusion
The GelKoh LiBa®WorkStation provides a designated safe workstation for the professional handling of lithium-ion batteries in research, development, workshops and production. The combination of the LiBa®Sol extinguishing system, LiBa®Vent pressure relief, spill tray and mobile steel frame supports the controlled performance of work on batteries. With three sizes and various optional extensions, the WorkStation can be adapted to different working, testing and safety concepts.
