Genius FLEX-BOX 1580 foldable storage & transport box
- Max. battery size: approx. 1590 x 1030 x 965 mm
- External dimensions: 1700 x 1140 x 1157 mm
- Variants: Basic, Advanced, Premium
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| ADR special provision: | SV 310, SV 376 |
|---|---|
| Applications areas: | Defective lithium-ion batteries, Disposal, E-Bike batteries, Fire-retardant storage, Garden tool batteries, Garden tool batteries, Model building batteries, PowerTools, Power tool batteries, Prototypes, Recycling centers, Storage, Transport, Transport of batteries |
| Encoding: | 50H |
| Filling material: | E-Glass fiber needle mats, PyroBubbles®, Without filler material |
| Handling filling material: | Filling material for inserts, in pillow, without filler material |
| Included filler material: | without filler material |
| Internal dimensions (mm): | 1 550 x 990 x 925, 1 590 x 1 030 x 965 |
| Material: | Plastic |
| Material designation: | High-density polyethylene (HDPE) |
| Max. gross weight (kg): | 800 |
| Outer dimensions (mm): | 1 700 x 1 140 x 1 157 |
| Packaging group: | I |
| Packaging instruction according to ADR: | LP 903, LP 904, LP 905 |
| Packaging type: | Dangerous goods large-packages (LP) |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 86, 112 |
| Type: | Storage box |
| UN packaging code: | UN 50H/X/mmyy/CZ/CIM10423/SÖHGEN1440/800 |
| Volume (l): | 1 420, 1 580 |
| Volume (l): | > 600 |
Product information „Genius FLEX-BOX 1580 foldable storage & transport box“
The GENIUS FLEX-BOX 1580 foldable storage and transport box presented here offers an ideal solution for users who are looking for a reliable method to safely transport or store lithium batteries/lithium-ion batteries in accordance with the latest standards.
The properties, packaging instructions, approvals and ADR special regulations differ here depending on the selected variant.
Direct comparison of the variants
| Variant 1 Basic | Variant 2 Advanced | Variant 3 Premium | |
| Volume / max. payload | 1580 l / 712 kg | 1420 l / 688 kg | 1420 l / 688 kg |
| External dimensions in mm | 1700 x 1140 x 1157 | 1700 x 1140 x 1157 | 1700 x 1140 x 1157 |
| Internal dimensions in mm | 1590 x 1030 x 965 | 1550 x 990 x 925 | 1550 x 990 x 925 |
| Empty weight / TARE | 86 kg | 112 kg | 112 kg |
| Material | Rigid HDPE plastic | Rigid HDPE plastic | Rigid HDPE plastic |
| Foldable | Yes | Yes | Yes |
| Height when folded | 276 mm | 420 mm | 420 mm |
| Filling material | Not necessary | E-glass fibre needle mats | E-glass fibre needle mats incl. PyroBubbles cushions (20 pieces) |
| Active fire protection agent with filter effect | No | No | PyroBubbles cushions with filter effect for higher protection |
| Areas of application | Storage & transport of lithium-ion batteries 3480, 3481 | Storage & transport of lithium-ion batteries 3480, 3481 | Storage & transport of lithium-ion batteries 3480, 3481 |
| Approved for the following battery types | For undamaged and non-defective batteries | For damaged and defective batteries, prototypes | For damaged and defective batteries, prototypes |
| UN packaging code | UN 50H/X/mmyy/CZ/CIM10423/SÖHGEN1440/800 | UN 50H/X/mmyy/CZ/CIM10423/SÖHGEN1440/800 | UN 50H/X/mmyy/CZ/CIM10423/SÖHGEN1440/800 |
| Type approval | Packaging group II | Packaging group II | Packaging group II |
| Packaging instructions | LP903 | LP903, LP904, LP905 | LP903, LP904, LP905 |
| ADR special provisions | _ | SV 310, SV376, SV636 | SV 310, SV376, SV636 |

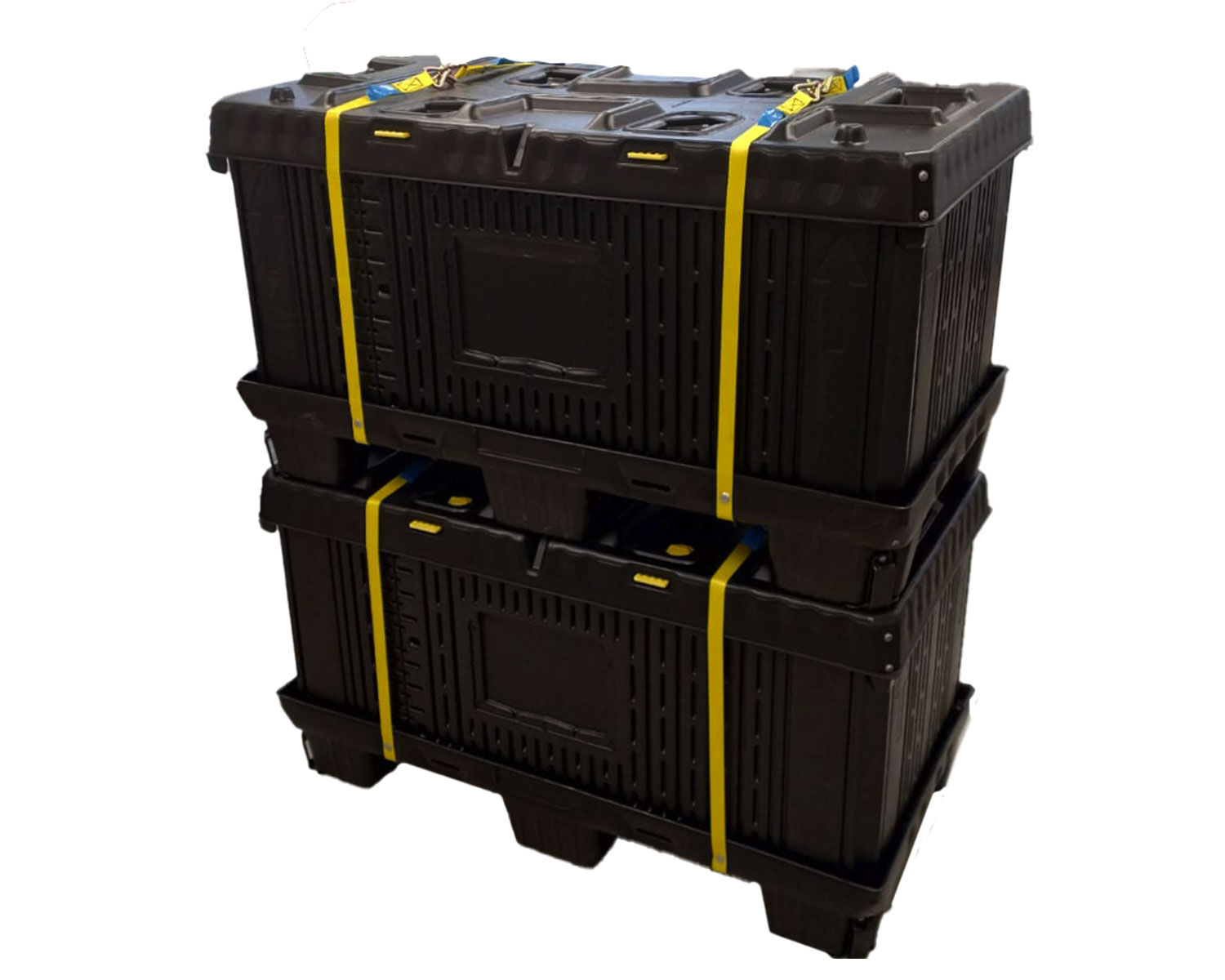

| Stackability | Yes | Yes | Yes |
| Additional tension straps | 2 pcs | 2 pcs | 2 pcs |
| Underrideable (Pallet truck) | Yes | Yes | Yes |
Certification and guidelines
Lithium batteries fall under dangerous goods class 9, which means that the goods pose a significant risk to the environment during transport. Numerous specifications and guidelines must therefore be observed when transporting lithium batteries.
Certified for packaging group II
The containers in the FLEX-BOX series meet the requirements of packaging group II, which means that substances with a medium hazard potential may be transported in them. To achieve this classification, drop tests from a height of 1.2 metres must be passed.
Different properties and filling materials

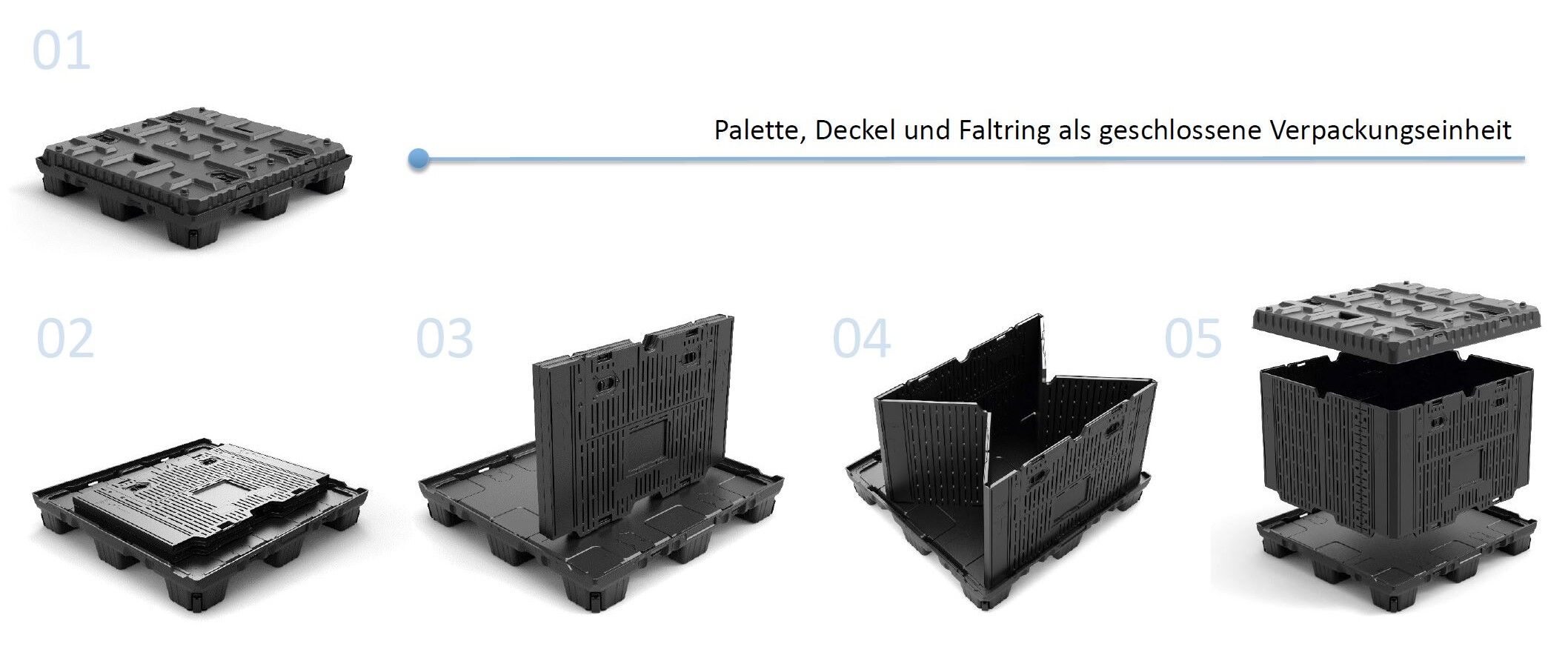

Height of the folded box
The "Basic" version has a folded height of 276 mm, which allows for compact and space-saving storage. The "Advanced" and Premium versions have a folded height of 420 mm.
E-glass fibre needle mats and PyroBubbles provide additional protection
The Advanced version protects the contents from shocks and vibrations with E-glass fibre needle mats. This filling material is non-flammable and non-conductive. The Premium version is available for the highest safety requirements.
Filling material and safety features
No additional filling material is required for the Basic version. This option is ideal for transporting undamaged and non-defective batteries that do not require special filling materials in accordance with packaging regulation P 903. For increased safety, we recommend the "Advanced" version, which is equipped with E-glass fibre needle mats. The Advanced version can also be used to store or transport damaged and defective batteries, prototypes and batteries for disposal or recycling. For maximum safety and protection, we recommend the "Premium" version. This uses E-glass fibre needle mats in combination with 20 PyroBubbles cushions (included). The box is filled with the fire protection agent PyroBubbles ®, which forms a closed and thermally insulating layer around a source of fire. PyroBubbles offer additional fire protection and contribute to safety, especially when storing or transporting lithium batteries or lithium-ion batteries.
ADR special regulations
The "Basic" version does not contain any specific ADR special regulations. The "Advanced" and "Premium" variants, on the other hand, comply with ADR special provisions SV 376 and SV 310. Transport in accordance with SV636 is of course also possible. These regulations are designed to optimise the handling and transport of lithium batteries and to ensure safety throughout the entire transport chain, especially with regard to recycling and disposal.
The FLEX-BOX series allows you to select the appropriate variant according to your individual requirements, while always ensuring the highest safety standards. Trust our products to transport your lithium batteries safely and efficiently.
Future-oriented
Lithium-ion batteries will become indispensable in all industrial applications in the coming years
.
However, if used improperly, the batteries can pose a potential hazard that should not be underestimated during manufacture, storage and transport. By purchasing these boxes, you are protecting yourself against major financial losses right from the start. International customers from the automotive and energy supply sectors, among others, rely on this proven technology.
Working for you
Please do not hesitate to contact us if you have any questions. We look forward to hearing from you!
| ADR special provision: | SV 310, SV 376 |
|---|---|
| Applications areas: | Defective lithium-ion batteries, Disposal, E-Bike batteries, Fire-retardant storage, Garden tool batteries, Garden tool batteries, Model building batteries, PowerTools, Power tool batteries, Prototypes, Recycling centers, Storage, Transport, Transport of batteries |
| Encoding: | 50H |
| Filling material: | E-Glass fiber needle mats, PyroBubbles®, Without filler material |
| Handling filling material: | Filling material for inserts, in pillow, without filler material |
| Included filler material: | without filler material |
| Internal dimensions (mm): | 1 550 x 990 x 925, 1 590 x 1 030 x 965 |
| Material: | Plastic |
| Material designation: | High-density polyethylene (HDPE) |
| Max. gross weight (kg): | 800 |
| Outer dimensions (mm): | 1 700 x 1 140 x 1 157 |
| Packaging group: | I |
| Packaging instruction according to ADR: | LP 903, LP 904, LP 905 |
| Packaging type: | Dangerous goods large-packages (LP) |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 86, 112 |
| Type: | Storage box |
| UN packaging code: | UN 50H/X/mmyy/CZ/CIM10423/SÖHGEN1440/800 |
| Volume (l): | 1 420, 1 580 |
| Volume (l): | > 600 |
Downloads
FAQ
That depends on various factors that need to be considered:
- size of the battery(ies)
- condition (e.g. non-critical, defective, critically defective or prototype)
- power
Transport boxes are available in many different sizes and specifications. The packaging group for which the box is suitable is indicated for each product.
Find out more in our blog article:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
Even if the batteries are not critical, remember to protect them from shocks and to order appropriate filling material if it is not already included in the box.
Yes. Should a battery reach a critical state and cause a fire, separating the batteries will prevent the fire from spreading and multiplying.
Generally, the insulation and protection material should line all sides of the container. The batteries are stored between individual layers.
We also have containers in our program that already have the protective material integrated into the outer wall. No further protective layer is necessary here.
The technical principles for storage and transportation solutions are very similar. The transport boxes are also subjected to extensive tests in accordance with ADR (drop test, fire test, etc.) to confirm compliance with the ADR regulations. The packaging regulations are extensive and regulated by law.
There are currently no comparable regulations for storage. Nevertheless, manufacturers of storage boxes regularly carry out appropriate tests.
The right container depends on the type and size of the battery to be shipped or stored.
If you want to learn more about battery storage and transportation, you will find the answers in our blog articles:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
The transportation of batteries is subject to ADR regulations.
The number, size and weight, energy density and condition of the batteries are crucial parameters for finding a suitable transport container for lithium-ion batteries. The selection process is complex and should be carried out by appropriately trained personnel. We have a trained hazardous materials officer on our team. Please feel free to contact us.
Plastic containers are cheaper but not as durable as metal containers. They are suitable, for example, for non-critical batteries, defective batteries, prototypes and end-of-life batteries. They can be used for both storage and transportation.
Metal containers are required, for example, when dealing with critically defective batteries.
The exact packaging instructions for these cases can be found in the ADR or by consulting a certified hazardous materials specialist.
To date, there are no legal requirements for the storage of lithium-ion batteries, which does not mean that they should be stored without suitable protective measures.
It is best to check with your insurer to find out which measures they recognize as suitable in the event of a claim.
For example, a suitable box could already be recognized as spatial separation.
A rough overview can be found in this VDS publication from the GDV:
https://shop. vds.de/download/vds-3103/ccb1d439-ad9d-47cb-a2b1-ace23e155610
Please also read our blog article on this topic:
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
Accessory
That depends on various factors that need to be considered:
- size of the battery(ies)
- condition (e.g. non-critical, defective, critically defective or prototype)
- power
Transport boxes are available in many different sizes and specifications. The packaging group for which the box is suitable is indicated for each product.
Find out more in our blog article:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
Even if the batteries are not critical, remember to protect them from shocks and to order appropriate filling material if it is not already included in the box.
Yes. Should a battery reach a critical state and cause a fire, separating the batteries will prevent the fire from spreading and multiplying.
Generally, the insulation and protection material should line all sides of the container. The batteries are stored between individual layers.
We also have containers in our program that already have the protective material integrated into the outer wall. No further protective layer is necessary here.
The technical principles for storage and transportation solutions are very similar. The transport boxes are also subjected to extensive tests in accordance with ADR (drop test, fire test, etc.) to confirm compliance with the ADR regulations. The packaging regulations are extensive and regulated by law.
There are currently no comparable regulations for storage. Nevertheless, manufacturers of storage boxes regularly carry out appropriate tests.
The right container depends on the type and size of the battery to be shipped or stored.
If you want to learn more about battery storage and transportation, you will find the answers in our blog articles:
https://www.lion-care.com/aktuelles/blog/transportvorschriften-regeln-und-sicherheitsmassnahmen
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
The transportation of batteries is subject to ADR regulations.
The number, size and weight, energy density and condition of the batteries are crucial parameters for finding a suitable transport container for lithium-ion batteries. The selection process is complex and should be carried out by appropriately trained personnel. We have a trained hazardous materials officer on our team. Please feel free to contact us.
Plastic containers are cheaper but not as durable as metal containers. They are suitable, for example, for non-critical batteries, defective batteries, prototypes and end-of-life batteries. They can be used for both storage and transportation.
Metal containers are required, for example, when dealing with critically defective batteries.
The exact packaging instructions for these cases can be found in the ADR or by consulting a certified hazardous materials specialist.
To date, there are no legal requirements for the storage of lithium-ion batteries, which does not mean that they should be stored without suitable protective measures.
It is best to check with your insurer to find out which measures they recognize as suitable in the event of a claim.
For example, a suitable box could already be recognized as spatial separation.
A rough overview can be found in this VDS publication from the GDV:
https://shop. vds.de/download/vds-3103/ccb1d439-ad9d-47cb-a2b1-ace23e155610
Please also read our blog article on this topic:
https://www.lion-care.com/aktuelles/blog/lithium-ionen-akkus-sicherer-umgang-und-richtige-lagerung
