asecos battery charging cabinet BATTERY CHARGE LOCKER Premium / ION-CHARGE 90 (with 5 lockers)

€7,880.00 *

plus VAT.
Please note: Notes on delivery time

Free shipping (Germany, mainland)!

Shippingtime: 3 months

  • ASCSHSL80605S
Any Questions?
Our employee Ingo Jüstel will be happy to assist you:
+49 7151 - 2564811 or  info@lion-care.com
Please note: the illustrations are similar to the product supplied. With the various ION-LINE... more
"asecos battery charging cabinet BATTERY CHARGE LOCKER Premium / ION-CHARGE 90 (with 5 lockers)"
Charging function: yes
Installation site: Inside
Fireproof: Yes
Fire resistance: 90 min
Fire test procedure: outside to inside, inside to outside
Cabinet type: Floor cabinet
Number of doors: 1-leaf
Number of drawers: 0
Number of shelves: 5
Power supply: 2 strips á 10 x 230 V
External dimensions: 599 x 615 x 1953 mm (W x D x H)
Internal dimensions: 450 mm x 522 mm x 1647 mm (W x D x H)
Weight: approx. 300 kg


Please note: the illustrations are similar to the product supplied.

With the various ION-LINE models from asecos, you can meet the requirements of insurers and associations and ensure safe passive storage of lithium-ion batteries. The ION-LINE safety storage cabinets from asecos offer a safe storage and charging solution for your batteries. Asecos is the market leader in the field of safety storage cabinets in Germany and offers one of the highest quality solutions for the active (charging) and passive storage of lithium-ion batteries with proven fire protection from the inside out and outside in with the ION-LINE models. The cabinets can be easily integrated into your premises without the need for complex and cost-intensive conversions!

Size, structure and function of the battery safety cabinet

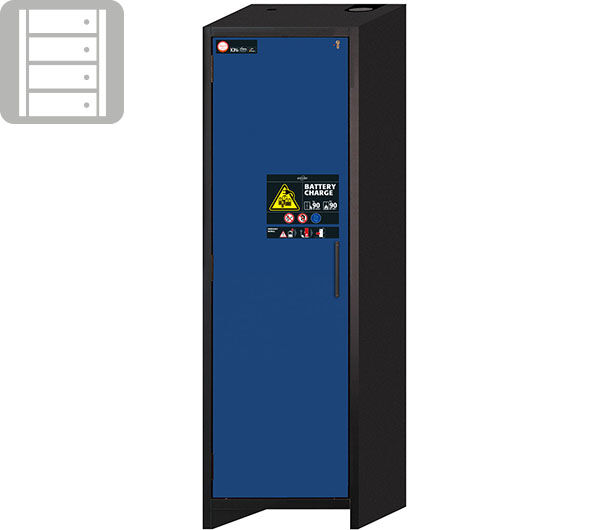

The sturdy, high-quality and scratch-resistant outer body of the asecos safety storage cabinet is equipped with a powder-coated textured surface and a triple door suspension. The entire locking mechanism and safety elements are mounted outside the storage room to protect them from corrosion.

Functions

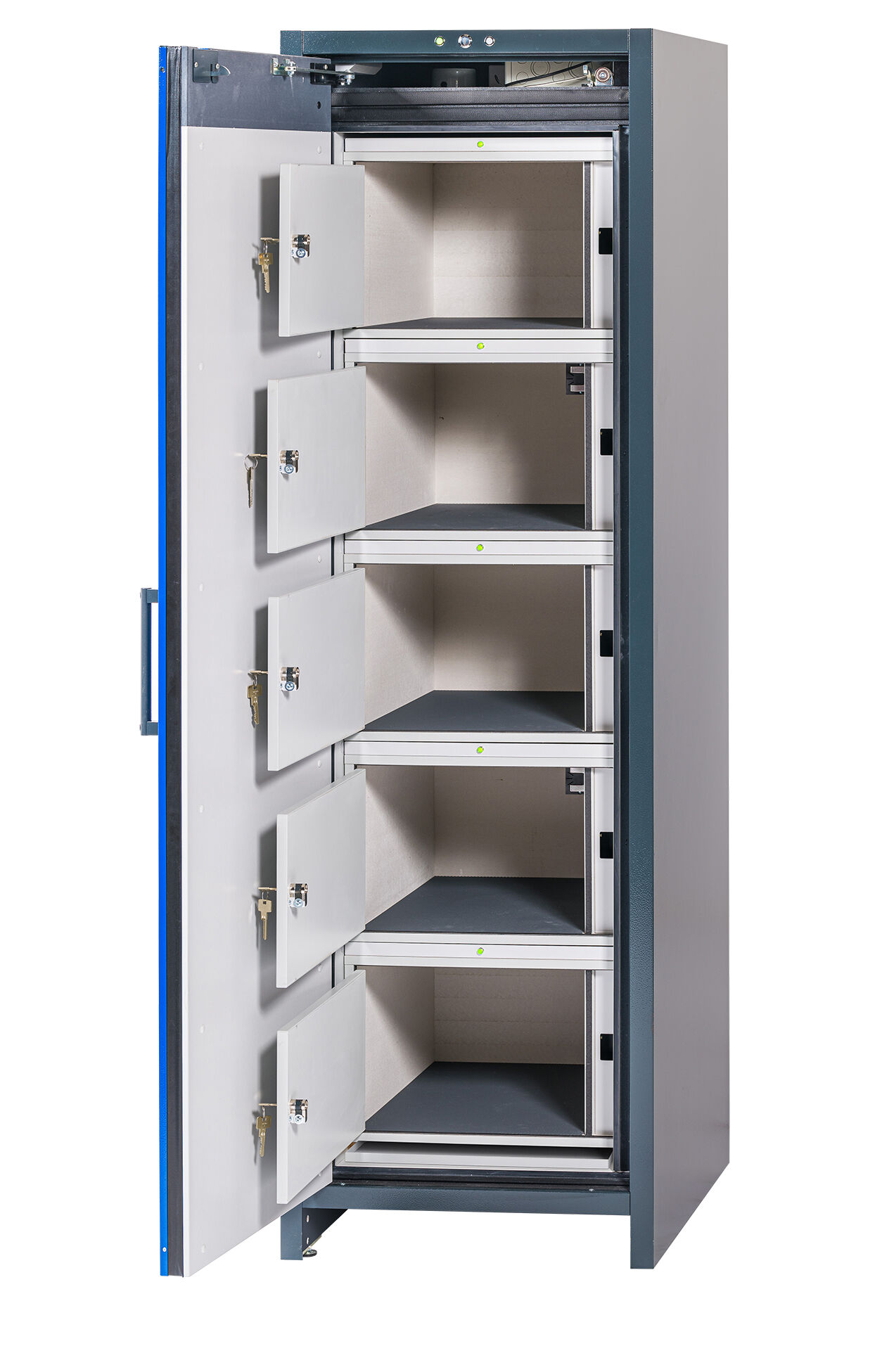

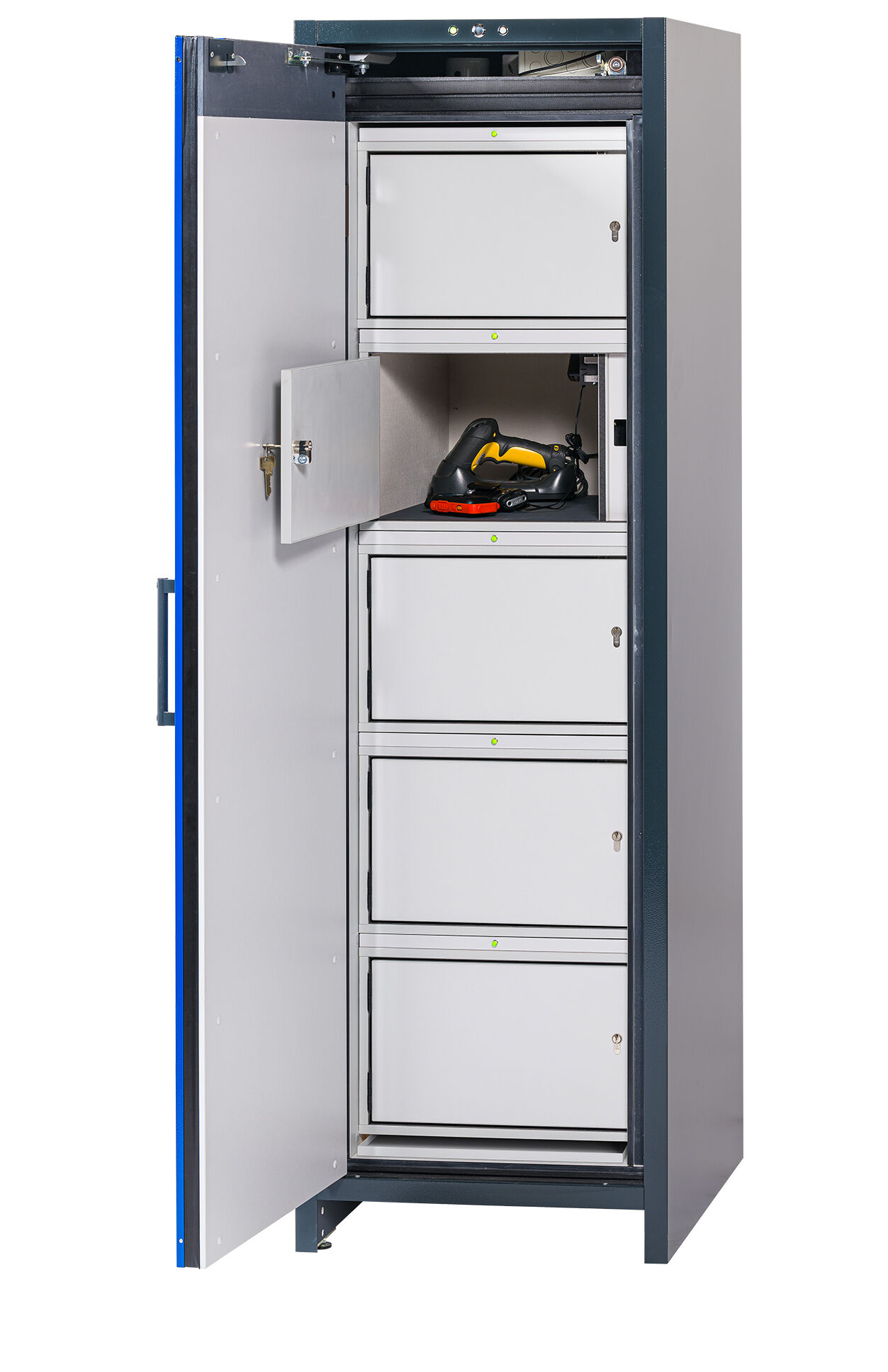

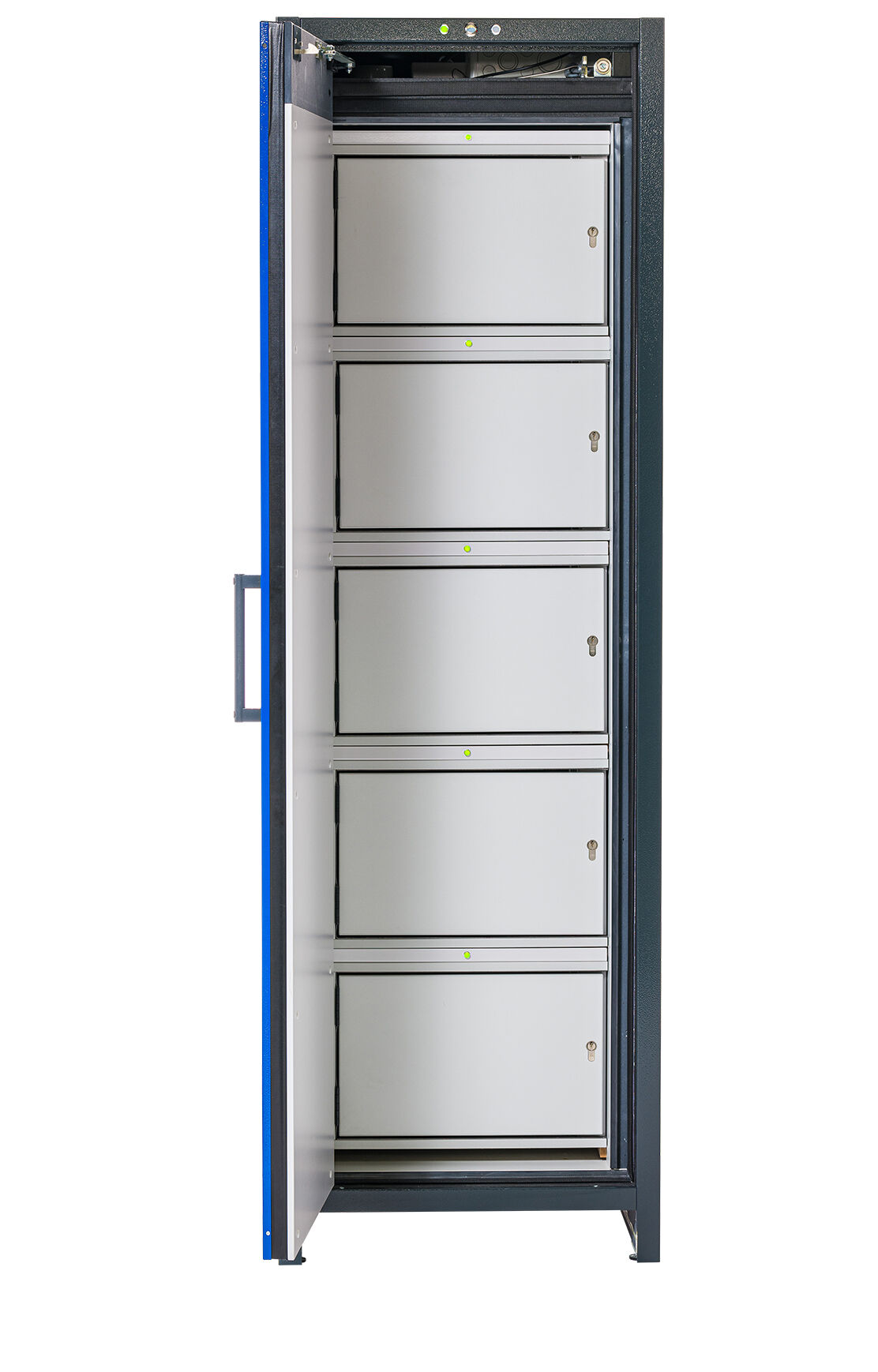

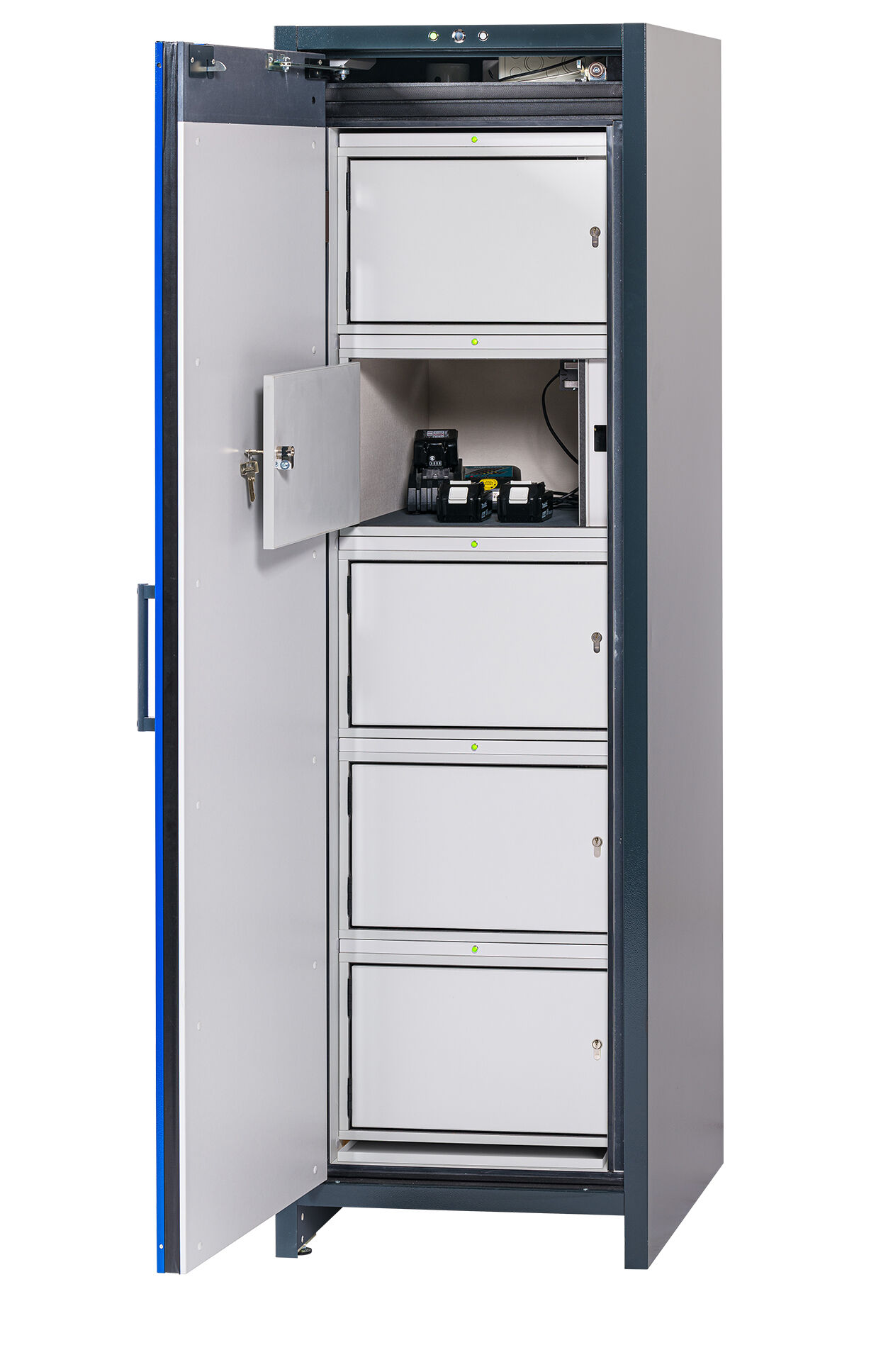

The asecos charging cabinet contains 5 fire-protected lockers incl. socket strip, as well as a floor drip tray. Each locker contains a charging option and has its own pair of keys. In the event of a fire, only the affected locker can be removed and replaced individually.

The door can be locked with a profile cylinder (locking system compatible), a locking status indicator (red/green) shows the status. The integrated transport base is used for easy transportation within the company.

Simple assembly of the safety storage cabinet

Setting up the safety storage cabinet is made easier by the integrated adjustable feet to compensate for uneven floors. A rotating wheel in the exhaust air grille serves as an indicator for sufficient technical ventilation. In addition, the integrated ventilation system can be used to connect (NW 75) to a technical exhaust air system.

Dimensions

The interior dimensions of the safety storage cabinet are 450 x 522 x 1647 mm (W x D x H), whereby the usable interior dimensions may vary depending on the interior fittings. The external dimensions are 599 x 615 x 1953 mm (W x D x H). The maximum load is 600 kg.

Inside

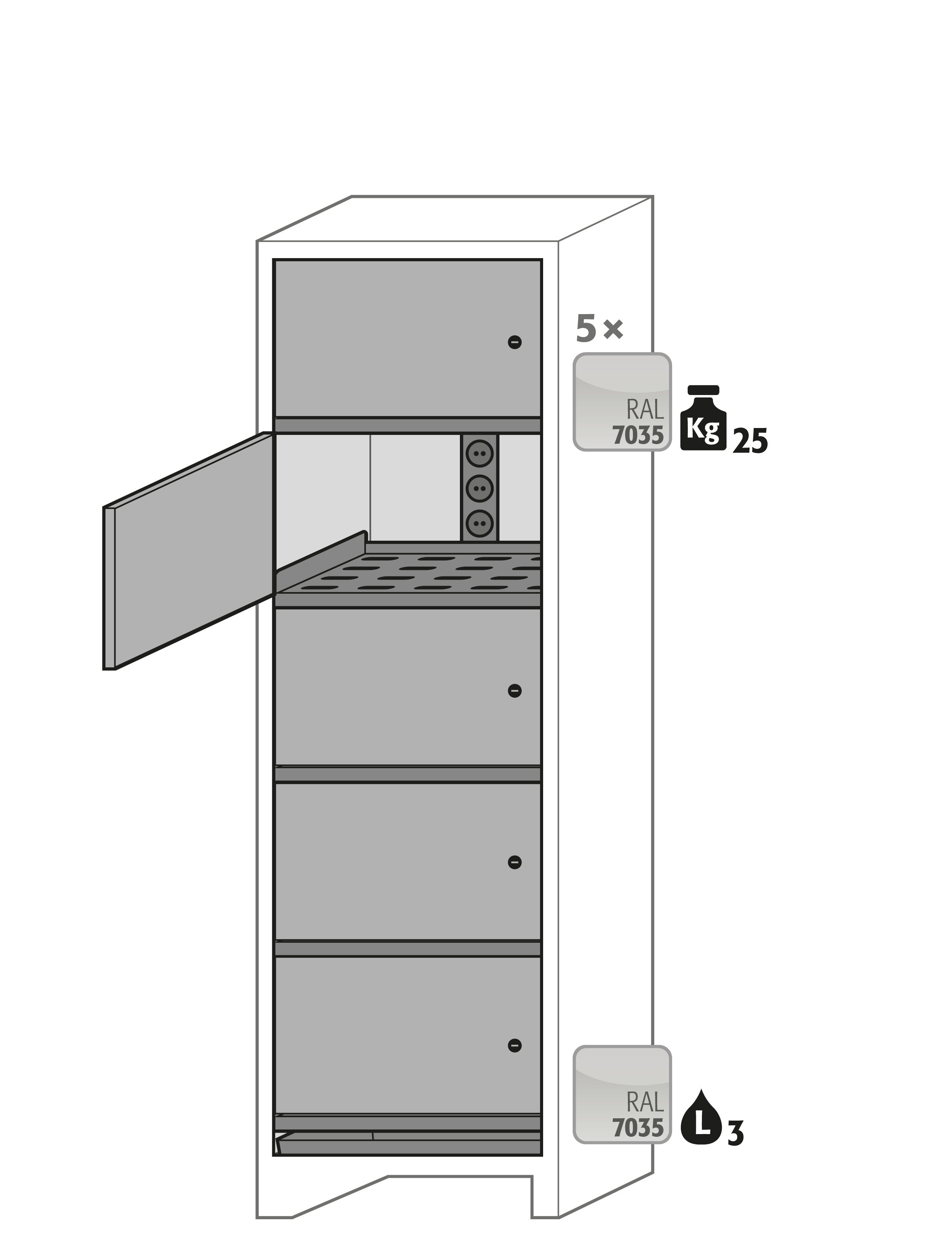

There are 5 fire-protected lockers including socket strip. The door is made of sheet steel and painted in RAL 5010 gentian blue. In addition, a bottom drip tray made of powder-coated sheet steel is always included. The volume is 3 liters.

Double fire resistance over 90 minutes

The Battery Store safety storage cabinet from asecos offers both 90 minutes of fire protection from the outside to the inside (type 90 / type-tested in accordance with EN 14470-1) and over 90 minutes of fire resistance from the inside to the outside in accordance with EN 1363-1.

Certificates

  • Fire resistance 90 minutes
  • type-tested in accordance with EN 14470-1
  • CE compliant

The asecos safety concept

In order to offer the greatest possible protection and comply with the safety concept, it is necessary to place the cabinets of the asecos ION-Line at ground level in one place to enable rapid evacuation of the safety storage cabinet from the building in the event of damage.

The cabinet has a potential-free contact for connection to a permanently manned control center. Alternatively, a telecommunication module (accessory) is available to alert the person responsible for the system. Please note that for 24/7 protection, the alarm signal must be forwarded so that action can be taken as quickly as possible.

Regulations and legislation must also be observed. If components of the safety storage cabinets are damaged, they must be repaired immediately by an asecos employee.

Notes on warranty and maintenance

The warranty period for ION-Line safety storage cabinets from asecos is 24 months. According to ArbStättV, safety equipment (such as safety storage cabinets according to EN 14470-1) must be serviced regularly. According to TRGS 526 7.4, the maintenance interval for safety storage cabinets in accordance with EN 14470-1 should not be longer than one year.

The manufacturer grants a 24-month warranty on ION-Line cabinets. In order to maintain this, the first prescribed maintenance by the manufacturer's customer service is mandatory after 12 months.

The maintenance agreement is concluded directly with the customer service department and the end customer. After placing the order, you will receive a service request form from us in which you can provide us with your contact details for concluding the maintenance contract.

The legal basis for maintenance and costs can be found in the documents in the "Downloads" tab. We will be happy to advise you on these topics at info@lion-care.com or +49 7151 256 4811.

General guidelines for battery storage

There are currently no legal regulations for the storage of lithium batteries / lithium-ion batteries. Only VdS Schadenverhütung GmbH issues general safety rules for damage prevention in its publication VdS 3103 : 2019-06 (03). It is advisable to clarify your requirements with your property insurance company in advance.

About asecos

Asecos, with its approx. 300 employees who are regularly trained, has been ensuring proper storage and safe handling of hazardous substances in everyday working life for years. The primary goal is to achieve the best possible protection for people and nature. In addition to the broad product portfolio, asecos also offers maintenance and services for its product range. In Germany, the consultants are also independent BDSF experts and abroad they have expertise in the local legal situation. This makes it possible to provide customized and legally compliant solutions for every customer requirement.

On duty for you

Please do not hesitate to contact us if you have any questions. We look forward to hearing from you!

Outer width: 0 - 60 cm
Charging function: yes
Außenhöhe: 100 - 200 cm
Installation site: Inside
Fireproof: Yes
Fire resistance: 90 min
Fire test procedure: outside to inside, inside to outside
Cabinet type: Floor cabinet
Number of doors: 1-leaf
Number of drawers: 0
Number of shelves: 5
Power supply: 2 strips á 10 x 230 V
External dimensions: 599 x 615 x 1953 mm (W x D x H)
Internal dimensions: 450 mm x 522 mm x 1647 mm (W x D x H)
Weight: approx. 300 kg
ION-LINE safety storage cabinets - Safety concept ION-LINE safety storage cabinets -... more

ION-LINE safety storage cabinets - Safety concept

ION-LINE safety storage cabinets - Lageasecos supplies

FAQ
Fragen & Antworten zum Artikel ... mehr
Kann ich Batterie-Ladeschränke im Freien / Lagerhalle / Garage aufstellen?

Standard-Sicherheitsschränke sind für den Innenbereich konzipiert, so dass eine Nutzung im Außenbereich nicht möglich ist.
Die Brandschutzplatten, die in den Schränken verbaut sind, enthalten Gips, der sehr viel Wasser enthält, welches sich bei Frost ausdehnt. Dadurch werden die Platten verformt. Es kann nicht mehr gewährleistet werden, dass ein solcher Schrank noch dicht ist oder einer Explosion standhalten kann.

Wann kann ich einen Akkuschrank ohne Feuerwiderstandsfähigkeit kaufen?

Wenn Sie bereits über einen geeigneten Raum verfügen, der baulich feuerbeständig ist, dann benötigen Sie nicht zwangsweise einen Sicherheitsschrank, der den Brand eindämmt.

Bitte vergessen Sie jedoch nicht, dass die Schäden durch einen Akkubrand immense und auch giftige Verunreinigungen mit sich bringen, deren Entsorgung schnell zu hohen Kosten führen kann.

Darüber hinaus können Sie möglicherweise bis zur endgültigen Behebung des Schadens – je nach Schadensort - nicht wie gewohnt weiterarbeiten.
