CEMO 8/10 LockEX 2.0 charging cabinet Safety charging cabinet for lithium-ion batteries
- Max. energy density: 6 kWh
- 2 x 9 sockets, each 230 V
- Available in Basic, Premium and Premium Plus
- VDMA certified
- Power connection 230 V/400 V
- with stacking feet or castors
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Cabinet power supply: | 230 V / AC, 400 V / AC |
|---|---|
| Cabinet type: | Freestanding cabinet |
| Charging function: | Yes |
| Facilities: | with castors, with stacking feet |
| Fire suppression: | Without |
| Integrated power strips: | 2 power strips with each 9 sockets, each rated at 230 V |
| Max. energy density (kWh): | 6 |
| Max. energy density per charging level (kWh): | 1.5 |
| Place of deployment: | Indoor area |
| Shelves: | 3 |
| Stacking feet / rolls: | With rolls, With stacking feet |
| Version: | Basic, Premium, Premium Plus |
Product information „CEMO Ladeschrank 8/10 LockEX 2.0 “
Brief overview
The CEMO 8/10 LockEX 2.0 charging cabinets are VDMA-certified safety cabinets designed for the stationary storage and charging of lithium-ion batteries indoors. They are particularly suitable for workshops, industrial, service and storage areas where batteries need to be housed in a protected and physically segregated manner during storage and charging.
The fire- and explosion-resistant design combines passive fire protection measures with mechanical ventilation, fire detection and the LockEX 2.0 pressure relief system. Depending on the required level of safety and monitoring, the Basic, Premium and Premium Plus models are available. All three variants feature two 9-socket power strips with a total of 18 sockets and are available with either a 230 V or 400 V power supply, as well as with stacking feet or castors.
All versions feature CEMO CONTROL for monitoring and intelligent networking of the charging cabinets. From the Premium version upwards, the web-based monitoring platform CEMO cockpit is also available.
Model comparison
|
|
CEMO 8/10 Basic |
CEMO 8/10 Premium |
CEMO 8/10 Premium Plus |
|
External dimensions with stacking feet (W × D × H) |
850 × 660 × 1,110 mm |
850 × 660 × 1,110 mm |
850 × 660 × 1,110 mm |
|
External dimensions with castors (W × D × H) |
850 × 660 × 1,150 mm |
850 × 660 × 1,150 mm |
850 × 660 × 1,150 mm |
|
CEMO CONTROL |
X |
X |
X |
|
Interconnection with other units |
X |
X |
X |
|
Data retention for up to 18 months |
X |
X |
X |
|
BMA interface |
X |
X |
X |
|
Display on the cabinet |
– |
X |
X |
|
CEMO cockpit |
– |
X |
X |
|
Live monitoring |
– |
X |
X |
|
Wi-Fi |
– |
X |
X |
|
Telecommunications module (SIM card) |
– |
– |
X |
The Basic version provides the essential features for secure storage and charging. With CEMO CONTROL, even this variant offers key monitoring and networking functions.

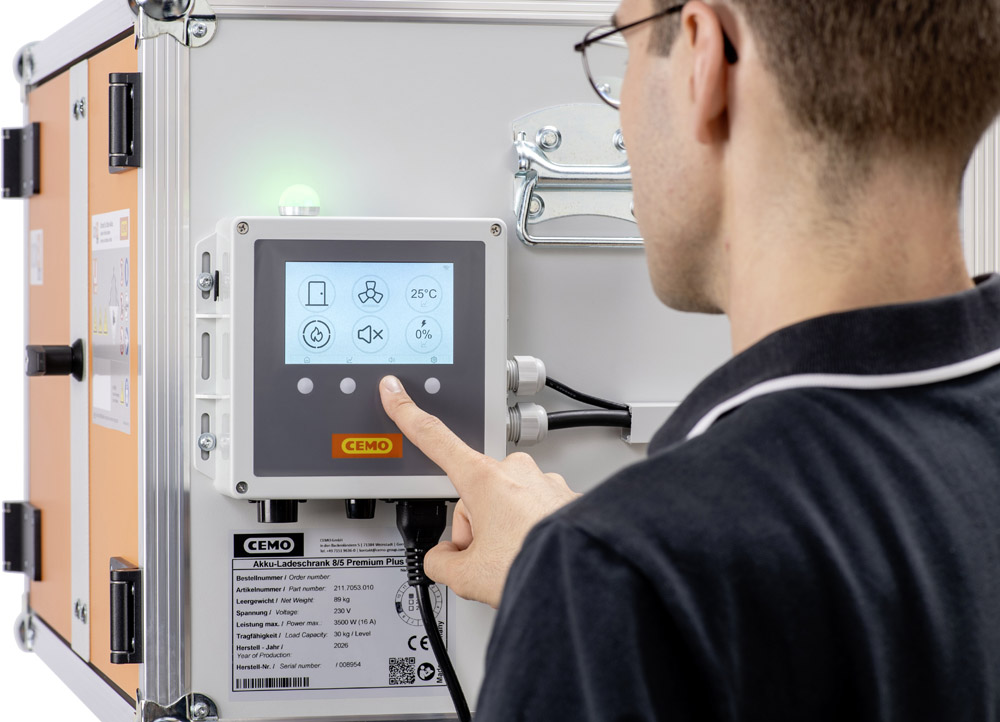

The Premium version supplements the system in particular with a display on the cabinet and the web-based monitoring platform CEMO cockpit, featuring live monitoring and Wi-Fi. The current data sheet confirms that the Premium version includes, amongst other things, a display, a mains-powered smoke detector, a temperature sensor and visual and audible warning signals.
The Premium Plus version further extends monitoring capabilities with a remote communication module featuring a SIM card.
All three variants are also available in 230 V or 400 V versions, as well as with stacking feet or castors. The versions with stacking feet are wheelchair-accessible and can be stacked up to two high. The castor versions are also wheelchair-accessible but cannot be stacked.
Scope of delivery
- Choice of 230 V or 400 V power supply

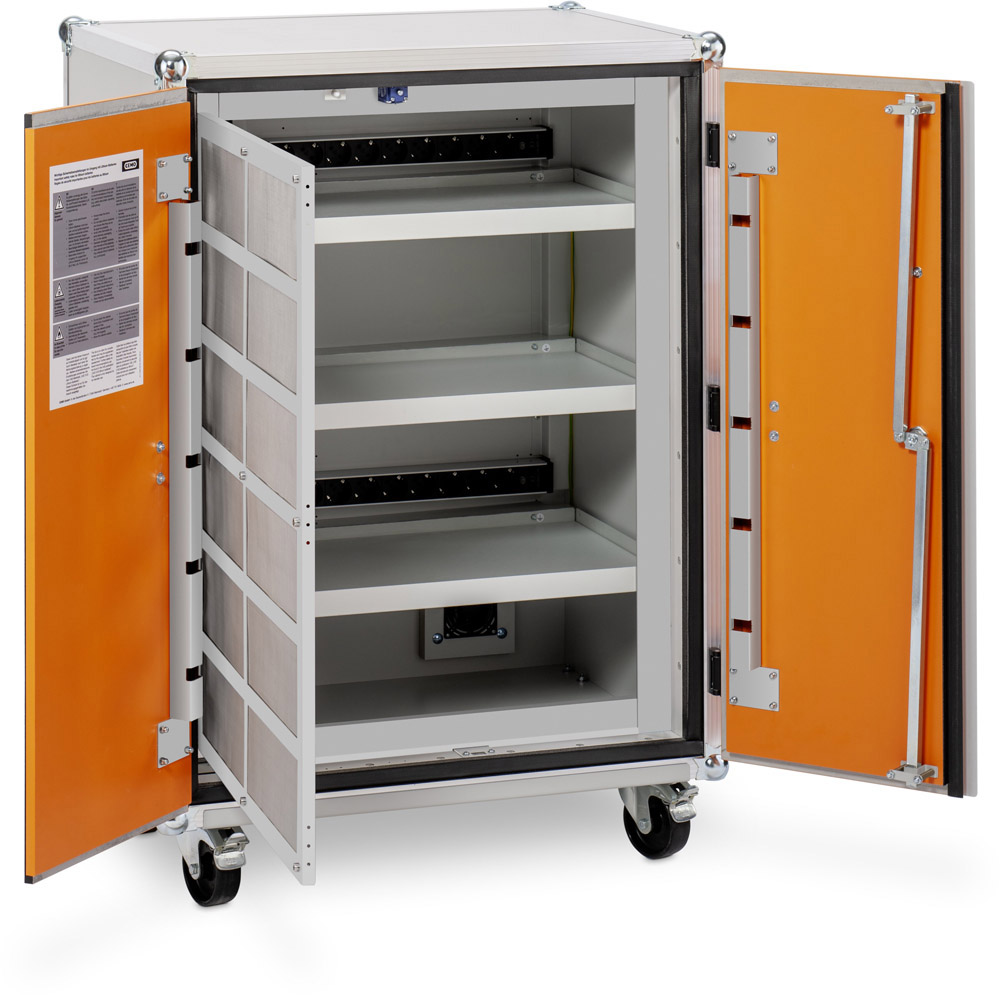

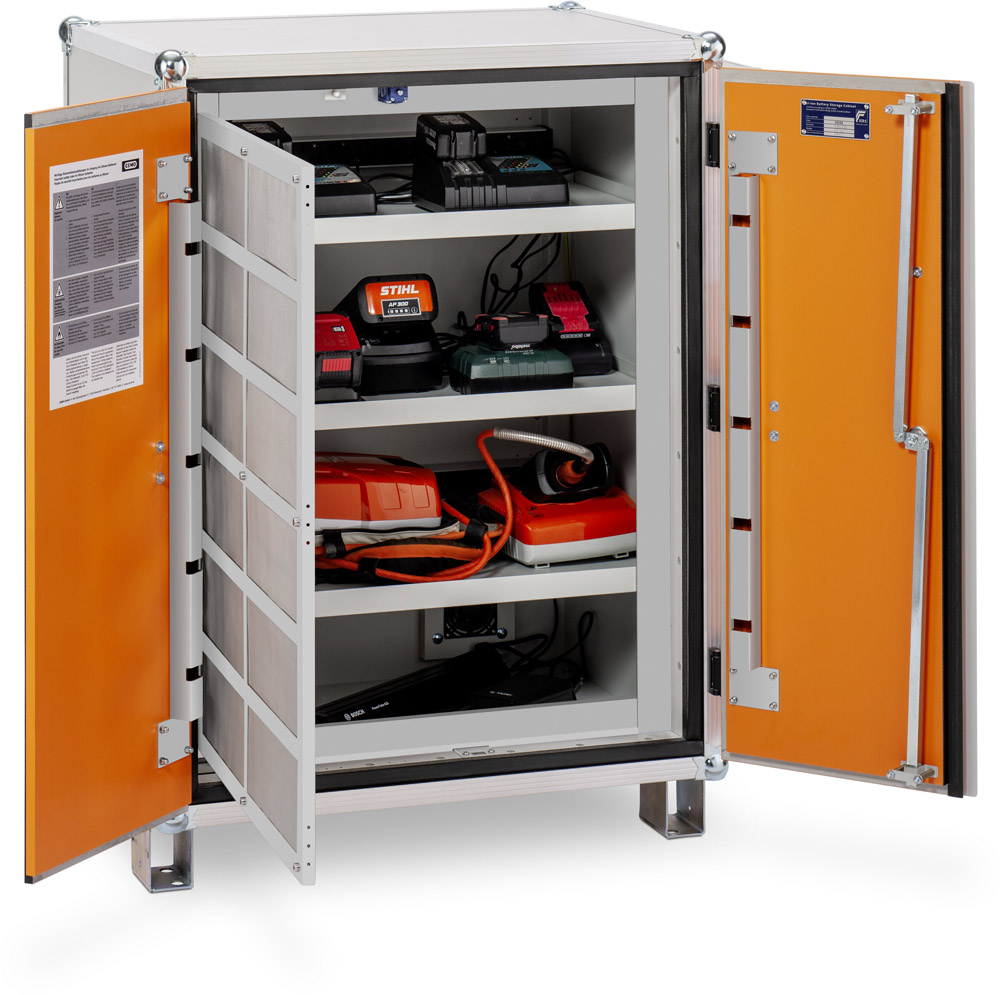

- Optional with stacking feet or castors

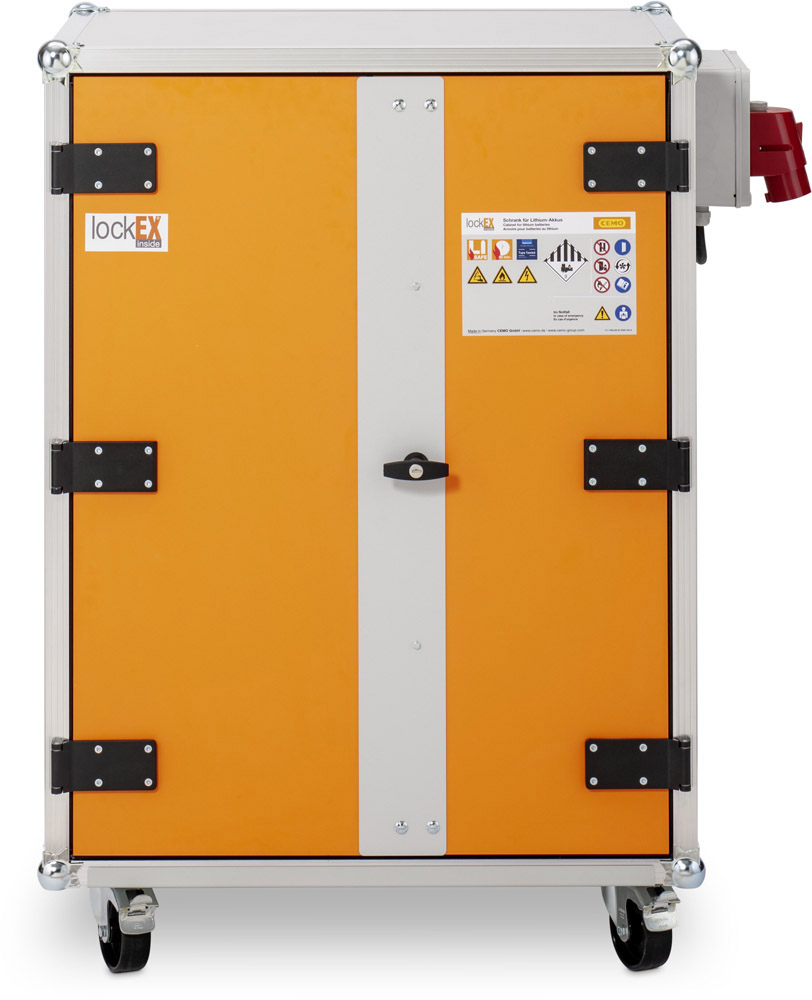

- Double-leaf door
- T-handle with 2-point locking mechanism

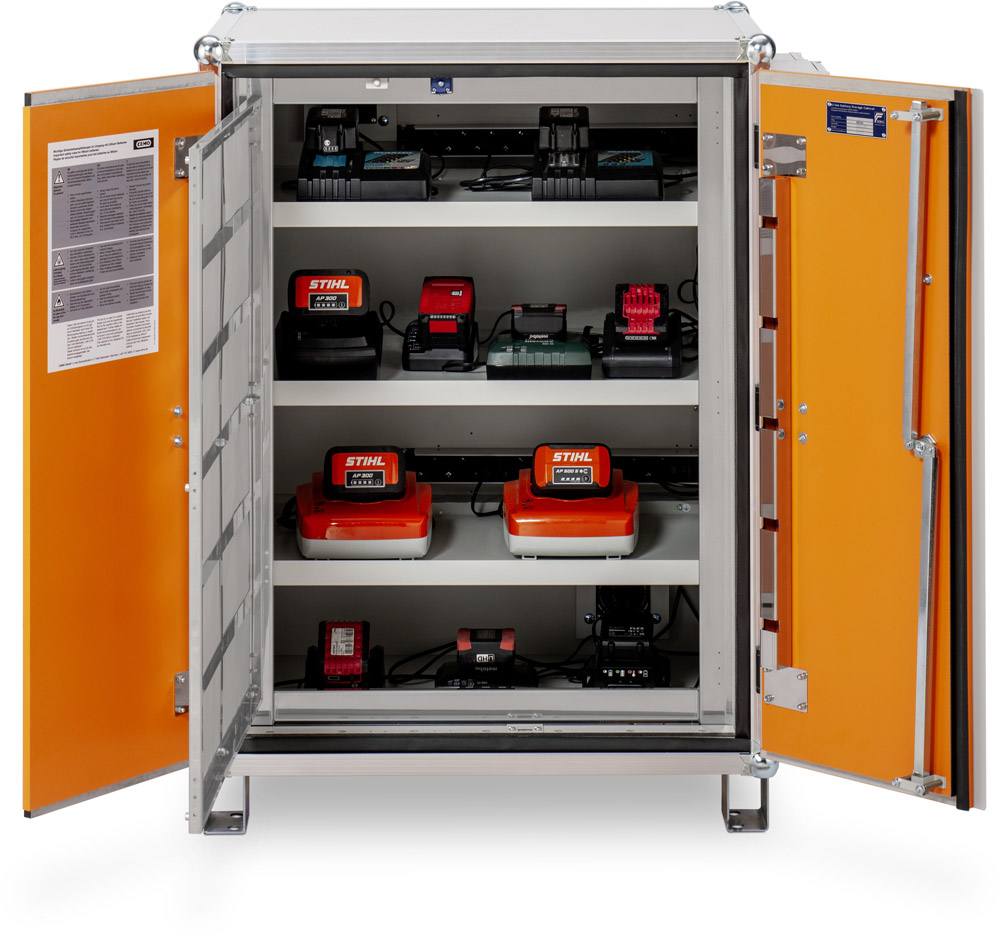

- 3 powder-coated steel shelves
- 4 storage levels
- 2 × 9-socket power strips with a total of 18 sockets
- Mechanical ventilation
- Door contact switch
- Smoke detector
- Temperature monitoring
- LockEX 2.0 pressure relief system
- CEMO CONTROL
Also included with Premium:
- Display
- CEMO cockpit
- Live monitoring
- Wi-Fi
Also included with Premium Plus:
- Communications module (SIM card)
Technical specifications
- Installation location: Indoors
- Material: Non-combustible building material
- Finish: HPL
- Operating voltage: Either 230 V or 400 V
- Max. electrical power at 230 V: 3,500 W / 16 A
- Max. electrical power at 400 V: 2 × 3,500 W / 16 A
- Frequency: 50/60 Hz
- 230 V plug: Schuko
- 400 V plug: CEE 16 A
- Number of sockets: 2 × 9
- Technical ventilation: Yes
- Door contact switch: Yes
- Number of doors: 2
- Door design: Double-leaf door
- Door lock: T-handle with 2-point locking mechanism
- Number of shelves: 3
- Shelf material: Steel, powder-coated
- Number of storage levels: 4
- Load capacity per storage level: 30 kg
- Total permissible energy: 6,320 Wh
- Permissible energy per storage level: 1,580 Wh
- Charging function: Yes
- Temperature monitoring: Temperature sensor
- Warning signal: Visual and audible
- Locking system: LockEX 2.0
- Door colour: Orange
- Body colour: Grey
- CEMO CONTROL
- CEMO cockpit from Premium upwards
CEMO CONTROL & CEMO cockpit
With CEMO CONTROL, the CEMO 8/10 charging cabinets feature monitoring and smart networking functions. Even the Basic version allows networking with additional units, data storage for up to 18 months and connection to a fire alarm system interface.
From the Premium version onwards, the web-based monitoring platform CEMO cockpit is also available. It adds live monitoring to the features and enables centralised monitoring of the connected charging cabinets. The Premium and Premium Plus versions also feature Wi-Fi and a display on the cabinet.
The Premium Plus version also includes a remote communication module with a SIM card.
Safety and protection functions
The integrated fire detection system provides a visual and audible warning should a fire be detected. Temperature monitoring is carried out via a temperature sensor. The current Premium and Premium Plus data sheets explicitly list these features.
The LockEX 2.0 locking system is designed to provide controlled pressure relief in the event of an explosive pressure build-up inside the cabinet. The spring mechanism enables the doors to open in a controlled manner to relieve pressure and then close again.
The fire-propagation-preventing storage levels help to limit the spread of fire between individual batteries or battery modules. In addition, the charging cabinets are fitted with mechanical ventilation and a door contact switch.
The Premium and Premium Plus models offer additional options for web-based monitoring via CEMO cockpit. The Premium Plus model also includes a remote communication module with a SIM card.
Applications
The CEMO 8/10 LockEX 2.0 charging cabinets are designed for the storage and simultaneous charging of lithium-ion batteries in commercial and industrial indoor environments.
Typical areas of application include:
- Industrial and manufacturing facilities
- Workshops and service areas
- Trades businesses
- Warehouse and logistics areas
- Research and development
- Charging and storing tool batteries
- Batteries for tools and machinery
With three equipment levels available, the charging cabinet can be selected to suit operational requirements. The ‘Basic’ version is suitable for applications requiring the basic monitoring and networking functions of CEMO CONTROL, whilst the ‘Premium’ and ‘Premium Plus’ versions, with CEMO cockpit, offer additional options for web-based monitoring and integration into operational safety and alarm systems.
The choice between 230 V and 400 V also allows the charging infrastructure to be adapted to the required electrical power. With stacking feet or castors, the cabinet can also be configured to meet specific installation and handling requirements.
Approvals / Standards
- Certified in accordance with VDMA Standard Sheet 24994:2024-08
Notes on use
The CEMO 8/10 LockEX 2.0 variants are designed as storage and charging cabinets for lithium-ion batteries and are intended for indoor installation. The integrated charging infrastructure provides a total of 18 charging points.
The doors should remain closed during the charging process. Specific use and installation should be carried out as part of the workplace risk assessment and in accordance with the relevant fire safety plan.

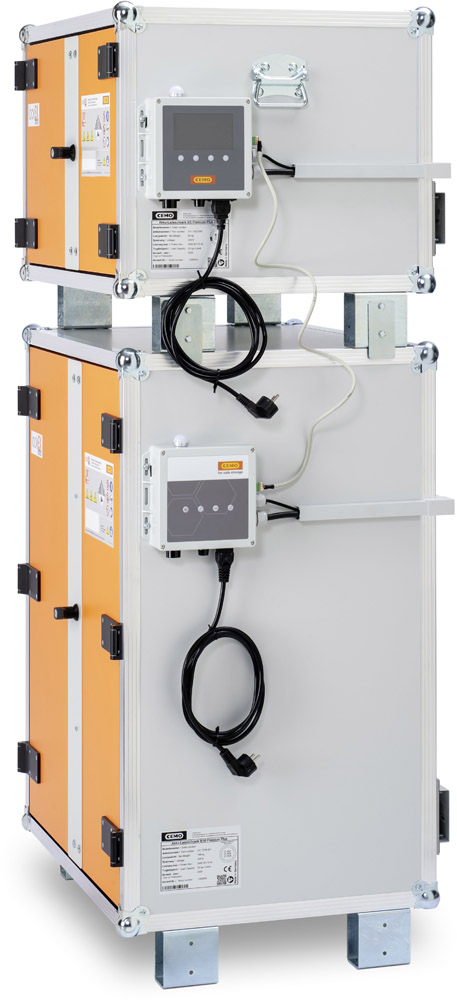

When selecting the base unit, please note that models with stacking feet can be stacked up to two high. Models with castors are not stackable. Both variants are specified as wheelchair-accessible in the current manufacturer’s data sheets.
Conclusion
The CEMO 8/10 LockEX 2.0 charging cabinets offer a fire- and explosion-resistant solution for the storage and charging of lithium-ion batteries indoors. With the three equipment levels – Basic, Premium and Premium Plus – the scope of the monitoring and alarm functions can be adapted to different operational requirements.
The additional choice between 230 V and 400 V, as well as stacking feet and castors, allows the charging cabinet to be configured according to the required charging power and the requirements of the installation site. The combination of charging infrastructure, fire detection, mechanical ventilation, pressure relief and fire-retardant storage shelves supports the integration of battery charging into existing operational and fire safety concepts.
With CEMO CONTROL, all models also feature monitoring and smart networking functions. The Premium and Premium Plus versions extend this functionality to include the web-based monitoring platform CEMO cockpit; the Premium Plus version also features a remote communication module with a SIM card.
| Cabinet power supply: | 230 V / AC, 400 V / AC |
|---|---|
| Cabinet type: | Freestanding cabinet |
| Charging function: | Yes |
| Facilities: | with castors, with stacking feet |
| Fire suppression: | Without |
| Integrated power strips: | 2 power strips with each 9 sockets, each rated at 230 V |
| Max. energy density (kWh): | 6 |
| Max. energy density per charging level (kWh): | 1.5 |
| Place of deployment: | Indoor area |
| Shelves: | 3 |
| Stacking feet / rolls: | With rolls, With stacking feet |
| Version: | Basic, Premium, Premium Plus |
