CEMO 8/10 Premium LockEX 2.0 charging cabinet with castors / 400 V Safety charging cabinet for lithium-ion batteries
- Max. energy density: 6 kWh
- 2 x 9 sockets, 230 V each
- Premium version
- VDMA-certified
- 400 V power connection
- with castors
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Cabinet power supply: | 400 V / AC |
|---|---|
| Cabinet type: | Freestanding cabinet |
| Charging function: | Yes |
| Facilities: | with castors |
| Fire suppression: | Without |
| Integrated power strips: | 2 power strips with each 9 sockets, each rated at 230 V |
| Internal dimensions (mm): | 730 x 530 x 880 |
| Max. energy density (kWh): | 6 |
| Max. energy density per charging level (kWh): | 1.5 |
| Outer dimensions (mm): | 850 x 660 x 1 150 |
| Place of deployment: | Indoor area |
| Shelves: | 3 |
| Stacking feet / rolls: | With rolls |
| Version: | Premium |
| Weight (kg): | 153 |
Product information „CEMO Ladeschrank 8/10 Premium LockEX 2.0 mit Rollen / 400 V“
Brief overview

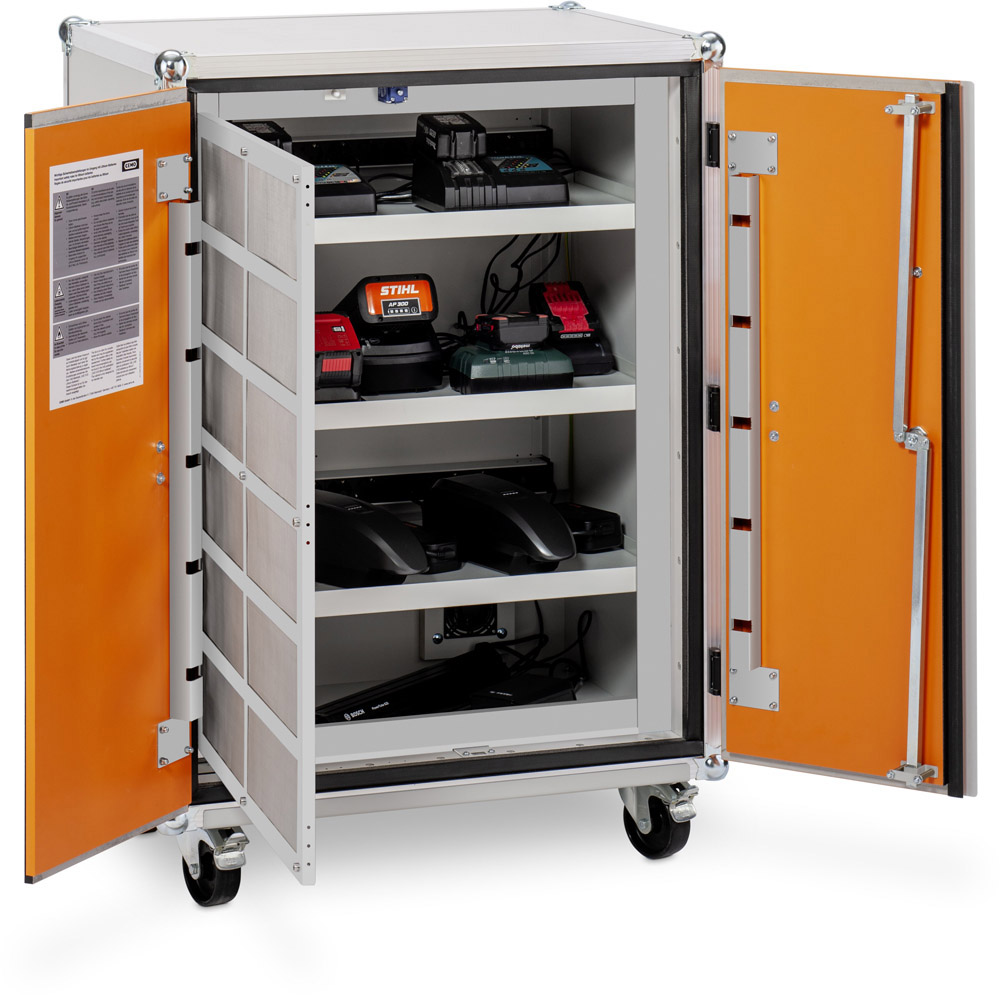

The CEMO 8/10 Premium LockEX 2.0 charging cabinet with castors is a VDMA-certified safety cabinet for the stationary storage and charging of lithium-ion batteries indoors. With four storage levels and a total of 18 slots, the larger 8/10 model offers sufficient space for the separate storage and charging of multiple batteries.
The design combines fire-propagation-preventing storage levels with mechanical ventilation, fire detection and the LockEX 2.0 pressure relief system. The charging cabinet is fitted with a 400 V power supply and castors.
The 400 V version has a maximum electrical power rating of 2 × 3,500 W / 16 A. The battery safety cabinet with castors is accessible from below and is not stackable.
CEMO CONTROL enables safety-related functions of the charging cabinet to be monitored and the cabinet to be intelligently networked with other units. The premium version also features the web-based monitoring platform CEMO cockpit.
Scope of delivery
- CEMO Charging Cabinet 8/10 Premium LockEX 2.0
- 400 V power supply
- with castors
- Double-leaf door
- T-handle with 2-point locking mechanism
- 3 powder-coated steel shelves
- 4 storage levels
- 2 × 9-socket power strips with a total of 18 sockets
- Mechanical ventilation
- Door contact switch
- Mains-powered smoke detector
- Temperature sensor
- Visual and audible warning signal
- Dry contact
- Display on the cabinet
- LockEX 2.0 pressure relief system
- CEMO CONTROL
- CEMO cockpit
Technical specifications
- External dimensions (W × D × H): 850 × 660 × 1,150 mm
- Internal dimensions (W × D × H): 730 × 530 × 910 mm
- Weight: 153 kg
- Installation location: Indoors
- Material: Non-combustible building material
- Finish: HPL
- Operating voltage: 400 V
- Max. electrical power: 2 × 3,500 W / 16 A
- Frequency: 50/60 Hz
- Plug: CEE 16 A
- Number of sockets: 2 × 9
- Technical ventilation
- Door contact switch
- Number of doors: 2
- Door type: Double-leaf door
- Door lock: T-handle with 2-point locking mechanism
- Number of shelves: 3
- Shelf material: Steel, powder-coated
- Number of storage levels: 4
- Load capacity per storage level: 30 kg
- Total permissible energy: 6,320 Wh
- Permissible energy per storage level: 1,580 Wh
- Charging function
- Smoke detector: Mains-powered
- Temperature detection: Temperature sensor
- Warning signal: Visual and audible
- Dry contact
- Display
- Locking system: LockEX 2.0
- Stackable: No
- Wheelchair-accessible
- Door colour: Orange
- Cabinet colour: Grey
- CEMO CONTROL
- CEMO cockpit
- Live monitoring
- Wi-Fi
CEMO CONTROL & CEMO cockpit
With CEMO CONTROL, the charging cabinet offers monitoring and smart networking functions. Safety-related functions can be monitored and operational data recorded centrally.
The Premium version also features the web-based monitoring platform CEMO cockpit. This enables live monitoring of the charging cabinet as well as centralised monitoring and management. In addition to the system status, temperature trends and energy consumption, amongst other things, can be monitored and events documented.
The Premium version is also equipped with a display on the cabinet and Wi-Fi. A telecommunications module with a SIM card is exclusive to the Premium Plus version.
Safety and protection functions
The mains-powered smoke detector, in conjunction with the warning system, provides a visual and audible alarm. In addition, the Premium version features a temperature sensor. A potential-free contact and a display are also included.

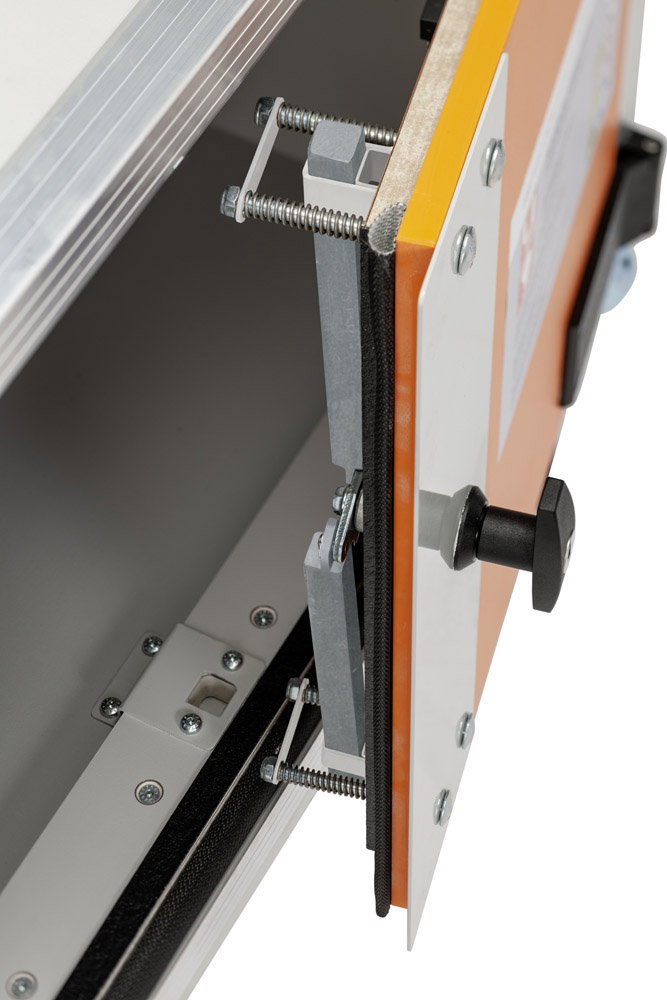

The LockEX 2.0 pressure relief system is a standard feature of the Premium version. The fire-retardant storage levels are designed to prevent the spread of fire between individual storage levels. There is also a connection point for an exhaust air system with a DN 100 mm diameter.
The storage cabinet also features mechanical ventilation and a door contact switch.
Areas of application
The CEMO 8/10 Premium LockEX 2.0 charging cabinet is intended for the storage and simultaneous charging of lithium-ion batteries in commercial and industrial indoor environments.
Typical areas of application include:
- Industrial and manufacturing facilities
- Workshops and service areas
- Trades businesses
- Warehouse and logistics areas
- Research and development
- Charging and storing tool batteries
- Tool and machine batteries
With four storage levels and 18 slots, the 8/10 design is particularly suitable for applications where several batteries need to be stored and charged simultaneously.
Approvals / Standards
- Certified in accordance with VDMA Standard Sheet 24994:2024-08
Instructions for use
The CEMO 8/10 Premium LockEX 2.0 is designed as a storage and charging cabinet for lithium-ion batteries and is intended for indoor use. The integrated charging infrastructure provides a total of 18 slots across four storage levels.
The charging cabinet is fitted with castors, is not stackable and is wheelchair-accessible.
Specific use and installation should be carried out as part of the workplace risk assessment and in accordance with the relevant fire safety plan.
Conclusion
The CEMO 8/10 Premium LockEX 2.0 charging cabinet offers a fire- and explosion-resistant solution for the indoor storage and charging of lithium-ion batteries. Four storage levels, a total of 18 slots, fire detection, temperature monitoring, mechanical ventilation and the LockEX 2.0 pressure relief system make up the safety features.
With CEMO CONTROL and the web-based monitoring platform CEMO cockpit, the Premium version extends this equipment to include functions for monitoring, smart networking and centralised management of the charging cabinet.
| Cabinet power supply: | 400 V / AC |
|---|---|
| Cabinet type: | Freestanding cabinet |
| Charging function: | Yes |
| Facilities: | with castors |
| Fire suppression: | Without |
| Integrated power strips: | 2 power strips with each 9 sockets, each rated at 230 V |
| Internal dimensions (mm): | 730 x 530 x 880 |
| Max. energy density (kWh): | 6 |
| Max. energy density per charging level (kWh): | 1.5 |
| Outer dimensions (mm): | 850 x 660 x 1 150 |
| Place of deployment: | Indoor area |
| Shelves: | 3 |
| Stacking feet / rolls: | With rolls |
| Version: | Premium |
| Weight (kg): | 153 |
Downloads
FAQ
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Accessories
Stacking feet set for CEMO storage and charging cabinets. The set consists of 4 metal feet, making the cabinets rollable and stackable in 3 layers. This increases the height by 10 cm. The set comes complete with screws and metal plates to prevent sideways slipping. The set is highly recommended as it greatly improves the handling of the storage and charging cabinets.
Perfect for evacuating in the event of an accident and for easy repositioning. Two of the four swivel castors have an integrated foot brake.
Networkable smoke alarm (acoustic) in a set of 2. The smoke alarm is included as standard in "Storage" and "Shop Basics".
Shelf (for base level or as intermediate level)* Dimensions cm (W x D x H): 67 x 40 x 3.5, * Dividers for shelves available on request Ideal for making full use of space and increasing storage area for small-cell lithium batteries
Additional, fireproof cable entry with a fire resistance of 60 minutes for CEMO storage and charging cabinets. Ideal, for example, for connection to the in-house fire alarm system.
Aerosol extinguisher for lithium battery cabinet, including magnet.Suitable for initial rapid fire suppression and flame suppression; automatic pyrotechnic activation; no maintenance required.(Installation must be performed by the customer)External dimensions (L x W x H): 165 x 32 x 32 mm Weight: 0.31 kg.
Provides visual and audible alarms in the event of an accident, ideal for quickly taking further protective measures.
