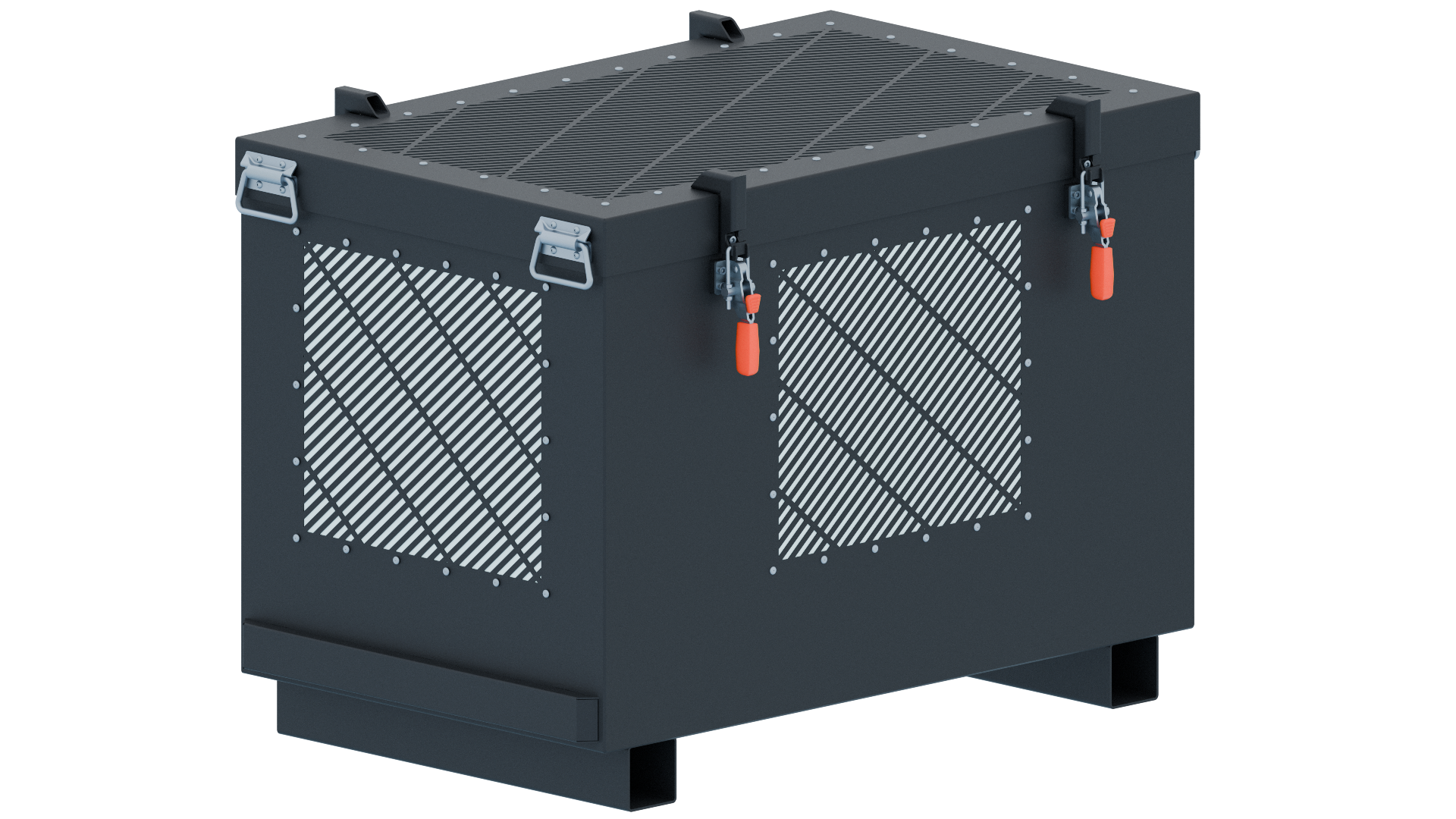

GELKOH LiBa ® Safe L storage container ADR-compliant inner packaging for lithium-ion batteries
- External dimensions (L × W × H): 1 025 x 715 x 755 mm
- Internal dimensions (L × W × H): 885 x 585 x 615 mm
- Compatible with LiBa ® Box L
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Battery status: | New, Defective, Critically defective |
|---|---|
| Fire suppression: | With |
| Internal dimensions (mm): | 885 x 585 x 615 |
| Outer dimensions (mm): | 1 025 x 715 x 755 |
| Suitable for critically defective?: | Yes |
| Weight (kg): | 76 |
Product information „GELKOH LiBa ® Safe L storage container“
Overview
The LiBa ® Safe L is a specially developed inner packaging solution for the safe storage, quarantine and preparation for transport of lithium-ion batteries. The powder-coated, fire-resistant steel tray combines a robust design with an integrated gas management system for the controlled venting of battery gases. This makes the system particularly suitable for the professional handling of lithium batteries that are abnormal, damaged or require monitoring.
The integrated LiBa ® Vent System reduces pressure build-up in the event of an incident, minimises high-frequency emissions and prevents the escape of solids via a particle barrier. The LiBa ® Safe L is designed as ADR-compliant inner packaging and can be used as part of a comprehensive storage and transport concept. In combination with the LiBa ® Box, it provides a seamless safety solution for the storage, quarantine and transport of lithium-ion batteries.
Technical data for the LiBa ® Safe L
- External dimensions (L × W × H): 1 025 x 715 x 755 mm
- Internal dimensions (L × W × H): 885 x 585 x 615 mm
- Net weight: approx. 76 kg
- Construction: Steel tray and steel lid with multi-layer special textile
- Handling: Manual handling, suitable as ADR-compliant inner packaging for storage and transport
- Features: LiBa ® Sol, LiBa ® Vent System, special fasteners for securing the lid
Areas of application
The LiBa ® Safe L is suitable for numerous applications in professional battery handling :
- Storage of lithium-ion cells, battery modules and battery systems
- Quarantine storage of damaged, critical or suspicious batteries
- ADR-compliant inner packaging for dangerous goods packaging systems
- Use in industry, logistics, workshops, testing facilities and recycling plants
- Safe temporary storage during analysis, testing or recycling processes
- Mitigation of risks through controlled gas management during thermal events
The LiBa ® Safe L is available for lithium batteries weighing up to 3 tonnes and, depending on the model, can be fitted with crane eyes or forklift sockets. Additional weather protection is required for outdoor storage.
Safety features
Integrated LiBa ® Sol
extinguishing system
The LiBa ® Safe is equipped with the LiBa ® Sol extinguishing system. The system activates automatically at temperatures of around 180 °C and requires no external power supply. It helps to contain thermal runaway events and contributes to reducing the impact of a battery fire. At the same time, it treats the fire and process gases generated during thermal runaway.
LiBa ® Vent gas management system
The integrated LiBa ® Vent system was developed specifically for the safe handling of lithium-ion batteries. The functions are :
- Controlled venting of battery gases
- Reduction of pressure build-up in the event of an incident
- HF reduction
- Gas permeability whilst maintaining a particle barrier
- Protection against sparks and particle escape
Non-combustible interior fittings
- Interior coating in accordance with DIN 4102-1, Building material class A1
- Multi-layer special textiles for high thermal stability
- Assistance in limiting thermal effects
Robust steel construction
- Powder-coated steel tray with steel lid
- Mechanically robust design for industrial use
- Designed for long-term storage and quarantine applications
Instructions for use & operation
- Seals and sealing surfaces should be checked before each use.
- When stored outdoors, the LiBa ® Safe must be protected from the elements.
- The LiBa ® Safe is intended as ADR-compliant inner packaging within a multi-stage dangerous goods packaging system.
- Particularly suitable for quarantine zones and security areas with heightened requirements for the handling of lithium-ion batteries.
System compatibility with the LiBa ® Box
For maximum safety, the LiBa ® Safe can be combined with the LiBa ® Box. Whilst the LiBa ® Safe serves as the ADR-compliant inner packaging, the LiBa ® Box provides the appropriate outer packaging with additional protective features. Together, they form a comprehensive safety concept for the storage, quarantine and transport of lithium-ion batteries.
Two safety levels – one system
LiBa ® Safe (inner packaging):
- Integrated fire suppression system LiBa ® Sol
- Gas management system
- HF-reducing properties
- Multi-layer functional fabric
- Particle barrier
- Direct battery containment
LiBa ® Box (outer packaging):
- Mechanical protection
- Integrated LiBa fire-extinguishing system ® Sol
- Spill tray in accordance with StawaR
- ADR- and UN-compliant outer packaging
- Safe handling with a forklift or crane
ADR-compliant system solution
The combination of LiBa ® Safe and LiBa ® Box enables a tailored dangerous goods packaging solution for the transport and storage of lithium-ion batteries in accordance with applicable regulations. The system offers additional safety, particularly in the case of defective or critically defective batteries.
No additional transfer required
Batteries that have already been secured inside a LiBa ® Safe can be placed directly into the appropriate LiBa ® Box without the need for additional transfer. This reduces handling effort, the risk of damage and safety risks.
Summary
The LiBa ® safe is a professional inner packaging solution for the safe storage and quarantine of lithium-ion batteries. The combination of a fire-resistant steel construction, non-combustible interior fittings and the integrated LiBa ® Vent gas management system supports the controlled handling of critical batteries and reduces potential risks arising from the release of gases and particles.
When used in conjunction with the LiBa ® Box, this creates a comprehensive solution for storage and transport, offering companies a high level of safety and process continuity when handling lithium-ion batteries.
| Battery status: | New, Defective, Critically defective |
|---|---|
| Fire suppression: | With |
| Internal dimensions (mm): | 885 x 585 x 615 |
| Outer dimensions (mm): | 1 025 x 715 x 755 |
| Suitable for critically defective?: | Yes |
| Weight (kg): | 76 |
