Genius Lio Guard S-Box 2 Basic Transport and Storage Box Plastic casings for lithium-ion batteries
- Also for defective batteries
- Version: Basic
- External dimensions: 600 x 400 x 441 mm
- Including PyroBubbles
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Areas of application: | E-Bike batteries, Loose cells, PowerTools, Power tool batteries |
|---|---|
| Battery status: | New, Defective |
| Encoding: | 4H2 |
| Filling material: | PyroBubbles® |
| Internal dimensions (mm): | 558 x 358 x 382 |
| Material: | Plastic |
| Material designation: | Polypropylene (PP) |
| Max. battery size (mm): | 518 x 318 x 342 |
| Max. gross weight (kg): | 30 |
| Outer dimensions (mm): | 600 x 400 x 441 |
| Packaging group: | I, II and III |
| Packaging instruction according to ADR: | P 903, P 908, P 909, P 910 |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 4.7 |
| Volume (l): | 78 |
Product information „Genius Lio Guard S-Box 2 Basic Transport and Storage Box“
Overview
The GENIUS S-Box 2 Basic is a compact and reusable dangerous goods packaging solution for the safe storage, handling and compliant transport of lithium batteries and lithium-ion batteries.
The transport box is suitable for batteries with substance numbers UN 3090, UN 3091, UN 3480 and UN 3481 and can be used for both intact and defective batteries. It is also suitable for recycling applications and the transport of prototypes.
Thanks to its compact design, the box is particularly suitable for smaller battery systems such as e-bike batteries, power tools, laptops or other mobile energy storage devices.
Contents

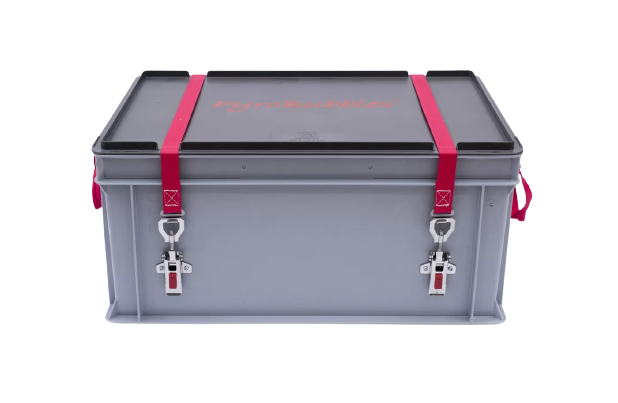

- GENIUS S-Box 2 Basic storage and transport box

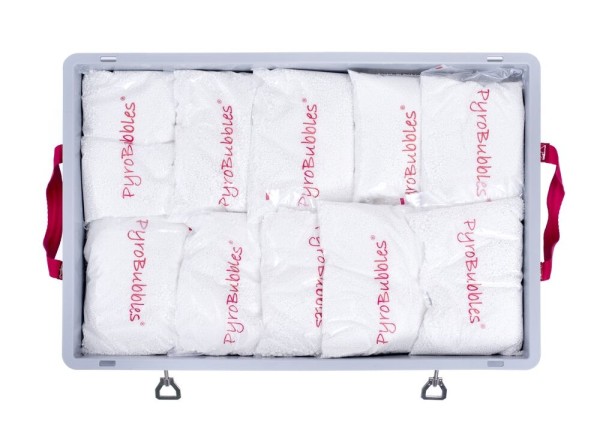

- PyroBubbles® filling pads

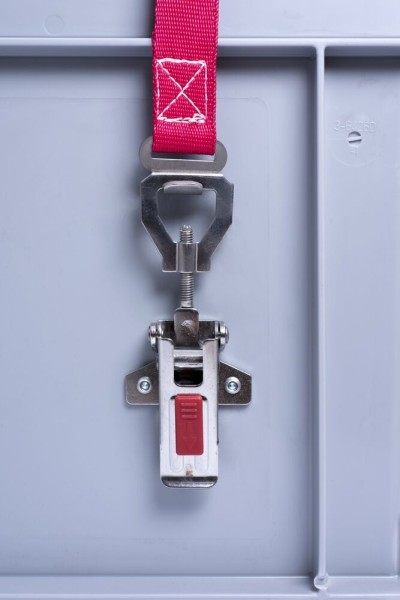

- 2 tension straps with quick-release buckles
Technical specifications
- External dimensions (L x W x H): 600 x 400 x 441 mm
- Internal dimensions (L x W x H): 558 x 358 x 382 mm
- Internal volume: 78 l
- Empty weight: 4.7 kg
- Material: polypropylene (PP)
- Max. Dimensions for dangerous goods: 518 x 318 x 342 mm
- Max. energy density: 1.0 kWh
- Operating temperature: -20 °C to +80 °C
- Max. stacking load: 530 kg
- Max. Stacking height: 3,000 mm
- Max. gross weight: 30 kg
- Packaging code: UN 4H2/X30/S/yy/B/UTZ-000015
Scope of use & application
The GENIUS S-Box 2 Basic is suitable for companies and organisations that need to safely store, transport or prepare lithium batteries for recycling.
- Industry and manufacturing
- Workshops and service centres
- E-bike and bicycle retailers
- Power tool service centres
- Battery and energy storage manufacturers
- Logistics and waste management companies
- Recycling facilities
- Testing and inspection facilities
- Storage, transport and disposal of batteries in mint condition, defective or damaged batteries
Approvals
- UN approval for dangerous goods (4H2)
- ADR, RID, IMDG, ICAO-TI
- Type approval: Packing groups I, II and III
- Packing instructions: P903, P908, P909 and P910
Safety features
The GENIUS S-Box 2 Basic features various safety features for everyday use.
- PyroBubbles ® Fire-retardant filling material
- Protection against thermal runaway
- Secure fastening with tension straps
- Stackable design
- Reusable safety concept
- Removable lid
- Robust polypropylene construction (PP)
Summary
The GENIUS S-Box 2 Basic is a compact and reusable dangerous goods packaging solution for the safe handling of lithium batteries. Thanks to its UN approval, PyroBubbles ® fire-retardant filling material and robust construction, it is suitable for the storage, transport, recycling and prototype transport of a wide variety of battery systems.
Its space-saving design and ease of use make the S-Box 2 Basic a practical solution for everyday use in industry, logistics and workshops.
