Genius Lio Guard S-Box 2 Premium Transport and Storage Box Plastic casings for lithium-ion batteries
- Also for defective batteries
- Version: Premium
- External dimensions: 600 x 400 x 441 mm
- Including PyroBubbles
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Areas of application: | E-Bike batteries, Loose cells, PowerTools, Power tool batteries |
|---|---|
| Battery status: | New, Defective |
| Encoding: | 4H2 |
| Filling material: | PyroBubbles® |
| Internal dimensions (mm): | 488 x 288 x 339 |
| Material: | Plastic |
| Material designation: | Polypropylene (PP) |
| Max. battery size (mm): | 478 x 278 x 329 |
| Max. gross weight (kg): | 30 |
| Outer dimensions (mm): | 600 x 400 x 441 |
| Packaging group: | I, II and III |
| Packaging instruction according to ADR: | P 903, P 908, P 909, P 910 |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 20.3 |
| Volume (l): | 78 |
Product information „Genius Lio Guard S-Box 2 Premium Transport and Storage Box“
Overview
The GENIUS S-Box 2 Premium is a compact and reusable dangerous goods packaging solution for the safe storage, handling and compliant transport of lithium batteries and lithium-ion batteries.
The transport box is suitable for batteries with substance numbers UN 3090, UN 3091, UN 3480 and UN 3481 and can be used for both intact and defective batteries. It is also suitable for recycling applications and the transport of prototypes.

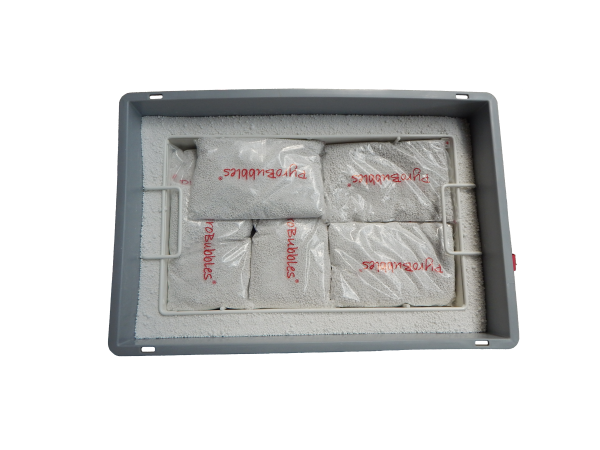

Thanks to its compact design, the box is particularly suitable for smaller battery systems such as e-bike batteries, power tools, laptops or other mobile energy storage devices. The premium version combines a high level of safety with particularly convenient handling. Pre-filled side sections with PyroBubbles ® and an integrated steel insert make day-to-day use easier.
Contents
- GENIUS S-Box 2 Premium storage and transport box

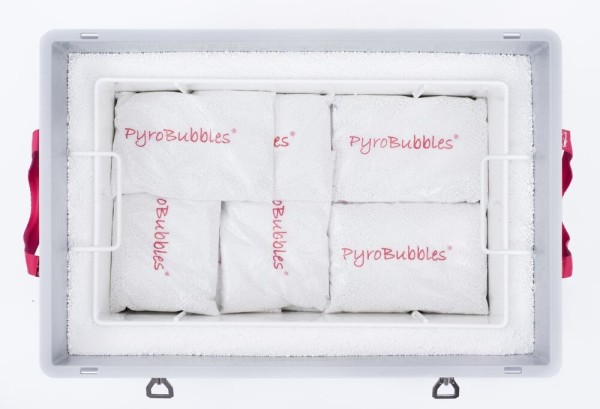

- PyroBubbles® -filling pads
- Pre-filled PyroBubbles ® -side panels
- Integrated steel insert

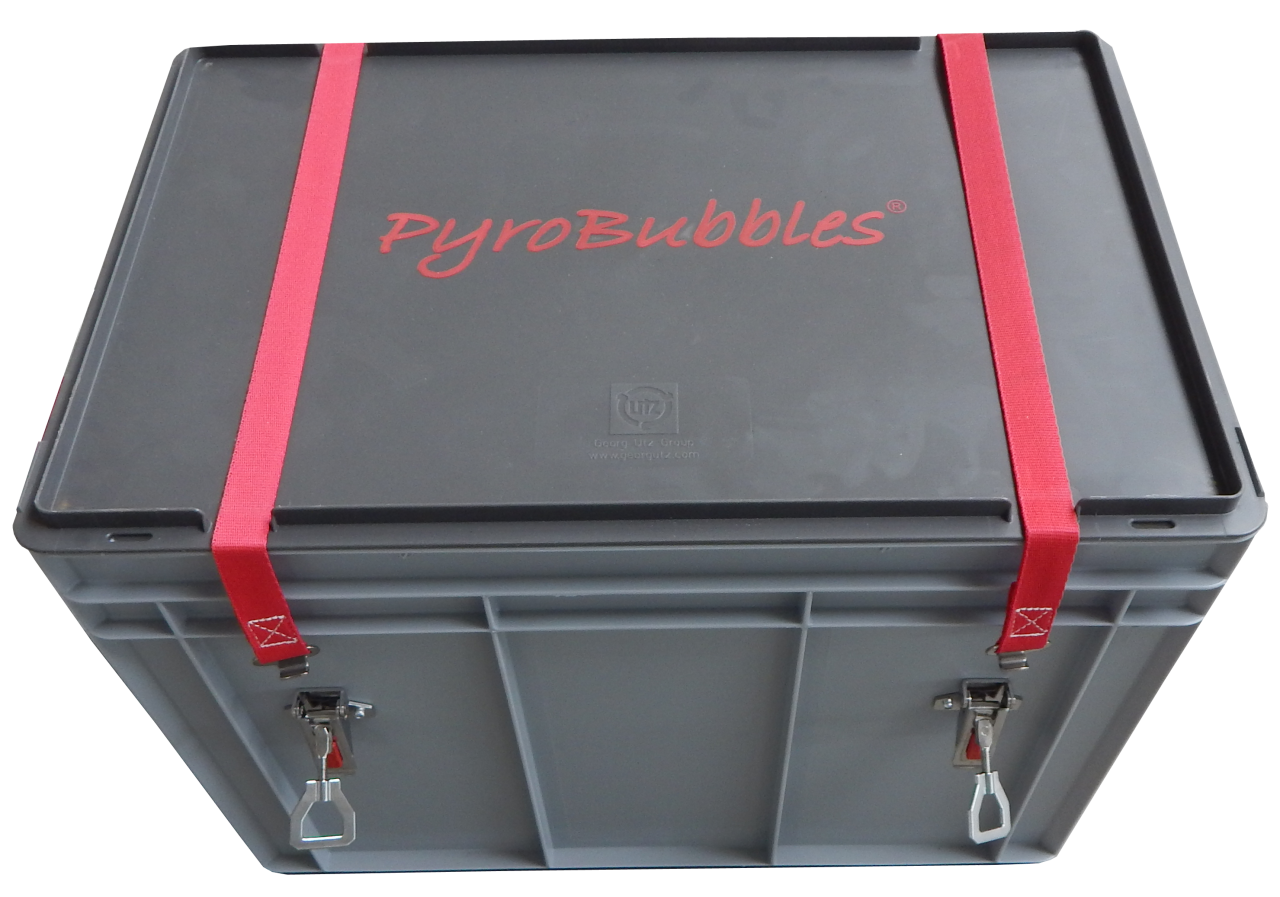

- 2 tension straps with quick-release buckles
Technical data
- External dimensions (L x W x H): 600 x 400 x 441 mm
- Internal dimensions (L x W x H): 488 x 288 x 339 mm
- Internal volume: 78 l
- Empty weight: 20.3 kg
- Material: polypropylene (PP)
- Max. dangerous goods dimensions: 478 x 278 x 329 mm
- Max. Energy density: 3.75 kWh
- Operating temperature: -20 °C to +80 °C
- Max. stacking load: 530 kg
- Max. stacking height: 3,000 mm
- Max. gross mass: 30 kg
- Packaging code: UN 4H2/X30/S/yy/B/UTZ-000015
Scope of use & application
The GENIUS S-Box 2 Premium is suitable for companies and organisations that need to store, transport or prepare lithium batteries for recycling safely.
Typical areas of application :
- Industry and manufacturing
- Workshops and service centres
- E-bike and bicycle retailers
- Power tool service centres
- Battery and energy storage manufacturers
- Logistics and waste management companies
- Recycling facilities
- Testing and inspection facilities
- Storage, transport and disposal of batteries in near-new condition or defective batteries
- Applications with heightened safety requirements
- Recycling applications
- Prototype transport

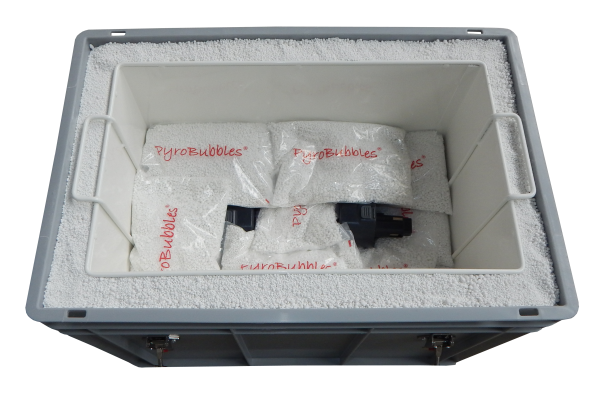

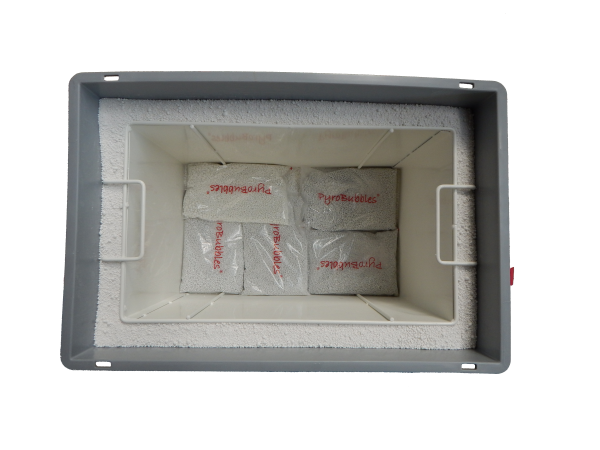

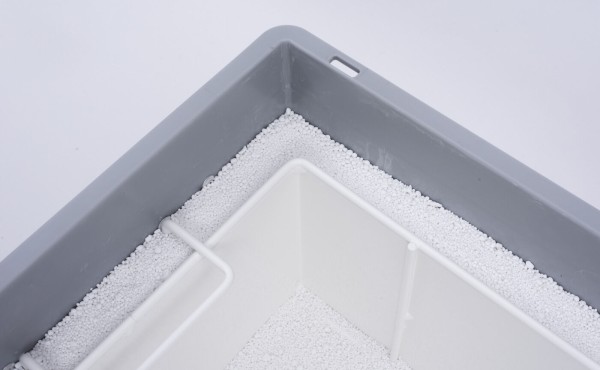

The integrated steel insert keeps the batteries at a distance from the outer walls and ensures the safe positioning of the stored goods. The pre-prepared PyroBubbles ® sections reduce the effort involved in assembly and facilitate day-to-day handling.
Approvals
- UN approval for dangerous goods (4H2)
- ADR, RID, IMDG, ICAO-TI
- Type approval: Packing groups I, II and III
- Packing instructions: P903, P908, P909 and P910
Safety features
The GENIUS S-Box 2 Premium features various safety features for everyday use.
- PyroBubbles ® Fire-retardant filling material
- Protection against thermal runaway
- Integrated steel insert
- Secure positioning of the batteries
- Secure fastening with tension straps
- Stackable design
- Reusable safety concept
- Removable lid
- Robust polypropylene construction (PP)
Summary
The GENIUS S-Box 2 Premium is a compact and reusable dangerous goods packaging solution for the safe handling of lithium batteries. Thanks to its UN approval, integrated steel insert and pre-filled PyroBubbles ®, it offers a particularly high level of safety and user-friendliness.
The pre-configured interior reduces handling effort and makes the S-Box 2 Premium a convenient solution for the storage, transport, recycling and prototype transport of a wide variety of battery systems.
