Genius Lio Guard Storage Box 280 Storage Box Galvanised steel container for lithium-ion batteries
- External dimensions: 1216 x 1000 x 750 mm
- Max. battery size: 993 x 723 x 348
- Includes PyroBubbles
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Applications areas: | Loose cells, Power tool batteries, Prototypes, Recycling centers |
|---|---|
| Battery status: | New, Defective |
| Filling material: | PyroBubbles® |
| Internal dimensions (mm): | 1 013 x 743 x 368 |
| Material: | Steel |
| Material designation: | Galvanized steel |
| Max. battery size (mm): | 993 x 723 x 348 mm |
| Max. gross weight (kg): | 673 |
| Outer dimensions (mm): | 1 216 x 805 x 750 |
| Suitable for critically defective?: | No |
| Tipping weight (kg): | 273 |
| Volume (l): | 280 |
Product information „Genius Lio Guard Storage Box 280 Storage Box“
Brief overview

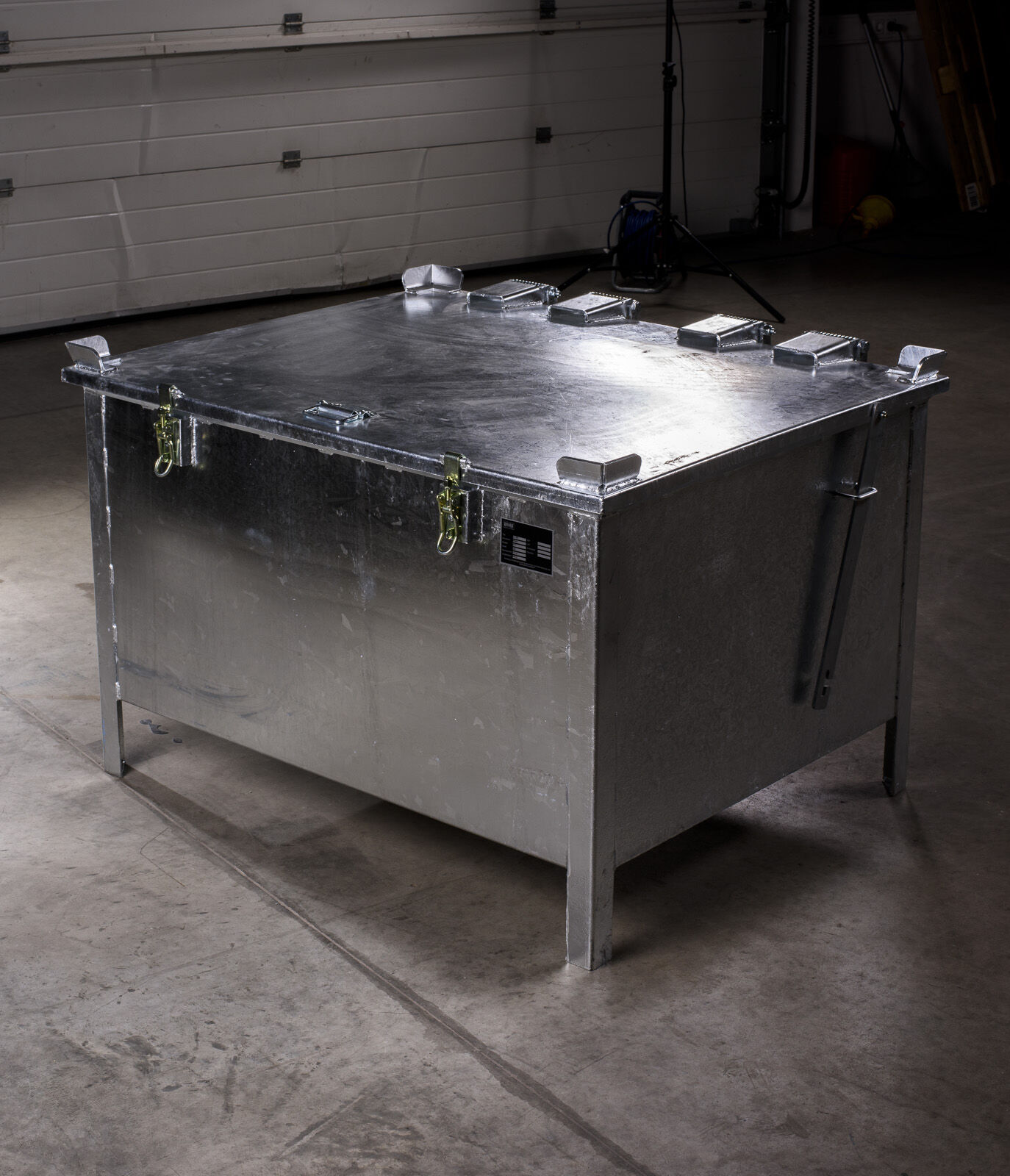

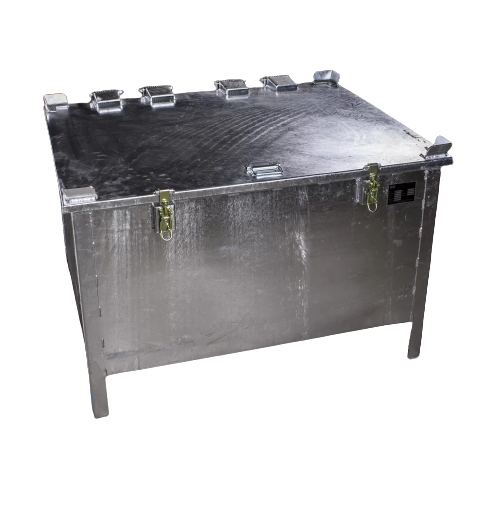

The Genius Lio Guard Storage Box 280 is a specially designed safety box for the secure storage of lithium batteries and lithium-ion rechargeable batteries. The robust steel construction, combined with an integrated fire protection system, offers a reliable solution for businesses wishing to store batteries safely and minimise potential risks.
The system is suitable for storing both intact and damaged lithium batteries. The use of a thermally active fire protection filling material significantly reduces the risk of fire spreading in the event of a battery incident. The storage boxes are reusable, stackable and designed for daily industrial use.
Scope of supply
- Genius Lio Guard Storage Box 280 made of galvanised steel

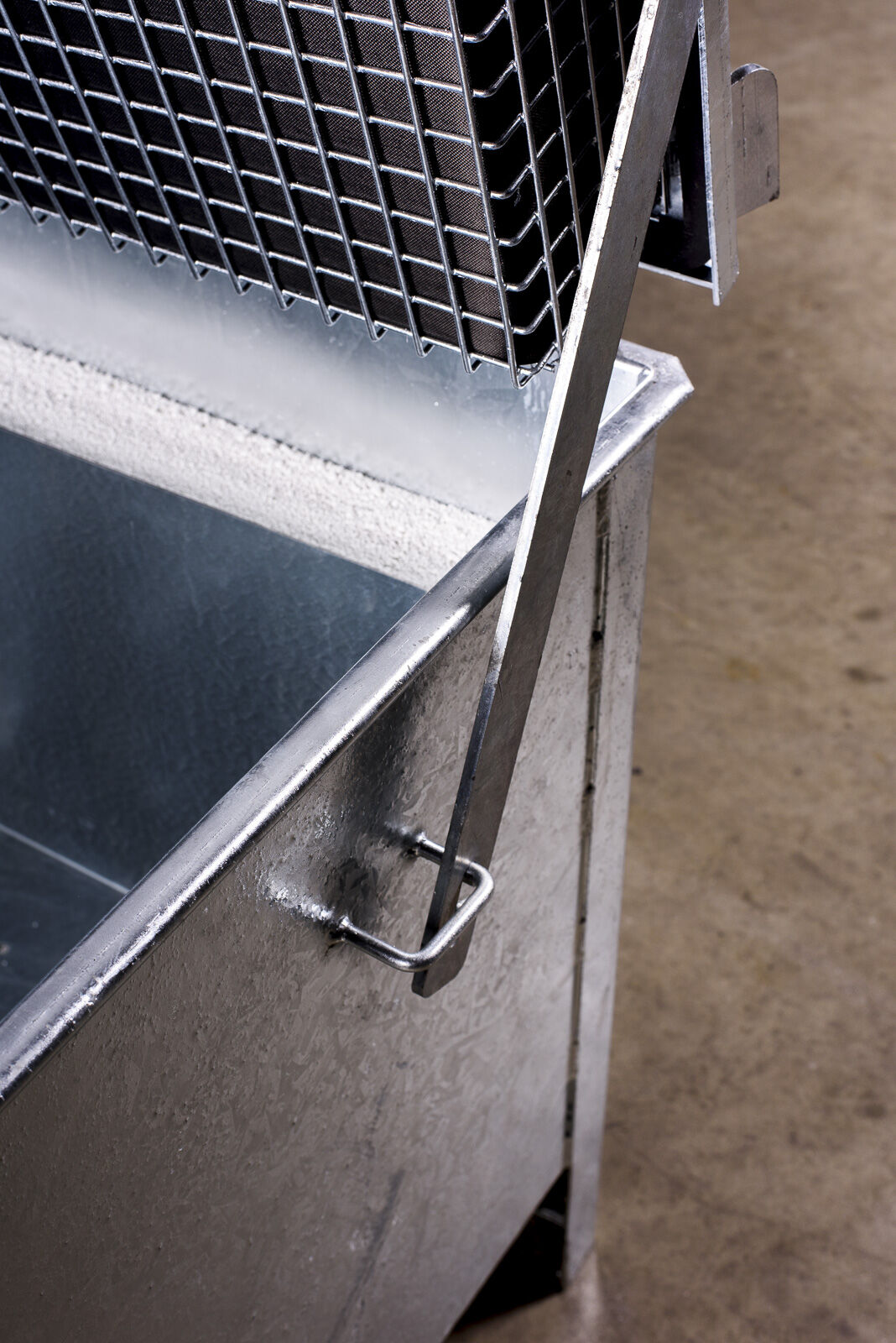

- Integrated batteryinsert for the safe storage of lithium batteries
- Fire-retardant filling made from PyroBubbles ®
- Fire-retardant cushions filled with PyroBubbles ® in the lid area
- Lockable lid
- Operating and safety instructions
Technical data
- External dimensions (L x W x H): 1 216 x 1 000 x 750 mm
- Internal dimensions (L x W x H): 1 013 x 743 x 368 mm
- Internal volume: 280 l
- Unladen weight: 273 kg
- Max. Battery dimensions: 993 x 723 x 348 mm
- Material: Galvanised steel
- Fire-retardant filling: PyroBubbles ®
- Lockable and stackable up to three high
- Accessible from all sides by industrial trucks
- Ground clearance: 100 mm
Scope of use & application
The Genius Lio Guard Storage Box 280 has been developed for the safe storage of lithium batteries and lithium-ion batteries. It is particularly suitable for companies in the industrial, logistics, recycling, energy supply, research and automotive sectors.
Typical areas of application include :
- Storage of new or used lithium batteries
- Separation of damaged or suspicious batteries
- Temporary storage prior to transport or disposal
- Secure storage in the productionand service areas
- Risk minimisation for batteries with an increased hazard potential
Thanks to the integrated fire protection technology, the boxes can also be used for batteries where an increased risk of thermal runaway cannot be ruled out.
Approvals & Safety Features
- Safety containers for lithium batteries and lithium-ion rechargeable batteries
- Suitable for batteries covered by regulations UN3090, UN3091, UN3480 and UN3481
- Integrated insert for secure positioning of the batteries
- Fire protection filling made from PyroBubbles ® for thermal shielding
- Additional fire protection cushions in the lid area
- Reduction of heat transfer to the surroundings in the event of an incident
- Assistance in containing fire and thermalrunaway events
- Robust steel construction for high mechanical loads
- Reusable safety concept
Instructions for use & operation
The storage box is intended for the safe storage of lithium batteries and should only be used in accordance with its intended purpose. Before storing damaged or high-risk batteries, it is recommended that an individual risk assessment be carried
out.
The fire-retardant filling and the integrated fire-retardant cushions form part of the safety concept and should be checked regularly to ensure they are complete and undamaged. Damaged components must be replaced immediately.
When storing large quantities of batteries or batteries posing an increased risk, additional consideration should be given to the organisation’s fire safety and security requirements.
