Genius charging case BSK-2, incl. cable gland
- Max. Energy density: 3 kWh
- Max. Battery size: approx. 650 x 450 x 330 mm
- External dimensions: 800 x 600 x 445 mm
- Including PyroBubbles
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Filling material: | PyroBubbles® |
|---|---|
| Handling filling material: | in pillow |
| Included filler material: | PyroBubbles® (filled pillow) |
| Internal dimensions (mm): | 700 x 450 x 380 |
| Material: | Plastic |
| Material designation: | Polypropylene (PP) |
| Max. battery size (mm): | 650 x 450 x 330 |
| Max. gross weight (kg): | 70 |
| Outer dimensions (mm): | 800 x 600 x 445 |
| Tipping weight (kg): | 21 |
| Type: | Charging box, Storage box |
| Volume (l): | 84 - 600 |
| Volume (l): | 133 |
| max. net cargo mass (kg): | 30 |
Product information „Genius charging case BSK-2, incl. cable gland“
In buildings and storage facilities where lithium-ion batteries are stored, damaged cells can pose a high risk potential for employees and the operating and storage technology. Explosive fires in batteries ("thermal runaway") are difficult to control. The BSK-2 fire protection case is ideal for the safe storage of lithium-ion batteries. Thanks to the special and unique cable feed-through, batteries and rechargeable batteries can be safely charged during storage in the case. The light weight, easy handling and robust design ensure safe use even in enclosed spaces.
Features of the BSK-2 fire protection case
You are on the safe side with the BSK-2 fire protection case. The case was developed using the latest technology and successfully tested in a real fire test. The PyroBubbles® cushions it contains withstand significantly greater heat loads than, for example, rock wool or fiberglass products.
The completely maintenance-free GENIUS PyroBubbles are suitable as an extinguishing agent/fire retardant for batteries, which is a great advantage in the event of a thermal runaway.
The BSK-2 fire protection case is made of polypropylene (PP) and is supplied with dust-free PyroBubble® cushions. The following cushion sizes are included: 2x PP-S, 2 x PP-M, 1 x PP-XL. You can find more information here: https://www.lion-care.com/432/genius-pyrobubbles-pure-m-loeschgranulat-gewebe-kissen-staubfrei?c=107

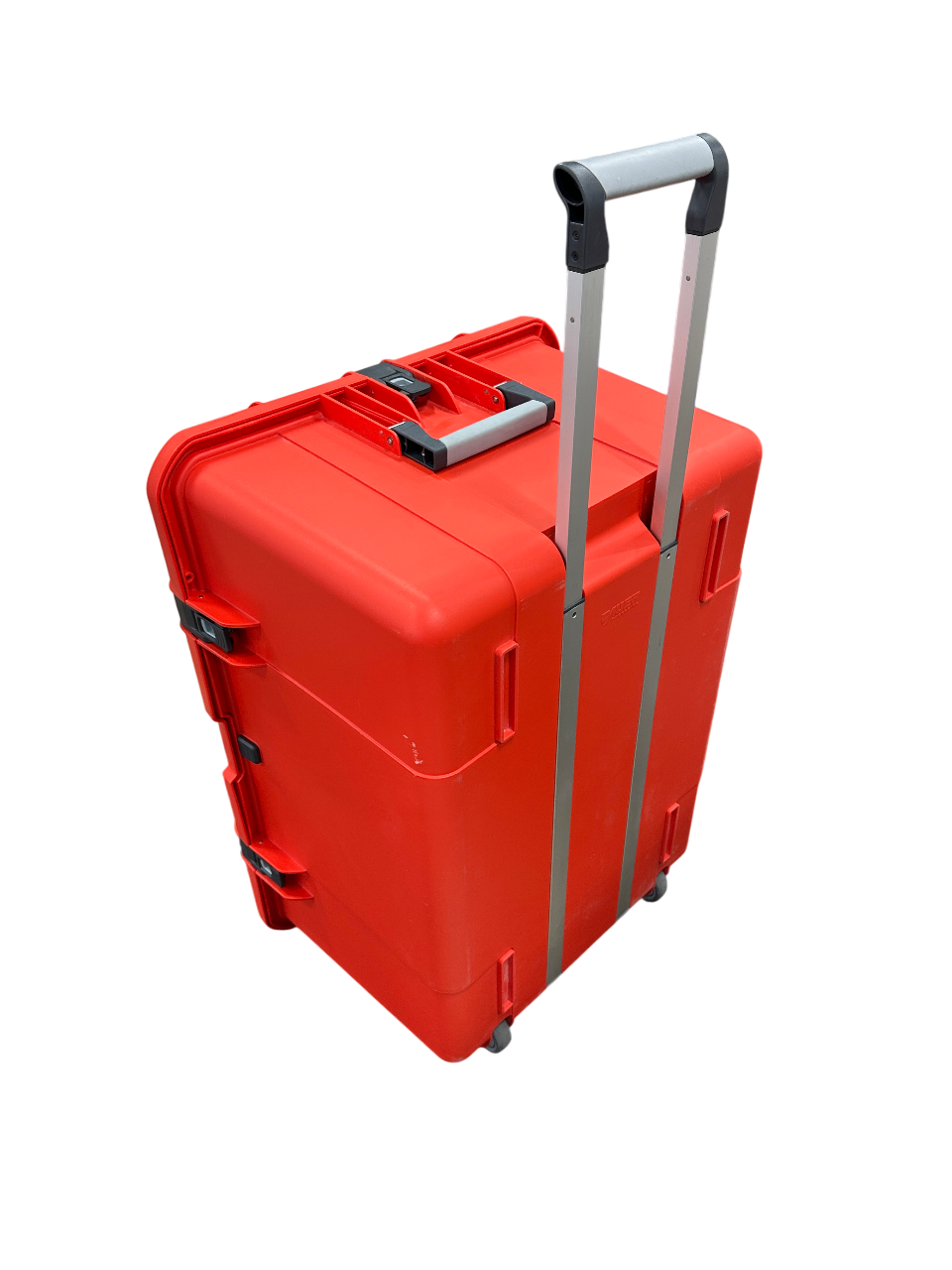

The outer dimensions of the red fire protection case from GENIUS are 80 x 60 x 44.5 cm (L x W x H) with an empty weight of 21 kg. The internal dimensions are 70 x 45 x 38 cm (L x W x H), giving the special case a volume of 133 liters. The maximum recommended size for hazardous goods is 650 x 450 x 330 mm. The handle and the very low weight - despite the extremely robust outer shell - make the fire protection case easy to handle.
The case can be used for internal transportation.
Please note that the maximum energy density of all batteries to be stored in the box should not exceed 3000 Wh in total.
Advantages of the charging case
The BSK-2 fire protection case was developed in accordance with the highest safety standards for the storage of lithium-ion batteries. Thanks to the additional and unique cable feed-through, batteries can not only be stored in the BSK-2, but also charged safely.
The extremely robust outer shell in a striking color has integrated pressure valves and an ergonomic handle. The fire protection case is very easy to handle and is free of hazardous substances (non-hazardous to health). The special case can also be used in closed rooms and has special explosion protection in the housing, making it suitable for powerful power tools or defective batteries.
The BSK-2 fire protection case offers maximum protection for people and their surroundings. In the event of an accident, it ensures that no flames or splinters escape. Thanks to its high penetration resistance, the case is also suitable for powerful power tools or defective batteries.
Advantages at a glance
- Non-flammable inner case
- Maximum total weight of 70 kg
- Extremely easy handling
- Special explosion protection integrated pressure venting in the housing
- Gas and filter system
- Can be used in closed rooms
- Environmentally friendly extinguishing agent
- Not hazardous to health Ergonomic handle
- Extremely robust outer shell Charging option in the case
- Striking color
- Integrated cable feed-through for charging the battery
- Holes for attaching a lock
VdS 3103 : 2019-06 (03) - Lithium batteries
To date, there are no legal requirements for the storage and provision of lithium batteries in public areas.
The following publication provides recommendations for preventing damage when providing lithium batteries in production and storage areas. It describes the most important findings from fire tests on the subject of storage and provision.
Click here to access the publication of the German insurers (GDV e.V.) on loss prevention
Future-oriented
Lithium-ion batteries will be indispensable in all industrial applications in the coming years. However, if used improperly, batteries can pose a potential risk during production, storage and transportation that should not be underestimated. By purchasing these boxes, you protect yourself against major financial losses right from the start. International customers from the automotive and energy supply sectors, among others, rely on this proven technology.
In use for you
If you have any questions, please do not hesitate to contact us. We look forward to hearing from you!
