asecos Ladeschrank ULTRA / ION-ULTRA-90 (2-flg.)
- Max. energy density: 16.5 kWh
- 3-stage alarm system
- Certified according to VDMA 24994
- 8 sockets of 230 V per storage level
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Alarm forwarding: | Yes |
|---|---|
| Fire resistance: | 90 min |
| Fire suppression: | Optional |
| Fire test procedure: | VDMA 24994 |
| Internal dimensions (mm): | 1 050 x 545 x 1 633 |
| Load function: | Yes |
| Maximum energy density (kWh): | 16.5 |
| Number of doors: | 2-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 3, 4, 5, 6 |
| Outer dimensions (mm): | 1 193 x 650 x 1 953 |
| Place of deployment: | Indoor area |
| Power supply: | 1 power strip per storage level (in EU version) |
| Refractory: | Yes |
| Wardrobe type: | Freistehender Schrank |
| Weight (kg): | 586 |
Product information „asecos ULTRA Charging Cabinet / ION-ULTRA-90 (2-door)“
asecos ION-LINE ULTRA – Safety Cabinet for Lithium-Ion Batteries
1. Product Overview
The asecos ION-LINE ULTRA safety cabinet has been developed for the safe storage and charging of lithium-ion batteries in professional work environments. The model combines a tested fire protection with an extended warning system and optional fire suppression.
The cabinet meets not only the classic fire protection requirements but also the GS test principle EK5/AK4 22-01 for safety cabinets for active and passive storage of lithium-ion batteries. In addition, a real-fire test was carried out in accordance with VDMA 24994.
Due to these test standards, the ULTRA model is particularly suitable for applications with increased safety requirements.
Note: Images may differ from the delivered product.
2. Areas of Use & Application
-
Storage and charging of lithium-ion batteries
-
Use in workshops, industry and production areas
-
Organization of several batteries on different storage levels
-
Use in areas with increased fire protection requirements
The integrated warning system enables early detection of smoke or elevated temperature inside the cabinet.
3. Technical Data – asecos ION-LINE ULTRA

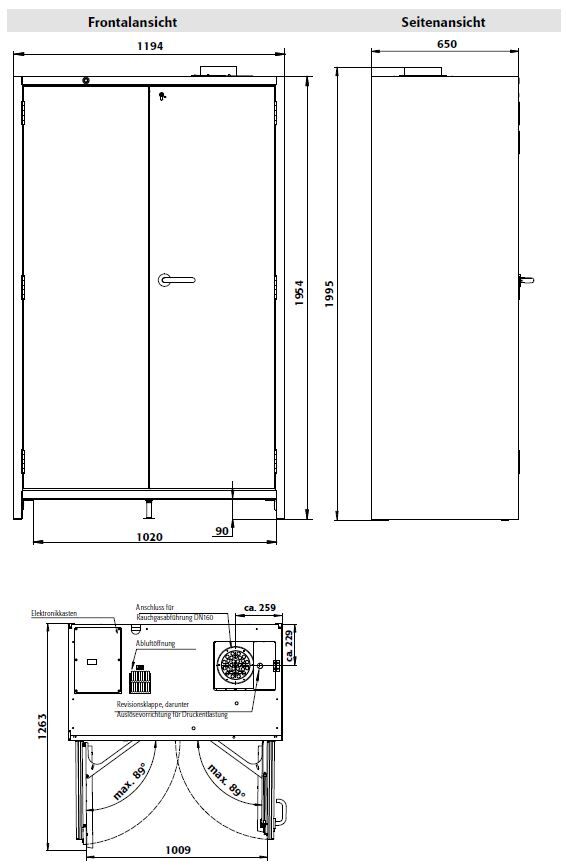

External dimensions (H x W × D): 1953 x 1193 × 650 mm
Internal dimensions (H x W × D): 1633 x 1050 × 545 mm
Empty weight: ca. 586 kg
Maximum total load: ca. 600 kg
Interior equipment
-
3 / 4 / 5 / 6 insulated shelf boards
-
Load capacity per shelf: 75 kg
-
Power strip per shelf (8 outlets each, EU version)
-
Basement catch pan made of powder-coated steel sheet
Usable interior dimensions may vary depending on the chosen equipment.
4. Direct Comparison of Variants
| CORE STORE Battery Cabinet | PRO STORE Battery Cabinet | CORE CHARGE or ION CHARGE Battery Cabinet | PRO CHARGE Battery Cabinet | ULTRA Battery Cabinet | |
| Fire protection | 90 min interior and exterior, EN 14470-1, EN 1363-1 | 90 min interior and exterior EN 14470-1, EN 1363-1, VDMA 24994 | 90 min interior and exterior EN 14470-1, EN 1363-1 | 90 min interior and exterior EN 14470-1, EN 1363-1, VDMA 24994 | 90 min interior and exterior EN 14470-1, EN 1363-1, VDMA 24994, GS mark: EK5/AK4 22-01 |
| Floor tray | Integrated floor tray made of steel sheet | ||||
| Warning system | 1-stage including smoke detector and potential-free contact | 3-stage, including smoke detector, temperature sensor, optical & acoustic alarm, potential-free contact | 1-stage incl. smoke detector and potential-free contact | 3-stage, including smoke detector, temperature sensor, optical & acoustic alarm, potential-free contact | 3-stage, including smoke detector, temperature sensor, optical & acoustic alarm, relay module with 4 separate potential-free contacts |
| Fire suppression system | Not available | Optional | Not available | Optional | Optional |
| Charging option | Not available | 230V outlets on the shelves / in the lockers | |||
5. Materials & Construction
The safety cabinet is robustly constructed for professional use.
-
Stable outer carcass with powder-coated structural surface
-
Doors with profile cylinder (can be locked in with an access control system)
-
Lock status indicator Red/Green
-
Automatic 2-point door locking
-
Doors remain open for about 10 seconds after opening and then close automatically
-
Acoustic warning signal before closing
Door color options:
-
azure blue
-
anthracite gray
The shelf boards and the floor pan are made of powder-coated steel sheet in RAL 7035 Light Gray.
6. Fire Protection and Safety Features
The ULTRA safety cabinet offers a comprehensive safety concept for lithium-ion batteries.
-
Fire resistance 90 minutes from outside to inside according to DIN EN 14470-1 (Type 90)
-
Fire resistance over 90 minutes from inside to outside according to DIN EN 1363-1
-
Real-fire test for lithium batteries according to VDMA 24994
-
Smoke-tight construction according to EK5/AK4 22-01
-
Pressure relief flap for controlled pressure release in case of fire
The pressure relief allows connection to an exhaust duct to vent smoke gases if needed.
7. Warning System & Charging Functions
The safety cabinet features an integrated 3-stage warning system.
Components:
-
Smoke detector
-
Temperature sensor
-
Optical alarm
-
Acoustic alarm
An integrated relay module enables differentiation of alarm levels for a control center.
Optional available:
-
Fire suppression system for the interior
-
Remote alert module to notify by telephone, SMS or email
An integrated fan and an exhaust in the head part of the cabinet ensure heat removal during the charging process.
8. Standards, Tests & Delivery
Certifications
-
DIN EN 14470-1: Fire resistance 90 minutes (Type 90) from outside to inside
-
DIN EN 1363-1: Fire resistance 90 minutes from inside to outside
-
VDMA 24994: Real-fire test for lithium battery thermal runaway
-
GS certification: Test principle EK5/AK4 22-01
-
CE conformity
Delivery
The delivery of the asecos ION-LINE models is made to the place of use.
Before delivery, a transport questionnaire will be provided to ensure smooth transport.
9. Manufacturer – asecos
The manufacturer asecos develops safety systems for the storage of hazardous substances and lithium batteries. About 300 employees work on solutions for safe workplaces in industry, laboratories and technology.
In addition to production, the company offers:
-
Maintenance and service
-
Technical consulting
-
Support with legal requirements
The aim is to achieve as high as possible protection of people, environment and operating facilities.
10. For You in Use
If you have any questions, please feel free to contact us.
We look forward to hearing from you!
| Alarm forwarding: | Yes |
|---|---|
| Fire resistance: | 90 min |
| Fire suppression: | Optional |
| Fire test procedure: | VDMA 24994 |
| Internal dimensions (mm): | 1 050 x 545 x 1 633 |
| Load function: | Yes |
| Maximum energy density (kWh): | 16.5 |
| Number of doors: | 2-leaf hinged |
| Number of drawers: | 0 |
| Number of shelves: | 3, 4, 5, 6 |
| Outer dimensions (mm): | 1 193 x 650 x 1 953 |
| Place of deployment: | Indoor area |
| Power supply: | 1 power strip per storage level (in EU version) |
| Refractory: | Yes |
| Wardrobe type: | Freistehender Schrank |
| Weight (kg): | 586 |
Downloads
FAQ
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
Accessory
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
