VLITEX Car Service Set PREMIUM / Transport extinguishing blanket / fire blanket for electric cars & combustion engines
- Available in 2 sizes
- Heat resistance: 1,300°C (short-term), 1,000°C (long-term)
- Carrier bags included
Do you have some questions about this product?
- Your personal contact person
- Name: Petra Fürbeck
- E-Mail: info@lion-care.com
- Phone: +49 (0) 7151 - 256 4817
Technical data
| Dimensions (mm): | 4 000 x 7 000 (Floor), 6 000 x 7 000 (Top) |
|---|---|
| Heat resistance (permanent) ° C: | 1 000 |
| Heat resistance (short-term) ° C: | 1 300 |
| Included filler material: | without filler material |
| Length of blanket (mm): | 6 000 - 8 000 |
| Material: | Fiber optic fabric |
| Packaging type: | Mountain systems |
| Permeable?: | No |
| Suitable for: | Car |
| Volume (l): | > 600 |
| Weight (kg): | 49 |
| Width of blanket (mm): | 6 000 - 8 000 |
Product information „VLITEX Car Service Set PREMIUM / Transport extinguishing blanket / fire blanket for electric cars & combustion engines“
1. Brief overview

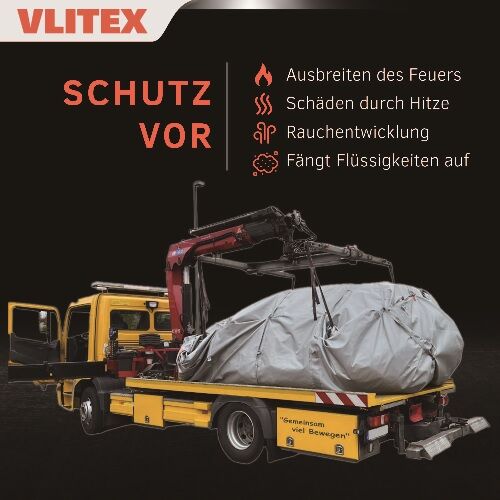

The VLITEX Car Service Set PREMIUM is designed for covering damaged or burning (electric) vehicles. The set is used to isolate flames under the ceiling in the best possible way, reduce the spread of smoke and toxic gases, lower the temperature and limit explosions under the ceiling.
Fires involving lithium-ion batteries pose a particular challenge, as conventional fire extinguishers often reach their limits here. The VLITEX Car Service Set PREMIUM offers a simple, quickly deployable option for containing a fire source and thus protecting the surrounding area.
Please note: The term "fire blanket" is often used in common parlance. In technical terms, this is a fire containment or fire protection blanket - the fire is primarily contained, not actively extinguished.
2. Areas of application & conditions of use
-
Fire containment and enclosure of fires or sources of fire with lithium-ion batteries
-
Suitable for:
-
(E-)vehicles such as passenger cars
-
Developed for workshops and towing services
-
-
Use as a heat shield and for controlled containment of fires:
-
Containment of flames
-
Reduction of smoke and gas emissions
-
Limits the temperature in the surrounding area
-
-
Suitable for preventive use, e.g. for covering functional but endangered vehicles during storage to prevent the possible spread of fire.
Note on the standard situation ("fire blanket"):
The European standard DIN EN 1869:2019-10 refers to fire blankets for grease and cooking oil fires (deep-frying fats up to 3 l). The fire control set offered here is not certified according to this standard and is not intended for cooking oil and cooking fat fires. The intended use is the containment or limitation of Li-ion battery fires.
3. Technical data
3.1 Material & structure
- Material: HT glass fiber fabric
- Coating: Polymer coating
- Properties:
- Non-flammable
- High cut protection
- High electrical resistance
- High smoke minimization
3.2 Temperature resistance
- Short-term temperature resistance: up to 1,300 °C
- Long-term temperature resistance: 1,000 °C
3.3 Overview of variants
The fire barrier set is available in several sizes to provide a suitable cover for every vehicle size:
The set consists of an upper and a lower cover. The lower cover is fitted with metal eyelets, while the upper cover has straps.
The set is supplied with protective fleece and two carrying bags.
| Car Service Set PREMIUM M | Car Service Set PREMIUM XL | |
| Top cover dimensions | 6 x 7 m | 6 x 11 m |
| Dimensions bottom ceiling | 4 x 7 m | 4 x 10 m |
| Weight | approx. 49 kg | approx. 77 kg |
Note: Size and weight specifications with approx. ±5 % tolerance.
4. Approvals & safety features
- Conforms to DIN SPEC 91489 (fire protection blankets for lithium-ion batteries)
- Non-combustible in accordance with DIN EN 13501 (A2)
- Proven cut protection in accordance with ISO 13997
- High electrical resistance (DIN 54345-1)
The ceiling has also been tested in tests (including in a vehicle safety laboratory) for temperature shielding, smoke minimization and effectiveness as a heat shield.
5. Notes on use & operation
Basic principle of use:
- The lower part of the set is spread out to place the (damaged) vehicle on it
- The vehicle is protected against scratches using the protective fleece
- The top cover is placed over the vehicle
- The lower cover is now folded up and lashed together with the fastening straps and metal fasteners
- Depending on the fire load, the fire is usually smothered or significantly contained within a short time
- To support sufficient cooling (below approx. 100 °C), the blanket should remain on the object for as long as possible
Important notes:
- After removing the blanket, check that there is no re-ignition - even individual battery cells can react again with a time delay
- If possible, always use personal protective equipment (PPE)
- The fire department should always be called in the event of a fire
Multiple use:
- The fire protection blanket can always be used several times
- After a fire, further use depends on the fire load and the condition of the blanket - damaged blankets must not be used again
Storage/storage:
- Store blankets in bags
- Store in a dry place; do not place any loads directly on the blankets
6. Conclusion
The Car Service Set PREMIUM is designed for the containment and limitation of car fires in connection with lithium-ion batteries. Thanks to its heat-resistant glass fiber fabric with polymer coating, tested temperature resistance and electrical insulation effect, it supports controlled burning behavior and the reduction of smoke and gas release.
7. In use for you
If you have any questions, please do not hesitate to contact us. We look forward to exchanging ideas with you.
| Dimensions (mm): | 4 000 x 7 000 (Floor), 6 000 x 7 000 (Top) |
|---|---|
| Heat resistance (permanent) ° C: | 1 000 |
| Heat resistance (short-term) ° C: | 1 300 |
| Included filler material: | without filler material |
| Length of blanket (mm): | 6 000 - 8 000 |
| Material: | Fiber optic fabric |
| Packaging type: | Mountain systems |
| Permeable?: | No |
| Suitable for: | Car |
| Volume (l): | > 600 |
| Weight (kg): | 49 |
| Width of blanket (mm): | 6 000 - 8 000 |
Downloads
FAQ
Unfortunately not. Fires caused by lithium-ion batteries are chemical fires that are independent of oxygen. They continue to burn even if they are deprived of oxygen or if you try to extinguish them with water as you would conventionally.
Nevertheless, the fire brigade uses water to cool the burning battery. Even after hours, a battery can ignite again.
The only thing that helps here is a controlled burn-off and fire containment to prevent the fire from spreading to the surrounding area due to high temperatures or escaping flames.
The name “fire blanket” is common, but misleading. These special, high-temperature-resistant blankets do not extinguish battery fires. What works on the grill does not work on lithium batteries.
With fire blankets, the name says it all: they contain the fire and thus also the damage, giving you time to alert the local fire brigade, who will decide on further fire-fighting measures.
Find out more about this topic in our blog articles:
https://www.lion-care.com/aktuelles/blog/brandbekaempfungsstrategien-fuer-elektrofahrzeuge
https://www.lion-care.com/aktuelles/blog/akku-braende-bekaempfen-kuehlen-kontrollieren-oder-abwarten
The German DIN SPEC 91489 provides clarity for stakeholders in various industries.
DIN SPEC 91489 contains several requirements for fire-retardant ceilings, the most important of which are listed below:
- General requirements
Properties such as loops, size of the blanket, storage, etc. are mentioned. - Thermal resistance
The DIN SPEC requires a minimum ISO13591-1 classification B. However, the Fire Isolator fire blankets have a higher (the highest) classification: A1. - Mechanical stability
Resistance to cutting, stability of loops, etc. - Electrostatic charge
- Protection against electric shock
- Chemical resistance
- Markings
- Manufacturer information
- Minimum content of the test report
- Training for use by first responders
DIN SPEC 91489 requires that fire blankets can be used quickly and easily by two trained responders wearing personal protective equipment and breathing apparatus.
In the event of a battery fire, such a blanket provides valuable time to alert the fire department and prevent the flames from spreading. This applies to all possible uses, be it a cell phone, a laptop, an e-scooter, a factory robot or an electric car.
This question will be answered by the local fire department, because they are always to be alerted and they initiate further fire-fighting measures.
It is highly dangerous to let a burning electric car burn out under such a blanket and wait until it is all over. A battery fire could last for days and reignite repeatedly. Among other things, the fire produces toxic gases that must be contained as quickly as possible.
The right size of fire blanket depends largely on the size of the burning object and its size. An e-scooter requires a smaller blanket than an e-car or a forklift.
Roughly measure how large the blanket needs to be so that it still lies flat on the ground around the object, with a 1-2m overhang. Don't forget to take the height into account (e.g. SUV). This is the only way to ensure that toxic gases remain under the blanket for the most part and that flames have no chance of igniting the area around the source of the fire.
Here are some examples of common sizes:
Automobiles:
Larger vehicles such as station wagons, SUVs, sedans, forklifts: The fire blanket should be at least 6x8 meters (taking into account the height of the vehicle).
Medium-sized vehicles: The fire blanket should be at least 5x6m in size.
Smaller electric vehicles, e.g. warehouse robots: The fire blanket should be at least 3x4m in size.
Appliances with batteries, such as cordless screwdrivers, garden tools: The fire blanket should be at least 1.5x1.5m in size.
Cell phones and laptops: The fire blanket should be at least 1.5x1.5m in size.
There are also differences in the materials used. The fire blankets differ, for example, in their composition, material thickness and temperature resistance. This is crucial, for example, if the blankets are to be used directly on batteries, not installed, as in vehicles.
When making your purchase, don't forget the weight of the blankets. A large blanket can quickly weigh 25-45 kg. Here, for example, there is the option of storing it in a trolley.
In the event of a fire and the active use of the blanket, no. We strongly advise against it. Firstly, the extreme temperatures can cause damage to the material that cannot be reliably assessed by laypersons. Secondly, fires produce toxic gases that are harmful to health and can adhere to the material.
The ceiling can be used repeatedly for protection if there is no damage.
Here, too, the size and the fire behavior of the object are crucial. An e-bike battery reaches different temperatures than the fire of an electric car.
When an electric vehicle catches fire, temperatures of up to 1,000°C can be reached – and even peaks of 1,200°C for a short time.
Due to the different fire behavior, it is not possible to make an accurate statement about the temperatures that will arise and the duration of the fire.
Accessory
Unfortunately not. Fires caused by lithium-ion batteries are chemical fires that are independent of oxygen. They continue to burn even if they are deprived of oxygen or if you try to extinguish them with water as you would conventionally.
Nevertheless, the fire brigade uses water to cool the burning battery. Even after hours, a battery can ignite again.
The only thing that helps here is a controlled burn-off and fire containment to prevent the fire from spreading to the surrounding area due to high temperatures or escaping flames.
The name “fire blanket” is common, but misleading. These special, high-temperature-resistant blankets do not extinguish battery fires. What works on the grill does not work on lithium batteries.
With fire blankets, the name says it all: they contain the fire and thus also the damage, giving you time to alert the local fire brigade, who will decide on further fire-fighting measures.
Find out more about this topic in our blog articles:
https://www.lion-care.com/aktuelles/blog/brandbekaempfungsstrategien-fuer-elektrofahrzeuge
https://www.lion-care.com/aktuelles/blog/akku-braende-bekaempfen-kuehlen-kontrollieren-oder-abwarten
The German DIN SPEC 91489 provides clarity for stakeholders in various industries.
DIN SPEC 91489 contains several requirements for fire-retardant ceilings, the most important of which are listed below:
- General requirements
Properties such as loops, size of the blanket, storage, etc. are mentioned. - Thermal resistance
The DIN SPEC requires a minimum ISO13591-1 classification B. However, the Fire Isolator fire blankets have a higher (the highest) classification: A1. - Mechanical stability
Resistance to cutting, stability of loops, etc. - Electrostatic charge
- Protection against electric shock
- Chemical resistance
- Markings
- Manufacturer information
- Minimum content of the test report
- Training for use by first responders
DIN SPEC 91489 requires that fire blankets can be used quickly and easily by two trained responders wearing personal protective equipment and breathing apparatus.
In the event of a battery fire, such a blanket provides valuable time to alert the fire department and prevent the flames from spreading. This applies to all possible uses, be it a cell phone, a laptop, an e-scooter, a factory robot or an electric car.
This question will be answered by the local fire department, because they are always to be alerted and they initiate further fire-fighting measures.
It is highly dangerous to let a burning electric car burn out under such a blanket and wait until it is all over. A battery fire could last for days and reignite repeatedly. Among other things, the fire produces toxic gases that must be contained as quickly as possible.
The right size of fire blanket depends largely on the size of the burning object and its size. An e-scooter requires a smaller blanket than an e-car or a forklift.
Roughly measure how large the blanket needs to be so that it still lies flat on the ground around the object, with a 1-2m overhang. Don't forget to take the height into account (e.g. SUV). This is the only way to ensure that toxic gases remain under the blanket for the most part and that flames have no chance of igniting the area around the source of the fire.
Here are some examples of common sizes:
Automobiles:
Larger vehicles such as station wagons, SUVs, sedans, forklifts: The fire blanket should be at least 6x8 meters (taking into account the height of the vehicle).
Medium-sized vehicles: The fire blanket should be at least 5x6m in size.
Smaller electric vehicles, e.g. warehouse robots: The fire blanket should be at least 3x4m in size.
Appliances with batteries, such as cordless screwdrivers, garden tools: The fire blanket should be at least 1.5x1.5m in size.
Cell phones and laptops: The fire blanket should be at least 1.5x1.5m in size.
There are also differences in the materials used. The fire blankets differ, for example, in their composition, material thickness and temperature resistance. This is crucial, for example, if the blankets are to be used directly on batteries, not installed, as in vehicles.
When making your purchase, don't forget the weight of the blankets. A large blanket can quickly weigh 25-45 kg. Here, for example, there is the option of storing it in a trolley.
In the event of a fire and the active use of the blanket, no. We strongly advise against it. Firstly, the extreme temperatures can cause damage to the material that cannot be reliably assessed by laypersons. Secondly, fires produce toxic gases that are harmful to health and can adhere to the material.
The ceiling can be used repeatedly for protection if there is no damage.
Here, too, the size and the fire behavior of the object are crucial. An e-bike battery reaches different temperatures than the fire of an electric car.
When an electric vehicle catches fire, temperatures of up to 1,000°C can be reached – and even peaks of 1,200°C for a short time.
Due to the different fire behavior, it is not possible to make an accurate statement about the temperatures that will arise and the duration of the fire.
