LOXXER LOXK2000 STANDARD battery charging cabinet

€8,090.00 *

plus VAT.
Please note: Notes on delivery time

Free shipping (Germany, mainland)!

Shippingtime: On request

  • LOXSHSLOX20S
Any Questions?
Our employee Ingo Jüstel will be happy to assist you:
+49 7151 - 2564811 or  info@lion-care.com
The storage and charging cabinet has been developed for indoor use to safely store and charge... more
"LOXXER LOXK2000 STANDARD battery charging cabinet"
Charging function: yes
Installation site: Inside
Fireproof: Yes
Fire resistance: 60 min
Cabinet type: Floor cabinet
Number of doors: 2-leaf
Number of shelves: 4
Power supply: 1 strip á 8 x 230 V per storage shelf
External dimensions: 1930 x 1141 x 758 mm
Internal dimensions: 1590 x 1021 x 607 mm
Weight: 410 kg


The storage and charging cabinet has been developed for indoor use to safely store and charge lithium-ion batteries, focusing mainly on batteries for bicycles, scooters, hand tools and similar applications.

Dimensions and features of the LOXK2000 charging cabinet.

The LOXK2000 Standard charging cabinet weighs approx. 410 kg and has external dimensions of 1930 x 1141 x 758 mm and internal dimensions of 1590 x 1021 x 607 mm. The power supply is 380 V. The cabinet should be installed indoors under normal conditions. The cabinet has 4 shelves inside. A socket strip with 8 sockets is fitted in each shelf.

Technical features of the charging cabinet: Fire-retardant materials so that there is enough time to take further measures

The cabinet is made of materials with a fire resistance rating of 60 minutes, which means that it protects the batteries and other items stored in the cabinet for a considerable period of time in the event of a fire. A pressure relief valve reduces the pressure in the cabinet in the event of an explosion and lowers the internal pressure to a normal level.

A comprehensive detection system is available ex works

The cabinet has a smoke detector as well as a visual and audible alarm system that triggers in the event of a fire.

Fire containment for at least 60 minutes

This system from Loxxer offers 60 minutes of fire protection and can ensure that the fire remains confined to the inside of the cabinet.

Functions of the cabinet and the integrated sockets

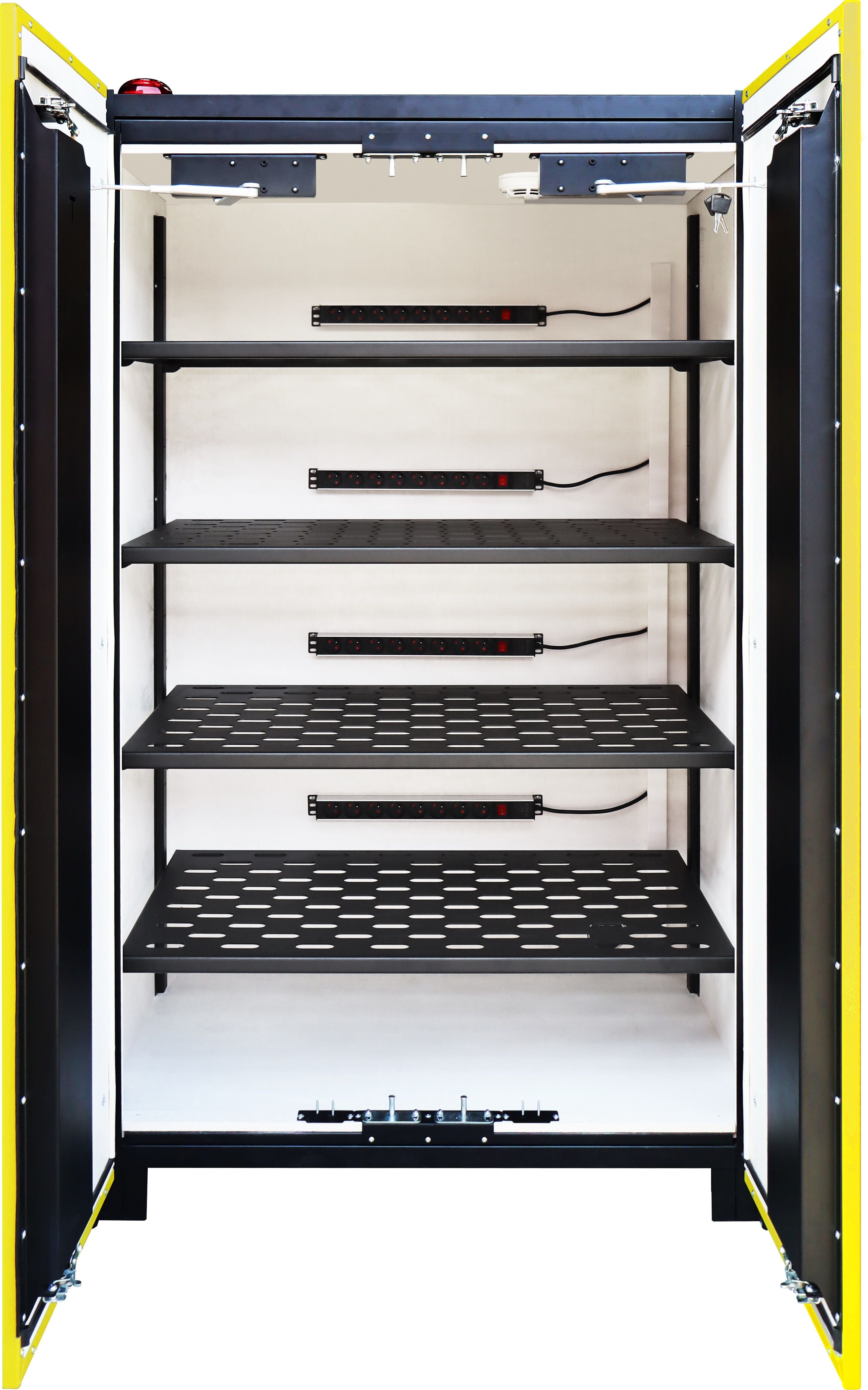

The shelves have a grid structure. There is a socket strip with 8 sockets on each level.

A pressure relief valve reduces the pressure in the event of a deflagration inside the cabinet

A pressure relief valve in the event of a battery explosion, opens in the event of fire and reduces the energy accordingly.

Further features of the battery charging cabinet

Other features include hinged cabinet doors, adjustable support feet for aligning the cabinet and a passive ventilation system for heat dissipation.

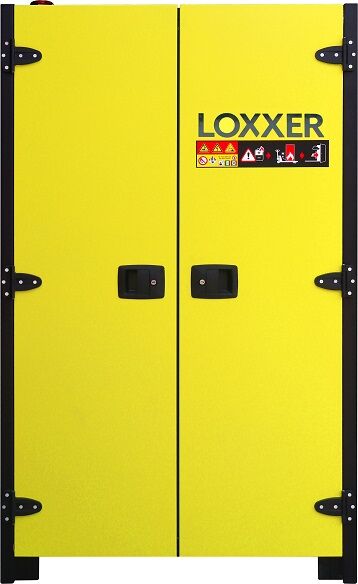

Self-locking doors

The enclosure has two self-closing doors equipped with a multi-point locking system. The doors can be locked with a key.

Priority areas and operation with smoke detection

The operation of the charging cabinet is designed to ensure the safety of users and the integrity of the stored batteries. The four priority areas include

  1. Ensuring safe operation
  2. Detection of smoke and fire
  3. Alerting in the event of danger
  4. Control of lithium fires in the cabinet to prevent spreading

In the event of smoke detection, the charging cabinet performs a series of predefined steps to minimize potential hazards:

  • Triggering an audible and visual alarm via a siren and a red rotating light to alert users.
  • Interrupting the battery charging process to prevent the further accumulation of energy.
  • Overall, the charging cabinet provides a safe and reliable solution for charging and storing lithium-ion batteries for bikes and scooters, with its technical features and safety precautions minimizing potential risks.

General guidelines for battery storage

There are currently no legal regulations for the storage of lithium batteries / lithium-ion batteries. Only VdS Schadenverhütung GmbH issues general safety rules for damage prevention in its publication VdS 3103 : 2019-06 (03). It is advisable to clarify your requirements with your property insurance company in advance.

LOXXER - High quality and innovative solutions

At Loxxer in Roselare (B), dedicated and forward-thinking professionals work together who have recognized the increasing challenges in dealing with lithium fires and are actively looking for solutions. As fire safety is of paramount importance, Loxxer constantly strives for innovative products in which high quality craftsmanship and reliability are fundamental requirements.

In action for you

Please do not hesitate to contact us if you have any questions. We look forward to hearing from you!

Charging function: yes
Outer width: 80 - 120 cm
Außenhöhe: 100 - 200 cm
Installation site: Inside
Fireproof: Yes
Fire resistance: 60 min
Cabinet type: Floor cabinet
Number of doors: 2-leaf
Number of shelves: 4
Power supply: 1 strip á 8 x 230 V per storage shelf
External dimensions: 1930 x 1141 x 758 mm
Internal dimensions: 1590 x 1021 x 607 mm
Weight: 410 kg
Loxxer battery charging cabinets Product concept Loxxer image video more

Loxxer battery charging cabinets Product concept

Loxxer image video

FAQ
Fragen & Antworten zum Artikel ... mehr
Kann ich Batterie-Ladeschränke im Freien / Lagerhalle / Garage aufstellen?

Standard-Sicherheitsschränke sind für den Innenbereich konzipiert, so dass eine Nutzung im Außenbereich nicht möglich ist.
Die Brandschutzplatten, die in den Schränken verbaut sind, enthalten Gips, der sehr viel Wasser enthält, welches sich bei Frost ausdehnt. Dadurch werden die Platten verformt. Es kann nicht mehr gewährleistet werden, dass ein solcher Schrank noch dicht ist oder einer Explosion standhalten kann.

Wann kann ich einen Akkuschrank ohne Feuerwiderstandsfähigkeit kaufen?

Wenn Sie bereits über einen geeigneten Raum verfügen, der baulich feuerbeständig ist, dann benötigen Sie nicht zwangsweise einen Sicherheitsschrank, der den Brand eindämmt.

Bitte vergessen Sie jedoch nicht, dass die Schäden durch einen Akkubrand immense und auch giftige Verunreinigungen mit sich bringen, deren Entsorgung schnell zu hohen Kosten führen kann.

Darüber hinaus können Sie möglicherweise bis zur endgültigen Behebung des Schadens – je nach Schadensort - nicht wie gewohnt weiterarbeiten.
