LOXXER LOXK1100 VDMA loading cabinet
for lithium-ion batteries / lithium-ion rechargeable batteries
incl. VAT.
Please note: Notes on delivery time
Free shipping (Germany, mainland)!
Shippingtime: 2-3 Wo.
- Article no: LOXSHSLOX1100
Questions about the article?
Our staff member Petra Fürbeck is happy to help you:
+49 (0) 7151 - 256 4817 or info@lion-care.com
| Charging function: | Yes |
| Installation site: | Indoor area |
| Fireproof: | Yes |
| Fire resistance: | 60 min, 90 min with aerosol |
| Cabinet type: | Floor cabinet |
| Number of doors: | 1-leaf |
| Number of shelves: | 2 |
| Power supply: | 1 strip á 8 x 230 V |
| External dimensions (mm): | 584 x 760 x 1 126 |
| Internal dimensions (mm): | 500 x 680 x 760 |
| Weight (kg): | 162,5 |
1. Brief overview

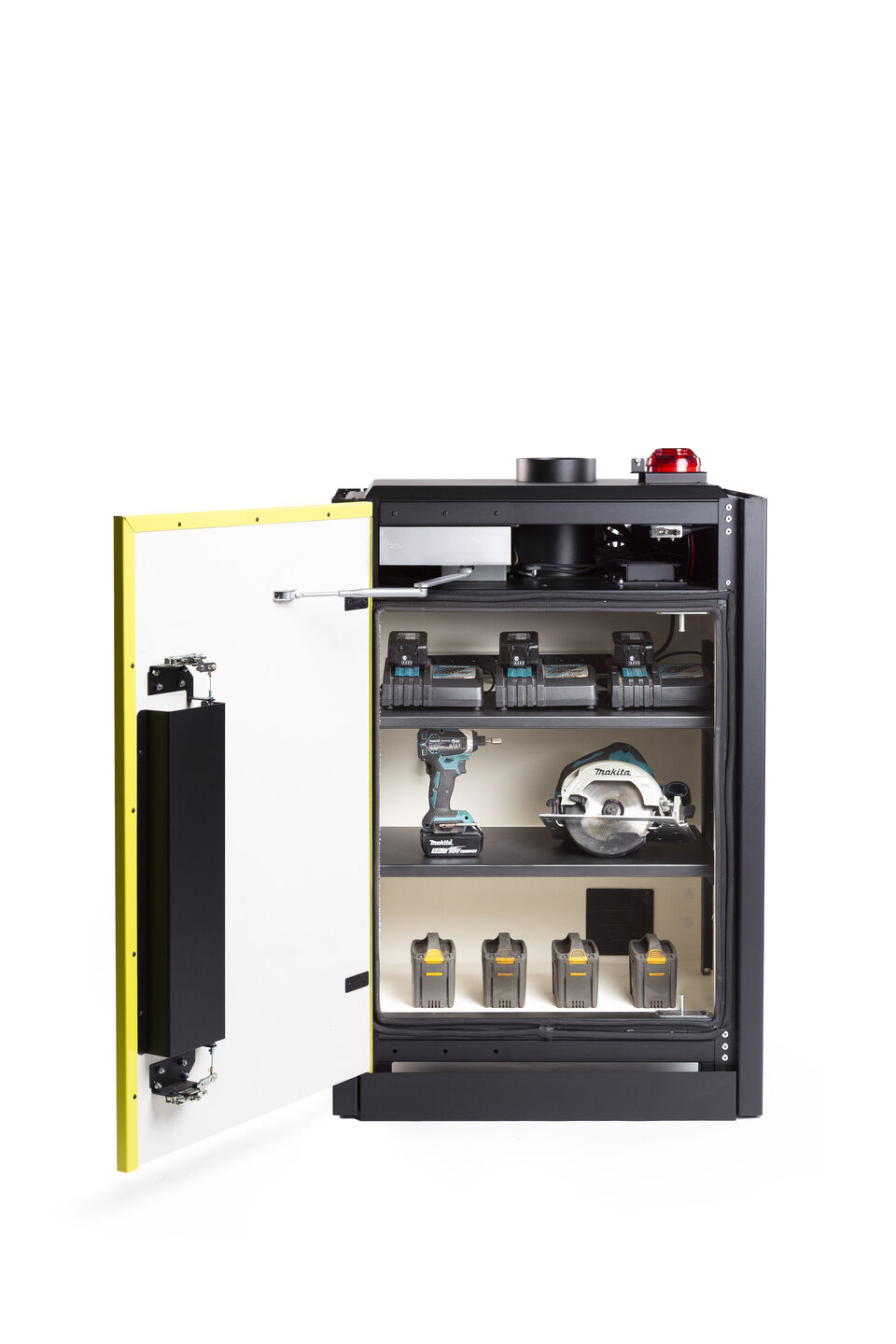

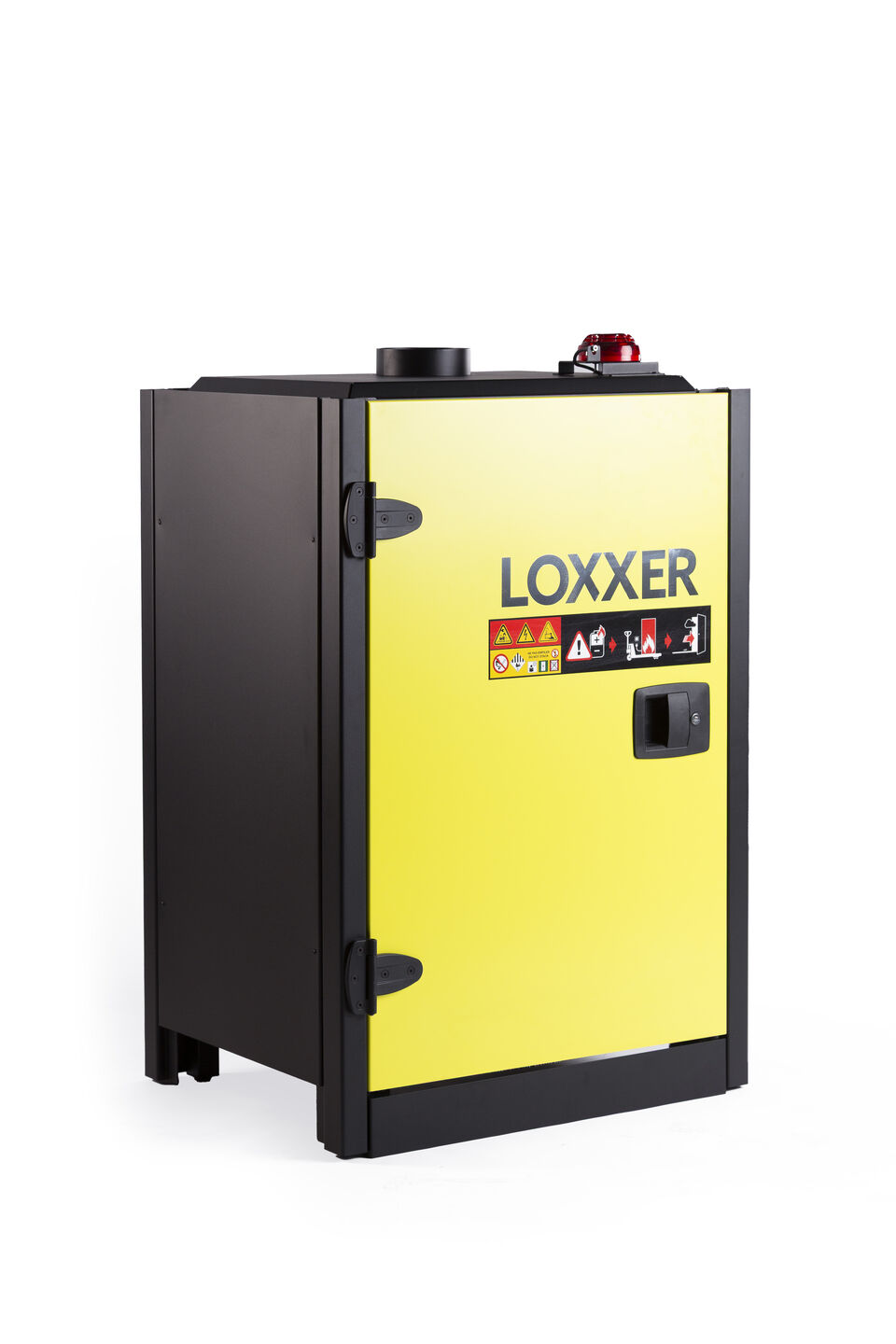

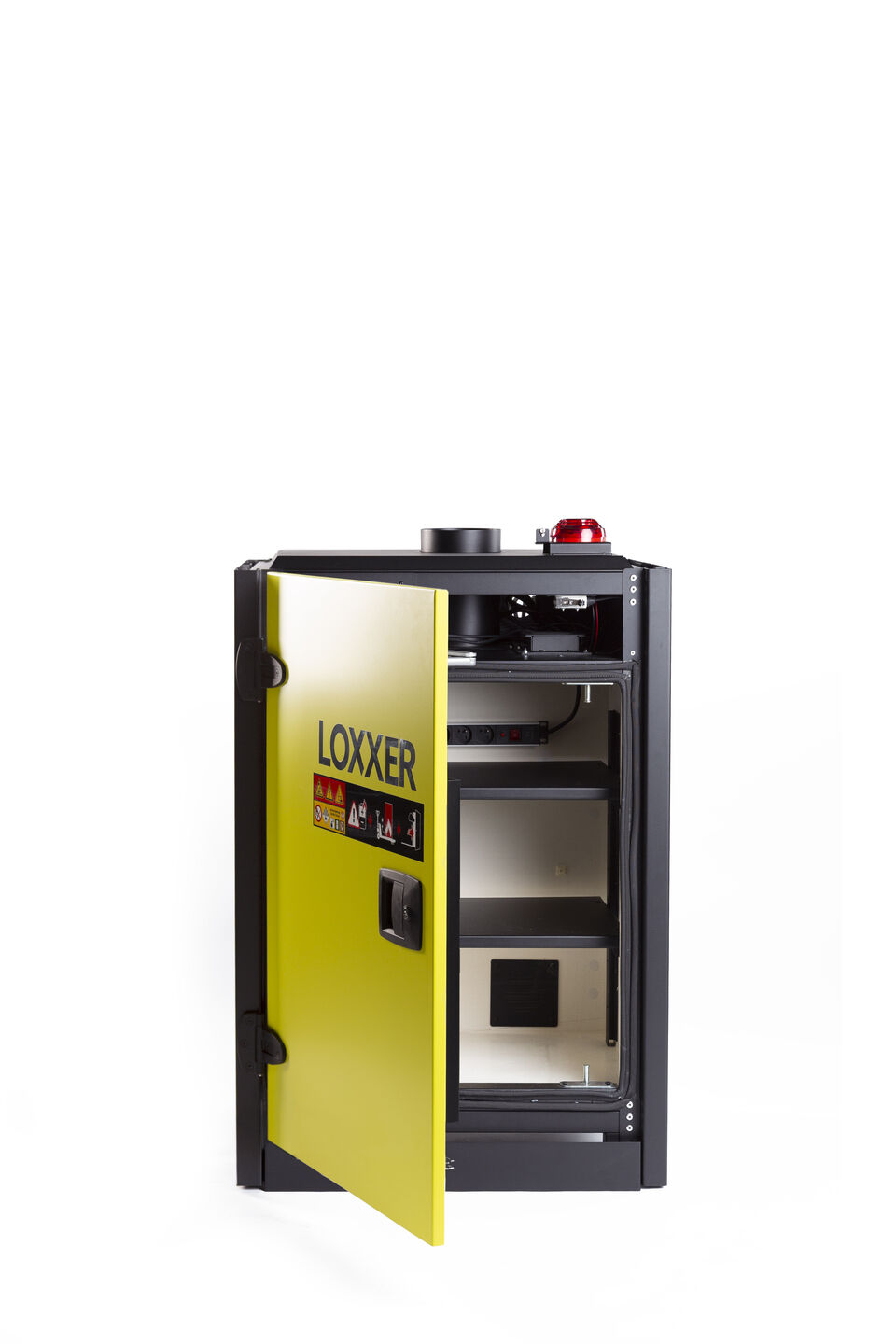

The LOXXER1100 VDMA Cabinet (LOXK1100) is a storage and charging cabinet for lithium-ion batteries that was developed for indoor use. It is used for the safe storage and simultaneous charging of batteries, particularly from the e-bike, e-scooter, hand tools and consumer applications sectors.
2. Indoor storage and charging of lithium-ion batteries
- suitable for batteries from e-mobility, bicycles, scooters, power tools and similar applications
- use in workshops, service operations, businesses and charging areas
- installation under normal ambient conditions indoors
- recommendation: Coordination of storage concepts with the property insurance company in accordance with VdS recommendations (e.g. VdS 3103)
3. Technical data LOXXER1100 VDMA
- External dimensions (L×W×H): 584 x 760 x 1126 mm
- Internal dimensions (L×W×H): 500 x 680 x 760 mm
- weight: approx. 162.5 kg
- power supply: 230 V / 16 A
- shelves: 2 adjustable, fire-resistant shelves
- max. Load capacity per shelf: 70 kg
- socket strip: 8 sockets (depending on the type of strip)
- max. Energy density per storage level: 3kWh
- installation: Indoors, level surface
- leveling: Adjustable feet, magnetically removable floor panel
4. Approvals & safety features
- Constructed from fire-retardant materials
- pressure relief valve to reduce the internal pressure in the event of an incident
- fire-resistant shelves to limit the spread of fire between levels
- developed in accordance with current dangerous goods legislation and safety requirements
5. Notes on use & operation
- Batteries may only be charged and stored with the door closed
- self-closing hinged door with contact sensor for status monitoring
- active ventilation to limit heat development during normal operation
- connection option to an external exhaust air system available
- use by trained personnel recommended
- check the electrical and safety-relevant components before commissioning
6. Monitoring, alarm and protection functions
- Integrated smoke detector and temperature sensor for early hazard detection
- audiovisual alarm system with RGB LED for status display
- reactions to smoke or temperature detection:
- Triggering of a visual and audible alarm
- Interruption of the charging process
- Switching off the active ventilation
- Forwarding to a fire alarm control panel (if connected)
- Activation of the optional aerosol fire suppression system (if available)
7. Options / variants / special equipment
- Optional aerosol fire suppression system for active fire control
- connection to external fire detection and exhaust air systems possible
- adaptations depending on application requirements on request
8. Conclusion
The LOXXER1100 VDMA Cabinet is a solution for the safe storage and simultaneous charging of lithium-ion batteries indoors. Thanks to its fire-retardant design, integrated sensors, alarm functions and optional fire suppression, the cabinet supports controlled risk management when handling lithium batteries in commercial and technical environments.
9. In use for you
Please do not hesitate to contact us if you have any questions. We look forward to hearing from you!
| Outer width (mm): | 600 - 800 |
| Charging function: | Yes |
| External height (mm): | 1 000 - 2 000 |
| Installation site: | Indoor area |
| Fireproof: | Yes |
| Fire resistance: | 60 min, 90 min with aerosol |
| Cabinet type: | Floor cabinet |
| Number of doors: | 1-leaf |
| Number of shelves: | 2 |
| Power supply: | 1 strip á 8 x 230 V |
| External dimensions (mm): | 584 x 760 x 1 126 |
| Internal dimensions (mm): | 500 x 680 x 760 |
| Weight (kg): | 162,5 |
Loxxer battery charging cabinets Product concept
Loxxer image video
Standard security cabinets are designed for indoor use, so they cannot be used outdoors.
The fire protection panels installed in the cabinets contain gypsum, which contains a lot of water, which expands when frozen. This deforms the panels. It can no longer be guaranteed that such a cabinet is still sealed or can withstand an explosion.
If you already have a suitable room that is structurally fire-resistant, then you do not necessarily need a safety cabinet to contain the fire.
However, please do not forget that the damage caused by a battery fire involves immense and also toxic contamination, the disposal of which can quickly lead to high costs.
In addition, you may not be able to continue working as usual until the damage has been finally repaired - depending on the location of the damage.
